Solid propellants — fuel + oxidizer in polymer matrix

WHAT is a solid propellant?

WHY carry its own oxidizer? Because a rocket must work in vacuum. An air-breathing engine (jet) fails above the atmosphere. A rocket sidesteps this by packing oxygen into the chemistry itself.

WHY a polymer matrix? The binder does three jobs at once:

1. Holds the fine oxidizer crystals and metal powder in a solid, castable, crack-free shape.
2. Acts as structural material — the grain must survive its own weight and acceleration.
3. Burns as fuel — HTPB (hydroxyl-terminated polybutadiene) is a hydrocarbon, so it contributes energy too.

HOW does it produce thrust? (derive from first principles)

Combustion converts the solid into hot gas at high pressure inside the chamber. The gas escapes through the nozzle at high speed. Thrust is the reaction to throwing mass backward.

Start from momentum conservation. In time $dt$, the motor ejects mass $dm$ backward at exhaust speed $v_e$ (relative to rocket). The backward momentum given to the gas is $v_e\,dm$. By Newton's third law an equal forward momentum is given to the rocket:

$F_{\text{thrust}} \;=\; \frac{d p}{dt} \;=\; v_e \frac{dm}{dt} \;=\; \dot m\, v_e$

Why this step? Force = rate of change of momentum. The rocket gains forward momentum at exactly the rate the exhaust carries it backward.

If exhaust pressure $p_e$ at the nozzle exit (area $A_e$) differs from ambient pressure $p_a$, there is an extra pressure term:

$\boxed{F = \dot m\, v_e + (p_e - p_a)A_e}$

Burn rate law (Saint-Robert / Vieille's law):

$r = a\,p_c^{\,n}$

$p_c$ = chamber pressure, $a$ = temperature-dependent constant, $n$ = pressure exponent. This is empirical but crucial: it says burn rate rises with pressure. Stability requires $n<1$ — otherwise a pressure spike burns faster → more gas → even higher pressure → runaway explosion.

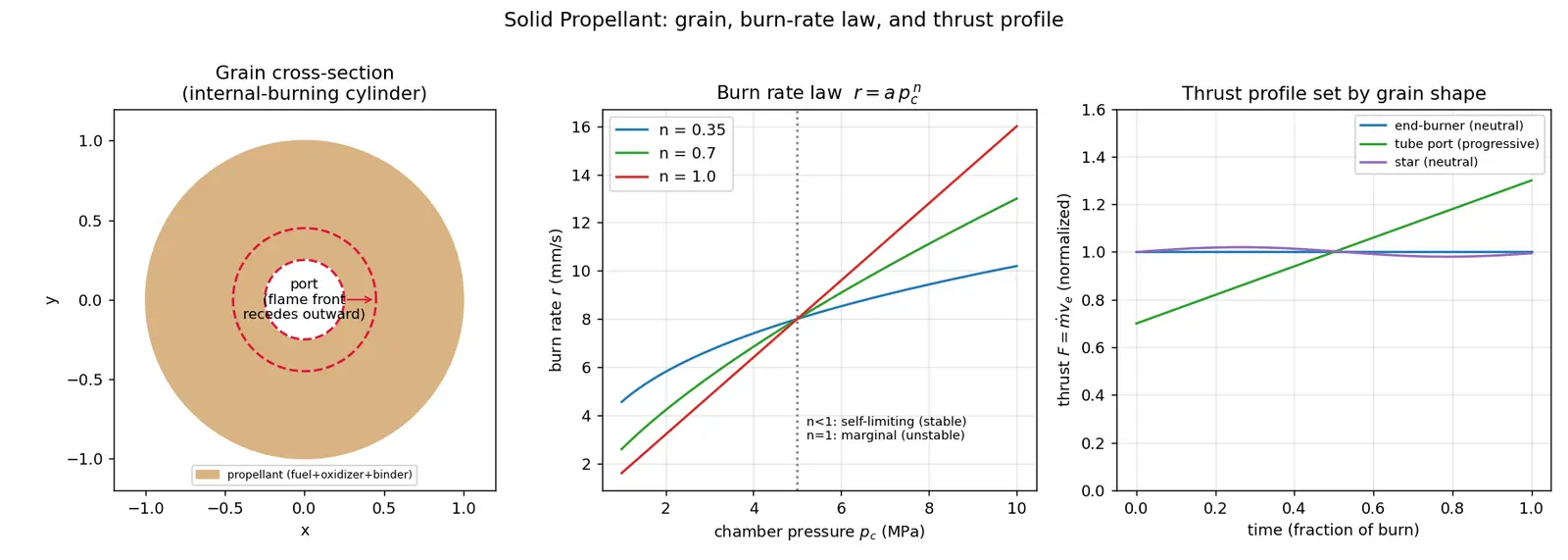

Grain geometry controls the thrust curve

Because $\dot m \propto A_b$, the shape of the burning surface over time shapes the thrust-vs-time curve:

• End-burner (cigarette burn): flat constant $A_b$ → nearly constant thrust, long duration.
• Internal cylindrical port: $A_b$ grows as the port widens → thrust rises (progressive).
• Star-shaped port: clever geometry keeps $A_b$ roughly constant (neutral) → flat thrust.

Worked examples

Common mistakes (steel-manned)

Recall

Connections

• Tsiolkovsky Rocket Equation — where $v_e$ and $\dot m$ feed into final velocity.
• Liquid Propellants — contrast: throttleable, restartable, separate tanks.
• De Laval Nozzle — how chamber gas is accelerated to supersonic $v_e$.
• Specific Impulse — $I_{sp}=v_e/g_0$, the efficiency figure of merit.
• Newton's Third Law — the momentum principle behind thrust.
• Combustion Chemistry — HTPB + AP + Al reaction energetics.
