Solid propellants — fuel + oxidizer in polymer matrix: Visual walkthrough

This page is the picture-story behind the parent note. If a symbol here feels unfamiliar, it is because we build it right here.

Step 1 — What "thrust" even is: a person on a skateboard throwing balls

WHAT. Before rockets, picture a person standing still on a frictionless skateboard, holding a bag of heavy balls. They throw one ball backward. They roll forward a little. Throw another — forward again.

WHY. This is the entire idea of a rocket stripped of fire and chemistry. A rocket does not "push against air." It pushes against the gas it throws away. We start here so the word "thrust" means something physical, not a formula.

PICTURE. Look at the figure. The blue person + skateboard is our system. The orange ball is the mass being thrown backward. The green arrow is the recoil — the person's forward motion. Notice: nothing outside touches them. The forward push comes purely from the backward throw.

Figure — Solid propellants — fuel + oxidizer in polymer matrix

Step 2 — The rule the whole derivation rests on: total momentum can't change by itself

WHAT. Before the throw, person + ball are still: total momentum is zero. After the throw, the ball moves backward and the person moves forward. Their two momenta must still add to zero.

WHY. Newton's Third Law says the push on the ball (backward) and the push on the person (forward) are equal and opposite. Equal-and-opposite pushes over the same time give equal-and-opposite momentum changes. Nothing from outside is pushing, so the books must balance to the same total they started at.

PICTURE. The left pan shows "before": one grey blob, still, total $= 0$ . The right pan shows "after": an orange arrow (ball, backward) and a green arrow (person, forward) of equal length. Equal arrows opposite ways → they cancel → total is still zero.

Step 3 — From one ball to a stream of gas: the tiny chunk $d m$

WHAT. A rocket doesn't throw one ball; it throws gas continuously. So we shrink one "ball" down to a tiny chunk of gas of mass $d m$ , ejected in a tiny slice of time $d t$ .

WHY. We use the letter $d$ in front of a quantity to mean "a tiny little bit of it." Why tiny? Because the exhaust leaves smoothly, not in lumps — to describe a smooth stream we add up countless tiny throws. This is the same trick calculus uses everywhere.

PICTURE. The chamber (blue) is full of hot gas. In one time-slice $d t$ , one small orange packet $d m$ squirts out the nozzle to the right at speed $v_{e}$ . The green arrow on the rocket is the matching forward recoil from just this one packet.

The backward momentum handed to that one packet is: $d p = v_{e} d m$

$d m$ ::: mass of the tiny gas packet.
$v_{e}$ ::: how fast it's thrown.
$d p$ ::: the little dollop of backward momentum it carries — and, by Step 2, the equal forward dollop the rocket receives.

Step 4 — Turn "momentum per throw" into a steady force

WHAT. Force is not momentum; force is how fast momentum is being delivered. So we divide the little momentum $d p$ by the little time $d t$ it took.

WHY. Newton's real definition of force is "rate of change of momentum," $F = d p / d t$ . We use rate (a division by time) and not the raw momentum because a rocket pushes continuously — we care about push per second, which is exactly a force.

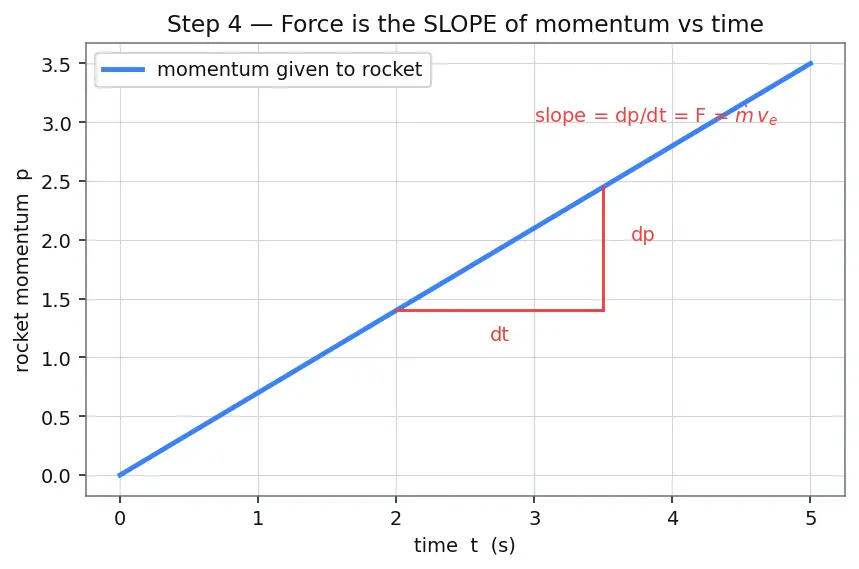

PICTURE. The graph shows momentum delivered to the rocket climbing steadily with time — a straight ramp. The slope of that ramp (rise over run, $d p / d t$ ) is drawn as a red wedge. A steeper ramp = more force. Steady slope = steady thrust.

$F_{thrust} = \frac{d p}{d t} = \frac{v _{e} d m}{d t} = v_{e} \frac{d m}{d t}$

Putting it together, the star of the show:

Step 5 — Where does $\overset{m}{˙}$ come from? The flame eating the solid

WHAT. For a solid motor, $\overset{m}{˙}$ isn't set by a valve — it's set by geometry. The burning surface recedes into the solid like a fire eating a wall. We now count how much solid disappears each second.

WHY. We need to connect the abstract $\overset{m}{˙}$ to things an engineer can carve and measure: how big the burning surface is, and how fast the flame front moves. That link is what makes solid-motor design possible.

PICTURE. The grey slab is unburnt propellant. The orange line is the flame front. In one second it moves inward by a distance $r$ (the burn rate) across the whole lit surface of area $A_{b}$ . The thin shell it eats (orange hatch) has volume $A_{b} \times r$ .

$\overset{m}{˙} = ρ_{p} A_{b} r$

$ρ_{p}$ ::: density of the propellant (kg per m³) — turns eaten volume into eaten mass.
$A_{b}$ ::: burning surface area (m²) — how much wall is on fire.
$r$ ::: linear burn rate (m/s) — how fast the flame chews inward.

Step 6 — Edge case: the pressure term (when the exit doesn't match outside)

WHAT. So far we assumed the exhaust leaves at exactly the outside pressure. Usually it doesn't. If the gas leaves the nozzle exit still pushing outward (or under-pushing), that mismatch adds or subtracts a little force.

WHY. The nozzle exit is a real area $A_{e}$ with gas pressure $p_{e}$ pressing on it, while the outside air presses back with pressure $p_{a}$ . A leftover pressure difference over that area is a force we forgot — we must add it to be honest across all altitudes.

PICTURE. Two panels. Left (sea level): thick outside arrows squeeze the plume, exit pressure barely beats ambient — small bonus. Right (vacuum): no outside push at all ( $p_{a} = 0$ ), so the full exit pressure pushes forward — bigger bonus. Same motor, more thrust in space.

$F = \overset{m}{˙} v_{e} + (p_{e} - p_{a}) A_{e}$

$p_{e}$ ::: gas pressure right at the nozzle exit.
$p_{a}$ ::: ambient (outside) pressure — high at sea level, zero in vacuum.
$A_{e}$ ::: area of the nozzle exit opening.
$(p_{e} - p_{a}) A_{e}$ ::: leftover pressure push. In vacuum $p_{a} = 0$ , so this term is biggest — that's why rockets are stronger in space. The details of getting $v_{e}$ high live in De Laval Nozzle.

Step 7 — Degenerate case: what if we stop throwing? ( $\overset{m}{˙} \to 0$ )

WHAT. Check the formula at its limit. If the flame goes out, no gas is thrown: $\overset{m}{˙} \to 0$ . And if the pressures balance too ( $p_{e} = p_{a}$ ), the whole force vanishes: $F \to 0$ .

WHY. A good formula must behave sanely at extremes. We test the boundary so the reader never meets a case we didn't cover. No throw → no push. That's the sanity check.

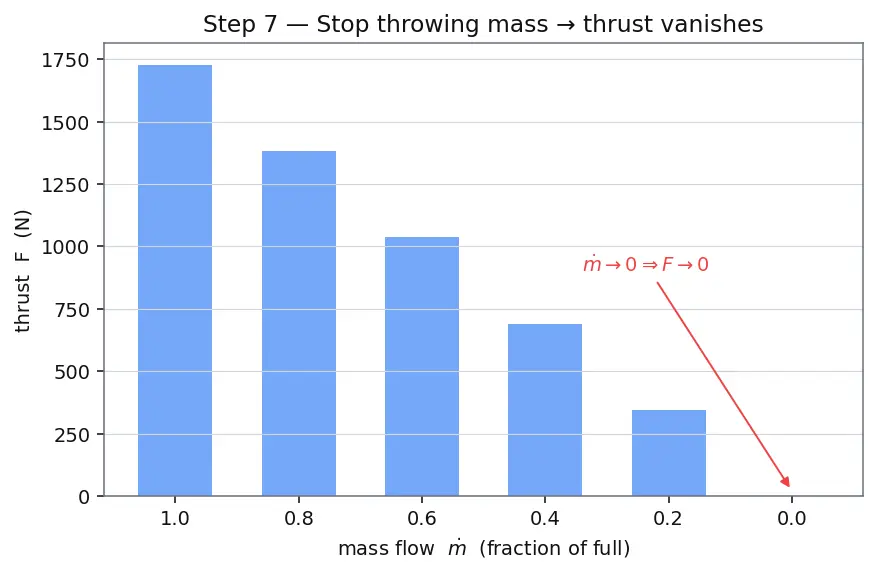

PICTURE. A slider of $\overset{m}{˙}$ from full to zero, with the thrust bar shrinking alongside it to nothing at $\overset{m}{˙} = 0$ . The formula and physics agree: stop throwing mass, stop getting pushed.

Recall

If $\overset{m}{˙} = 0$ and $p_{e} = p_{a}$ , what is $F$ ? ::: Zero — no mass thrown and no pressure mismatch means no force at all.

The one-picture summary

Read it left to right: geometry ( $ρ_{p}, A_{b}, r$ ) sets how much gas per second ( $\overset{m}{˙}$ ); the nozzle sets how fast it's thrown ( $v_{e}$ ); multiply them for the main push, and add the pressure bonus $(p_{e} - p_{a}) A_{e}$ that grows with altitude. That single chain is the whole solid rocket.

Recall Feynman retelling (cover and explain it yourself)

Imagine you're on a skateboard throwing heavy balls backward — each throw shoves you forward a bit (Steps 1–2). A rocket does the same, but instead of balls it throws a smooth stream of hot gas, one tiny chunk $d m$ at a time (Step 3). "Push" isn't the throw itself — it's how fast you deliver those throws, so we divide momentum by time and get $F = \overset{m}{˙} v_{e}$ : mass-per-second times how hard you throw it (Step 4). For a solid motor the "mass per second" isn't a knob — it's a fire eating a wall, so $\overset{m}{˙} = ρ_{p} A_{b} r$ : density times how much wall is burning times how deep it burns per second (Step 5). There's a small honesty correction: if the gas leaves still pushing harder than the outside air, that adds thrust — and since space has no outside air, rockets punch hardest in vacuum (Step 6). Finally, sanity: stop the fire, throw nothing, get nothing — $F \to 0$ (Step 7). That's the whole story in one breath.
