Foundations — Solid propellants — fuel + oxidizer in polymer matrix

This page assumes you have seen none of the notation in the parent note. We build each symbol from a picture before we ever use it. Read top to bottom; nothing is used before it is earned.

0. Two ideas you need before any symbol

Before symbols, two everyday pictures.

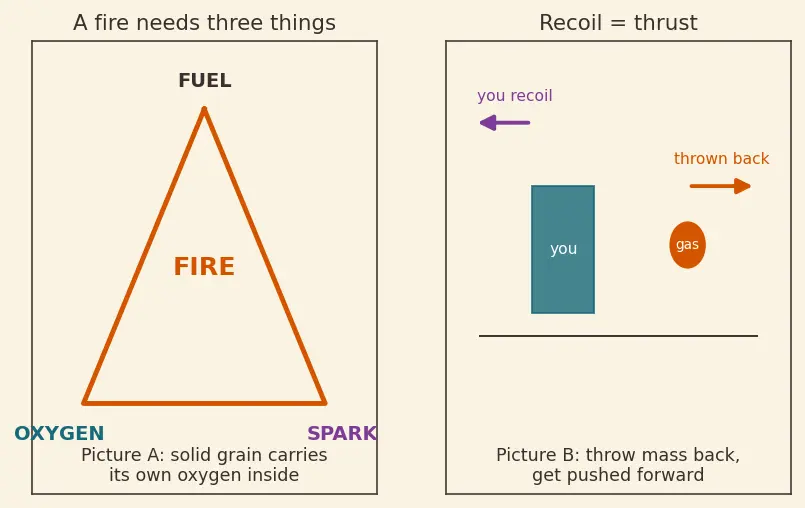

Picture A — a fire needs three things. A campfire needs fuel (wood), oxygen (air), and a spark. A solid propellant is the same except it carries its own oxygen baked into the block. Hold that thought — it explains why the block can burn in empty space.

Picture B — throwing mass backward pushes you forward. Stand on a skateboard and throw a heavy ball forward: you roll backward. A rocket throws hot gas backward, so it rolls forward. That "throwing" is the entire source of thrust.

Every symbol below is a number attached to one of these two pictures: either how the block burns (Picture A) or how hard the exhaust pushes (Picture B).

1. The grain and the port — the shapes

Picture a candle made of gunpowder-dough with a hole drilled through the length. The dough is the grain; the hole is the port. We light the inner wall of the hole, so the fire spreads outward from the port into the grain.

2. Symbols for "how the block burns"

We now name numbers describing Picture A.

2.1 Density ${\rho }_p$

Picture: a $1\text{m}\times 1\text{m}\times 1\text{m}$ cube of the propellant. Weigh it. If it holds $1800\text{kg}$, then ${\rho }_p=1800{\text{kg/m}}^3$. That is all density is: mass per box of space.

Why the topic needs it: we will want to know how much mass the fire turns into gas. The fire eats a certain volume of solid; density is the exchange rate that converts eaten volume into eaten mass.

$\text{mass}={\rho }_p\times \text{volume}$

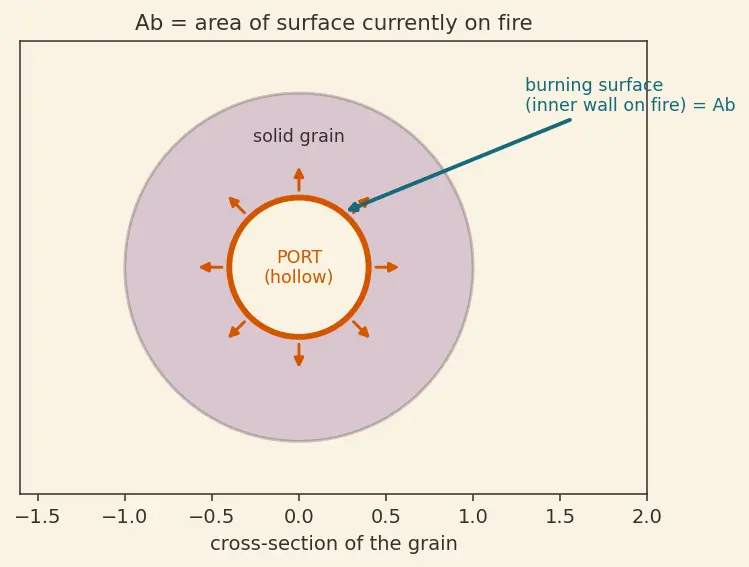

2.2 Burning surface area $A_b$

Picture the inside wall of the port glowing. If you could unroll that glowing wall flat and measure it, that flat patch's size in square metres is $A_b$.

Why the topic needs it: more burning surface = more solid being turned to gas every second. This is the single most important geometric quantity. A tiny burning patch makes little gas; a huge burning wall makes a lot.

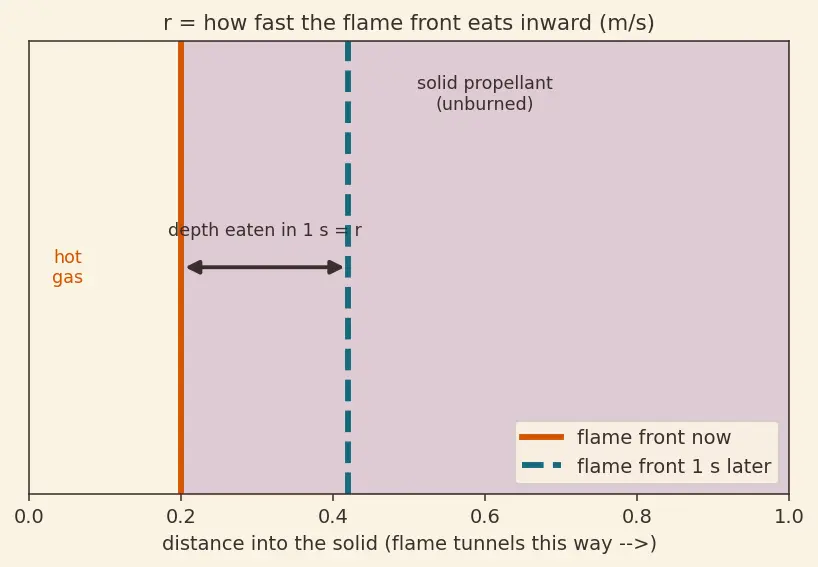

2.3 Linear burn rate $r$

Picture one point on the burning wall. In one second the flame has chewed inward by some depth — say $8$ millimetres. Then $r=8\text{mm/s}=0.008\text{m/s}$. It is how fast the fire tunnels inward, perpendicular to the surface.

Why the topic needs it: $A_b$ tells us how much wall is burning; $r$ tells us how fast each bit of wall recedes. Multiply them and you get how fast volume disappears.

2.4 Mass burn rate $\dot{m}$

What the dot means: in physics a dot over a symbol is shorthand for "rate of change per second." So $\dot{m}$ reads aloud as "m-dot" and means "mass per second." It is the same idea as speed being distance-per-second.

Now combine the last three symbols. Volume-per-second is $A_{b}r$; convert volume to mass with density ${\rho }_p$:

$\dot{m}={\rho }_p{A}_{b}r$

Why the topic needs it: this is the bridge from geometry and chemistry (density, area, burn speed) to how much exhaust leaves the motor. It feeds directly into thrust next.

3. Symbols for "how hard the exhaust pushes"

Now Picture B: throwing mass backward.

3.1 Exhaust speed $v_e$

Picture standing on the rocket and watching gas whoosh past you out the back. How fast it flies past you (not past the ground) is $v_e$. A typical value is $2400\text{m/s}$ — that's the gas leaving at over $8000\text{km/h}$.

Why the topic needs it: throwing mass backward faster pushes you forward harder. $v_e$ measures how fast we throw.

3.2 Momentum $p$ and thrust $F$

Picture the skateboard again. When you throw the ball, the ball leaves with momentum (its mass times its speed). By Newton's Third Law (every push has an equal opposite push), an equal amount of momentum enters you, in the opposite direction. That momentum-per-second arriving in you is the force on you.

$F=\frac{dp}{dt}=\dot{m}{v}_e$

Reading this: $dp/dt$ means "rate of change of momentum per second." The exhaust leaves at rate $\dot{m}$ (kg per second), each kilogram carrying speed $v_e$, so backward momentum leaves at rate $\dot{m}{v}_e$ — and the same rate of forward momentum builds in the rocket. See Newton's Third Law for the momentum principle, and Tsiolkovsky Rocket Equation for where $v_e$ and $\dot{m}$ finally decide the rocket's top speed.

4. Symbols for pressure and the burn-rate law

4.1 Pressure $p_c$, $p_e$, $p_a$

Picture gas molecules bouncing off a wall; the harder and more often they hit, the higher the pressure. Inside a burning motor, gas is crammed tight → high $p_c$.

Why the topic needs it: pressure controls how fast the block burns (next), and any leftover pressure at the exit adds a little extra push (the $(p_e-p_a)A_e$ term in the full thrust formula, where $A_e$ is the nozzle-exit area). The gas is squeezed to supersonic speed by the De Laval Nozzle.

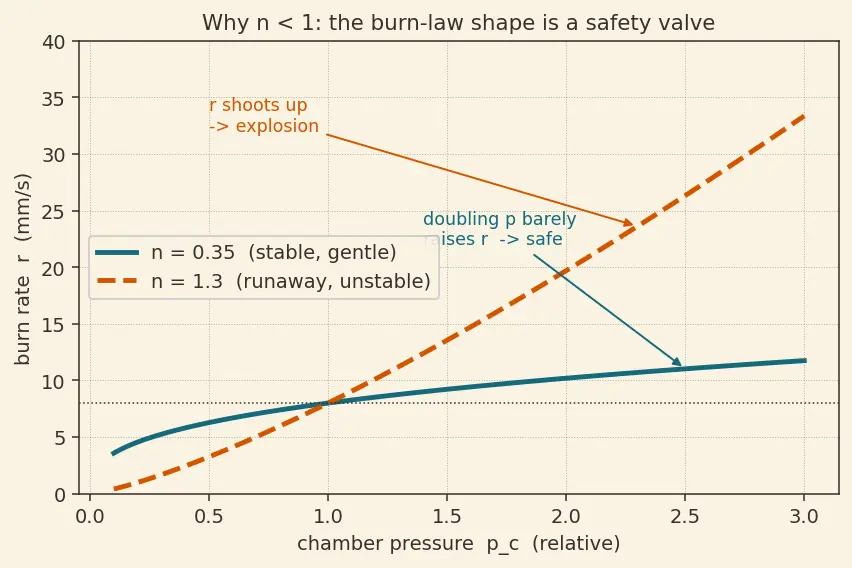

4.2 The burn-rate law: $a$, $n$, and why an exponent

Why an exponent and not a straight line? Because experiments show burn rate does not rise in simple proportion to pressure — it rises more gently. The expression $p_c^n$ ("$p_c$ raised to the power $n$") with $n<1$ is exactly the shape that grows but flattens: doubling the pressure multiplies the rate by $2^n$, which is less than doubling. That gentleness is what keeps the motor stable.

4.3 Specific impulse $I_{sp}$ (a peek ahead)

You don't need it to understand thrust, but it's the figure everyone compares engines by — see Specific Impulse. Higher $v_e$ → higher $I_{sp}$ → more mileage per kilogram.

5. How it all fits together

Read it as two rivers meeting: the left branch (area, density, burn rate, pressure) computes how much gas per second; the right branch (exhaust speed, Newton's third law) turns that gas into push. They join at thrust.

6. Sanity check with numbers

Equipment checklist

Cover the right side and test yourself — you are ready for the parent note when every line is instant.
