Coordinate systems — Earth-Centered Inertial (ECI), Earth-Centered Earth-Fixed (ECEF), North-East-Down (NED), launch, bo

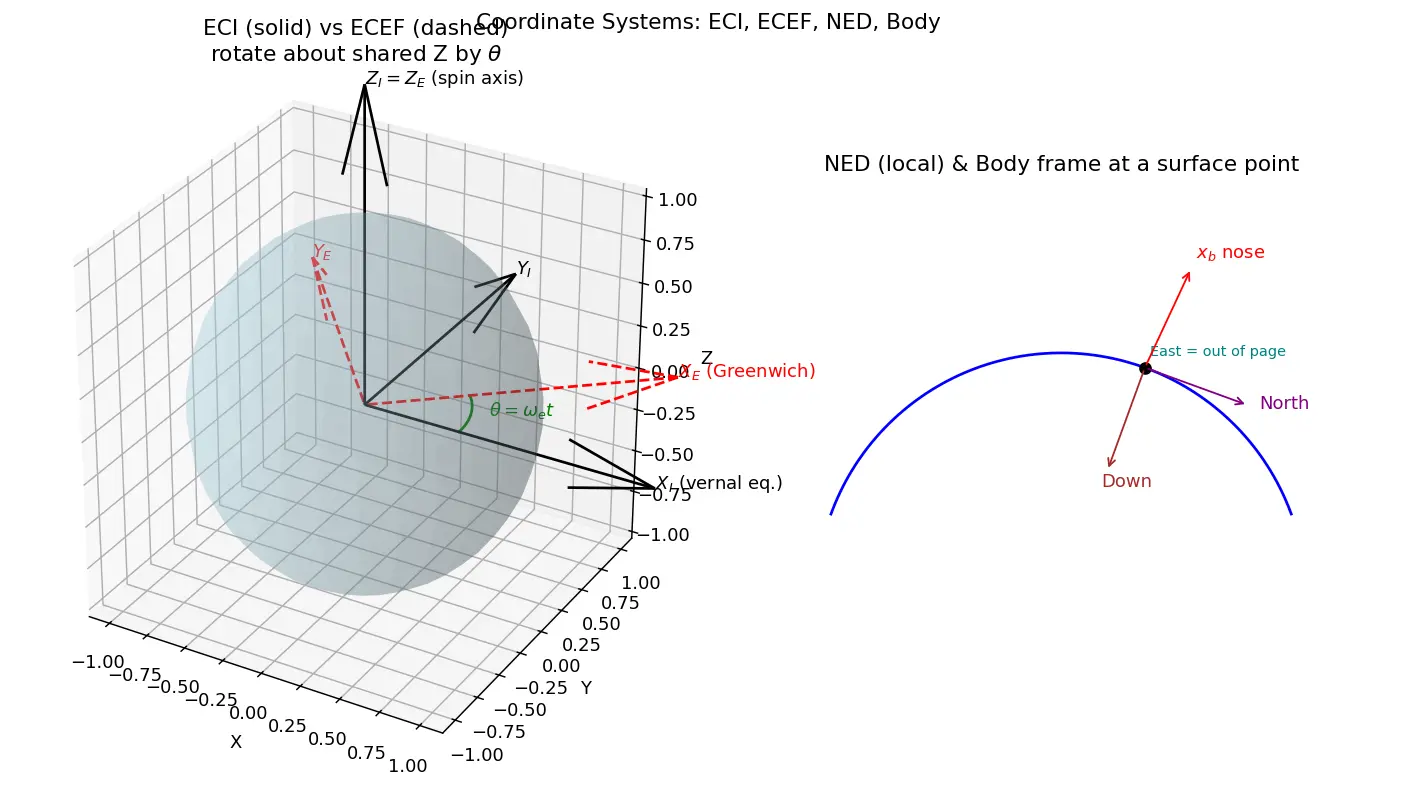

The five frames — WHAT each one is

HOW to transform between frames

Everything is a rotation (and sometimes a translation of origin). A rotation is represented by a matrix $R$ that satisfies $R^T R = I$ (orthonormal) and $\det R = +1$ .

1. ECI → ECEF: undo Earth's spin

2. ECEF → NED: point to the horizon

3. NED → Body: the rocket's attitude (Euler 3-2-1)

The full chain

The rotating-frame trap (crucial physics)

Formula Velocity transform ECI↔ECEF (transport theorem)

$\vec v_I = R_z^T(\theta)\big(\vec v_E + \vec\omega_e\times\vec r_E\big),\qquad \vec\omega_e=\omega_e\hat Z$ Derivation: position transforms as $\vec r_I=R^T\vec r_E$ . Differentiate: $\dot{\vec r}_I = R^T\dot{\vec r}_E + \dot R^T\vec r_E$ . Since $\dot R^T = R^T[\vec\omega_e\times]$ , we get $\vec v_I=R^T(\vec v_E+\vec\omega_e\times\vec r_E)$ . This extra $\vec\omega_e\times\vec r_E$ is the eastward launch bonus ( $\approx 465\ \text{m/s}$ at the equator).

Worked examples

Worked example (2) ECI→ECEF after 6 hours

Given: $t=6\ \text{h}=21600\ \text{s}$ , point at ECI $(R_\oplus,0,0)$ . Step 1: $\theta=\omega_e t = 7.292\times10^{-5}\times21600=1.575\ \text{rad}\approx90.2°$ . Why? Earth turns ~15°/hr → 6 hr ≈ 90°. Step 2: $\vec r_E=R_z(\theta)\vec r_I$ . With $\theta\approx90°$ : $x_E=\cos\theta\,R_\oplus\approx0$ , $y_E=-\sin\theta\,R_\oplus\approx -R_\oplus$ . Why negative? The point that was on $X_E$ now sits on the $-Y_E$ side because the frame rotated under it.

Common mistakes (Steel-manned)

Active recall

In which frame is Newton's law

\vec F=m\vec a

directly valid?

The inertial one — ECI (Earth-Centered Inertial), because its axes neither rotate nor accelerate.

What single parameter relates ECI and ECEF, and why only one?

The Greenwich rotation angle

\theta=\omega_e t

; they share origin and Z-axis, differing only by rotation about Z.

Value of Earth's rotation rate

\omega_e

7.292\times10^{-5}

rad/s (≈ 15°/hr).

Why launch eastward near the equator?

You gain Earth's surface speed

\omega_e R_\oplus\cos\phi\approx465

m/s (max at equator,

\phi=0

What are the NED axes?

x=North, y=East, z=Down (toward Earth center).

What are the body axes of a rocket?

x_b

nose (roll),

y_b

right (pitch),

z_b

down (yaw), origin at CoM.

Extra term when transforming velocity ECEF→ECI?

\vec\omega_e\times\vec r

(from the transport theorem /

\dot R\neq0

Why is

R^{-1}=R^T

for these transforms?

Rotation matrices are orthonormal (

R^TR=I

) with

\det=+1

Standard Euler order for aerospace attitude?

3-2-1: yaw (

\psi

) → pitch (

\theta

) → roll (

\varphi

Down unit vector in ECEF at latitude

\phi

, longitude

\lambda

(-\cos\phi\cos\lambda,\ -\cos\phi\sin\lambda,\ -\sin\phi)

Recall Feynman: explain to a 12-year-old

Imagine a merry-go-round with a bug on it. If you stand outside watching the stars (ECI), physics is simple — you can predict everything with $F=ma$ . If you sit on the merry-go-round (ECEF), the bug seems to get pushed sideways by invisible forces (that's Coriolis!). "Which way is up and which way is the horizon here?" is the NED map painted on the floor. And the bug's own "forward/left/right" is the body frame. To swap between these viewpoints, you just rotate your set of arrows — and if the floor is spinning, you must remember to add the spin's speed. That's the whole game: same rocket, different arrows.

Connections

Newton's Laws and Inertial Frames — why ECI is the integration frame.
Rotating Reference Frames and Coriolis Force — the fictitious forces ECEF introduces.
Rotation Matrices and Euler Angles — the mathematical machinery of every transform here.
Quaternions for Attitude — singularity-free alternative to 3-2-1 Euler angles.
Rocket Equations of Motion — where these frames feed thrust/gravity/aero.
Launch Azimuth and Orbital Inclination — uses the eastward-velocity bonus.
Geodetic vs Geocentric Latitude — refines the NED origin for the real ellipsoidal Earth.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, rocket ka motion kahan se dekh rahe ho uspe depend karta hai. Newton ka $\vec F=m\vec a$ sirf inertial frame me sach hai — jo na ghoome na accelerate kare. Wahi hai ECI (Earth-Centered Inertial): center Earth ka, par axes stars ke saath fix. Isliye rocket ki equations hum ECI me integrate karte hain. Phir ECEF aata hai — same center, par ye Earth ke saath ghoomta hai ( $\omega_e=7.292\times10^{-5}$ rad/s), isliye launch pad ka latitude-longitude constant rehta hai.

NED ek local frame hai jahan tum khade ho: x=North, y=East, z=Down (Earth center ki taraf). Ye "horizon kahan hai, kitni height hai" batane ke liye perfect hai. Aur body frame rocket ki apni frame hai — nose ke aage $x_b$ , right $y_b$ , neeche $z_b$ . Thrust aur sensors isi me natural lagte hain. Ek frame se dusre me jaane ke liye bas rotation matrix se multiply karo, aur kyunki wo orthonormal hai, ulta jaana ho to sirf transpose ( $R^T$ ) le lo.

Sabse important trap: ECEF me seedha integrate mat karo, kyunki wo ghoomta hai, non-inertial hai — Coriolis aur centrifugal fictitious forces aa jaayenge. Aur velocity transform karte time sirf $R$ se multiply karna galti hai; ghoomti frame ki wajah se extra term $\vec\omega_e\times\vec r$ add karna padta hai (transport theorem). Yehi 465 m/s ka eastward bonus deta hai equator par — isiliye rockets east ki taraf, equator ke paas se launch karte hain. Yaad rakho: same rocket, sirf arrows badalte hain!
