Nozzle area ratio ε = A_e - A - — choosing for optimal performance: Question bank

Before we start, one reminder of the symbols, so nothing on this page is used before it is named:

Definition The cast of symbols

$A$ — a generic cross-sectional area at any station along the nozzle (the tube's width where you slice it). As you walk downstream $A$ first shrinks to a minimum, then grows.
$A^{*}$ — that minimum: the throat area, where the flow chokes at Mach 1. It is the special value of $A$ at the narrowest point.
$A_{e}$ — the exit value of $A$ : the area of the very last slice where gas leaves the nozzle. "Adding exit area" or "making the nozzle longer" both mean increasing $A_{e}$ by flaring the cone more.
$ε = A_{e} / A^{*}$ — the area ratio: exit area divided by throat area. A pure number, the nozzle's fixed "flare." $ε > 1$ for any nozzle that widens past the throat.
$p_{e}$ — the pressure of the gas at the exit plane, set by ε and chamber conditions.
$p_{a}$ — the ambient (outside atmospheric) pressure, which falls as you climb.
$p_{0}$ — chamber (stagnation) pressure, the pressure before expansion.
$v_{e}$ — exit velocity of the exhaust; $\overset{m}{˙}$ — mass flow rate; $M_{e}$ — exit Mach number (exit speed ÷ local sound speed).
Thrust $F = \overset{m}{˙} v_{e} + (p_{e} - p_{a}) A_{e}$ .

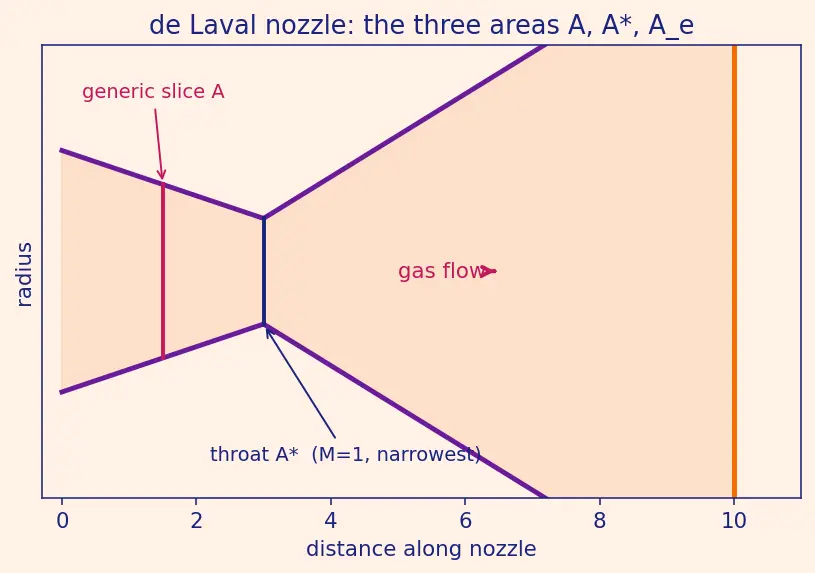

The nozzle and these three areas look like this — keep it in your mind's eye for every question below:

Figure — Nozzle area ratio ε = A_e - A - — choosing for optimal performance

The one derivation this whole page leans on

Almost every trap below is really the same claim in disguise: what happens to thrust when you add a sliver of exit area? So we do it once, carefully, and then just point back here.

Read the sign of that box — this is the whole topic:

$p_{e} > p_{a}$ (under-expanded): $d F > 0$ , more area still helps → nozzle too short (ε too small).
$p_{e} < p_{a}$ (over-expanded): $d F < 0$ , more area hurts → nozzle too long (ε too big), separation looms.
$p_{e} = p_{a}$ (matched): $d F = 0$ → peak thrust.

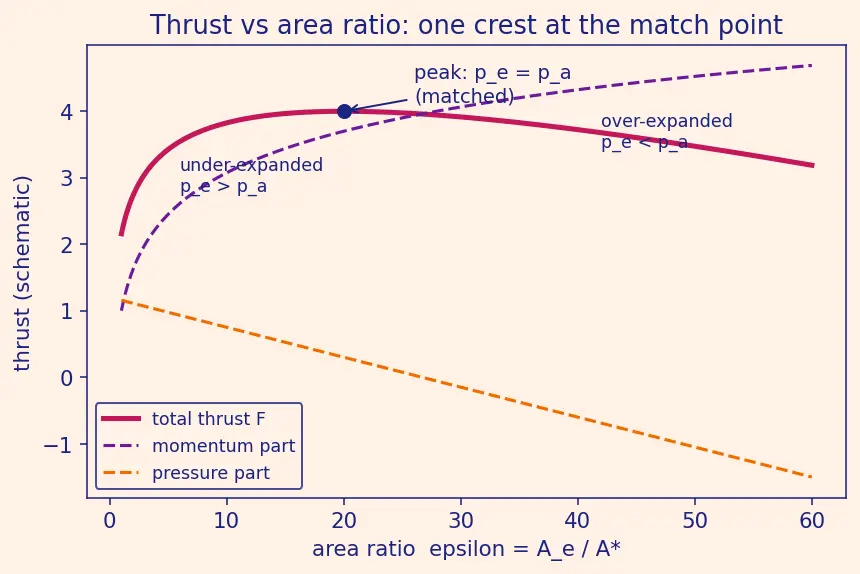

The graph of that trade — thrust rising, cresting at match, then falling — is the mental picture behind every "always?" trap:

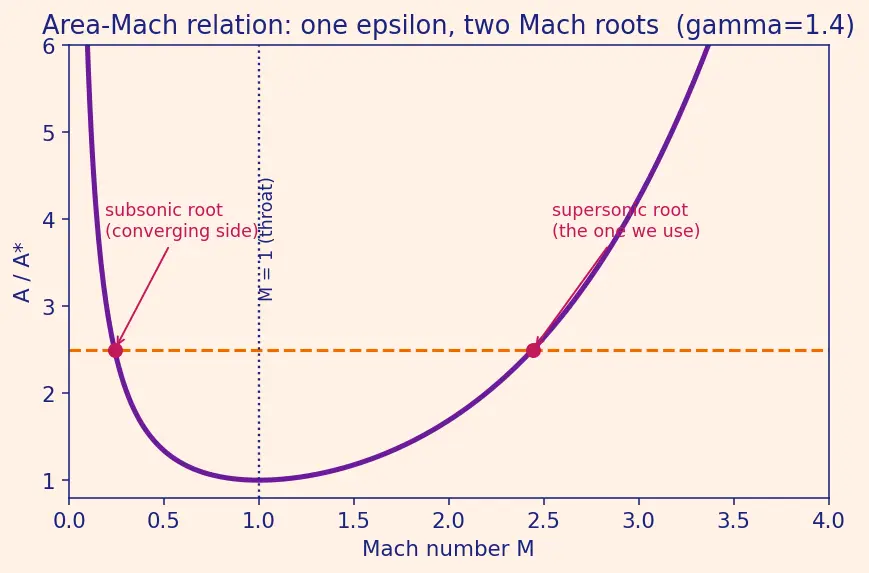

And the reason ε has two possible Mach numbers is the shape of the area–Mach curve itself:

$\frac{A}{A ^{*}} = \frac{1}{M} [\frac{2}{γ + 1} (1 + \frac{γ - 1}{2} M^{2})]^{\frac{γ + 1}{2 ( γ - 1 )}}$

True or false — justify

A fixed nozzle is optimally expanded at exactly one altitude.

True — ε is rigid so

p_{e}

is essentially fixed, but

p_{a}

falls with height; only one altitude satisfies

p_{e} = p_{a}

, the optimum condition.

If a nozzle is over-expanded, making it longer (bigger ε) would help.

False — over-expanded means

p_{e} < p_{a}

, so by the boxed rule

d F = (p_{e} - p_{a}) d A_{e} < 0

; each extra sliver of

A_{e}

subtracts thrust and worsens separation.

A larger area ratio always gives a larger exit velocity

v_{e}

True as stated — more diverging area expands the gas further, converting more thermal energy to kinetic, so

v_{e}

rises monotonically with ε.

Because

v_{e}

rises with ε, thrust also always rises with ε.

False — momentum thrust

\overset{m}{˙} v_{e}

rises, but the pressure term

(p_{e} - p_{a}) A_{e}

eventually goes negative and overwhelms the gain; total thrust peaks at

p_{e} = p_{a}

(the crest in figure s02), not at

ε \to \infty

At the optimum

p_{e} = p_{a}

, the pressure-thrust term contributes zero.

True —

(p_{e} - p_{a}) A_{e} = 0

exactly at match, so all thrust is momentum thrust; the optimum is where the pressure term stops helping and hasn't yet started hurting.

The throat area

A^{*}

is the widest point of a de Laval nozzle.

False —

A^{*}

is the narrowest (minimum) area, where the flow chokes at Mach 1; the nozzle then re-widens downstream (see figure s01).

In vacuum (

p_{a} = 0

) there is no finite optimum ε.

True — matching would require

p_{e} = 0

, i.e. infinite expansion; real vacuum nozzles just use the largest ε that weight, length, and boundary-layer limits allow.

A sea-level engine should use a larger ε than an upper-stage engine.

False — sea level has high

p_{a}

, so optimum

p_{e}

is high, needing less expansion → smaller ε; upper stages get the big ε.

Spot the error

"To maximize thrust we should expand the gas until

p_{e} = 0

, since that maximizes exit velocity."

The error is ignoring the pressure term: as

p_{e}

falls below

p_{a}

the flow over-expands,

(p_{e} - p_{a}) A_{e}

turns strongly negative, and separation can occur. Max thrust is at

p_{e} = p_{a}

, not

p_{e} \to 0

"The area–Mach relation gives ε, so from ε I read off the exit Mach directly."

The relation is non-monotonic (figure s03): every

ε > 1

has two roots, one subsonic and one supersonic. Downstream of the throat the flow is supersonic, so you must take the

M_{e} > 1

root.

"The nozzle expands the gas until

p_{e}

equals whatever

p_{a}

is outside — that's why it self-adjusts."

A rigid nozzle does not self-adjust; ε fixes the expansion so

p_{e}

is set by geometry and chamber conditions, independent of

p_{a}

. The gas does not "know" the outside pressure until it exits.

"Over-expansion just wastes a little thrust — otherwise harmless."

It can trigger flow separation: the boundary layer detaches inside the diverging cone, causing side loads, asymmetric thrust, and possible structural damage — see Flow Separation in Over-expanded Nozzles.

"Since thrust drops when over-expanded, an over-expanded nozzle produces less thrust than the same gas with no diverging section at all."

Not necessarily — even over-expanded, the diverging section still boosts

v_{e}

well above the throat value; the penalty is only relative to the matched-ε ideal, not relative to no nozzle.

ε = A_{e} / A^{*}

and

ε = A^{*} / A_{e}

are the same idea flipped, so either works."

No — the accepted definition is exit over throat, and it is always

> 1

for a supersonic nozzle. Flipping it gives a number below 1 and inverts every trend, so the convention matters.

Why questions

Why does perfect expansion depend on altitude at all, if the nozzle geometry never changes?

Because the optimum condition is

p_{e} = p_{a}

, and

p_{a}

shrinks with altitude while the geometry-fixed

p_{e}

stays put — so the match point moves even though the hardware doesn't.

Why is the optimum criterion

p_{e} = p_{a}

and not, say, maximum

v_{e}

The boxed derivation gives

d F = (p_{e} - p_{a}) d A_{e}

; setting this to zero yields

p_{e} = p_{a}

. Maximum

v_{e}

ignores the pressure term entirely, which is what makes it wrong.

Why does the same area ratio correspond to both a subsonic and a supersonic Mach number?

The

1/ M

front factor in the area–Mach relation makes

A / A^{*}

decrease then increase as

M

passes through 1 (figure s03), so a given area is hit once on the way up and once on the way down — two Machs, one ε.

Why does a vacuum or upper-stage engine need such a huge ε (tens to hundreds)?

With

p_{a}

near zero, optimum

p_{e}

must also be tiny, and reaching a tiny exit pressure requires enormous expansion — which the area–Mach relation delivers only at very large ε. See Specific Impulse Isp for the payoff.

Why can't one fixed nozzle be optimal across a whole ascent from sea level to space?

Because

p_{a}

sweeps from ~1 bar to ~0 during the climb, but a rigid ε fixes

p_{e}

; a single geometry can match only one point, motivating designs like Altitude Compensation — Aerospike Nozzles.

Why is the flow "choked" at the throat, and why does that matter for ε?

At the throat the flow reaches

M = 1

(sonic), the maximum mass flux the throat area can pass — see Choked Flow and the Throat Condition. That fixes

A^{*}

as the reference, making ε a clean measure of how far past sonic the exit is.

Why do we treat chamber conditions and

\overset{m}{˙}

as fixed when deriving the optimum?

To isolate the geometric trade: chamber and

\overset{m}{˙}

are set by the plumbing and throat, so we vary only the exit area and let

d F / d A_{e} = (p_{e} - p_{a})

cleanly reveal the answer.

Why does a real nozzle stop short of "infinite ε" even in vacuum?

Because a longer, wider cone adds structural mass and length (dead weight that eats into payload), and its growing boundary layer eventually separates; the practical ε is capped by weight, packaging, and separation, not by the ideal

p_{e} = 0

Edge cases

At exactly

p_{e} = p_{a}

, what is

d F / d A_{e}

and what does it mean physically?

It is zero — the marginal thrust from adding area vanishes, meaning we sit at the peak of the thrust-vs-ε curve (figure s02); a small ε change either way loses thrust.

What happens to the pressure thrust as the rocket climbs from its design altitude to higher altitude?

p_{a}

drops below the fixed

p_{e}

, so

(p_{e} - p_{a}) A_{e}

becomes positive — the once-matched nozzle becomes under-expanded, and it actually gains thrust with height.

For an over-expanded nozzle at the ground, what is the sign of the pressure-thrust term, and what physical risk accompanies it?

The sign is negative (

p_{e} < p_{a}

), subtracting from thrust; the risk is flow separation inside the cone with damaging side loads.

γ

(ratio of specific heats) of the exhaust were higher, would a given pressure ratio need a larger or smaller ε?

Higher

γ

makes gas expand less efficiently per unit area, generally requiring a different (typically smaller)

M_{e}

for the same

p_{0} / p_{e}

, changing the required ε — the exponents in the isentropic relations shift with

γ

What is the degenerate value of ε for a purely converging nozzle that just reaches sonic exit?

ε = 1

, since the exit is the throat (

A_{e} = A^{*}

) at

M_{e} = 1

; no supersonic expansion occurs, so it can never match a low ambient pressure.

Can a working supersonic nozzle have

ε < 1

No —

ε < 1

would mean the exit is narrower than the throat, so there is no diverging section at all and the flow can never exceed Mach 1; supersonic exit requires

ε > 1

, with

ε = 1

the sonic-only boundary.

Below the throat (converging section), which Mach root of the area–Mach relation is physical?

The subsonic (

M < 1

) root — the flow accelerates from slow chamber gas toward sonic at the throat, only becoming supersonic afterward.

If ambient pressure momentarily rose above

p_{e}

during ascent (e.g., a re-entering stage), what regime is the nozzle in?

Over-expanded (

p_{e} < p_{a}

), with negative pressure thrust and separation risk — the same regime as a sea-level over-expanded firing, just reached by raising

p_{a}

instead of lowering

p_{e}

Recall One-line summary of every trap

Verdicts are traps; reasons are truth. The optimum is $p_{e} = p_{a}$ (not max $v_{e}$ , not $p_{e} \to 0$ ); ε is fixed but $p_{a}$ isn't; big ε for the sky, small ε for the ground; take the supersonic root past the throat; and real ε is capped by weight and separation, not by the ideal $p_{e} = 0$ .
