Foundations — Nozzle area ratio ε = A_e - A - — choosing for optimal performance

Before you can choose $\epsilon$ (the job of the parent topic), you must be able to read every symbol on the page without flinching. This note earns each one from scratch, in an order where nothing appears before it is defined.

1. The nozzle shape itself — what are we even looking at?

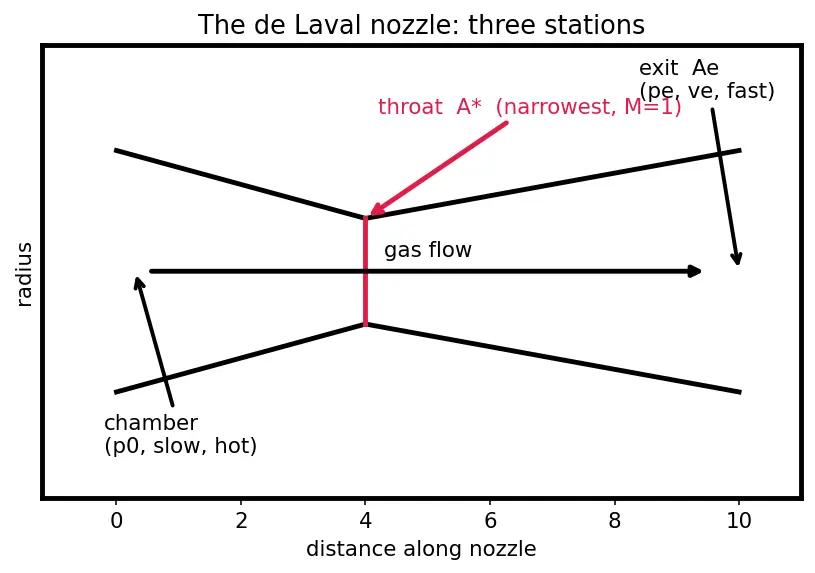

Plain words: A de Laval nozzle is a tube that first gets narrower (converging), reaches a pinch point (the throat), then gets wider (diverging). Gas flows left to right, from a high-pressure chamber out into the open air.

The picture: an hourglass lying on its side. The waist of the hourglass is the throat.

Why the topic needs it: every symbol below is measured at one of three places — the chamber, the throat, or the exit. If you cannot point to those three places on the shape, no symbol has a home.

2. Area — $A$, $A^{\ast }$, $A_e$

Plain words: Area is simply how big the opening is if you slice the nozzle straight across and look at the circle you cut. Measured in square metres, ${\text{m}}^2$.

The picture: imagine sawing the hourglass in half at some point and staring at the flat circular face. A bigger circle = bigger area.

• $A$ — the area at any general slice.
• $A^{\ast }$ (read "A-star") — the area at the throat, the smallest slice.
• $A_e$ — the area at the exit, the widest slice of the diverging cone.

Why the topic needs it: the whole topic is a ratio of two of these areas. You cannot form a ratio until you know each area is just "size of a circular cross-section."

3. The area ratio — $\epsilon$

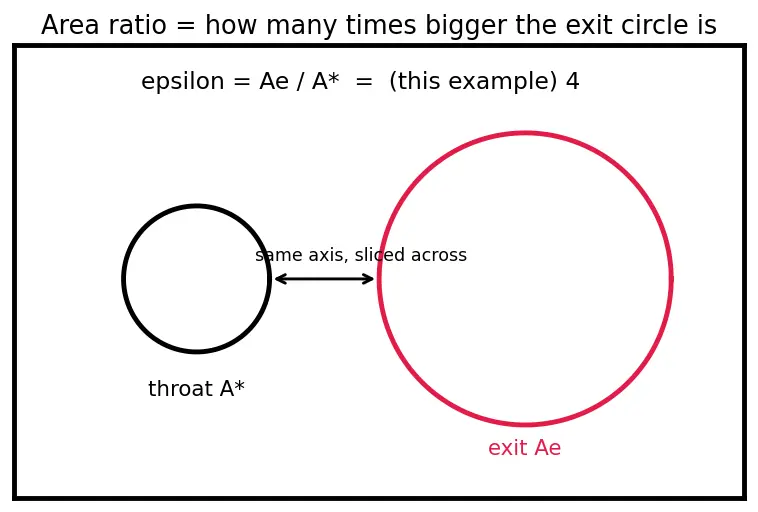

Plain words: The Greek letter $\epsilon$ ("epsilon") is just a name for a single number: how many times bigger the exit is than the throat.

$\epsilon =\frac{A_e}{A^{\ast }}$

The picture: if the exit circle has 15 times the area of the throat circle, then $\epsilon =15$. It is a pure number — the square metres cancel top and bottom, so $\epsilon$ has no units.

Why the topic needs it: this is the topic. $\epsilon$ is the one geometric knob the engineer turns. Everything else exists to tell us what value of $\epsilon$ to pick.

4. Pressure — $p$, and its family $p_0$, $p_e$, $p_a$

Plain words: Pressure is how hard the gas pushes outward per unit of area — how forcefully the molecules drum against the walls. Measured in pascals, $\text{Pa}$, or in bar ($1\text{bar}=10^5\text{Pa}$, roughly one atmosphere at sea level).

The picture: a balloon. A tightly-inflated balloon (high pressure) pushes its skin outward hard; a floppy one (low pressure) barely pushes at all.

The subscript tells you where the pressure is measured:

• $p_0$ — chamber pressure, the starting push inside the engine (very high, e.g. 70 bar).
• $p_e$ — exit pressure, the push of the gas as it leaves the nozzle mouth.
• $p_a$ — ambient pressure, the push of the outside air (1 bar at sea level, near 0 in space).

Why the topic needs it: the definition of "perfect expansion" is $p_e=p_a$ — the gas leaves matching the outside. And $p_a$ changes with altitude, which is the entire reason $\epsilon$ is a compromise.

5. Velocity — $v$, and exit velocity $v_e$

Plain words: Velocity is how fast the gas is moving, in metres per second, $\text{m/s}$. $v_e$ is the speed of the gas at the exit — the faster it leaves, the harder it kicks the rocket forward.

The picture: the red streak of exhaust behind a firework, and how long that streak is per second.

Why the topic needs it: thrust (§9) is mostly "mass thrown out per second, times how fast." A bigger $\epsilon$ raises $v_e$ but lowers $p_e$ — that tug-of-war is why an optimum exists. (For the polished version of exit speed, see Thrust Equation and Effective Exhaust Velocity.)

6. Speed of sound and the Mach number — $a$, $M$, $M_e$

Plain words: The speed of sound $a$ is how fast a pressure ripple travels through the gas. The Mach number $M$ is simply how many times faster than sound the gas itself is moving:

$M=\frac{v}{a}$

• $M<1$: subsonic (slower than sound).
• $M=1$: sonic (exactly sound speed) — this happens at the throat.
• $M>1$: supersonic (faster than sound) — the whole diverging cone.

$M_e$ is the Mach number at the exit (a big number like 3.5 for a rocket).

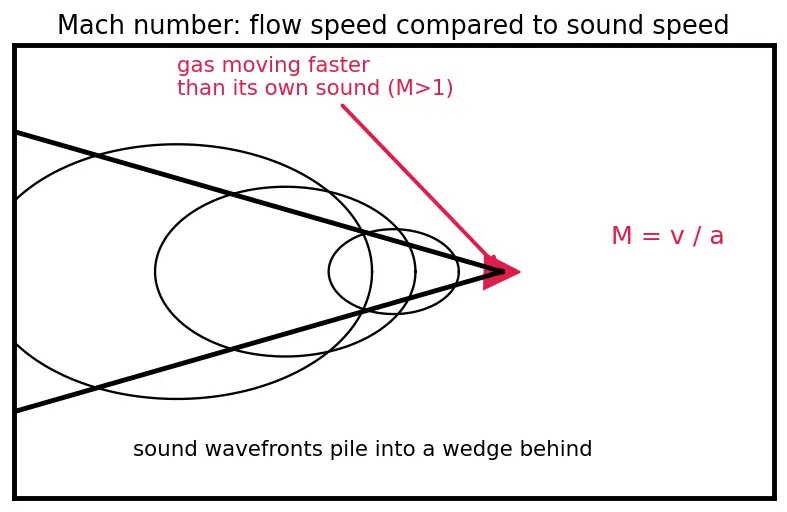

The picture: a boat on water. If the boat moves slower than the ripples it makes, the ripples run ahead ($M<1$). If it outruns its own ripples, they pile into a wedge behind it ($M>1$). Rocket exhaust outruns its own sound.

Why the topic needs it: the area–Mach relation (§8) uses $M$ to link geometry ($\epsilon$) to how fast the gas comes out. And the throat is special precisely because $M=1$ there — see Choked Flow and the Throat Condition.

7. Ratio of specific heats — $\gamma$

Plain words: $\gamma$ ("gamma") is a single number describing the kind of gas — how it stores energy when heated. For rocket exhaust it is around $1.2$; for air, $1.4$. It is a pure number with no units.

The picture: think of it as a "springiness rating" for the gas. It tells you how stiffly the gas resists being squeezed, which controls exactly how much it speeds up when it expands.

Why the topic needs it: $\gamma$ appears as the exponent in every flow formula the topic uses. You will see $\frac{\gamma }{\gamma -1}$ and $\frac{\gamma +1}{2(\gamma -1)}$. These are just fixed numbers once you know $\gamma$:

8. The two workhorse relations (assembled from the pieces above)

You now own every symbol in the parent's two key formulas. Read them as machines: feed in one thing, get out another. Both come from Isentropic Flow Relations ("isentropic" = smooth, no heat lost, no friction).

Why two and not one: you cannot pick geometry directly from pressure. You go through Mach as a middleman — pressure sets $M_e$, then $M_e$ sets $\epsilon$.

9. Mass flow and thrust — $\dot{m}$ and $F$

Plain words: $\dot{m}$ ("m-dot") is the mass flow rate: kilograms of gas leaving per second, $\text{kg/s}$. The dot on top is standard shorthand for "per second, a rate."

$F$ is the thrust: the forward push on the rocket, in newtons, $\text{N}$.

The picture: a firefighter's hose. $\dot{m}$ is how many kilos of water blast out each second; $F$ is the shove the firefighter feels pushing them backward.

Why the topic needs it: the full thrust equation the parent optimises is $F=\dot{m}{v}_e+(p_e-p_a)A_e$ Now every letter is yours: $\dot{m}$ (§9), $v_e$ (§5), $p_e$, $p_a$ (§4), $A_e$ (§2). The first term is momentum thrust, the second is pressure thrust, and balancing them gives the optimum $p_e=p_a$. (See also Specific Impulse Isp for how efficiently that push uses fuel.)

10. Recap — the under / over / perfect trio

These three words describe the sign of $p_e-p_a$, and you now have every symbol to read them:

Prerequisite map

Equipment checklist

Test yourself — you are ready for the parent note only if you can answer all of these.
