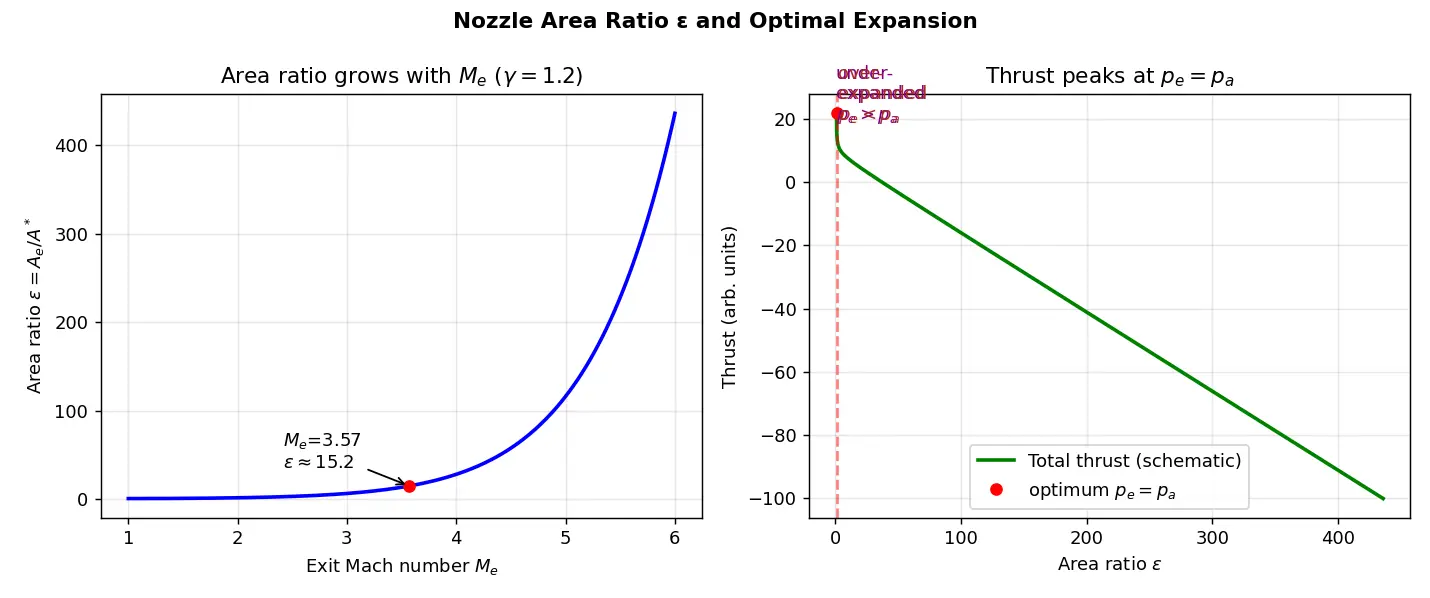

Nozzle area ratio ε = A_e - A - — choosing for optimal performance

WHY does area ratio even matter?

WHAT we want: maximum thrust. Thrust has two parts: $F = \dot m \, v_e + (p_e - p_a)A_e$

• $\dot m v_e$ = momentum thrust (mass flow × exit velocity)
• $(p_e-p_a)A_e$ = pressure thrust (exit pressure minus ambient, over exit area)

WHY ε controls this: In supersonic flow, a larger diverging area lets gas expand more, which raises $v_e$ but lowers $p_e$. So ε trades exit velocity against exit pressure. There is a sweet spot.

Deriving why $p_e = p_a$ is optimal (from scratch)

HOW: Hold chamber conditions and $\dot m$ fixed. As we change ε, both $v_e$ and $A_e$ change but they are linked by mass conservation $\dot m = \rho_e v_e A_e$. Instead of guessing, differentiate thrust with respect to $A_e$.

Total exit force = momentum flux $+ p_e A_e$. Along the diverging section, from steady momentum balance the incremental change in $(\dot m v)$ over a slice equals the net pressure force. For the added exit area $dA_e$ the wall pressure acting is $\approx p_e$. Carefully:

$dF = \dot m\,dv_e + d(p_e A_e) - p_a\,dA_e$

The steady 1-D momentum equation for the flow gives $\dot m\, dv_e = -A\,dp$, and along the nozzle the internal pressure force balances so that $\dot m\, dv_e + d(p_eA_e) = p_e\,dA_e$ (the internal terms combine into the local wall pressure times area change). Substituting:

$dF = p_e\,dA_e - p_a\,dA_e = (p_e - p_a)\,dA_e$

Set $dF/dA_e = 0$:

$\boxed{p_e = p_a}\quad\text{(optimum expansion)}$

From $p_e/p_0$ to the area ratio ε

WHY we need this link: We pick a design $p_e$ (matched to $p_a$), then must convert it to a geometry ε to actually build the nozzle.

Isentropic 1-D flow with ratio of specific heats $\gamma$. Two ingredients:

(1) Mach–pressure relation (from energy + isentropic $p\rho^{-\gamma}=$const): $\frac{p_0}{p_e} = \left(1 + \frac{\gamma-1}{2}M_e^2\right)^{\frac{\gamma}{\gamma-1}}$

(2) Area–Mach relation (from mass conservation with the throat at $M=1$, area $A^*$): $\frac{A_e}{A^*} = \frac{1}{M_e}\left[\frac{2}{\gamma+1}\left(1+\frac{\gamma-1}{2}M_e^2\right)\right]^{\frac{\gamma+1}{2(\gamma-1)}}$

Derivation sketch of (2): Mass flow is constant: $\rho A v = \rho^* A^* v^*$. Write $\rho$, $v$ in terms of $M$ using isentropic + sound-speed $a=\sqrt{\gamma RT}$, set $M=1$ at throat, and simplify. The $1/M$ front factor is why the same ε can correspond to two Machs (one subsonic, one supersonic) — we always take the supersonic branch downstream of the throat.

Worked Example 1 — Find ε for a design altitude

Chamber $p_0 = 70$ bar, exhaust $\gamma = 1.20$, design $p_e = p_a = 0.5$ bar.

Step 1 — pressure ratio. $p_0/p_e = 70/0.5 = 140$. Why: This is what (1) needs; larger ratio → more expansion → bigger ε.

Step 2 — solve $M_e$. $140 = \left(1+0.1M_e^2\right)^{6} \Rightarrow 1+0.1M_e^2 = 140^{1/6}=2.276$ $M_e^2 = 12.76,\quad M_e = 3.57$ Why exponent 6: $\gamma/(\gamma-1)=1.2/0.2=6$.

Step 3 — area ratio. With $M_e=3.57$, $(\gamma+1)/[2(\gamma-1)] = 2.2/0.4 = 5.5$: $\varepsilon = \frac{1}{3.57}\Big[\tfrac{2}{2.2}(2.276)\Big]^{5.5} = \frac{1}{3.57}(2.069)^{5.5} \approx \frac{1}{3.57}(54.6)\approx 15.3$ Why this magnitude: Vacuum-ish engines need ε in the tens or hundreds; sea-level engines are small (ε ≈ 5–15).

Worked Example 2 — Off-design penalty (over-expansion)

Same nozzle (ε≈15.3, $p_e=0.5$ bar) fired at sea level ($p_a = 1.0$ bar). Exit area $A_e = 0.3\ \text{m}^2$.

Pressure thrust term: $(p_e-p_a)A_e = (0.5-1.0)\times10^5 \times 0.3 = -1.5\times10^4\ \text{N}$ Why negative: $p_e<p_a$ → over-expanded → this term subtracts 15 kN of thrust and can trigger flow separation. Fix in practice: use a smaller ε for a sea-level stage, larger ε for upper stages.
