Banking of roads — derivation: Question bank — Physics deep dive

Every symbol here comes from the parent note: $θ$ = banking angle, $v$ = speed, $r$ = radius of the turn, $g$ = gravity, $μ$ = friction coefficient, $N$ = normal force (push of road perpendicular to its surface), $f$ = friction force, $m g$ = weight.

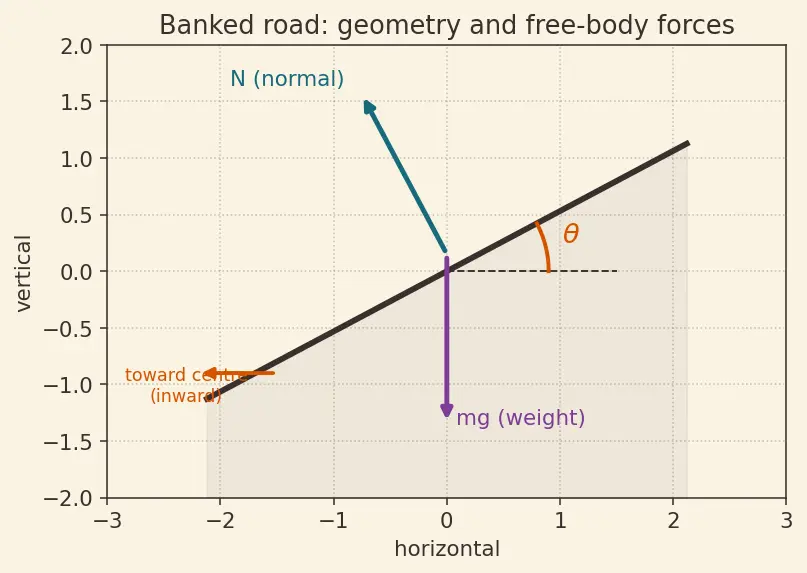

The picture you must hold in your head

Before the traps, lock in the geometry. Everything below is just this one diagram read from different angles.

Sign convention for friction (read this once, use it everywhere)

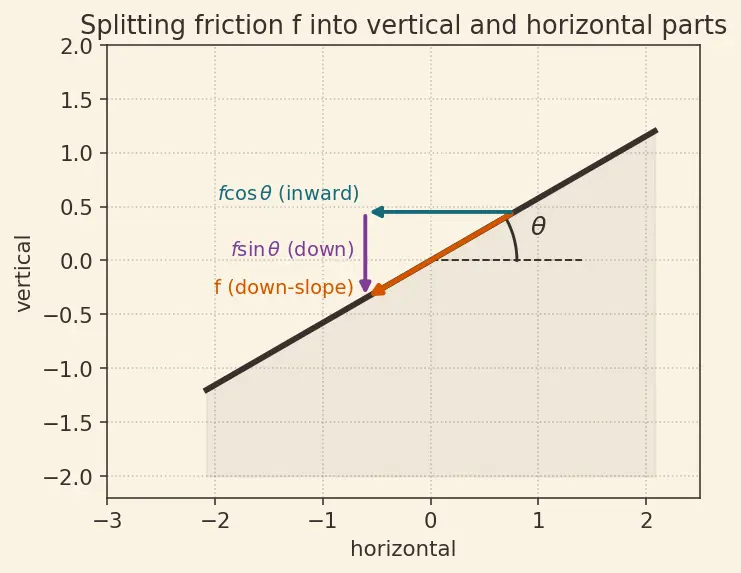

Friction $f$ acts along the road surface, either up-slope or down-slope. We split it into a vertical part and a horizontal part using the tilt angle $θ$ .

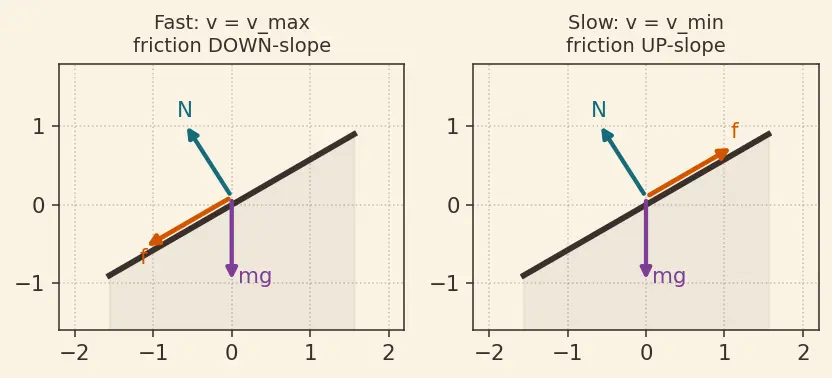

Where $v_{ma x}$ and $v_{min}$ come from (the sign flip made visible)

Both formulas fall out of the same two Newton's-Second-Law equations (see Newton's Second Law), one per axis, with friction $f = μ N$ inserted in the direction it actually acts.

True or false — justify

A car of double the mass needs a steeper banking angle at the same speed and radius.

False. In

tan θ = \frac{v ^{2}}{r g}

there is no $m$ — both the needed centripetal force and the available normal-force component scale with mass, so it cancels. A truck and a scooter want the same tilt.

On a frictionless banked road, there is exactly one speed at which the car stays on its circular path.

True. With

f = 0

only

N

can act, and

tan θ = \frac{v ^{2}}{r g}

fixes a single design speed

v_{0} = r g tan θ

. Any other speed needs friction to make up the difference.

The normal force on a banked road equals the car's weight

m g

False. Vertical balance gives

N cos θ = m g

, so

N = \frac{m g}{cos θ} > m g

. The road pushes harder than the weight because it must also carry part of the horizontal turning job. See Inclined plane for the same effect.

Friction on a banked curve always points down the slope.

False. Friction opposes the tendency to slide (see figure s03). Too fast → car tends to slide up/outward → friction points down. Too slow → car tends to slip in/down → friction points up. Direction is set by speed, not by gravity alone.

If a road is banked steeply enough, a car can stay parked on it without sliding, even with the engine off.

True, provided

tan θ \leq μ

. Then

v_{min} = r g \frac{tan θ - μ}{1 + μ tan θ}

becomes zero (or imaginary → clamped to 0), meaning friction alone holds the car at rest.

Increasing

μ

raises the maximum safe speed but has no effect on the minimum safe speed.

False. Higher

μ

raises

v_{ma x}

and lowers

v_{min}

— it widens the whole safe band

[v_{min}, v_{ma x}]

symmetrically in the formulas (

+ μ

helps the max,

- μ

helps the min).

The centripetal force in the frictionless case is supplied by the normal force pushing the car inward.

True. It is the horizontal component

N sin θ

that points toward the centre and equals

\frac{m v ^{2}}{r}

. The full normal force also has a vertical part holding up the weight.

At the design speed

v_{0}

, friction is doing exactly zero work and exerting zero force.

True. The whole point of the design speed is that

N

alone perfectly balances gravity vertically and supplies the centripetal force horizontally — friction is not called upon at all.

Spot the error

"To turn faster, just make the road flatter — a smaller angle lets the car go quicker."

Backwards. From

v_{0} = r g tan θ

, a larger

θ

gives a larger design speed. Flattening (

θ \to 0

) drops

v_{0} \to 0

and forces the car to rely entirely on friction.

"Since the car moves in a circle, its net force is zero at constant speed."

Wrong — constant speed is not constant velocity. The direction changes, so there is acceleration. The net force is nonzero and horizontal: the centripetal force

\frac{m v ^{2}}{r}

(see Uniform Circular Motion).

"For the max-speed case I'll use

tan θ = \frac{v ^{2}}{r g}

with the given

μ

Error. That clean formula is the frictionless result and ignores

μ

entirely. With friction you must use

v_{ma x} = r g \frac{μ + tan θ}{1 - μ tan θ}

"I'll resolve forces along and perpendicular to the incline, like on a static ramp."

Not wrong, but risky here. The acceleration is horizontal (centripetal), not along the slope, so the natural axes are horizontal/vertical. Using slope axes makes the acceleration split awkwardly across both — more algebra, more sign errors.

"The vertical equation is

N = m g + f

because friction points down the slope."

Error. Only the vertical component of the down-slope friction adds to weight:

N cos θ = m g + f sin θ

(see figure s02). Friction is along the slope, so only

f sin θ

acts vertically, not the whole

f

"When

μ

is very large,

v_{ma x}

just keeps growing forever."

Error near the danger point. When

1 - μ tan θ \to 0

(i.e.

μ tan θ \to 1

) the denominator vanishes and

v_{ma x} \to \infty

mathematically. Physically it means friction can hold any speed — but this is a limiting idealisation, not "forever."

"On a banked road the car pushes on the road with force

N = m g cos θ

Error — that formula is for a ramp with no horizontal acceleration. Here

N = m g / cos θ

instead, because the road must also supply the inward turning force via

N sin θ

Why questions

Why does mass cancel out of the ideal banking condition but not out of the individual force equations?

Each equation (

N cos θ = m g

N sin θ = m v^{2} / r

) contains

m

, but when you divide them to get

tan θ

, the

m

N

(which is itself

\propto m

) and the

m

's on the right cancel top and bottom.

Why do we divide equation (2) by equation (1) instead of solving each separately?

Dividing kills both unknowns we don't want at once:

N

(which we can't measure directly) and

m

. What's left,

tan θ = v^{2} / (r g)

, contains only design quantities.

Why is banking preferred over relying on friction on a flat road?

Friction is unreliable — rain, oil, and ice slash

μ

without warning. Banking makes a component of the ever-present normal force do the turning, so the road works even with

μ = 0

(see Friction).

Why does

N

exceed

m g

on a banked road, and where does the extra push come from?

The road must both hold up the weight (needs

N cos θ = m g

) and lean inward, so its full magnitude

N = m g / cos θ

is larger. The extra push is the road reacting to the car "leaning" into the tilted surface.

Why is the banking geometry identical to a Conical pendulum?

In both, a single support force (string tension there, normal force here) tilts by

θ

, its vertical part balances gravity, its horizontal part supplies

m v^{2} / r

. Same two equations → same

tan θ = v^{2} / (r g)

Why does friction reverse direction between the fast and slow cases rather than just shrinking?

Because the car's tendency to slide reverses. Fast → it wants to climb/fly out, so friction (opposing) points down-slope. Slow → it wants to slide in/down, so friction points up-slope. Friction always fights whichever way sliding is about to start (figure s03).

Why can't a car exceed

v_{ma x}

even with perfect tyres?

Because friction is capped at

f = μ N

. Once the required inward force exceeds what

N sin θ + μ N cos θ

can supply, no more grip is available and the car slides outward — that ceiling is

v_{ma x}

Edge cases

What happens to the banking condition when

θ \to 0

(a flat road)?

tan 0 = 0

, so

v_{0} = r g \cdot 0 = 0

— a flat frictionless road can turn a car only at zero speed. All real turning must then come from friction, giving

v_{ma x} = μ r g

What does

v_{ma x} = r g \frac{μ + tan θ}{1 - μ tan θ}

become as

μ \to 0

It collapses to

r g tan θ

, the frictionless design speed. Max and min both squeeze onto the single value

v_{0}

— the safe band shrinks to one point, as it should.

What if

tan θ = μ

exactly — what is

v_{min}

v_{min} = r g \frac{tan θ - μ}{1 + μ tan θ} = r g \cdot 0 = 0

. The car can crawl arbitrarily slowly, even stop, without sliding inward: friction just barely holds it.

What if

tan θ > μ

but you drive slower than

v_{min}

The inward pull (

N sin θ

) overwhelms what up-slope friction can resist, so the car slides down/inward off its path.

v_{min}

is a genuine lower limit, not just a suggestion.

θ \to 9 0^{\circ}

(a vertical wall), what happens to the design speed?

tan 9 0^{\circ} \to \infty

, so

v_{0} \to \infty

. A vertical wall could in principle turn a car at any speed with pure normal force — this is the "wall of death" limit (figure s04), where gravity is balanced by friction, not by

N

θ

grows from

0

toward

9 0^{\circ}

, how does the design speed curve behave?

It rises slowly at first then shoots up, following

v_{0} = r g tan θ

(see figure s04): near flat it's tiny, near vertical it blows up — a steep tilt buys a lot of speed.

What happens to

v_{ma x}

μ tan θ \to 1

The denominator

1 - μ tan θ \to 0

, so

v_{ma x} \to \infty

: friction plus the steep tilt can supply unlimited inward force. Beyond this (

μ tan θ > 1

) the formula turns negative — a signal the model's "tends to slide up" assumption no longer bounds the speed.

For a car parked at rest on a banked road, which direction does friction point?

Up the slope. At

v = 0

there is no centripetal need, so friction must counter the down-slope pull of gravity to keep the car from sliding inward — exactly the

v_{min}

scenario taken to zero speed.

Connections

The diagram below shows how each linked topic plugs into the banking problem — use it to see the whole web at a glance.

Centripetal force — the force every trap here revolves around.
Uniform Circular Motion — why constant speed still means nonzero net force.
Friction — the range-setting, direction-flipping villain of most traps.
Inclined plane — where $N \neq = m g$ intuition first breaks.
Conical pendulum — identical $tan θ = v^{2} / r g$ geometry.
Newton's Second Law — the per-axis bookkeeping behind every equation.
