Intuition The core idea (WHY banking exists)When a car turns on a circular road, it needs a net inward (centripetal) force m v 2 r \frac{mv^2}{r} r m v 2 Banking = tilting the road surface inward by an angle θ \theta θ component of the normal force points inward and helps supply the centripetal force. So even with zero friction , a properly banked road can turn the car. That's the whole point: don't rely on friction alone .
We want the relationship between the banking angle θ \theta θ speed v v v radius r r r μ \mu μ without skidding .
The angle = = θ = = ==\theta== == θ ==

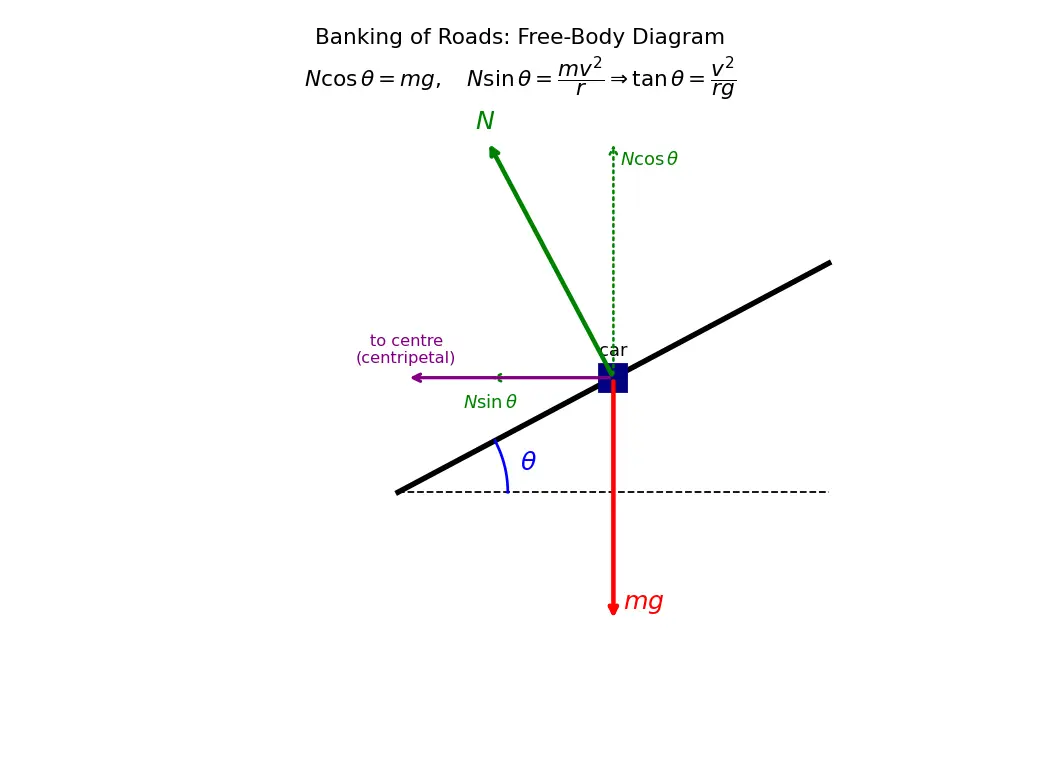

Three forces act on the car on a banked surface:
Weight m g mg m g
Normal force N N N θ \theta θ
Friction f f f
The car moves in a horizontal circle , so the net force must be horizontal, pointing to the centre . There is no vertical acceleration .
Set f = 0 f = 0 f = 0 N N N
Why resolve into vertical & horizontal? Because the acceleration is purely horizontal (centripetal) and zero vertical — these are the natural axes.
Vertical equilibrium (no vertical acceleration):
N\cos\theta = mg \tag{1}
Why this step? The upward vertical part of N N N
Horizontal (provides centripetal force):
N\sin\theta = \frac{mv^2}{r} \tag{2}
Why this step? The inward horizontal part of N N N
Divide (2) by (1) to eliminate N N N m m m N sin θ N cos θ = m v 2 / r m g \frac{N\sin\theta}{N\cos\theta} = \frac{mv^2/r}{mg} N c o s θ N s i n θ = m g m v 2 / r
m m m m m m same angle . Mass cancels — beautiful.
Friction adjusts to a range of safe speeds, not just one.
Let f = μ N f = \mu N f = μ N down the incline .
Resolve. Vertical:
N\cos\theta = mg + f\sin\theta = mg + \mu N\sin\theta \tag{3}
Why? Weight pulls down; the down-slope friction's vertical component also pulls down.
Horizontal (toward centre):
N\sin\theta + f\cos\theta = \frac{mv^2}{r} \implies N\sin\theta + \mu N\cos\theta = \frac{mv_{max}^2}{r} \tag{4}
Why? Both N N N
From (3): N ( cos θ − μ sin θ ) = m g N(\cos\theta - \mu\sin\theta) = mg N ( cos θ − μ sin θ ) = m g v m a x 2 r g = sin θ + μ cos θ cos θ − μ sin θ = tan θ + μ 1 − μ tan θ \frac{v_{max}^2}{rg} = \frac{\sin\theta + \mu\cos\theta}{\cos\theta - \mu\sin\theta} = \frac{\tan\theta + \mu}{1 - \mu\tan\theta} r g v ma x 2 = c o s θ − μ s i n θ s i n θ + μ c o s θ = 1 − μ t a n θ t a n θ + μ
Flip the sign of μ \mu μ v m i n = r g tan θ − μ 1 + μ tan θ \boxed{v_{min} = \sqrt{rg\,\dfrac{\tan\theta - \mu}{1 + \mu\tan\theta}}} v min = r g 1 + μ tan θ tan θ − μ
(If tan θ ≤ μ \tan\theta \le \mu tan θ ≤ μ v m i n = 0 v_{min}=0 v min = 0
Worked example Worked: design speedA curve has r = 50 m r=50\text{ m} r = 50 m θ = 30 ∘ \theta=30^\circ θ = 3 0 ∘ Step: tan 30 ∘ = 0.577 \tan 30^\circ=0.577 tan 3 0 ∘ = 0.577 Why? Use ideal formula since no friction asked.
v 0 = r g tan θ = 50 × 9.8 × 0.577 = 283 ≈ 16.8 m / s v_0=\sqrt{rg\tan\theta}=\sqrt{50\times9.8\times0.577}=\sqrt{283}\approx \mathbf{16.8\ m/s} v 0 = r g tan θ = 50 × 9.8 × 0.577 = 283 ≈ 16.8 m/s ≈ 60 \approx 60 ≈ 60
Worked example Worked: max speed with frictionSame curve, now μ = 0.2 \mu=0.2 μ = 0.2 v m a x v_{max} v ma x μ + tan θ 1 − μ tan θ = 0.2 + 0.577 1 − 0.2 ( 0.577 ) = 0.777 0.885 = 0.878 \frac{\mu+\tan\theta}{1-\mu\tan\theta}=\frac{0.2+0.577}{1-0.2(0.577)}=\frac{0.777}{0.885}=0.878 1 − μ t a n θ μ + t a n θ = 1 − 0.2 ( 0.577 ) 0.2 + 0.577 = 0.885 0.777 = 0.878 Why divide like this? It's the full-friction formula derived above.
v m a x = 50 × 9.8 × 0.878 = 430 ≈ 20.7 m / s v_{max}=\sqrt{50\times9.8\times0.878}=\sqrt{430}\approx \mathbf{20.7\ m/s} v ma x = 50 × 9.8 × 0.878 = 430 ≈ 20.7 m/s
Worked example Forecast-then-VerifyForecast: If θ → 0 \theta\to 0 θ → 0 v m a x v_{max} v ma x Verify: Put θ = 0 \theta=0 θ = 0 v m a x = r g ⋅ μ = μ r g v_{max}=\sqrt{rg\cdot\mu}=\sqrt{\mu r g} v ma x = r g ⋅ μ = μ r g
Common mistake "Friction always points down the slope."Why it feels right: gravity pulls the car "down" the incline, so you imagine friction always opposing that.
Fix: Friction opposes the tendency of relative sliding . Going fast → car tends to fly outward/up → friction points down . Going slow → car tends to slip inward/down → friction points up . Direction depends on speed.
tan θ = v 2 r g \tan\theta = \frac{v^2}{rg} tan θ = r g v 2 Why it feels right: it's the formula everyone memorises.
Fix: That's the frictionless result only. With friction use the v m a x / v m i n v_{max}/v_{min} v ma x / v min tan θ \tan\theta tan θ
Common mistake Putting normal forceN = m g N=mg N = m g Why it feels right: habit from flat ground.
Fix: On an incline N cos θ = m g N\cos\theta = mg N cos θ = m g N = m g / cos θ > m g N = mg/\cos\theta > mg N = m g / cos θ > m g N = m g N=mg N = m g
Recall Feynman: explain to a 12-year-oldImagine cycling fast around a curve. On flat ground you'd slide outward and fall. So engineers tilt the road like the inside of a bowl. Now the tilted ground gently pushes you toward the centre , the way a marble rolls toward the bottom of a curved bowl. That sideways push is exactly what keeps you turning — no need to rely on tyre grip. The steeper the tilt and the faster you go, the better it works, following tan θ = v 2 / ( r g ) \tan\theta = v^2/(rg) tan θ = v 2 / ( r g )
Mnemonic Remember the design formula"TAN = Velocity-squared Round Gives" → tan θ = v 2 r g \tan\theta = \dfrac{v^2}{rg} tan θ = r g v 2 "plus on top, minus on bottom = MAX" (μ + tan θ 1 − μ tan θ \frac{\mu+\tan\theta}{1-\mu\tan\theta} 1 − μ t a n θ μ + t a n θ
What net force does a turning car require, and where does it point? Centripetal force
m v 2 / r mv^2/r m v 2 / r , pointing horizontally toward the centre of the circle.
Why bank a road at all? So a component of the normal force supplies the centripetal force, reducing/eliminating dependence on unreliable friction.
State the frictionless banking condition. tan θ = v 2 r g \tan\theta = \dfrac{v^2}{rg} tan θ = r g v 2 .
In the frictionless derivation, which two equations do you write? N cos θ = m g N\cos\theta = mg N cos θ = m g (vertical) and
N sin θ = m v 2 / r N\sin\theta = mv^2/r N sin θ = m v 2 / r (horizontal).
Why does mass cancel out in tan θ = v 2 / r g \tan\theta=v^2/rg tan θ = v 2 / r g Both required centripetal force and available normal-force component are proportional to
m m m , so it divides out.
Formula for maximum safe speed with friction. v m a x = r g μ + tan θ 1 − μ tan θ v_{max}=\sqrt{rg\,\dfrac{\mu+\tan\theta}{1-\mu\tan\theta}} v ma x = r g 1 − μ tan θ μ + tan θ .
Formula for minimum safe speed with friction. v m i n = r g tan θ − μ 1 + μ tan θ v_{min}=\sqrt{rg\,\dfrac{\tan\theta-\mu}{1+\mu\tan\theta}} v min = r g 1 + μ tan θ tan θ − μ .
Direction of friction when the car moves faster than design speed? Down the slope (car tends to slide outward/up).
What does v m a x v_{max} v ma x θ = 0 \theta=0 θ = 0 v m a x = μ r g v_{max}=\sqrt{\mu r g} v ma x = μ r g , the flat-road friction limit.
Is the normal force equal to m g mg m g No;
N = m g / cos θ > m g N=mg/\cos\theta > mg N = m g / cos θ > m g .
Centripetal force — the force banking is designed to supply.Uniform Circular Motion — source of the v 2 / r v^2/r v 2 / r Friction — sets the v m i n v_{min} v min v m a x v_{max} v ma x Inclined plane — same force-resolution technique.Conical pendulum — identical geometry (tan θ = v 2 / r g \tan\theta=v^2/rg tan θ = v 2 / r g Newton's Second Law — ∑ F = m a \sum F = ma ∑ F = ma
horizontal component gives
divide to eliminate N and m
divide to eliminate N and m
friction down slope gives
Circular turn needs centripetal force mv2 over r
Normal force N leans inward
Weight mg, Normal N, Friction f
v0 = sqrt of rg tan theta needs no friction
Intuition Hinglish mein samjhoDekho, jab car ek circular mod (curve) par turn karti hai, toh usko ek centripetal force chahiye jo centre ki taraf point kare, magnitude m v 2 / r mv^2/r m v 2 / r friction se aata hai — aur friction reliable nahi hai (baarish, oil, ice mein kam ho jata hai). Isliye engineers road ko thoda tilt kar dete hain, outer edge ko upar utha dete hain. Is tilt ko banking angle θ \theta θ
Jab road tilt hoti hai, toh normal force N N N ab vertical nahi, thodi centre ki taraf jhuk jati hai. Iska horizontal component N sin θ N\sin\theta N sin θ N cos θ N\cos\theta N cos θ m g mg m g tan θ = v 2 / ( r g ) \tan\theta = v^2/(rg) tan θ = v 2 / ( r g ) design speed hai jahan friction ki zaroorat hi nahi padti!
Real life mein friction bhi hota hai, toh ek range of speeds safe hoti hai. Tez chalao toh car bahar slip karne ki koshish karti hai, friction neeche ki taraf lagta hai — isse v m a x v_{max} v ma x v m i n v_{min} v min
Bas yeh trick mat bhoolna: N ≠ m g N \ne mg N = m g N = m g / cos θ N = mg/\cos\theta N = m g / cos θ m g mg m g tan θ = v 2 / r g \tan\theta = v^2/rg tan θ = v 2 / r g
