Centripetal force — what provides it in various situations

WHY does circular motion need an inward force?

Derivation of the centripetal acceleration (from scratch)

Formula Deriving

$a = v^2/r$ geometrically Consider a particle at two instants separated by small time $\Delta t$ , sweeping a small angle $\Delta\theta$ .

Step 1 — position vectors. Both velocity vectors have the same magnitude $v$ . As the particle turns by $\Delta\theta$ , the velocity vector also turns by $\Delta\theta$ (velocity is always perpendicular to the radius). Why this step? The velocity is tangent to the circle; rotating the radius by $\Delta\theta$ rotates the tangent by the same $\Delta\theta$ .

Step 2 — the small triangle of velocities. The two velocity vectors $\vec v_1,\vec v_2$ (each length $v$ ) and their difference $\Delta\vec v$ form an isosceles triangle. For a small angle, the short side ≈ arc: $|\Delta \vec v| \approx v\,\Delta\theta$ Why this step? For small angles, chord ≈ arc = (radius of this triangle, which is $v$ ) × angle.

Step 3 — divide by time. $a = \frac{|\Delta\vec v|}{\Delta t} = v\,\frac{\Delta\theta}{\Delta t} = v\,\omega$ Why this step? $\Delta\theta/\Delta t$ is the angular velocity $\omega$ .

Step 4 — use $v=\omega r$ . Since arc speed $v = \omega r$ , i.e. $\omega = v/r$ : $\boxed{a_c = \frac{v^2}{r} = \omega^2 r}$ Direction: toward the center (centripetal = "center-seeking").

WHAT provides the centripetal force? (situation by situation)

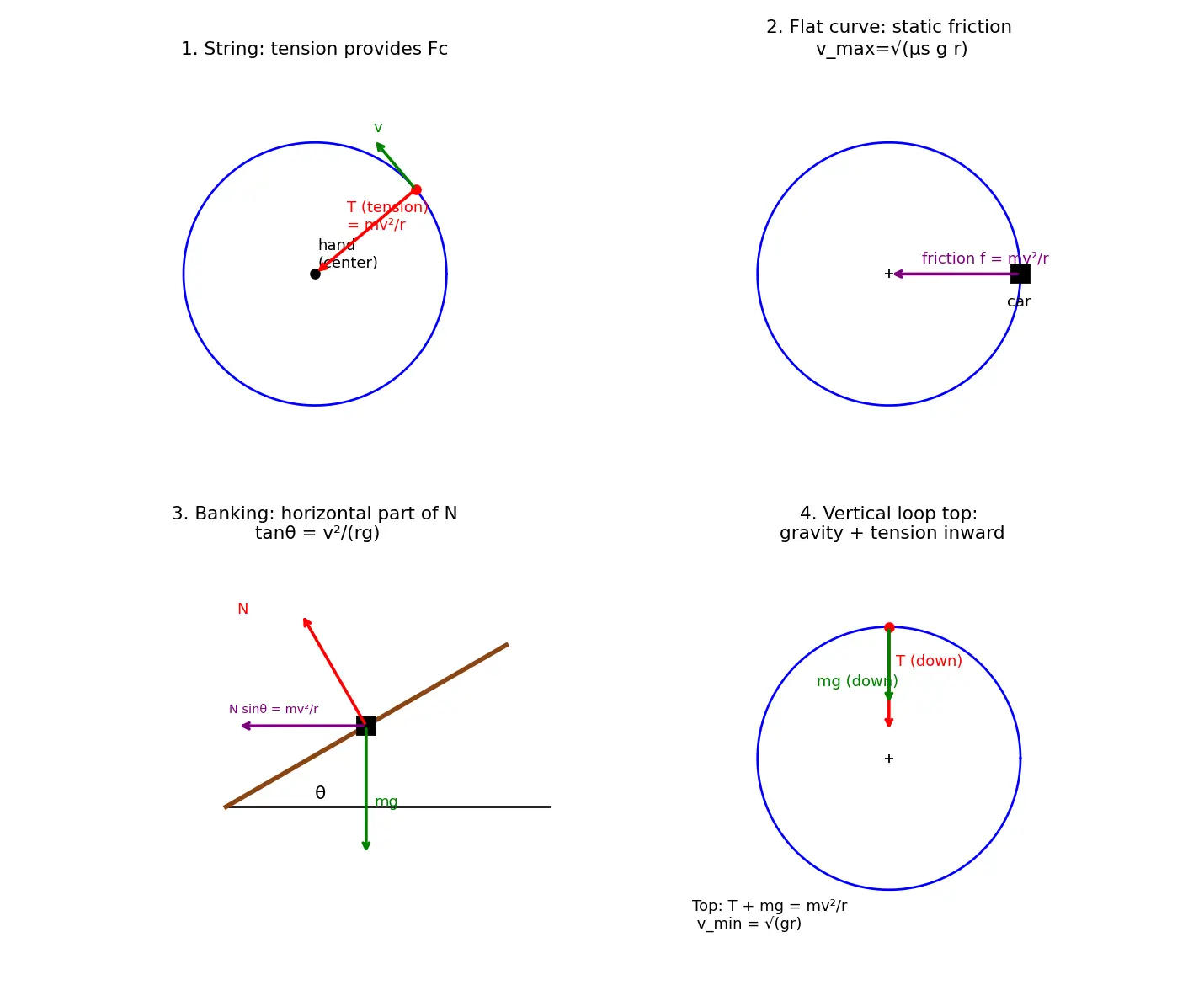

Figure — Centripetal force — what provides it in various situations

Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Tie a ball to a string and whirl it around your head. The string keeps yanking the ball inward toward your hand — that inward yank is what keeps the ball going in a circle instead of flying off straight. The instant you let go, the ball shoots off in a straight line, because nothing is pulling it inward anymore. "Centripetal force" is just a fancy name for whatever is doing the inward yanking: a string, gravity, the grip of car tyres, or a magnet. It's never a brand-new force — it's a job that some real force is doing.

Flashcards

What is centripetal force, physically?

Not a new force — the name for whatever real force (or net inward component) points toward the center and supplies

mv^2/r

Derive centripetal acceleration magnitude.

|\Delta v|=v\Delta\theta

, so

a=v\,\Delta\theta/\Delta t = v\omega = v^2/r = \omega^2 r

, directed toward center.

What provides centripetal force for a satellite?

Gravity:

GMm/r^2 = mv^2/r

What provides it for a car on a flat curve, and what limits speed?

Static friction;

v_{max}=\sqrt{\mu_s g r}

Banking angle formula (frictionless) and which force provides

F_c

\tan\theta=v^2/(rg)

; horizontal component of the normal force.

At the top of a vertical loop, write the force equation and minimum speed.

T+mg=mv^2/r

;

v_{min}=\sqrt{gr}

when

T=0

Why do you feel thrown outward in a turning car?

Inertia (body wants straight-line motion); the outward "centrifugal" force is a pseudo-force, not real in the ground frame.

Charge in magnetic field: radius of circular path?

qvB=mv^2/r \Rightarrow r=mv/(qB)

Connections

Newton's Second Law — $F=ma$ applied to the inward direction.
Uniform Circular Motion — kinematics of $v=\omega r$ .
Gravitation and Orbits — gravity as the provider.
Friction — static friction ceiling $\mu_s N$ .
Banking of Roads — normal force geometry.
Pseudo-forces and Non-inertial Frames — centrifugal force.
Magnetic Force on Moving Charges — $qvB$ as centripetal.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab koi cheez circle mein ghoomti hai, toh chahe uski speed constant ho, uski direction har pal badalti rehti hai. Velocity ek vector hai, aur direction badalna matlab velocity badal rahi hai, matlab acceleration hai. Aur acceleration ke liye force chahiye (Newton ka second law). Yeh acceleration hamesha center ki taraf point karti hai, jise hum centripetal acceleration kehte hain, $a = v^2/r$ . Toh center ki taraf koi real force honi chahiye — usi ka net inward part ka naam hai centripetal force, $F_c = mv^2/r$ .

Sabse important baat: centripetal force koi alag naya force nahi hai. Yeh sirf ek "job" hai jo koi real force kar rahi hoti hai. String ke case mein tension yeh kaam karti hai, satellite ke liye gravity, flat road par car mod te waqt friction, banked road par normal force ka horizontal component, aur magnetic field mein charge ke liye $qvB$ . Problem solve karte waqt sirf real forces ka free body diagram banao, phir likho: inward direction mein net force $= mv^2/r$ .

Ek common galti: log "centrifugal force" (bahar ki taraf) ko real samajh lete hain — jaise car mod te waqt aapko bahar dhakka lagta hai. Woh asal mein inertia hai; aapka body seedha jaana chahta hai par car mud rahi hai. Ground frame mein bahar wali koi real force nahi hoti. Isliye exam mein FBD mein centrifugal arrow mat lagao (jab tak rotating frame use na karo).

Aur ek useful result: flat curve par car ki maximum speed $v_{max} = \sqrt{\mu_s g r}$ hoti hai, kyunki friction ki ek limit hoti hai ( $\mu_s mg$ ). Speed isse zyada hui toh friction kam pad jaata hai aur car phisal jaati hai. Yahi reason hai ki tez turn par roads ko bank (tilt) kiya jaata hai.
