Centripetal force — what provides it in various situations: Visual walkthrough

Before we write a single symbol, let us agree on what the letters will mean. We will meet them one at a time, so nothing is used before it is drawn.

Step 1 — A dot that refuses to change speed, only direction

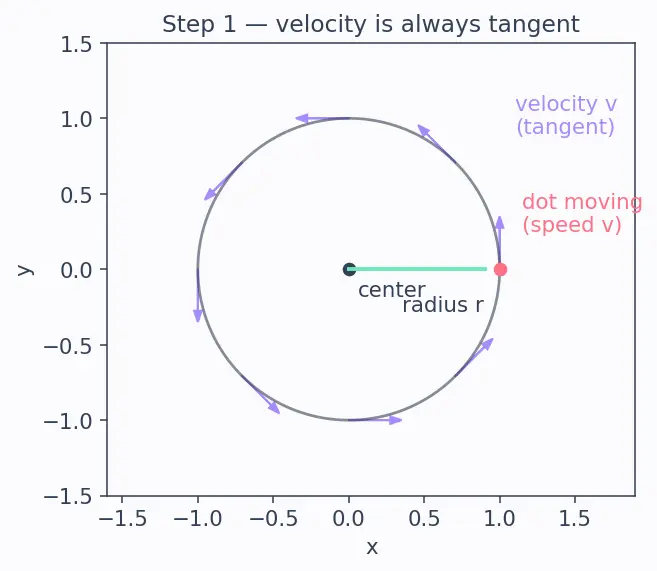

WHAT. Picture a single dot gliding around a circle of radius $r$ at constant speed $v$ .

WHY. The whole mystery of circular motion lives in one fact: the dot's speed never changes, but its direction never stops changing. To find the acceleration we must isolate that direction-change and nothing else.

PICTURE. The velocity arrow $v$ is always tangent — it grazes the circle, pointing "straight ahead" along the path, never into or out of the circle. Watch how the arrow swings as the dot moves.

Figure — Centripetal force — what provides it in various situations

Step 2 — Two snapshots, a whisker of time apart

WHAT. Freeze the dot at two instants: position $P_{1}$ (velocity $v_{1}$ ) and, a whisker later, position $P_{2}$ (velocity $v_{2}$ ). Both arrows have the same length $v$ — only their directions differ.

WHY. Acceleration is change in velocity over time. To see the change, we need two velocities to compare. Taking them a tiny time apart keeps the geometry simple and, in the limit, exact.

PICTURE. The two radii to $P_{1}$ and $P_{2}$ open up an angle $Δ θ$ at the center. Notice the two tangent velocity arrows: they are turned from each other by the same $Δ θ$ .

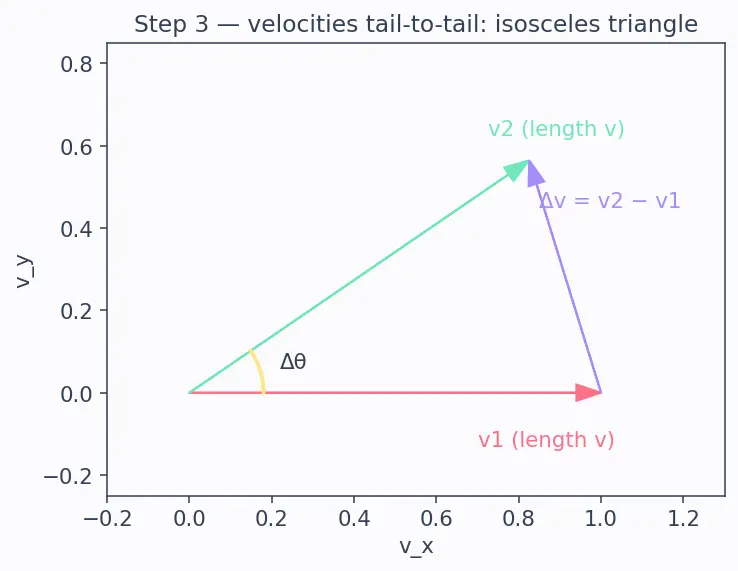

Step 3 — Slide the velocity arrows together into one triangle

WHAT. Copy $v_{1}$ and $v_{2}$ so their tails touch a single point. The little arrow that goes from the tip of $v_{1}$ to the tip of $v_{2}$ is the change in velocity, called $Δ v$ .

$Δ v = v_{2} - v_{1}$

$Δ v$ ::: the change we must divide by time to get acceleration — the star of the whole show.
the subtraction ::: "what you must add to $v_{1}$ to arrive at $v_{2}$ ", drawn as the closing side of the triangle.

WHY. Acceleration is $Δ v /Δ t$ . We cannot measure it until we see $Δ v$ as an actual arrow. Placing the two velocities tail-to-tail turns an abstract subtraction into a triangle you can measure.

PICTURE. Two equal sides of length $v$ with the tiny angle $Δ θ$ between them, closed off by the short side $Δ v$ . That is an isosceles triangle (two equal sides ⇒ two equal base angles).

Step 4 — Measure the short side: chord ≈ arc

WHAT. We claim the short side has length $v Δ θ$ .

WHY this tool — the radian. A radian is defined so that arc length = radius × angle. That is the whole reason radians exist: they make "how far around" equal to "how big the angle" times "how far out". For a tiny angle, the straight chord and the curved arc are indistinguishable, so: $chord ∣Δ v ∣ \approx arc v Δ θ = (radius v) \times (angle Δ θ)$

PICTURE. Blow up the velocity triangle. As $Δ θ$ shrinks, the flat chord melts onto the curved arc drawn at radius $v$ — the gap between them vanishes.

Step 5 — Divide by time to get the acceleration

WHAT. Acceleration is the change-arrow per unit time: $a = \frac{∣Δ v ∣}{Δ t} = \frac{v Δ θ}{Δ t} = v \cdot \frac{Δ θ}{Δ t} = v ω$

$\frac{∣Δ v ∣}{Δ t}$ ::: change in velocity per second = the very definition of acceleration.
$\frac{Δ θ}{Δ t}$ ::: angle swept per second = $ω$ .

WHY. We built $∣Δ v ∣$ in Step 4; dividing by the same $Δ t$ from Step 2 converts a change into a rate of change, which is what "acceleration" means.

PICTURE. The short $Δ v$ arrow, stretched by the factor $1/Δ t$ , becomes the acceleration arrow $a$ .

Step 6 — Where does that acceleration point?

WHAT. In the velocity triangle, the base angles are each $\frac{π - Δ θ}{2}$ . As $Δ θ \to 0$ each base angle $\to \frac{π}{2} = 9 0^{\circ}$ . So $Δ v$ becomes perpendicular to $v$ .

WHY. We already know $v$ is tangent (Step 1). Something perpendicular to the tangent points along the radius. Following the arrow, it aims at the center — hence centri-petal, "center-seeking".

PICTURE. Slide the acceleration arrow back onto the dot: it stabs straight inward toward the hub of the circle.

Step 7 — Trade $ω$ for $v$ and $r$ , and bring in the force

WHAT. The dot covers arc $= r \times angle$ , so speed and spin are linked by $v = ω r$ , i.e. $ω = v / r$ . Substitute: $a_{c} = v ω = v \cdot \frac{v}{r} = \frac{v ^{2}}{r} = ω^{2} r$

$v^{2} / r$ ::: use it when you know speed.
$ω^{2} r$ ::: use it when you know spin rate. Same acceleration, two costumes.

Now hand this to Newton's Second Law ( $F = m a$ ): a real force must produce this inward acceleration. $F_{c} = m a_{c} = \frac{m v ^{2}}{r} = m ω^{2} r$

$m$ ::: the mass being turned. Heavier ⇒ needs a bigger inward pull.
$F_{c}$ ::: the required net inward force — not a new force, just a demand that some real force (tension, gravity, friction, normal on a banked road, gravity in orbit, or the magnetic force) must meet.

WHY. $ω$ was convenient inside the geometry, but real problems quote $v$ , $r$ , and $m$ . This last swap makes the formula usable.

Edge cases — the formula's honest limits

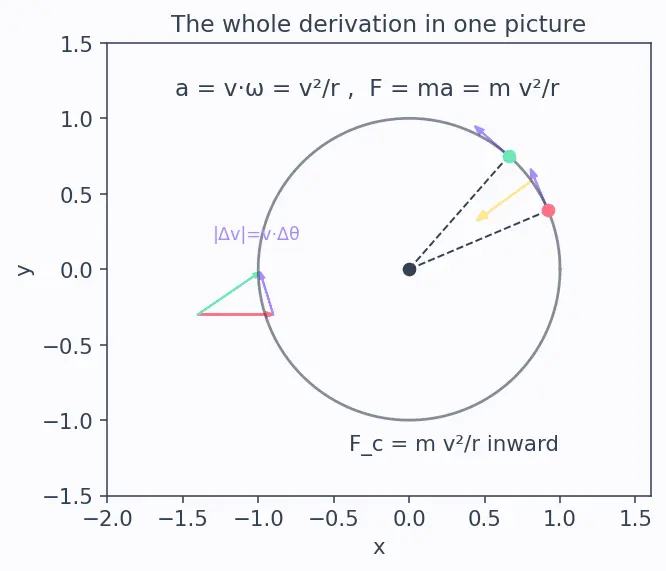

The one-picture summary

Everything on one canvas: the tangent velocities on the circle (Step 1–2), the velocity triangle that measures $∣Δ v ∣ = v Δ θ$ (Step 3–4), the divide-by-time that yields $a = v ω$ (Step 5), the inward direction (Step 6), and the final $F_{c} = m v^{2} / r$ from Newton's law (Step 7).

Recall Feynman retelling in plain words

Imagine you're the dot, racing along a circular track at a steady pace. You never speed up or slow down — but you are constantly turning, and turning means your "which way am I heading" arrow keeps swinging. Line up two of those arrows a heartbeat apart and the little gap between their tips is how much your motion had to bend. That gap, per second, is your acceleration — and it points dead at the center of the track. Bigger speed makes the gap open faster; a tighter circle makes it open faster still; that's why the acceleration is $v^{2} / r$ . Finally, Newton whispers that no motion bends for free: some real thing — a string, gravity, the grip of tyres, a magnet — must pull you inward with force $m v^{2} / r$ . Call that pull "centripetal" if you like, but it was always just a real force doing an inward job.

Recall Self-check

Why does $Δ v$ point toward the center, not along the motion? ::: The velocity triangle's base angles tend to $9 0^{\circ}$ as $Δ θ \to 0$ , so $Δ v ⊥ v$ ; perpendicular to the tangent is the inward radius. Where did the " $v$ " in $∣Δ v ∣ \approx v Δ θ$ come from? ::: It is the length of the two equal sides of the velocity triangle — the "radius" of that little arc, which is the speed $v$ . Why swap $ω$ for $v / r$ at the end? ::: To express the result in the quantities problems actually give you: $v$ , $r$ , and $m$ .

Connections

Newton's Second Law — turns the acceleration $a_{c}$ into the force $F_{c} = m a_{c}$ .
Uniform Circular Motion — the $v = ω r$ link used in Step 7.
Gravitation and Orbits · Friction · Banking of Roads · Magnetic Force on Moving Charges — real forces that supply this $F_{c}$ .
Pseudo-forces and Non-inertial Frames — where the outward "centrifugal" feeling really comes from.
