Intuition Why we visualize dataImagine you have to compare the number of apples, bananas, and oranges sold in a week. Would you rather stare at a table of numbers or glance at a picture where you instantly see "Bananas won!" Charts let you spot the biggest, smallest, and overall pattern at a glance, without doing arithmetic in your head. Data visualization transforms raw numbers into a story your eyes can understand quickly.
A bar chart uses rectangular bars (horizontal or vertical) where the length of each bar is proportional to the value it represents. Each bar corresponds to one category. Bars are separated by gaps to show distinct categories.
A pictogram (or pictograph) uses small pictures/icons to represent quantities. Each icon stands for a fixed number of units (e.g., 🍎 = 10 apples). Fractions of icons represent fractional amounts.
A pie chart is a circle divided into sectors (slices). Each sector's angle (and area) is proportional to the fraction of the whole it represents. The full circle = 360° = 100% of the data.
Step 1: Set up axes
Horizontal axis (x): categories (Apples, Bananas, etc.)
Vertical axis (y): frequency/count with a uniform scale
Why uniform scale? If 1 cm = 5 units at the bottom but 1 cm = 10 units at the top, bars would lie about the data. Uniform scaling ensures visual proportionality.
Step 2: Calculate bar heights
Bar height = Value for category Scale factor \text{Bar height} = \frac{\text{Value for category}}{\text{Scale factor}} Bar height = Scale factor Value for category
If your scale is "1 cm represents 10 units" and a category has 35 units:
Height = 35 10 = 3.5 cm \text{Height} = \frac{35}{10} = 3.5 \text{ cm} Height = 10 35 = 3.5 cm
Step 3: Draw bars with equal widths, leaving gaps

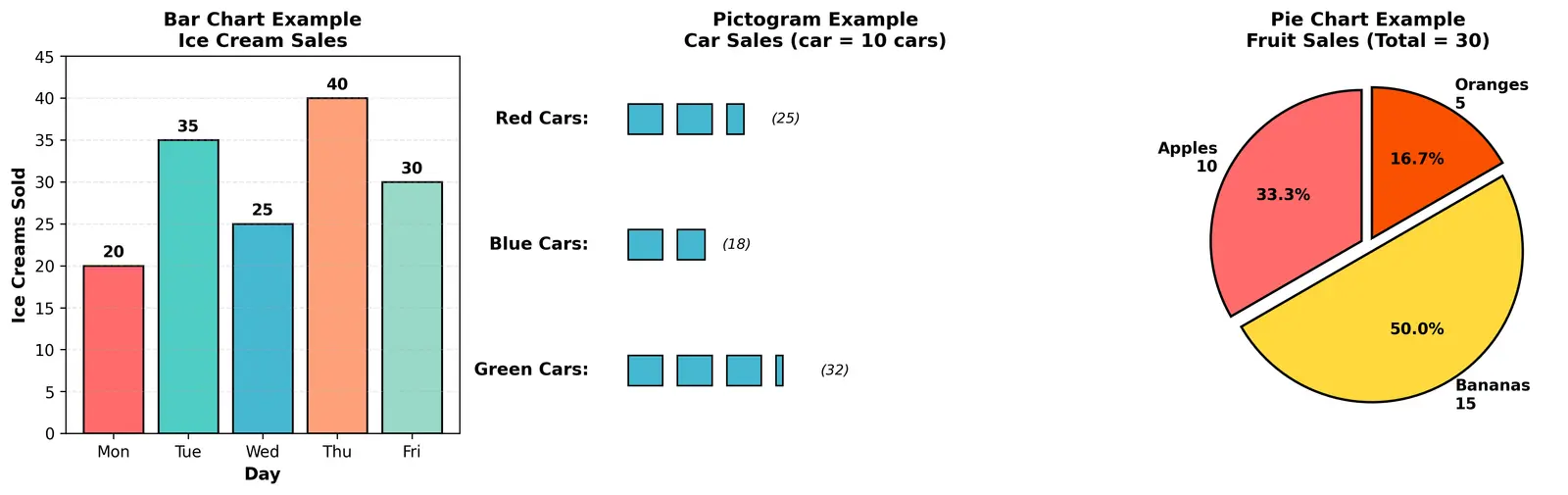

Worked example Drawing a bar chartData: Monday: 20 ice creams, Tuesday: 35, Wednesday: 25
Scale: 1 cm = 5 ice creams
Calculation:
Monday: 20 ÷ 5 = 4 20 \div 5 = 4 20 ÷ 5 = 4
Tuesday: 35 ÷ 5 = 7 35 \div 5 = 7 35 ÷ 5 = 7
Wednesday: 25 ÷ 5 = 5 25 \div 5 = 5 25 ÷ 5 = 5 Why this step? Dividing by the scale converts data units into drawing units (cm). This ensures the visual length matches the numerical value.
Draw three bars (4 cm, 7 cm, 5 cm tall) with labels and gaps between them.
Step 1: Choose a symbol and its value
Example: 🚗 = 10 cars
Step 2: Divide each data value by the symbol value
Number of symbols = Data value Value per symbol \text{Number of symbols} = \frac{\text{Data value}}{\text{Value per symbol}} Number of symbols = Value per symbol Data value
Step 3: Draw whole symbols + fractional symbols
Worked example Drawing a pictogramData: Red cars: 25, Blue cars: 18Symbol: 🚗 = 10 cars
Calculation:
Red: 25 ÷ 10 = 2.5 25 \div 10 = 2.5 25 ÷ 10 = 2.5
Blue: 18 ÷ 10 = 1.8 18 \div 10 = 1.8 18 ÷ 10 = 1.8 Why this step? The division tells us how many "blocks" of the base unit we have. Fractional icons preserve accuracy without needing a scale axis.
Common mistake Forgetting what each symbol representsWrong idea feels right because: You see the icons and count them directly.Why it's wrong: If 🍕 = 5 pizzas and you see 3 icons, the answer is 15 pizzas , not 3.Fix: Always check the key: "1 symbol = __ units" and multiply.
Core principle: A full circle = 360°. Each category gets an angle proportional to its fraction of the total.
Step 1: Find the total
T = ∑ all category values T = \sum \text{all category values} T = ∑ all category values
Step 2: Calculate each sector angle
Angle for category i = Value i T × 360 ° \text{Angle for category } i = \frac{\text{Value}_i}{T} \times 360° Angle for category i = T Value i × 360°
Why 360°? A circle's rotation is defined as 360°. This formula converts a fraction into degrees.
Step 3: Use a protractor to draw sectors, starting from 12 o'clock, going clockwise
Worked example Drawing a pie chartData: Apples: 10, Bananas: 15, Oranges: 5Total: T = 10 + 15 + 5 = 30 T = 10 + 15 + 5 = 30 T = 10 + 15 + 5 = 30 Angle calculations:
Apples: 10 30 × 360 ° = 120 ° \frac{10}{30} \times 360° = 120° 30 10 × 360° = 120° Why? Apples are 1 3 \frac{1}{3} 3 1 1 3 \frac{1}{3} 3 1
Bananas: 15 30 × 360 ° = 180 ° \frac{15}{30} \times 360° = 180° 30 15 × 360° = 180° Why? Bananas are 1 2 \frac{1}{2} 2 1
Oranges: 5 30 × 360 ° = 60 ° \frac{5}{30} \times 360° = 60° 30 5 × 360° = 60° Why? Oranges are 1 6 \frac{1}{6} 6 1
Check: 120 ° + 180 ° + 60 ° = 360 ° 120° + 180° + 60° = 360° 120° + 180° + 60° = 360°
Common mistake Pie chart angles don't add to 360°Wrong idea feels right because: You calculated each angle separately, they look reasonable.Why it's wrong: If you made rounding errors or arithmetic mistakes, you might get 358° or 365°. The physical circle must be exactly 360°.Fix: Always check ∑ θ i = 360 ° \sum \theta_i = 360° ∑ θ i = 360°
Height of bar = value (multiply by scale if given)Compare bars: taller bar = greater value
Find difference: subtract bar heights
Worked example Reading a bar chartBar chart shows: Math test scores (out of 100)
Anna's score: 8 × 10 = 80 8 \times 10 = 80 8 × 10 = 80 Why? Each cm represents 10 marks, so 8 cm = 8 lots of 10.
Ben's score: 6.5 × 10 = 65 6.5 \times 10 = 65 6.5 × 10 = 65 Difference: 80 − 65 = 15 80 - 65 = 15 80 − 65 = 15
Count symbols × value per symbol For partial symbols, estimate the fraction
Worked example Reading a pictogramKey: 🏀 = 20 basketballs
Shop A: 3.5 × 20 = 70 3.5 \times 20 = 70 3.5 × 20 = 70 Shop B: 2 × 20 = 40 2 \times 20 = 40 2 × 20 = 40 Why multiply? Each symbol is a "package" of 20. We're counting packages.
Measure the angle of a sector (or use given percentage)Calculate value: Value = θ 360 ° × Total \text{Value} = \frac{\theta}{360°} \times \text{Total} Value = 360° θ × Total
Worked example Reading a pie chartTotal students: 120
How many play soccer?
90 ° 360 ° × 120 = 1 4 × 120 = 30 students \frac{90°}{360°} \times 120 = \frac{1}{4} \times 120 = 30 \text{ students} 360° 90° × 120 = 4 1 × 120 = 30 students
Why this formula? The 90° sector is 90 360 = 1 4 \frac{90}{360} = \frac{1}{4} 360 90 = 4 1 1 4 \frac{1}{4} 4 1
Intuition Chart selection guide
Bar chart: Comparing quantities across distinct categories (best for exact values, easy to read numbers)Pictogram: Same as bar chart but more visual/appealing , good for presentations or young audiencesPie chart: Showing parts of a whole (proportions, percentages), when the total matters
Why not always use pie charts? If you have 15 categories, the pie becomes a cluttered mess. Bar charts handle many categories better.
Mnemonic BAR-PIC-PIE memory trickB ars A re for R anking (comparing separate things)PIC tograms are PIC tures (visual icons)PIE charts show P roportions I n E verything (the whole pie)
Recall Explain to a 12-year-oldImagine you and your friends collected candies on Halloween. You want to brag about who got the most!
A bar chart is like lining up everyone's candy piles and instantly seeing whose tower is tallest. Each person gets their own bar.
A pictogram is like using candy emojis 🍬 where 1 emoji = 10 real candies. If you got 35 candies, you draw 3 full emojis + half of one. It's cuter and easier to show your little sibling.
A pie chart is for when you want to show how your candy stash breaks down: "Half of my candies are chocolate 🍫, a quarter are gummies 🍬, and a quarter are sour stuff 🍋." You slice a circle like a pizza, and each slice shows what fraction of your total haul each type is.
The key: bar/pictogram compares different people, pie shows the breakdown of one person's collection!
Frequency tables — raw data that feeds into these chartsAverages and range — statistics you can visualize with barsFractions and percentages — pie charts convert fractions to anglesRatio and proportion — scaling pictogram symbols uses ratiosAngles — pie charts require precise angle measurementData collection methods — where the data for charts comes from
What is a bar chart? :: A chart using rectangular bars where the length is proportional to the value, with gaps between bars for distinct categories.
What is a pictogram? A chart using small icons/pictures where each icon represents a fixed number of units; fractional icons show fractional amounts.
What is a pie chart? A circular chart divided into sectors where each sector's angle is proportional to its fraction of the whole (full circle = 360°).
Formula for bar height with scale :: Bar height = Value ÷ Scale factor (e.g., if scale is 1 cm = 10 units, value 40 → height = 4 cm)
Formula for number of pictogram symbols Number of symbols = Data value ÷ Value per symbol
Formula for pie chart sector angle Angle = (Category value ÷ Total) × 360°
If a pie chart sector is 120° and the total is 90 items, how many items in that sector? (120° ÷ 360°) × 90 = (1/3) × 90 = 30 items
Why must a uniform scale be used for bar charts? To ensure visual proportionality; non-uniform scales distort comparisons and misrepresent data.
Common mistake: what to remember when reading pictograms Always check the key to see what value each symbol represents, then multiply (don't just count symbols).
When to use bar chart vs pie chart Bar chart: comparing distinct categories; Pie chart: showing parts of a whole (proportions/percentages).
shows pattern at a glance
bar length proportional to value
circle split into sectors
Bar Height = Value / Scale Factor
Symbols = Value / Value per Symbol
Sector Angle = Fraction of 360°
Intuition Hinglish mein samjhoJab tumhare pas bahut sare numbers hote hain – jaise ki ek hafte mein kitne apples, bananas aur oranges bike – toh unhe table mein dekhna boring aur confusing ho sakta hai. Yahan data visualization kaam ati hai! Teen main charts hain jo tum seekhoge:
Bar chart mein har category ke liye ek rectangular bar hota hai, aur jitna bada number, utna lamba bar. Ek nazar mein tumhe pata chal jata hai ki kaun sa sabse zyada hai. Pictogram mein choti-choti pictures use hoti hain (jaise 1 car icon = 10 cars), jo bacho ko samajhne mein easy hota hai aur presentations mein acha dikhta hai. Pie chart ek circle hai jo slices mein kata hua hai – jaise pizza – aur har slice dikhata hai ki total ka kitna percentage wo category hai.
Har chart ka apna use hai: agar tumhe alag-alag categories compare karni hain, bar/pictogram perfect hai. Agar tumhe "whole" ka breakdown dikhana hai (jaise "mere total marks mein se 50% Math se aye"), toh pie chart use karo. Formula simple hai – pie chart mein har slice ka angle nikalne ke liye: (us category ki value ÷ total) × 360°. Agar ye concept clear ho gaya, toh tum kisi bhi data ko visualize kar sakte ho aur exams mein bhi ye questions bahut ate hain!
