System-on-Chip (SoC) integration

Overview

System-on-Chip (SoC) integration is the process of combining multiple functional blocks (CPU, GPU, memory controllers, I/O interfaces, etc.) onto a single silicon die, connected via on-chip interconnects. The key challenge is making heterogeneous components—each designed independently—work together efficiently while managing power, timing, and physical constraints.

The trade-off: integration complexity skyrockets. You're now dealing with thermal hotspots, clock domain crossings, IP block incompatibilities, and the nightmare of verifying billions of transistors working together.

Core Concepts

1. IP Block Integration

WHY use IP blocks?

• Designing a modern CPU from scratch takes100+ engineer-years. Licensing an ARM Cortex core takes weeks.
• Reduces risk: proven blocks have been silicon-tested.

HOW integration works:

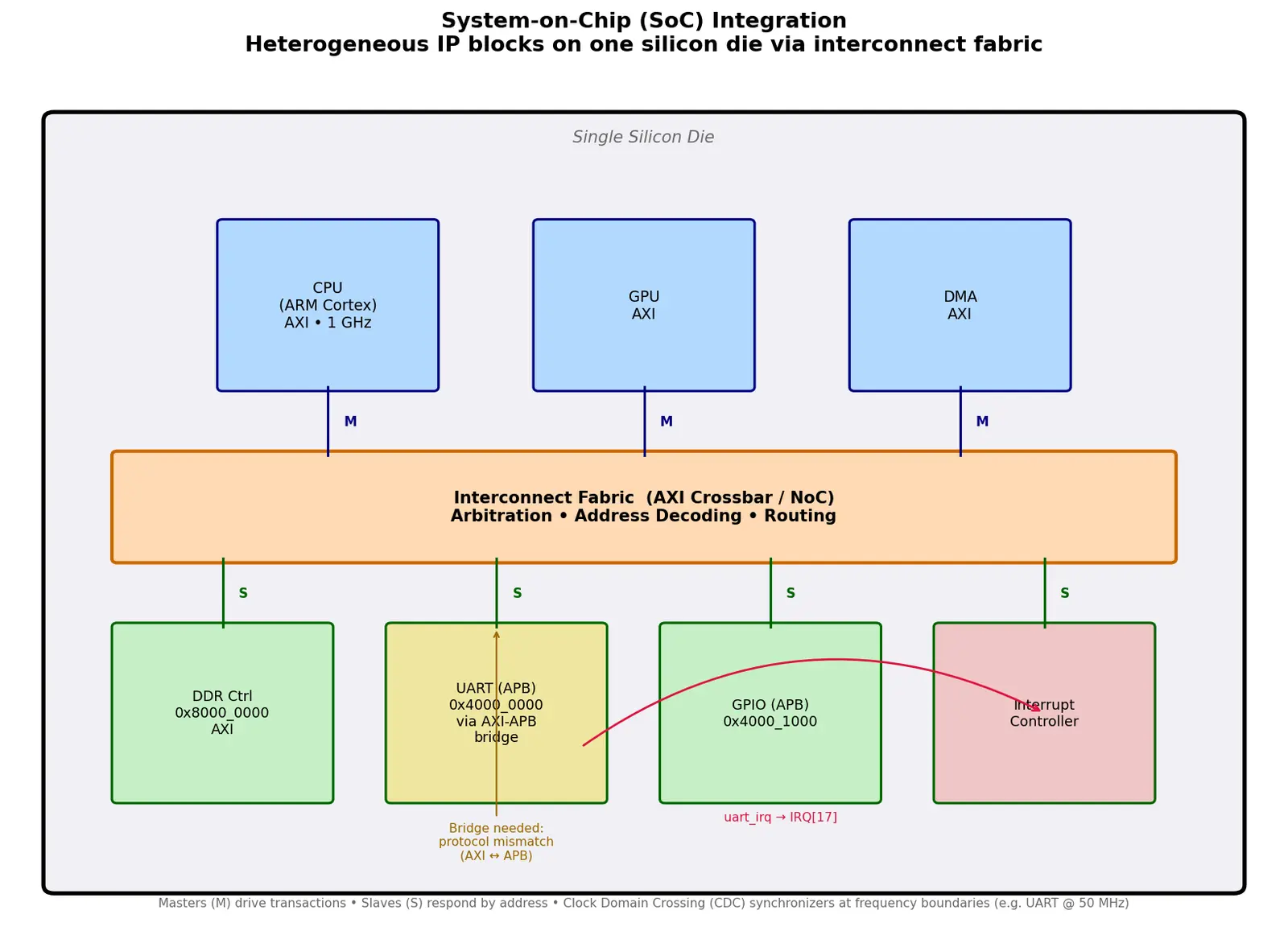

1. Interface Compatibility: All blocks must speak the same bus protocol (AXI, AHB, APB). If a legacy UART uses APB but your CPU uses AXI, you need a bridge.
2. Address Map Assignment: Each peripheral gets a unique address range (e.g., UART at 0x4000_0000, GPIO at 0x4000_1000). The interconnect routes transactions based on address.
3. Clock/Reset Distribution: Not all blocks run at the same frequency. You add clock dividers and synchronizers at domain crossings.

Step 1: Interface Matching

• UART IP has APB slave interface (simple, low-speed).
• CPU uses AXI (high-performance).
• Solution: Insert an AXI-to-APB bridge in the interconnect fabric.

Step 2: Address Assignment

• Assign UART registers to 0x4000_0000 - 0x4000_0FF (4KB window).
• Configure interconnect decoder: "If address[31:12] == 0x4000, route to APB bridge."

Step 3: Clocking

• CPU runs at 1 GHz, UART at 50 MHz (baud rate generation needs slower clock).
• Add clock divider: uart_clk = cpu_clk / 20.
• Add clock domain crossing (CDC) synchronizers for control signals crossing between domains.

Step 4: Interrupt Connection

• UART generates IRQ when data arrives. Wire uart_irq to interrupt controller input17.
• CPU reads interrupt controller, sees bit 17 set, jumps to UART ISR.

Why these steps? Skipping address mapping → bus conflicts. Skipping CDC → metastability crashes. Skipping bridge → protocol mismatch hangs the bus.

2. Interconnect Fabric Design

HOW to choose:

• 1-2 masters? Shared bus (lowest area).
• 3-8 masters? Crossbar (good balance).
• 10+ masters (multi-core GPU)? NoC.

Total potential bandwidth (if no conflicts): $B_{\text{total}} = \min(M, N) \times B$

WHY? In an ideal cycle, up to $\min(M,N)$ simultaneous transactions can occur (limited by whichever side has fewer ports). But this assumes perfect no-conflict scenario—in practice, if two masters want the same slave, arbitration reduces throughput.

Derivation from first principles:

• Crossbar has $M$ input ports (masters) and $N$ output ports (slaves).
• Each master→slave path is independent unless two masters target the same slave.
• Best case: All masters target different slaves → $M$ parallel transfers (if $M \leq N$).
• Worst case: All masters target slave 0 → serialized through slave's single port, total BW = $B$.

Example calculation:

• 4 masters (CPU, GPU, DMA, DSP), 3 slaves (DRAM, Flash, peripherals), $B = 4$ GB/s per link.
• Best case: CPU→DRAM, GPU→Flash, DMA→peripherals, DSP waits. 3 concurrent transfers = $3 \times 4 = 12$ GB/s.
• Worst case: All access DRAM → $1 \times 4 = 4$ GB/s.

Why this step? Shows interconnect isn't magic infinite bandwidth—real performance depends on access patterns.

3. Clock Domain Crossing (CDC)

WHY is this critical? Modern SoCs have 5-10+ clock domains (CPU fast, peripherals slow, PLs independent). Every signal crossing domains risks metastability crashes if not synchronized.

HOW to cross safely:

Why two flops?

• First flop may go metastable (takes time T_resolve to settle).
• Second flop samples after one full clock period → gives time to resolve.
• MTBF (mean time between failures) improves exponentially with delay: $\text{MTBF} \propto e^{T_{\text{wait}}/\tau}$ where $\tau$ is device time constant (~100 ps).

For multi-bit signals (e.g., 32-bit data bus), you cannot use 2-flop sync directly—each bit resolves at different times → corrupt data. Solutions:

• Handshake protocol: Valid/ready signals synchronized, data held static during crossing.
• Async FIFO: Gray-coded pointers (only 1 bit changes at a time).

Example mistake: "I'll just add two flops to my32-bit AXI data bus."❌ Result: Bits settle at different cycles, receiver sees garbage. Fix: Use AXI async bridge with handshaking.

4. Power Domain Integration

WHY needed? Mobile SoCs: camera off most of the time. Keeping it powered wastes battery. Solution: separate power domain for image signal processor (ISP), shut down when camera idle.

HOW to implement:

1. Power switches: PMOS transistors gate VDD to the domain. Control signal from power management unit (PMU) turns on/off.
2. Isolation cells: When domain powers down, its outputs float → might leak current into neighboring domain. Isolation cells clamp outputs to known state (0 or 1).
3. Level shifters: If Domain A runs at 1.2V and Domain B at 0.9V, signals crossing need level shifters (else 0.9V "high" isn't high enough for 1.2V logic).
4. Retention registers: Some state (e.g., config registers) must survive power-down. Use retention flops powered by always-on domain.

If you power-gate a domain (OFF): $P_{\text{saved}} = P_{\text{dyn}} + P_{\text{static}}$ Static power (leakage) also eliminated.

Example:

• GPU domain: 2W when idle (mostly leakage), 10W when active.
• Powered off 90% of the time.
• Savings: $0.9 \times 2W + 0.1 \times 0W = 1.8W$ average reduction.

Why this step? Quantifies the benefit—if savings are tiny, the area cost of power switches isn't worth it.

5. Physical Integration & Floorplanning

WHY critical? Place CPU and DRAM controller on opposite corners → long wires → slower clocks, higher power. Place two-hungry blocks (CPU + GPU) adjacent → thermal hotspot → chip overheats.

HOW to approach:

1. Identify critical paths: CPU↔cache needs lowest latency → place adjacent.
2. Thermal considerations: High-power blocks (CPU, GPU) separated or staggered. Use thermal modeling to predict hotspot temps.
3. Pin assignment: I/O pads around die perimeter. Place DDR PHY near DDR pins (can't route those far—signal integrity).
4. Power grid: VDD/GND mesh must supply all blocks. Thicker mesh near high-current blocks.

Why this layout?

• CPU and GPU separated (thermal).
• DRAM controller at bottom edge next to PHY pads (short traces to DDR chips).
• L3 cache central (both CPU and GPU access it).
• Low-power peripherals in corner (not timing-critical).

6. Verification & Validation

WHY so hard? Modern SoCs: 10B+ transistors, millions of possible states. Exhaustive testing impossible.

HOW to verify:

1. Block-level simulation: Each IP verified standalone (UART transmits correct bits).
2. Integration simulation: Interconnect + blocks together. Co-simulation with embedded software (boot Linux).
3. Formal verification: Mathematically prove properties (e.g., no deadlock interconnect arbitration).
4. Emulation: Map design to FPGA, run at MHz speeds (slow but handles real software workloads).
5. Post-silicon validation: First chips from fab → bring-up lab → find bugs → spin new silicon or workarounds.

Why it feels right: You connected UART IRQ output to CPU IRQ input, what else is there?

What goes wrong:

1. UART asserts IRQ.
2. CPU reads UART status register (clears IRQ).
3. UART de-asserts IRQ.
4. But CPU pipeline has 5-cycle latency → old IRQ value still propagating through CPU interrupt controller → CPU sees spurious re-trigger.

The fix:

• Level-sensitive interrupts: CPU keeps polling until UART status is clear.
• Edge-detection: Interrupt controller detects 0→1 transition, latches it. CPU explicitly clears latch after servicing.

Why this mistake happens: Treating asynchronous interrupt as simple wire, ignoring multi-cycle behavior of real logic. Steel-man: The designer correctly connected the wire, but missed that interrupt controllers have state machines that need careful handshaking.

Active Recall Flashcards

#flashcards/hardware

What is the primary benefit of SoC integration over discrete chips? :: Lower latency (shorter on-chip wires vs. PCB traces), lower power (no off-chip I/O drivers), smaller form factor—critical for mobile devices.

Key Formulas & Derivations

Crossbar Bandwidth

Already derived above in section 2.

Dynamic Power in a Clock Domain

$P_{\text{dyn}} = \alpha C V^2 f$

Derivation from first principles:

• Charging a capacitor $C$ from 0 to $V$: energy $E = \frac{1}{2}CV^2$ stored.
• But energy drawn from supply: $E_{\text{supply}} = CV^2$ (the other half dissipated in resistance during charging).
• If capacitor switches at frequency $f$, power= E_{\text{supply}} \times f = CV^2 f$.
• Not all gates switch every cycle → multiply by activity factor $\alpha$ (0 to 1).

Example:

• $C = 10$ pF (total gate capacitance in domain), $V = 1.0$ V, $f = 1$ GHz, $\alpha = 0.3$.
• $P = 0.3 \times 10 \times 10^{-12} \times 1^2 \times 10^9 = 3$ mW.

Why this step? Shows exactly where power goes (charging caps) and why lowering voltage is most effective (quadratic term).

Connections

• AXI Protocol – primary interconnect protocol in modern ARM SoCs
• Clock Domain Crossing Techniques – detailed CDC architectures
• Power Management in SoCs – PMU, DVFS, power gating
• Network-on-Chip (NoC) – scalable interconnect for many-core designs
• AMBA Bus Standards – AHB, APB protocols used for IP integration
• Physical Design Flow – from floorplanning to tape-out
• Formal Verification Methods – proving interconnect correctness

Why is this better? Three reasons:

1. Faster: The brain and eyes are right next to each other (like neighbors), so messages travel instantly instead of going across long wires.
2. Less battery: Long wires waste energy. Short connections inside one chip are like whispering vs. shouting across the room.
3. Smaller: Fits in your phone instead of neding a desktop computer case.

The hard part? Making sure the "brain" part that thinks super-fast (1 billion times per second!) can talk to the "USB" part that goes slow (100 million times per second) without getting confused. It's like one person speaking really fast and another slowly—you need a translator (that's the "clock domain crossing" stuff). And you need to decide where everything physically sits on the chip, like arranging furniture in a room so the most-used things are close together.
