Addressing modes: Worked examples — Hardware deep dive

This is a Deep Dive child of 5.1.3 Addressing modes. The parent gave you the $E A$ formulas. Here we exhaust them — every mode, every degenerate case, every trap an exam can set. If a scenario exists, it lives in the matrix below and gets a fully worked example.

Before anything, five plain-word reminders (we will not use a symbol we have not re-earned):

The scenario matrix

Every worked example below is tagged with the cell it covers. The goal: no reader ever meets a case we skipped.

Cell	What makes it tricky	Covered by
C1 — zero memory access	operand never touches memory (immediate / register)	Ex 1
C2 — the "how many trips?" axis	direct (1) vs indirect (2) vs register-indirect (1)	Ex 2
C3 — sign of the displacement	$A$ can be negative (backward offset)	Ex 3
C4 — degenerate / zero inputs	$A = 0$ , or $(R) = 0$ — do the rules still hold?	Ex 4
C5 — scaled indexing (arrays of wide elements)	element size $\neq = 1$ byte	Ex 5
C6 — PC-relative, both directions	forward branch and backward loop	Ex 6
C7 — auto-increment / decrement ordering	when does $R$ change relative to the access?	Ex 7
C8 — the stack (real-world word problem)	push/pop as auto-dec/auto-inc	Ex 8
C9 — exam twist: same bits, four modes	one instruction word decoded four ways	Ex 9
C10 — limiting behaviour / wrap-around	$E A$ exceeds the address space	Ex 10

Shared machine state for all examples (memorise this street):

Address	Contents	Register	Contents
100	500	R1	400
200	108	R2	3
400	700	R3	408
403	900	Rz	0
404	111	PC	200
408	222	SP	600
500	800	Rb	596
596	42
600	55
608	333

MOVE #25, R3 (immediate) and ADD R1, R2 (register) Recall from the punctuation box above: #25 means the number 25 is baked straight into the instruction word. Forecast: how many memory trips does each make to get its operand? Guess before reading.

Immediate #25. Operand $= 25$ . Why this step? The # (defined above) says "the number is inside the instruction word itself." There is no $E A$ at all — nothing to look up. Trips = 0.
Register R1, R2. Operand $= (R 1) = 400$ and $(R 2) = 3$ . Why this step? Registers live inside the CPU, not out on the memory street (see Registers and Register File). Reading a register is not a memory access. Trips = 0.

Verify: the parent's table lists $0$ memory accesses for both immediate and register modes. Both operands ( $25$ and $400$ ) were obtained without any $M [\dots]$ appearing. ✓

Ex 2 — C2: the "how many trips?" axis, three modes, same $A = 100$

Worked example Direct, memory-indirect, register-indirect on address 100

Forecast: three loads that all mention the number 100 or a register holding a pointer. Rank them by memory trips.

Direct LOAD 100. $E A = A = 100$ . Operand $= M [100] = 500$ . Why? The field is the address — one trip.
Memory-indirect LOAD (100). $E A = M [100] = 500$ , then operand $= M [500] = 800$ . Why two trips? First trip reads the pointer stored at 100 (which is 500); second trip reads the data that pointer points to. This is the extra cost the parent warned about.
Register-indirect LOAD (R1). $(R 1) = 400$ , so $E A = 400$ , operand $= M [400] = 700$ . Why only one trip? The pointer already sits in a register — no memory trip needed to fetch it, only the final trip for the data.

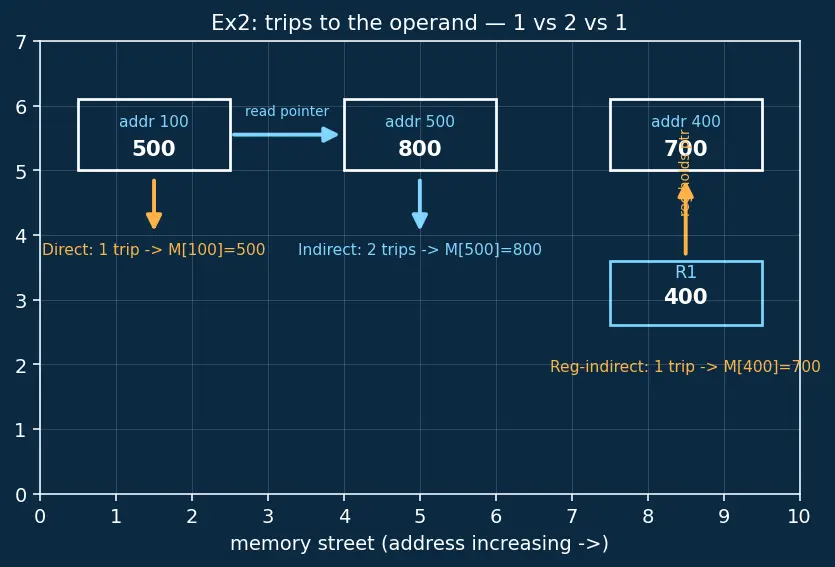

Figure below: each coloured arrow is one memory trip. Follow the amber path (direct, one hop to house 100), the cyan path (indirect, hop to 100 to read the pointer 500, then a second hop to house 500), and the amber path on the right (register-indirect, the register already holds 400 so only one hop to house 400). Count the arrows and you count the trips.

Verify: operands are $500$ , $800$ , $700$ ; trip counts $1, 2, 1$ . Matches the parent table exactly. ✓

Ex 3 — C3: a negative displacement (backward offset)

Ex 4 — C4: degenerate / zero inputs

Worked example What happens when

$A = 0$ or $(R) = 0$ ? We use two registers from the shared table: $R 1$ (holds 400) and $R z$ (holds 0 — a register whose contents happen to be zero; there is nothing special about it, it is just a normal register that currently stores 0). Forecast: do the formulas break, or just collapse gracefully?

Displacement with $A = 0$ : LOAD 0(R1). $E A = 0 + (R 1) = 0 + 400 = 400$ . Why does this matter? Displacement mode with zero offset degenerates into register-indirect — same result as LOAD (R1). So register-indirect is not a separate machine at all; it's the $A = 0$ corner of displacement.
Register holding 0: LOAD 100(Rz) with $(R z) = 0$ . $E A = 100 + 0 = 100$ , operand $= M [100] = 500$ . Why does this matter? Now the register contributes nothing and displacement degenerates into direct ( $E A = A$ ).

This is the deep lesson: the modes form a family, and zero inputs slide you between them.

Verify: case 1 gives $E A = 400$ , operand $700$ (= register-indirect result from Ex 2). Case 2 gives $E A = 100$ , operand $500$ (= direct result from Ex 2). Both collapses confirmed. ✓

Ex 5 — C5: scaled indexing for an array of wide elements

Worked example

int arr[] where each element is 4 bytes; read arr[3] Base register $R b = 596$ (start of the array, from the shared table). Index register $R 2 = 3$ . Element size (scale) $s = 4$ . Forecast: why can't we just do $E A = 596 + 3$ ?

Naïve (wrong): $596 + 3 = 599$ . Why wrong? Element 3 is not 3 bytes along — it's 3 elements along, and each element is 4 bytes wide. Byte offset $=$ index $\times$ scale.
Scaled index: $E A = (R b) + (R 2) \cdot s = 596 + 3 \cdot 4 = 596 + 12 = 608$ . Operand $= M [608] = 333$ . Why multiply? The hardware's scaled-index mode bakes the $\times s$ in, so arr[i] compiles to a single instruction regardless of element width (see Pointers and Arrays).
If instead we wanted element 0: $E A = 596 + 0 \cdot 4 = 596$ , operand $= M [596] = 42$ . Why check element 0? It confirms the base is the address of the first element, offset zero.

Verify: $596 + 3 \times 4 = 608$ with $M [608] = 333$ , and $596 + 0 \times 4 = 596$ with $M [596] = 42$ . ✓

Ex 6 — C6: PC-relative in both directions

Worked example A forward branch and a backward loop,

$P C = 200$ Recall from the punctuation box: * before a target means "relative to the current $P C$ ", so the assembler turns *+A into $E A = P C + A$ . Forecast: for a loop that jumps back, is the offset positive or negative?

Forward BRANCH +6: $E A = P C + A = 200 + 6 = 206$ . Why offset not absolute? Storing a distance makes the code relocatable — load it anywhere and $P C + A$ still lands on the right instruction (see Instruction Set Architecture (ISA)).
Backward BRANCH -8 (loop top): $E A = P C + A = 200 + (- 8) = 192$ . Why negative? A loop must jump backward to repeat; the assembler encodes a negative signed offset.
Data via PC-relative LOAD *+8 (read a constant 8 past PC): the * marks it PC-relative, so $E A = P C + 8 = 200 + 8 = 208$ . Why? Same rule; position-independent constant pools use it too.

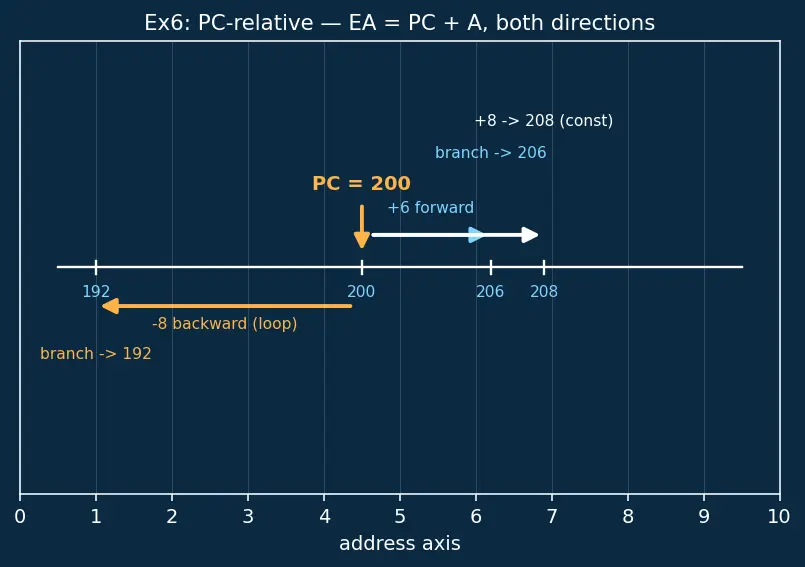

Figure below: the horizontal line is the address axis with $P C = 200$ marked in amber. Trace the cyan arrow $+ 6$ forward to house 206 (a forward branch), the amber arrow $- 8$ backward to house 192 (a loop jumping back), and the white arrow $+ 8$ forward to house 208 (a PC-relative data read). Every landing spot is just $P C$ plus a signed distance.

Verify: $200 + 6 = 206$ , $200 - 8 = 192$ , $200 + 8 = 208$ . Both directions land where predicted. ✓

Ex 7 — C7: auto-increment vs auto-decrement ordering

Ex 8 — C8: the stack — a real-world word problem

Worked example Push 77, then pop, using a stack that grows

downward The stack pointer SP = $600$ , word size $d = 1$ , stack grows toward lower addresses. "Grows down" means push uses pre-decrement, pop uses post-increment. See Stack and Subroutines. Forecast: after PUSH 77 then POP, what value comes back and where does SP end?

PUSH 77 = auto-decrement store -(SP). First $S P \leftarrow 600 - 1 = 599$ , then $M [599] \leftarrow 77$ . Why pre-decrement? Make room first by moving the top pointer down, then write. If we wrote first we'd clobber the current top.
POP = auto-increment load (SP)+. $E A = (S P) = 599$ , operand $= M [599] = 77$ ; then $S P \leftarrow 599 + 1 = 600$ . Why post-increment? Read the top first, then free the slot by moving SP back up.
Net effect: we got 77 back and SP returned to 600. Why this proves correctness? A push followed immediately by a pop must be a no-op on SP and return the pushed value — it does.

Verify: pushed value $77$ is recovered; SP starts and ends at $600$ ; mid-sequence SP was $599$ . ✓

Ex 9 — C9: exam twist — one instruction word, four modes

Ex 10 — C10: limiting behaviour — address wrap-around

Worked example Displacement that overshoots a 3-bit (0–7) address space

Suppose a toy machine has only addresses $0$ to $7$ (address width 3 bits, so $2^{3} = 8$ houses). Compute LOAD 6(Rw) with $(R w) = 5$ . Forecast: $6 + 5 = 11$ , but there's no house 11. What does the hardware do?

Raw sum: $E A_{raw} = 6 + 5 = 11$ . Why is this a problem? $11 > 7$ ; it names a house that doesn't exist on this street.
Wrap (modulo the address space): real hardware keeps only the low 3 bits, i.e. $E A = 11 mod 8 = 3$ . Why modulo $2^{n}$ ? An $n$ -bit adder simply drops the carry-out; the leftover is the remainder after dividing by $2^{n}$ . So overshoot silently wraps to the low end.
Sanity of the limit: at exactly $E A_{raw} = 8$ we'd get $8 mod 8 = 0$ — wrap to the very first house. Why check the boundary? $8$ is the smallest overshoot; confirming it maps to $0$ shows the wrap is continuous with no gap.

Verify: $11 mod 8 = 3$ and $8 mod 8 = 0$ . Wrap-around confirmed at both a generic and the boundary value. ✓

Recall

Recall Which cells did we cover?

All ten: zero-access (Ex1), trip-count axis (Ex2), negative displacement (Ex3), zero/degenerate collapse (Ex4), scaled index (Ex5), PC-relative both ways (Ex6), inc/dec ordering (Ex7), stack (Ex8), one-word-four-modes (Ex9), wrap-around (Ex10). Every $E A$ was a formula; every operand needed a trip count. Master those two habits.

Recall Quick self-test

LOAD (100) with M[100]=500, M[500]=800 — operand and trips? ::: operand 800, 2 memory trips (indirect). LOAD 0(R1) with (R1)=400 — what mode does it degenerate to? ::: register-indirect; EA=400, operand M[400]=700. Scaled arr[3], base 596, element size 4 — EA and operand? ::: EA = 596 + 3×4 = 608, operand M[608]=333. Push onto a downward stack, SP=600 — which auto-mode and new SP? ::: pre-decrement -(SP); SP becomes 599. LOAD 6(Rw), (Rw)=5, 3-bit address space — EA? ::: 11 mod 8 = 3.

The RISC-vs-CISC tension behind "how many modes should we even offer" lives in RISC vs CISC.
