WHAT is a Zener diode?

WHY does it break down at a fixed voltage?

Zener effect (low $V_Z$ , ≲ 5 V): heavy doping → very thin depletion region → strong internal E-field rips electrons out of bonds (tunneling).
Avalanche effect (high $V_Z$ , ≳ 6 V): carriers accelerated by the field knock out more carriers in a chain reaction.

Both give the same behaviour: current can rise sharply while voltage barely moves. That steep, near-vertical part of the reverse curve is what we live on.

WHY it regulates: the flat curve

$V_Z(\text{actual}) = V_{Z0} + I_Z\, r_Z$

$V_{Z0}$ = ideal knee voltage, $r_Z$ = slope of the breakdown region (a few Ω, ideally 0).
WHY this form? A straight line $V = V_{intercept} + (\text{slope})\times I$ . Small $r_Z$ ⇒ good regulator.

HOW to build a shunt regulator (derive from scratch)

We want a fixed output $V_{out}=V_Z$ from an unregulated, wobbly input $V_{in}$ , feeding a load $R_L$ .

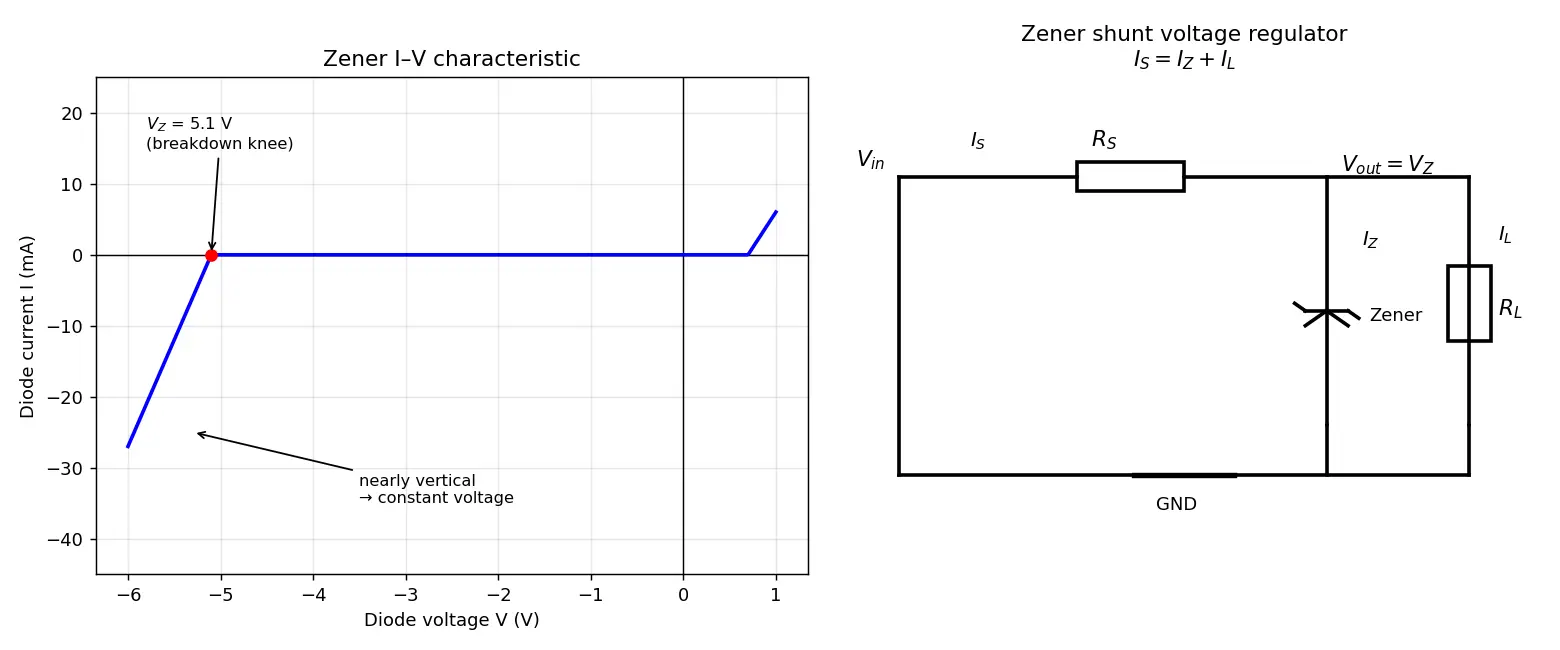

Figure — Zener diodes for voltage regulation

The circuit: $V_{in} \to$ series resistor $R_S \to$ node (output). At the node, a Zener goes to ground (reverse biased) in parallel with the load $R_L$ .

Step-by-step derivation

1. Series current (Ohm's law across $R_S$ ): $I_S = \frac{V_{in} - V_Z}{R_S}$ Why this step? The whole voltage drop across $R_S$ is $V_{in}-V_{out}$ , and $V_{out}=V_Z$ once the Zener conducts.

2. Load current: $I_L = \frac{V_Z}{R_L}$ Why? The load sees exactly $V_Z$ across it (it's in parallel with the Zener).

3. Kirchhoff's current law at the node: $I_S = I_Z + I_L \;\;\Rightarrow\;\; I_Z = I_S - I_L$ Why? Current in ( $I_S$ ) splits into the Zener branch and the load branch.

HOW does it actually "regulate"?

If $V_{in}$ rises → $I_S$ rises → extra current is dumped through the Zener ( $I_Z$ up), $V_Z$ barely moves. The Zener acts as a shunt (a controllable bypass).
If $R_L$ drops (load draws more) → $I_L$ up → $I_Z$ down, Zener gives up some of its share, output holds.

The Zener is like a pressure-relief valve: it soaks up the slack so the output stays flat.

The two limits you MUST respect

Worst cases to design for:

Minimum $I_Z$ happens when $V_{in}$ is lowest and load current is highest.
Maximum $I_Z$ happens when $V_{in}$ is highest and load is removed ( $I_L=0$ ).

Worked example 1 — basic operation

Worked example 2 — load is removed (danger check)

Worked example 3 — sizing $R_S$

Line & load regulation (how good is it?)

Common mistakes (steel-manned)

Active recall

Recall Forecast-then-verify: predict before revealing

What current flows through the Zener when the load is disconnected? → All of $I_S$ (since $I_L=0$ ).
Which is the worst case for minimum $I_Z$ ? → Min $V_{in}$ , max load.
What decides how good the line regulation is? → The ratio $r_Z/(R_S+r_Z)$ .

Recall Feynman: explain to a 12-year-old

Imagine a water tank you want kept at exactly the same level even though the incoming hose sometimes gushes and sometimes trickles. You put an overflow drain at the height you want. If too much water comes in, it just pours out the drain — the level stays put. If people take a lot of water out, less pours down the drain. The Zener is that overflow drain, but for electricity: it dumps extra current to keep the voltage at the "level" $V_Z$ .

Flashcards

In what bias region does a Zener regulate?

Reverse breakdown (cathode to the positive side).

Write the three master equations of a Zener shunt regulator.

I_S=(V_{in}-V_Z)/R_S

I_L=V_Z/R_L

I_Z=I_S-I_L

What happens to

I_Z

when

V_{in}

increases?

I_S

rises, extra current shunts through the Zener,

V_{out}

stays ~constant.

When is Zener current maximum (danger)?

Highest

V_{in}

with no load (

I_L=0

), so

I_Z=I_S

When is Zener current minimum (regulation may fail)?

Lowest

V_{in}

with maximum load current.

Formula for the largest allowable series resistor?

R_{S,max}=(V_{in,min}-V_Z)/(I_{Zmin}+I_{L,max})

Why does the Zener give a constant voltage?

Its reverse breakdown I–V curve is nearly vertical; large

\Delta I

gives tiny

\Delta V

What is Zener (dynamic) resistance

r_Z

The small slope of the breakdown region;

V_{out}

drifts as

V_{Z0}+I_Z r_Z

Line-regulation factor for output vs input change?

\Delta V_{out}=\Delta V_{in}\cdot r_Z/(R_S+r_Z)

Zener vs avalanche breakdown — which is which by voltage?

Zener (tunneling) dominates below ~5 V; avalanche above ~6 V.

How do you find the power dissipated in the Zener?

P_Z=V_Z\,I_Z

; must stay below the diode's rating.

Connections

Diodes & Applications
PN junction and reverse breakdown
Ohm's law and Kirchhoff's current law
Voltage dividers
Linear voltage regulators (series pass, LDO)
Power dissipation and thermal ratings
Rectifiers and filtering (unregulated DC source)

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Zener diode ek special diode hai jo reverse breakdown me kaam karta hai. Normal diode reverse me current block karta hai, lekin Zener ko jaanbujhkar aise banaya jaata hai ki ek fixed voltage $V_Z$ pe woh break down ho jaaye — aur break down hone ke baad woh apne upar ka voltage almost constant rakhta hai chahe current kitna bhi badle. Yehi "voltage ko constant rakhne ki zid" hume ek voltage regulator banane deti hai.

Circuit simple hai: $V_{in}$ se ek series resistor $R_S$ , phir ek node, aur us node se Zener ground ko (reverse bias me) aur saath me load $R_L$ . Do formule yaad rakho: $I_S=(V_{in}-V_Z)/R_S$ aur $I_S=I_Z+I_L$ . Matlab jo current $R_S$ se aata hai woh Zener aur load me baant jaata hai. Agar $V_{in}$ badh jaaye, extra current Zener nikaal (shunt kar) deta hai, output wahi rehta hai. Isko ek overflow drain jaisa socho — extra paani/current bahar nikaal deta hai taaki level (voltage) constant rahe.

Do khatre yaad rakho. No-load (load hata do) case me poora $I_S$ Zener me chala jaata hai — yeh maximum current aur power ka case hai, yahan diode jal sakta hai. Doosra, agar $R_S$ bahut bada le liya, toh low $V_{in}$ + high load me Zener ko itna current nahi milta ki woh breakdown me rahe — regulation fail. Isliye $R_S$ ka ek maximum hota hai: $R_{S,max}=(V_{in,min}-V_Z)/(I_{Zmin}+I_{L,max})$ .

Exam me hamesha worst cases check karo: min $V_{in}$ + max load (Zener starve na ho), aur max $V_{in}$ + no load (Zener jale na). Yeh do checks pass ho gaye toh regulator safe hai.
