Rectifier diodes and half-wave rectification

WHY do we even need this?

Wall power and transformer outputs are AC: voltage alternates $+$ and $-$ many times per second. But almost every electronic circuit (a phone chip, an LED, a microcontroller) needs DC — current flowing one steady direction. So the very first job in a power supply is to kill the negative halves. The cheapest way to do that is a single diode. That is the half-wave rectifier.

WHAT a diode actually does (the model we derive from)

A real silicon diode does not conduct the instant voltage is positive. It needs to overcome a ==barrier voltage $V_\gamma \approx 0.7\text{ V}$ == (0.3 V for germanium). We model it three ways, from crude to accurate:

WHY the $-V_\gamma$ ? Kirchhoff's voltage law around the loop: source $=$ diode drop $+$ load drop. If the diode "eats" 0.7 V, the load only gets $v_{in}-0.7$ .

HOW half-wave rectification works (step by step)

Circuit: AC source $\to$ diode $\to$ load resistor $R_L$ $\to$ back to source.

Let the input be $v_{in}(t) = V_m \sin(\omega t)$ .

Positive half ( $v_{in}>V_\gamma$ ): diode forward-biased, acts like a closed switch → current flows, load sees $v_{in}-V_\gamma$ .
Negative half ( $v_{in}<0$ ): diode reverse-biased, acts like an open switch → no current, load sees $0$ . The full negative voltage appears across the diode — this is why PIV matters: the diode must survive $V_m$ in reverse.

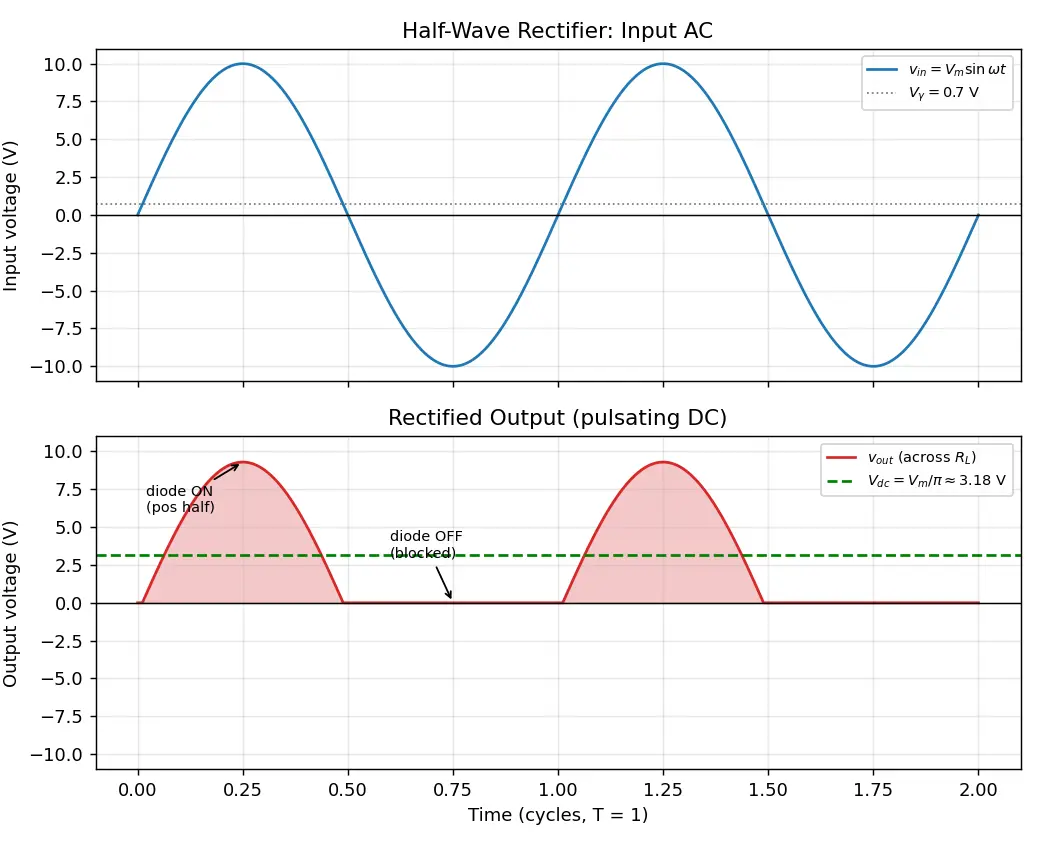

Figure — Rectifier diodes and half-wave rectification

DERIVING the DC (average) output from scratch

The load gets a chopped sine: a hump for half a period, flat zero for the other half. The DC value is just the average over one full cycle. Using the ideal model ( $V_\gamma \approx 0$ ), $v_{out}=V_m\sin\theta$ for $\theta\in[0,\pi]$ and $0$ for $\theta\in[\pi,2\pi]$ .

$V_{dc} = \frac{1}{2\pi}\int_0^{2\pi} v_{out}\,d\theta = \frac{1}{2\pi}\int_0^{\pi} V_m\sin\theta\,d\theta$

Why this step? Average = (area under curve) ÷ (total width). Only the first half has area.

$= \frac{V_m}{2\pi}\Big[-\cos\theta\Big]_0^{\pi} = \frac{V_m}{2\pi}\big(-(-1)-(-1)\big) = \frac{V_m}{2\pi}(2) = \boxed{\dfrac{V_m}{\pi}}$

Now the RMS (what determines heating/power). Square, average over the full cycle, root:

$V_{rms}^2 = \frac{1}{2\pi}\int_0^{\pi} (V_m\sin\theta)^2 d\theta = \frac{V_m^2}{2\pi}\int_0^\pi \frac{1-\cos2\theta}{2}\,d\theta = \frac{V_m^2}{2\pi}\cdot\frac{\pi}{2}=\frac{V_m^2}{4}$

$\Rightarrow \boxed{V_{rms}=\frac{V_m}{2}}$

Why the $\frac{1-\cos2\theta}{2}$ ? Power identity $\sin^2\theta=\frac{1-\cos2\theta}{2}$ ; the $\cos2\theta$ integrates to zero over $[0,\pi]$ .

A ripple of 1.21 is terrible (>100% wobble) — that's why we add a smoothing capacitor afterward.

Worked Examples

Common mistake Steel-manned common errors

Mistake A: " $V_{dc}=V_m/2$ ." Why it feels right: it's a half-wave, so half of something. And $V_{rms}$ really is $V_m/2$ — people confuse the two. Fix: average $\ne$ RMS. Average over a full cycle gives $V_m/\pi\approx 0.318V_m$ ; the $V_m/2$ is the RMS. Mistake B: "Diode conducts the moment $v_{in}>0$ ." Why it feels right: the ideal model says so. Fix: real silicon needs $v_{in}>0.7$ V; near the zero-crossing there's a small dead zone. Mistake C: "PIV can just equal $V_m$ exactly." Why it feels right: that's the math peak. Fix: always spec above $V_m$ for transients — undersized PIV = dead diode. Mistake D: Forgetting output frequency. Fix: half-wave output ripple frequency equals the input frequency ( $50$ Hz in → $50$ Hz ripple), because one hump per input cycle.

Recall Feynman: explain to a 12-year-old

Imagine a swing that goes forward and backward. You only want to count the forward pushes. A diode is like a turnstile that only lets people walk one way. When the AC "pushes forward," current goes through and lights your load. When it "pushes back," the turnstile locks and nothing passes. So instead of forward-back-forward-back, you get push–nothing–push–nothing. Average that out and you have a small steady forward push: that's your DC.

Active Recall Flashcards

What does a rectifier diode do to AC?

Passes only one polarity (positive half), blocking the other → converts AC to pulsating DC.

Half-wave

V_{dc}

in terms of

V_m

V_{dc}=V_m/\pi \approx 0.318\,V_m

Half-wave

V_{rms}

in terms of

V_m

V_{rms}=V_m/2

Why divide by

\pi

and not by

2

for DC?

DC = average over the FULL cycle; only half the cycle has area, giving

\int_0^\pi V_m\sin\theta\,d\theta/2\pi = V_m/\pi

Max efficiency of half-wave rectifier?

\eta = 4/\pi^2 \approx 40.6\%

Ripple factor of half-wave?

r=\sqrt{\pi^2/4 - 1}\approx 1.21

(very high).

What is PIV and how big must it be here?

Peak Inverse Voltage the diode blocks in reverse; must be

\ge V_m

(choose higher for safety).

Silicon barrier voltage that reduces the load peak?

V_\gamma \approx 0.7

V (0.3 V for Ge).

Half-wave output ripple frequency for 50 Hz input?

50 Hz (one hump per input cycle).

Why is a smoothing capacitor needed after?

Ripple is ~1.21 (huge); the cap holds charge between humps to flatten the DC.

Connections

Diode I-V characteristic and barrier voltage
Full-wave rectification (center-tap & bridge)
Smoothing capacitor and ripple filtering
Zener diode and voltage regulation
RMS and average value of periodic signals
Peak Inverse Voltage and diode selection

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, AC current forward-backward dono direction mein jhoolta rehta hai, lekin humaare circuits ko chahiye steady one-direction DC. Yahi kaam karta hai rectifier diode — ek one-way valve. Positive half aata hai toh diode ON (forward-biased), current nikal jaata hai load tak; negative half aata hai toh diode OFF (reverse-biased), kuch bhi paas nahi hota. Isko bolte hain half-wave rectification kyunki AC ka sirf aadha (half) hissa hi output mein aata hai.

Ek important baat: silicon diode turant ON nahi hota, usko pehle $0.7$ V ka barrier ( $V_\gamma$ ) todna padta hai, isiliye load ko milta hai $V_m - 0.7$ V. Ab output ka average (DC value) nikaalo — poore cycle par average lete hain lekin area sirf half mein hai, isliye $V_{dc}=V_m/\pi \approx 0.318\,V_m$ milta hai. RMS nikaalo toh $V_m/2$ aata hai. Yaad rakho: average aur RMS alag cheez hain — yahi sabse common galti hai students ki.

Half-wave ka efficiency sirf ~ $40\%$ hai aur ripple factor ~ $1.21$ — matlab output bahut wobbly, flat DC nahi. Isiliye practically iske baad ek smoothing capacitor lagate hain jo humps ke beech charge hold karke line ko flat karta hai. Aur ek aur cheez — PIV (Peak Inverse Voltage): negative half mein poora $V_m$ diode ke across padta hai, toh diode ka PIV rating $V_m$ se zyada hona chahiye, warna diode jal jaayega. Yeh basic power-supply ka pehla step hai, isliye solid samajhna zaroori hai.
