2.2.8Doping & PN Junctions

Reverse bias behavior

1,743 words8 min readdifficulty · medium1 backlinks

80/20 core: Reverse bias widens the depletion region, raises the potential barrier, and lets only a tiny temperature-dependent saturation current ISI_S flow — until the field gets so strong the junction breaks down.

What is happening?


HOW the current arises: deriving II in reverse bias

Start from the Shockley diode equation (derived from carrier injection + diffusion):

I=IS(eV/(nVT)1)I = I_S\left(e^{V/(nV_T)} - 1\right)

where VT=kTqV_T = \dfrac{kT}{q} is the thermal voltage (25.85 mV\approx 25.85\text{ mV} at 300 K300\text{ K}) and nn is the ideality factor.

WHY doesn't more voltage give more current? The reverse current comes from minority carriers that are thermally generated near the junction and then swept across by the field. The rate at which they are generated depends on temperature, not on the field strength. Once the field is strong enough to sweep every generated carrier across, adding more voltage cannot increase the current — the supply of carriers is the bottleneck.


Depletion width grows: derivation

The depletion region stores charge; treat it as a one-sided problem via Poisson's equation. With total voltage across the junction VbiVV_{bi} - V (for reverse bias V<0V<0, so this increases):

W=2εq(1NA+1ND)(VbiV)W = \sqrt{\frac{2\varepsilon}{q}\left(\frac{1}{N_A}+\frac{1}{N_D}\right)\left(V_{bi} - V\right)}

Because WW increases, the junction acts like a parallel-plate capacitor with a growing gap, so the junction capacitance decreases:

Cj=εAW=Cj01V/VbiC_j = \frac{\varepsilon A}{W} = \frac{C_{j0}}{\sqrt{1 - V/V_{bi}}}

This is exploited in varactor diodes (voltage-controlled capacitor).

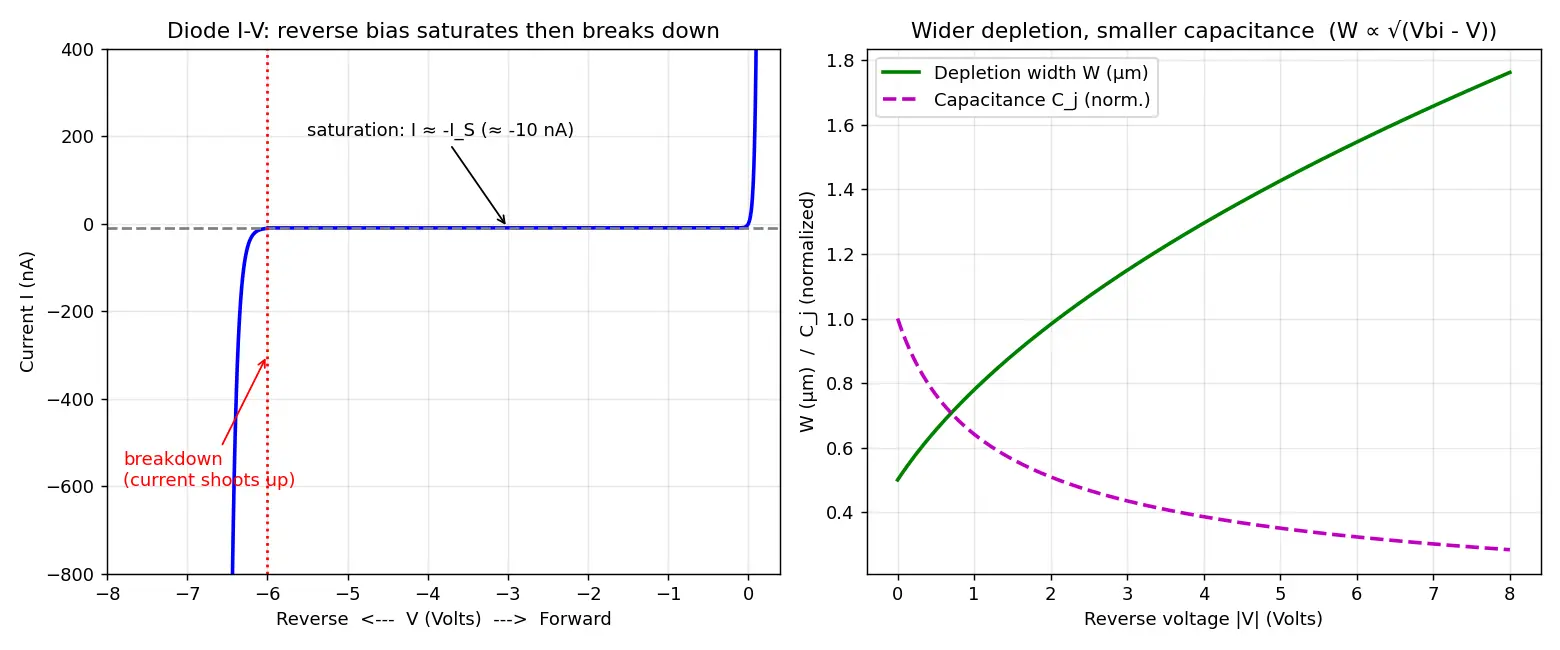

Figure — Reverse bias behavior

Breakdown: the current is NOT gone forever

At a critical reverse voltage VBRV_{BR} the current suddenly shoots up (not a defect — it's reversible if power is limited):


Worked examples


Common mistakes


Forecast-then-Verify

Recall Predict BEFORE checking

Q: At V=10 VV=-10\text{ V} vs V=2 VV=-2\text{ V} (below breakdown), which has larger I|I|? Forecast… then verify: both IS\approx I_Svirtually identical, because current is saturated.


Flashcards

Reverse bias connects which terminals?
+ to N-side, − to P-side (so V<0V<0).
What happens to the depletion width under reverse bias?
It widens (WVbiVW\propto\sqrt{V_{bi}-V}).
What is the reverse current magnitude far from breakdown?
The saturation current ISI_S (small, roughly constant).
Why is reverse current independent of voltage?
It's limited by thermal generation of minority carriers, not by the field.
How does ISI_S change with temperature?
Roughly doubles every 10 °C (ISni2eEg/kTI_S\propto n_i^2\propto e^{-E_g/kT}).
Reverse-bias diode current from Shockley eq for VVT|V|\gg V_T?
IISI\approx -I_S.
What is thermal voltage VTV_T at 300 K?
kT/q25.85kT/q \approx 25.85 mV.
Why does junction capacitance drop with reverse bias?
Wider depletion region = bigger capacitor gap, Cj=εA/WC_j=\varepsilon A/W.
Zener breakdown mechanism?
Direct field tunneling of electrons out of bonds (thin, low-V junctions).
Avalanche breakdown mechanism?
Impact ionization chain reaction of carriers (wide, high-V junctions).
Temp coefficient sign: Zener vs avalanche VBRV_{BR}?
Zener decreases with T; avalanche increases with T.

Recall Feynman: explain to a 12-year-old

Imagine a river (current) with a small gate. Forward bias props the gate open — lots of water flows. Reverse bias slams the gate shut and piles up sandbags (the wider depletion region), so almost no water passes. The only trickle that gets through is from rain falling right at the gate (heat making a few charges) — and hotter days mean more rain, so more trickle. Push way too hard on the gate and it bursts open all at once — that's breakdown.
