WHY do datasheets exist?

The three families of numbers you must read:

  1. Vf — forward voltage drop (the "on cost").
  2. Ir — reverse leakage current (the "off imperfection").
  3. Max ratings — the walls of the safe box (IFI_F, VRRMV_{RRM}, PDP_D, TJT_J).

1. Forward Voltage VfV_f

WHY it exists: Current only flows once the applied voltage overcomes the built-in potential barrier of the PN junction and the ohmic resistance of the bulk silicon.

HOW VfV_f depends on current — derive from the Shockley equation:

The diode current is I=IS(eV/(nVT)1)I = I_S\left(e^{V/(nV_T)} - 1\right)

where VT=kT/q25.9 mVV_T = kT/q \approx 25.9\text{ mV} at 300 K, nn = ideality factor (1122), ISI_S = saturation current.

In forward conduction eV/(nVT)1e^{V/(nV_T)} \gg 1, so IISeV/(nVT).I \approx I_S\, e^{V/(nV_T)}.

Solve for VV:

Temperature effect: at fixed current, VfV_f falls ~2 mV/C2\text{ mV/}^\circ\text{C} (the ISI_S term rises fast with TT, and it sits inside the log driving VfV_f down).

Diode type Typical VfV_f
Schottky 0.2–0.4 V
Silicon signal 0.6–0.7 V
Silicon rectifier (high II) 0.8–1.1 V
Red LED ~1.8 V

2. Reverse Leakage IrI_r

WHY: Even when "off", minority carriers drift across the junction. From Shockley with V<0V<0 large, eV/(nVT)0e^{V/(nV_T)}\to 0, so IIS.I \approx -I_S. So IrISI_r \approx I_S — the same saturation current, now the whole current instead of a negligible correction.

HOW it behaves: IrI_r roughly doubles every ~10 °C. It is nanoamps–microamps for silicon, but can be much larger for Schottky (their low VfV_f comes at the cost of higher leakage — a fundamental tradeoff).


3. Maximum Ratings (the walls of the box)

Key ratings:

  • ==IF(AV)I_{F(AV)}== — max average forward current (rectifier duty).
  • ==IFSMI_{FSM}== — max surge current (single non-repetitive spike, e.g. capacitor inrush).
  • ==VRRMV_{RRM}== — peak repetitive reverse voltage (must exceed your circuit's max reverse swing).
  • ==PDP_D== — max power dissipation.
  • ==TJT_J== — max junction temperature (the real killer; everything else is a proxy for keeping TJT_J safe).

Deriving the power / thermal limit (the master constraint):

Power dissipated conducting: P=VfIFP = V_f \, I_F (plus reverse term VRIrV_R I_r, usually tiny).

Heat flows out through thermal resistance RθJAR_{\theta JA} (junction-to-ambient, °C/W):

This is why datasheets derate current at higher ambient temperature: as TAT_A rises, the allowed PP shrinks, so allowed IFI_F shrinks.

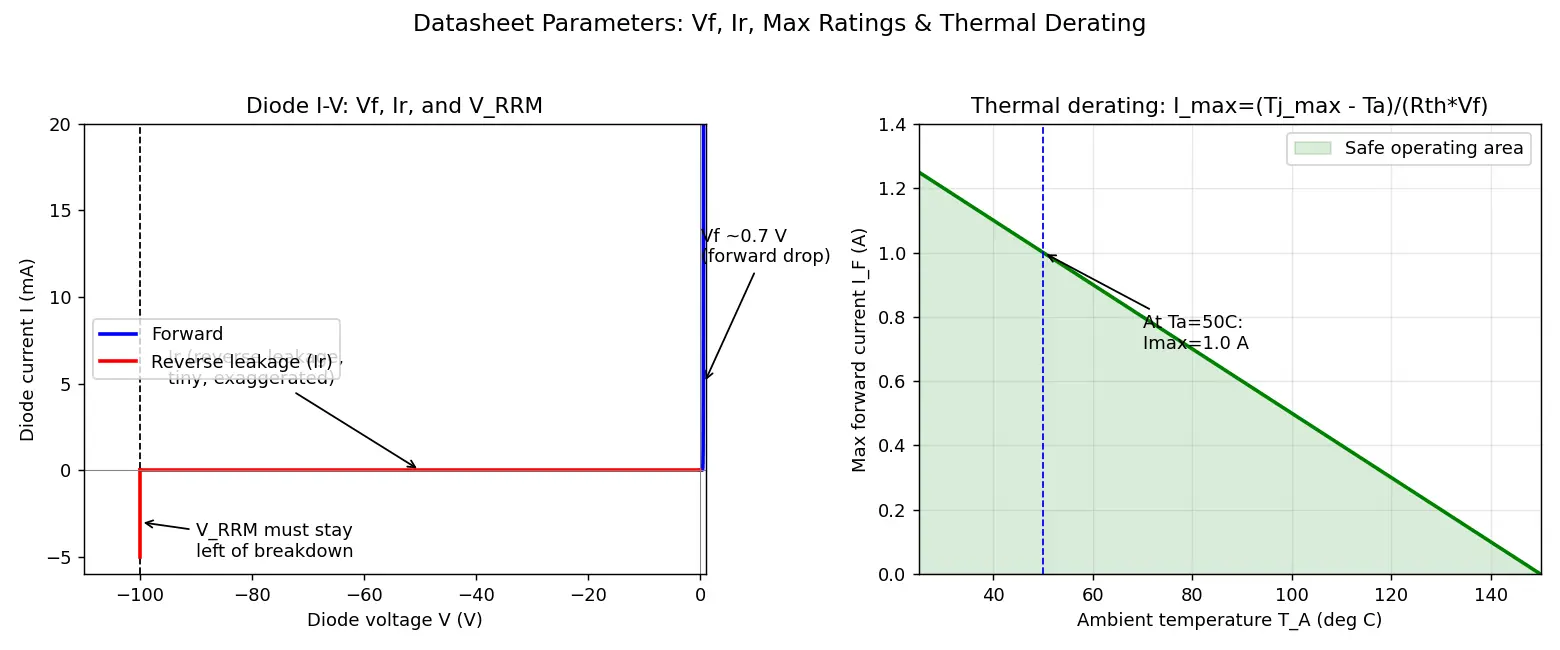

Figure — Datasheet parameters (Vf, Ir, max ratings)

Worked Examples


Active Recall

Recall Test yourself before reading answers
  • Why does VfV_f rise so slowly with current?
  • Which single rating ultimately governs all the others, and why?
  • What is the tradeoff hidden in a Schottky's low VfV_f?
  • Why must VRRMV_{RRM} be chosen well above the actual peak reverse voltage?
Recall Feynman: explain to a 12-year-old

A diode is a one-way gate for electricity. The datasheet is its owner's manual. It says: "It costs a little push to open the gate the right way (VfV_f). Even when shut, a tiny bit sneaks through (IrI_r). And don't shove too many people through, or push too hard the wrong way, or let it get too hot — or the gate breaks (IFI_F, VRRMV_{RRM}, TJT_J)." Stay inside those rules and the gate lasts forever.


Flashcards

What is VfV_f?
The forward voltage drop across a conducting diode, specified at a stated forward current IFI_F and temperature.
Why is VfV_f nearly constant (~0.7 V) despite big current changes?
Because Vf=nVTln(I/IS)V_f = nV_T\ln(I/I_S) grows only logarithmically with current — a 10× current increase adds only ~60 mV.
What is IrI_r and what does it approximately equal?
Reverse leakage current; IrISI_r \approx I_S, the diode's saturation current, flowing when reverse-biased below breakdown.
How does IrI_r change with temperature?
It roughly doubles every ~10 °C.
How does VfV_f change with temperature at fixed current?
It decreases by about 2 mV per °C.
Define VRRMV_{RRM}.
Peak repetitive reverse voltage the diode can safely withstand each cycle.
Difference between IF(AV)I_{F(AV)} and IFSMI_{FSM}?
IF(AV)I_{F(AV)} is max continuous average forward current; IFSMI_{FSM} is max non-repetitive surge (short spike) current.
What is the thermal equation linking junction temp to power?
TJ=TA+PRθJAT_J = T_A + P\,R_{\theta JA}.
Formula for max allowable power dissipation?
Pmax=(TJ(max)TA)/RθJAP_{max} = (T_{J(max)} - T_A)/R_{\theta JA}.
Why do datasheets derate current at higher ambient temperature?
Higher TAT_A leaves less thermal headroom, so allowed P=(TJmaxTA)/RθJAP=(T_{Jmax}-T_A)/R_{\theta JA} falls, forcing lower IFI_F.
What is the tradeoff of a Schottky diode's low VfV_f?
It has higher reverse leakage current IrI_r.
Which rating is the ultimate physical limit?
Junction temperature TJT_J — most other ratings exist to keep TJT_J safe.
Rule of thumb for choosing VRRMV_{RRM}?
Choose at least ~2× the actual peak reverse voltage for margin against transients.

Connections

  • PN Junction Physics — origin of VfV_f, ISI_S and the barrier potential.
  • Shockley Diode Equation — source of the VfV_f–current and IrI_r relations.
  • Thermal Resistance & Heatsinking — how RθJAR_{\theta JA} and TJT_J limit current.
  • Rectifier Circuits — where VRRMV_{RRM}, IF(AV)I_{F(AV)}, IFSMI_{FSM} matter in practice.
  • Schottky Diodes — the low-VfV_f / high-IrI_r tradeoff.
  • Zener Diodes — deliberate reverse breakdown, contrast with VRRMV_{RRM}.

Concept Map

specifies

specifies

specifies

forward approx gives

reverse approx gives

inside log of

equals

lowers ~2mV per C

doubles per 10C

low Vf raises

stay inside for

grows log with current

Datasheet = contract

Shockley equation

Vf forward voltage

Ir reverse leakage

Max ratings safe box

Is saturation current

Temperature

Schottky tradeoff

Safe design
