We want a device that amplifies — where a small signal controls a big one. To do that we need a physical structure where a small input current can "steer" a much larger output current. The BJT achieves this with two PN junctions placed back-to-back, sharing a common middle region.
Let IE, IB, IC be emitter, base, collector currents.
Step 1 — Conservation of charge (KCL on the transistor as one node):
Everything that goes in must come out.
IE=IB+ICWhy this step? The transistor is a closed node; no charge is created or stored (in steady state).
Step 2 — Only a fraction survives the base. The emitter injects current IE. A small part recombines in the base (IB), the rest reaches the collector. Define common-base current gain:
α=IEIC,α≈0.95–0.99Why so close to 1? Because the base is thin/lightly doped → almost nothing recombines → almost all IE becomes IC.
Step 3 — Get the base-referenced gain β. Substitute IC=αIE and IB=IE−IC=(1−α)IE:
β=IBIC=(1−α)IEαIE=1−ααWhy this matters: If α=0.99, then β=0.99/0.01=99. A tiny base current controls a 99× larger collector current — that's amplification, derived purely from the geometry (thin base ⇒ α→1 ⇒ big β).
So injected carriers diffuse across before recombining, letting most reach the collector (high α).
Which region is most heavily doped and why?
The emitter — heavy doping gives many carriers to inject into the base.
Which region is largest and why?
The collector — larger area for carrier collection and heat dissipation.
State the fundamental current equation.
IE=IB+IC
Define α (common-base gain).
α=IC/IE, typically 0.95–0.99.
Define β and relate it to α.
β=IC/IB=α/(1−α).
In active mode, how are the two junctions biased?
EBJ forward biased, CBJ reverse biased.
Which carriers conduct in an NPN vs PNP?
NPN: electrons; PNP: holes.

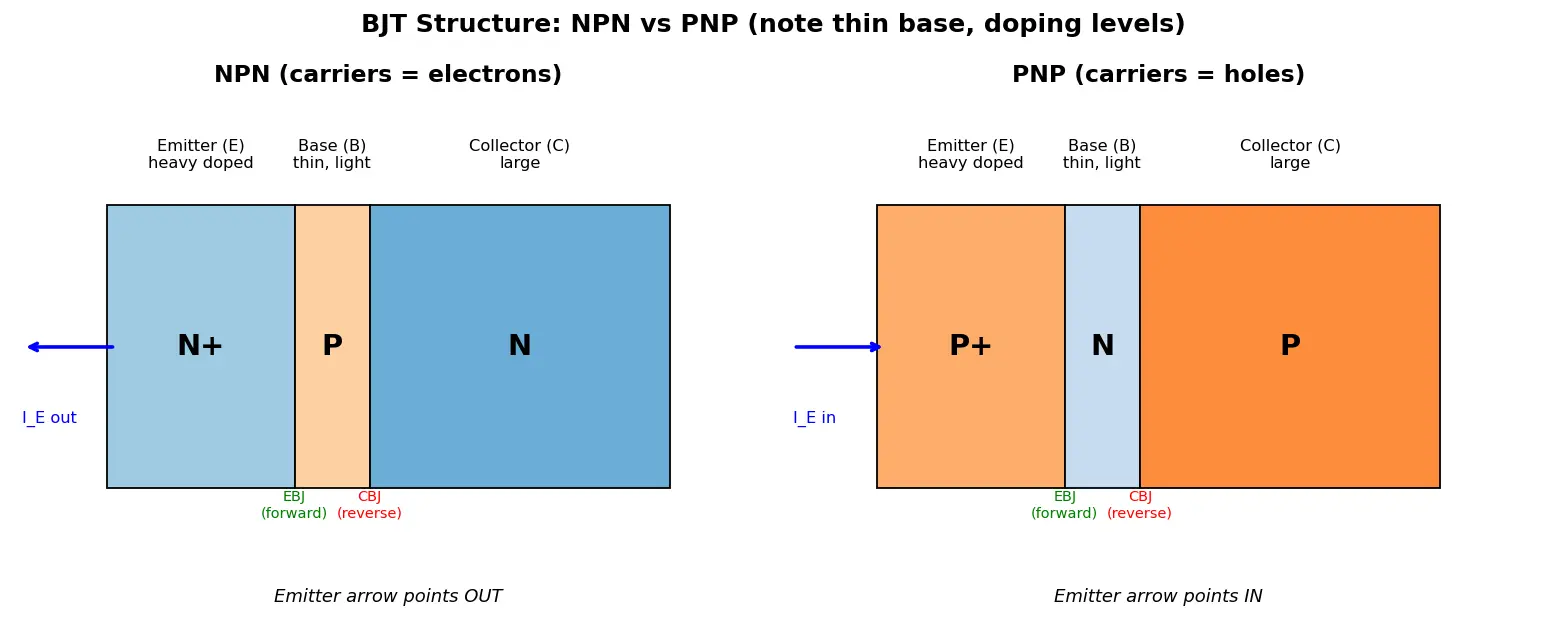

On the symbol, where does the emitter arrow point for NPN vs PNP?
NPN: out of base (Not Pointing iN); PNP: into base.
What does "bipolar" mean in BJT?
Both electrons and holes participate in conduction.
If α = 0.99, what is β?
99.
Recall Feynman: explain to a 12-year-old
Imagine a water gate. The Emitter is a big tank full of water, the Collector is where water should end up, and the Base is a thin wall in between with a small valve. When you gently turn the small valve (a tiny base current), a HUGE flood of water rushes from the tank to the collector. The wall is made super thin so the water zips right through instead of getting stuck. A small effort controls a big flow — that's how a transistor amplifies!
Dekho, BJT basically ek semiconductor ka sandwich hai — teen layers: Emitter, Base, Collector. NPN mein order hai N-P-N aur PNP mein P-N-P. Sabse important baat yeh hai ki Base bahut patli (thin) aur kam doped hoti hai. Kyun? Kyunki jab Emitter apne carriers (NPN mein electrons, PNP mein holes) Base mein bhejta hai, toh hum chahte hain ki woh carriers Base ko cross karke seedha Collector tak pahunch jaayein, beech mein recombine na ho jaayein. Patli Base = carriers zip through = high gain.
Active mode ke liye biasing yaad rakho: Emitter-Base junction forward (taaki carriers ki flood aaye) aur Collector-Base junction reverse (taaki woh carriers khinch kar Collector mein aa jaayein). Yahi do junctions ka game hai.
Ab amplification kaise? Emitter current IE ka bahut chhota part Base current IB banta hai, baaki IC (Collector current) ban jaata hai. α=IC/IE jo 0.99 ke aaspaas hota hai. Aur β=IC/IB=α/(1−α). Agar α=0.99 toh β=99 — matlab thoda sa Base current 99 guna bada Collector current control karta hai! Yahi transistor ki amplification ki jaan hai, aur yeh sab structure (thin base) ki wajah se aata hai.
Ek yaad rakhne wala trick: symbol pe arrow hamesha Emitter pe hota hai. NPN = Not Pointing iN (arrow bahar), PNP = Pointing iN (arrow andar). Exam mein yeh direct kaam aata hai. PNP mein sab currents ki direction ulti hoti hai kyunki carriers holes hote hain.
