BJT structure (NPN and PNP): Question bank — Hardware deep dive

Definition Notation used on this page (read first)

A few symbols and one markup habit recur below — here they are, each earned before use:

$I_{E}$ , $I_{B}$ , $I_{C}$ — the emitter, base, and collector currents (how much charge per second flows at each terminal).
$α$ (alpha), the common-base current gain: the fraction of emitter current that survives the base and reaches the collector, $α = I_{C} / I_{E}$ . Because some current is always lost, $α$ is a little below 1.
$β$ (beta), the common-emitter current gain: how many times larger the collector current is than the base current, $β = I_{C} / I_{B}$ . Combining the two definitions with charge conservation gives $β = α / (1 - α)$ — this is the amplification number.
Text wrapped in ==double equals== marks a key term you should be able to recall. If your renderer shows the equals signs literally, just read the words between them — the meaning is unchanged.

Structure at a glance (ground every trap in this picture)

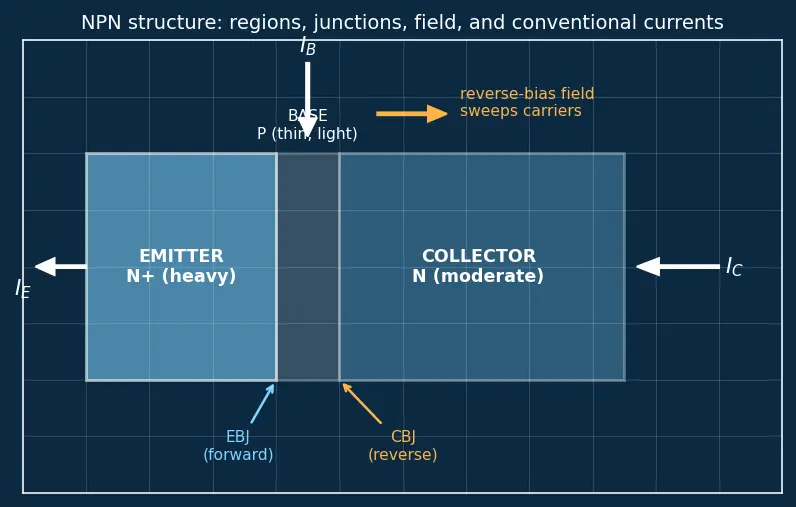

The diagram below is the physical reference for every question on this page: the three regions with their doping, the two junctions, the internal field at the reverse-biased collector junction, and the conventional-current arrows for an NPN in active mode.

Notice three things you will keep reusing: the base is drawn thin and lightly shaded (light doping), the emitter is dark (heavy doping), and the amber arrow at the collector junction is the reverse-bias field that sweeps carriers across.

True or false — justify

Every item below is a claim. Decide true or false, then give the physical reason. The reveal always carries the reasoning, never a bare verdict.

A BJT has three terminals but only two PN junctions.

True. Three regions in a row (N-P-N or P-N-P) create exactly two boundaries between them — the emitter–base junction and the collector–base junction — while giving three places to attach wires.

The word "bipolar" refers to the two junctions in the device.

False. "Bipolar" refers to the two types of charge carrier (electrons and holes) that both take part in conduction — not the two junctions. Contrast a FET, which is unipolar (one carrier type).

In active mode, both junctions of a BJT are forward biased.

False. Only the emitter–base junction is forward biased; the collector–base junction is reverse biased so its internal field can sweep carriers into the collector. Forward-forward is the saturation region instead.

Since

α = I_{C} / I_{E}

and some current is always lost to the base,

α

must be strictly less than 1.

True. Because

I_{E} = I_{B} + I_{C}

with

I_{B} > 0

, the collector can never receive all the emitter current, so

α = I_{C} / I_{E} < 1

. It only approaches 1 as base recombination shrinks toward zero.

Making the base thicker would increase the current gain

β = I_{C} / I_{B}

False. A thicker base gives carriers more distance to travel and more time to recombine, so fewer reach the collector. That lowers

α

, and since

β = α / (1 - α)

, a small drop in

α

crushes

β

The collector is the most heavily doped region because it must collect the most carriers.

False. The emitter is most heavily doped — heavy doping means a big supply of carriers to inject. The collector is only moderately doped; its job is area (collection + heat), not carrier supply.

In a PNP transistor the physical current directions are simply the reverse of an NPN.

True. The carriers are holes instead of electrons and both bias polarities flip, so every conventional-current arrow reverses direction — including the emitter arrow on the symbol, which now points into the base.

α = 1

exactly, then

β

would be infinite.

True (as a limit).

β = α / (1 - α)

, so as

α \to 1

the denominator

(1 - α) \to 0

and

β

blows up. Real devices never reach

α = 1

because some base recombination always happens.

Spot the error

Each statement contains one flaw. Name it and correct it.

"The base carries the largest current because every carrier must pass through it."

The error is confusing passing through with being carried by. Carriers cross the base, but only the tiny recombining fraction becomes ==base current

I_{B}

== — the base carries the smallest current of the three.

"To make an NPN, we can just take a PNP and swap the emitter and collector wires."

The error ignores doping type. Swapping wires on a PNP still leaves p-n-p material; an NPN needs the physically opposite doping (n-p-n). Wire relabeling can't change the semiconductor.

"Because both end regions in an NPN are N-type, the emitter and collector are interchangeable."

The error assumes same type means same region. They differ in doping level and physical size — emitter heavily doped and small, collector moderate and large — so swapping them gives much weaker gain (reverse-active mode).

"The forward-biased emitter junction injects carriers, so the collector junction should also be forward biased to injecting more."

The error is mistaking the collector junction's role. It must be reverse biased so its field pulls carriers out of the base into the collector; forward-biasing it would push carriers back and collapse the amplifying action (that's saturation).

β

is a fixed property equal to exactly

α

minus one."

The error is a wrong formula.

β = α / (1 - α)

, not

α - 1

(which would be negative). And

β

is not perfectly fixed — it drifts with current, temperature, and device sample.

"In an NPN, conventional current flows into the emitter because electrons flow out of it."

The error is a sign flip. Using the convention stated up top, conventional current runs opposite to electrons — electrons are injected out of the emitter, so conventional current flows out of the emitter terminal, which is why the NPN emitter arrow points outward.

Why questions

Answer the "why" with structure-based reasoning, not memorized labels.

Why is amplification a structural consequence, not just a clever bias trick?

Because the thin, lightly-doped base forces

α \to 1

, and

β = α / (1 - α)

then becomes large. The geometry (thin base) is what makes tiny

I_{B}

steer huge

I_{C}

— bias just switches this behaviour on.

Why does the emitter's heavy doping specifically help, rather than heavily doping the base?

Heavy emitter doping floods the base with the emitter's carriers while the lightly-doped base offers few opposite carriers to recombine with — so injection is high and loss is low. Heavily doping the base would instead increase recombination and destroy the gain.

Why can't we build a BJT from two ordinary PN junction diodes wired back-to-back?

Two separate diodes have two independent, thick base regions, so injected carriers recombine before crossing — no carrier "sees" the second junction. The BJT works only because both junctions share one ultra-thin base, roughly

1 μ m

thick.

Why does reverse-biasing the collector junction help collection rather than block current?

A reverse-biased junction has a strong internal field (the amber arrow in the figure). For the carriers arriving from the base, that field points the helpful way — it sweeps them across into the collector rather than repelling them, so the "blocking" field actually assists collection.

Why is

β

so sensitive to small changes in

α

Because

β = α / (1 - α)

divides by the tiny quantity

(1 - α)

. Near

α = 0.99

, nudging

α

0.005

moves

(1 - α)

by half, roughly doubling or halving

β

— a small structural change causes a large gain change.

Edge cases

Boundary and degenerate scenarios — where does the model bend or break?

What happens to

I_{C}

if the base terminal is left open (no base current path) in active bias?

With

I_{B}

forced to zero the transistor sits at cutoff: almost no carriers are injected, so

I_{C}

collapses to a tiny leakage current. The device is essentially "off" — see cutoff.

If we increase collector current until the collector junction stops being reverse biased, what region are we in?

We enter saturation: both junctions become forward biased, the collector can no longer sweep carriers efficiently, and

I_{C}

stops obeying

β I_{B}

— it flattens out regardless of

I_{B}

Is the equation

I_{E} = I_{B} + I_{C}

valid in saturation and cutoff, or only in active mode?

It holds in all regions, because it is just charge conservation (KCL) on the device as one node — it never depends on which mode you're in. Only the values of the currents change with mode.

What happens if the reverse voltage across the collector–base junction (

V_{C B}

) is pushed past its breakdown limit?

The junction enters avalanche breakdown: the strong field accelerates carriers hard enough to knock loose new electron–hole pairs, so

I_{C}

shoots up uncontrollably and can destroy the device by overheating. Every BJT therefore has a maximum rated

V_{C B}

What is punch-through, and why does a very thin base make it a risk?

As reverse

V_{C B}

grows, the collector-junction depletion region widens into the base. If the base is too thin, that depletion region can reach all the way across to the emitter — the base "disappears," emitter and collector short together, and control is lost. It is the thinness that buys high gain and invites this failure, so base thickness is a design trade-off.

What is

α

for a transistor where the base is so thick that half the injected carriers recombine?

Then only half of

I_{E}

reaches the collector, so

α \approx 0.5

, giving

β = 0.5/0.5 = 1

— essentially no useful amplification. This shows why the thin base is non-negotiable.

If a manufacturer accidentally makes emitter and collector identical in doping and size, what breaks?

The device loses its forward/reverse asymmetry: forward-active and reverse-active gains become equal and both mediocre. You get a working-but-weak transistor, illustrating that asymmetry, not symmetry, gives good gain.

Can conventional current ever flow out of the base terminal of an NPN in normal active mode?

No. In NPN active mode conventional

I_{B}

flows into the base (electrons flow out to supply recombination). Current out of the base would require the opposite carrier picture — that's the PNP case.

Recall One-line self-test before you leave

Cover every reveal. If you can state why the base is thin and why $β$ explodes as $α \to 1$ in your own words, you own this chapter's structural core. For the amplifier payoff, continue to Common-Emitter Amplifier.
