Before you can read the parent note BJT Structure, every word and symbol it throws at you must already mean something. This page builds them one at a time, from nothing, in the order they depend on each other.


0 · What is a "semiconductor" and "doping"? (the ground floor)

Everything starts here. A semiconductor (usually silicon) is a material that is neither a good conductor nor a good insulator — it sits in between, and we can tune how well it conducts.

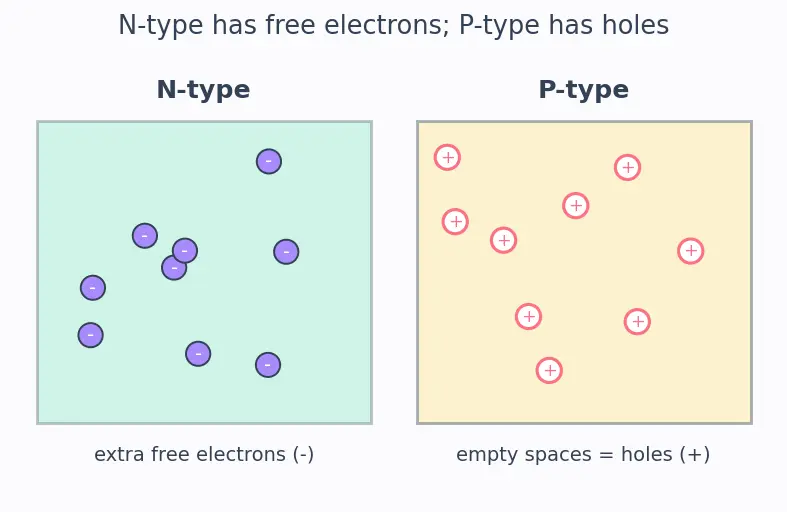

Picture it: think of a car park. N-type is a car park with extra cars free to drive around (electrons). P-type is a full car park with a few empty spaces — and a car moving into a space is the same as the space moving backwards. That moving empty space is a hole.

Figure — BJT structure (NPN and PNP)
  • Majority carrier ::: The carrier a region has lots of by doping — electrons in N-type, holes in P-type.
  • What does n⁺ (or p⁺) mean? ::: Heavily doped N-type (or P-type) — the small + means "extra strong doping, lots of carriers".

1 · What is a "PN junction"? (two floors glued together)

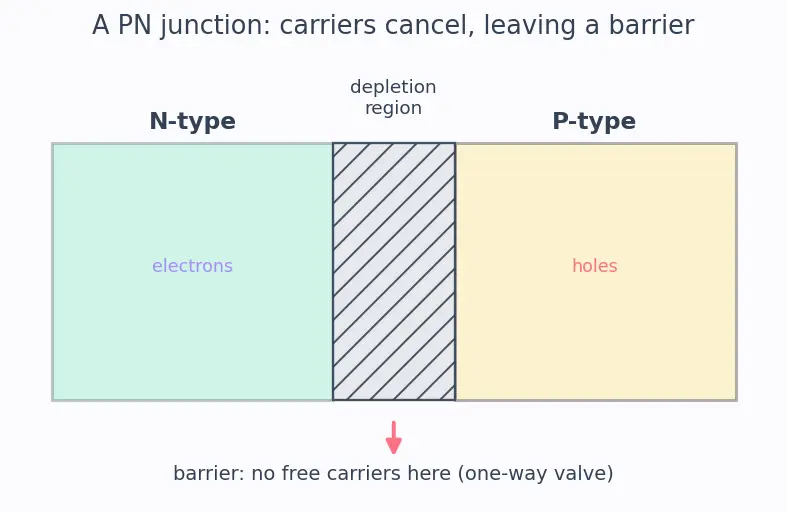

Now glue one N block to one P block. The place they meet is a PN junction — the single most important object in the whole topic.

Figure — BJT structure (NPN and PNP)

2 · "Bias": forward vs reverse (which way you push)

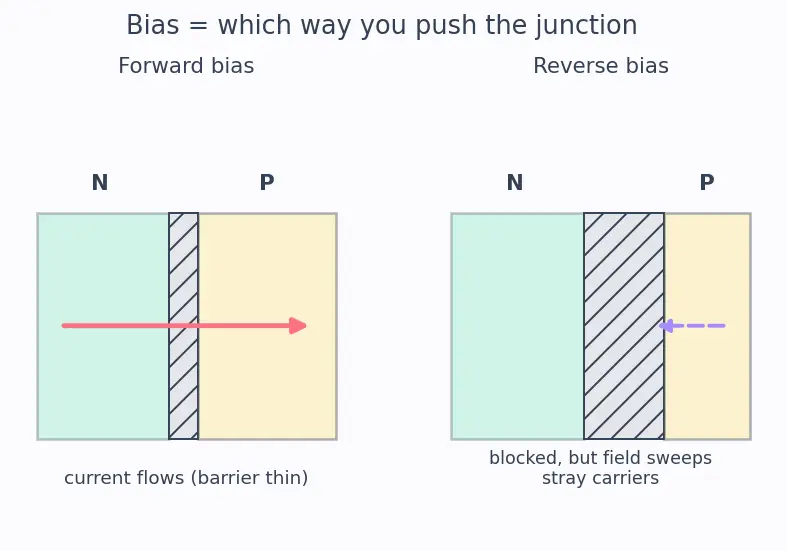

A junction just sitting there does nothing. Biasing means applying a voltage across it to push carriers one way or the other.

Figure — BJT structure (NPN and PNP)
  • Forward bias does what to current? ::: Lets it flow easily (barrier shrinks).
  • Reverse bias does what to current? ::: Blocks normal current, but its field sweeps stray carriers across.

3 · "Carriers", "recombination", "diffusion" (what moves and what stops it)

Three motion words the parent leans on hard.

  • Why is a lost carrier bad for a BJT? ::: A recombined carrier never reaches the collector, so it wastes current and lowers the gain.

4 · Current symbols: , , (naming the flows)

The letter means current — the rate at which charge flows, measured in amperes (A) or milliamperes (mA, one-thousandth of an amp). The subscript names which terminal's current.

  • Why is the smallest current? ::: Because only the few carriers that recombine in the thin base leave through the base terminal.

5 · "Conventional current" vs electron flow (a sign-convention trap)

This trips up everyone, so pin it down before the arrows.


6 · The Greek symbols: (alpha) and (beta)

These are just ratios — numbers with no units, comparing one current to another.

  • If almost nothing recombines, is near 0 or near 1? ::: Near 1 — nearly all of reaches the collector.
  • A bigger (closer to 1) makes do what? ::: Explode upward — dividing by the tiny makes huge.

Once these ratios make sense, the amplification story of BJT Operating Regions (Active, Saturation, Cutoff) and Common-Emitter Amplifier is just these two fractions in action.


The prerequisite map

Doping N-type and P-type

Carriers electrons and holes

PN junction and depletion region

Forward and reverse bias

Diffusion and recombination

Two junctions EBJ and CBJ

Currents IE IB IC and KCL

Ratios alpha and beta

BJT amplification

Conventional current vs electron flow

The map reads bottom-up: doping gives carriers → carriers make a junction → junctions get biased → two biased junctions form the BJT → its currents obey KCL → their ratios are and → those give amplification. Contrast this stack with the single-carrier FET Structure, which skips the "two junctions" branch entirely.


Equipment checklist

Test yourself — if any answer is fuzzy, re-read that section before opening the parent note.

  • What is doping, and what's the difference between N-type and P-type? ::: Adding impurities for spare carriers; N-type has extra free electrons, P-type has extra holes.
  • What is a hole, physically? ::: A missing electron that behaves like a mobile positive charge (an empty parking space moving backwards).
  • What is a PN junction and its depletion region? ::: The boundary of N and P material; the thin carrier-free barrier zone that forms there.
  • Forward bias vs reverse bias — what happens to the barrier and to current? ::: Forward shrinks the barrier and lets current flow; reverse widens it and blocks normal current but sweeps stray carriers across.
  • Recombination vs diffusion? ::: Recombination = an electron and hole cancel and vanish; diffusion = carriers spreading from crowded to sparse regions.
  • What does the base being thin achieve in these terms? ::: Carriers diffuse across before they recombine, so most survive the trip.
  • What does mean, and rank , , by size? ::: is current; largest, nearly as large, tiny.
  • State KCL for the transistor. ::: .
  • Which way does conventional current flow relative to electrons? ::: Opposite to electron motion (same direction as hole motion).
  • Define and in words. ::: = fraction of emitter current that survives; = how many times bigger the output is than the control current.
  • Give the link between and . ::: and .
