Visual walkthrough — BJT structure (NPN and PNP)

2,001 words9 min readBack to topic

Throughout, a carrier just means a tiny charged particle that can move and carry current. In our NPN device the carriers we track are electrons (negatively charged). Everything is built up from that single idea.


Step 1 — Draw the three regions and label what current means

WHAT. We lay the transistor out flat: three slabs side by side, Emitter — Base — Collector. A wire enters each slab. The amount of charge flowing per second through each wire is a current, and we give the three currents names: at the emitter wire, at the base wire, at the collector wire.

WHY. Before we can relate the currents we must agree on what they are and which way they point. A current is just "how many carriers pass this point each second." We measure each wire separately so we can later compare them.

PICTURE. In the figure the three slabs sit in a row. Each wire has an arrow — that arrow is the direction of conventional current (the direction positive charge would move, which is opposite to the electrons). Notice the emitter wire arrow points out of the device; the base and collector arrows point in. That is the NPN convention.

Figure — BJT structure (NPN and PNP)

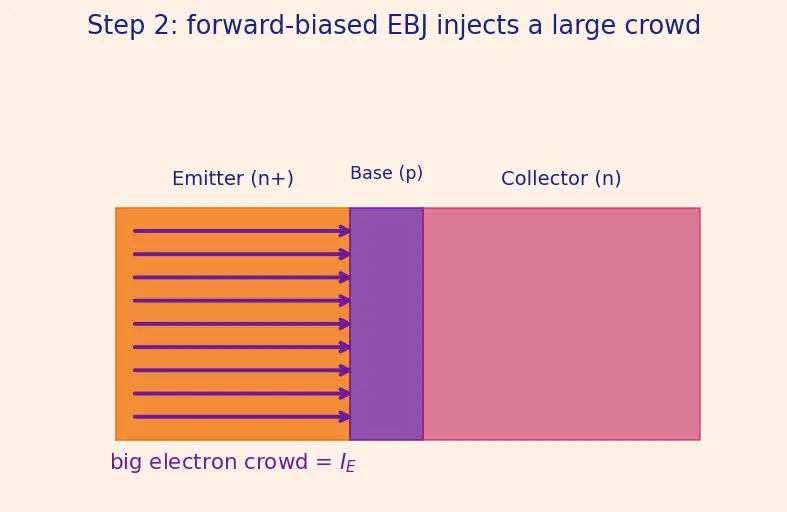

Step 2 — The emitter injects a big crowd of electrons

WHAT. The Emitter–Base junction (the boundary between slab 1 and slab 2) is forward biased — we push a voltage across it in the "easy" direction. This forces a large crowd of electrons out of the heavily-doped emitter and into the base. Call the size of this crowd .

WHY. A PN junction forward biased has a low barrier, so charge flows easily. The emitter is heavily doped on purpose — heavy doping means many electrons available to inject. That is why the emitter's current is the largest of the three.

PICTURE. A thick bundle of arrows (the electron crowd) leaves the emitter and enters the thin base region. The bundle's thickness represents — it is the biggest bundle on the whole page.

Figure — BJT structure (NPN and PNP)

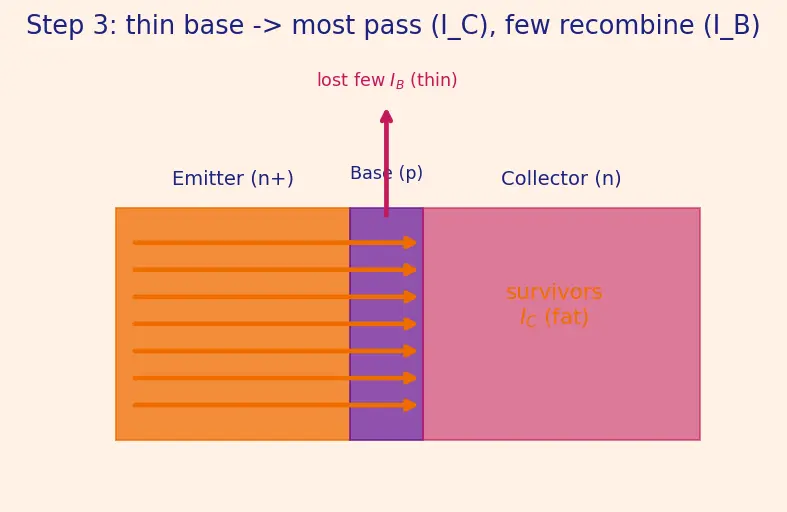

Step 3 — The base is a thin wall: almost everyone passes, a few get lost

WHAT. The crowd now crosses the base. The base is very thin () and lightly doped. Because of that, most electrons zip straight through to the collector, while a small few bump into holes in the base and disappear (recombine). The few that are lost make up the base current ; the survivors make up .

WHY. Why does most of the crowd survive? Recombination needs an electron to meet a hole. A thin, lightly-doped base has few holes and gives little time — so almost nobody meets one. This is the single structural trick behind amplification, and this step is where it happens.

PICTURE. The thick incoming bundle splits: a tiny side-branch (magenta) leaks out the base wire — that is — while the fat remaining bundle (orange) continues to the collector — that is . The visual imbalance is the whole point.

Figure — BJT structure (NPN and PNP)

Step 4 — Count the crowd: conservation of charge

WHAT. No electron is created or destroyed inside the transistor in steady state — each one either leaks out the base or arrives at the collector. So the crowd that came in equals the two crowds that come out:

WHY. This is just counting. It is Kirchhoff's Current Law applied to the whole transistor treated as one node: total current in = total current out. We use it because it is always true regardless of the physics details — it anchors everything else.

PICTURE. The split from Step 3, redrawn as a simple flow diagram: one fat arrow in, two arrows out whose thicknesses add up to the fat one.

Figure — BJT structure (NPN and PNP)

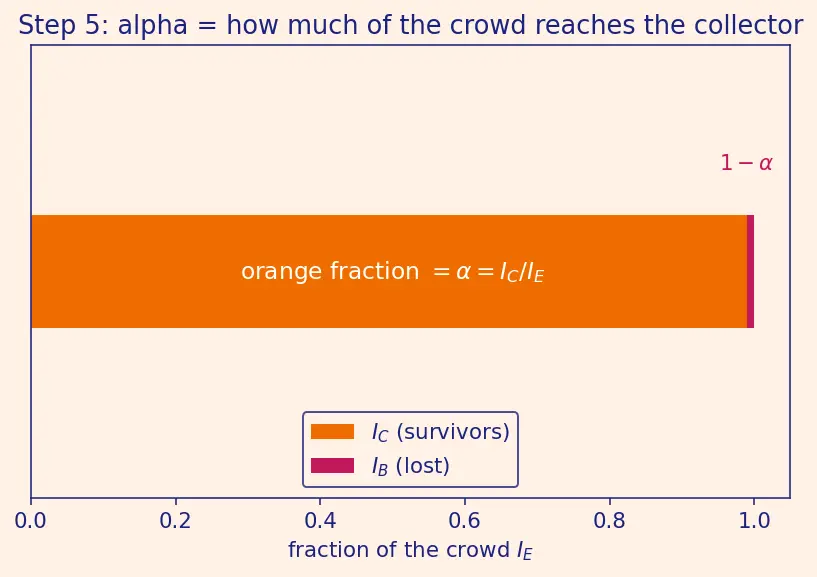

Step 5 — Define : what fraction of the crowd survives?

WHAT. We invent a number to describe "what fraction of the injected crowd reaches the collector." Call it (the Greek letter alpha):

WHY. Why a fraction and not a difference? Because a fraction is dimensionless and scale-free — it tells us the quality of the base no matter how big the crowd is. A thin good base gives close to 1; a thick bad base gives well below 1.

PICTURE. A pie/bar: the full bar is ; the orange slice () is , the magenta sliver () is . is literally "how much of the bar is orange."

Figure — BJT structure (NPN and PNP)

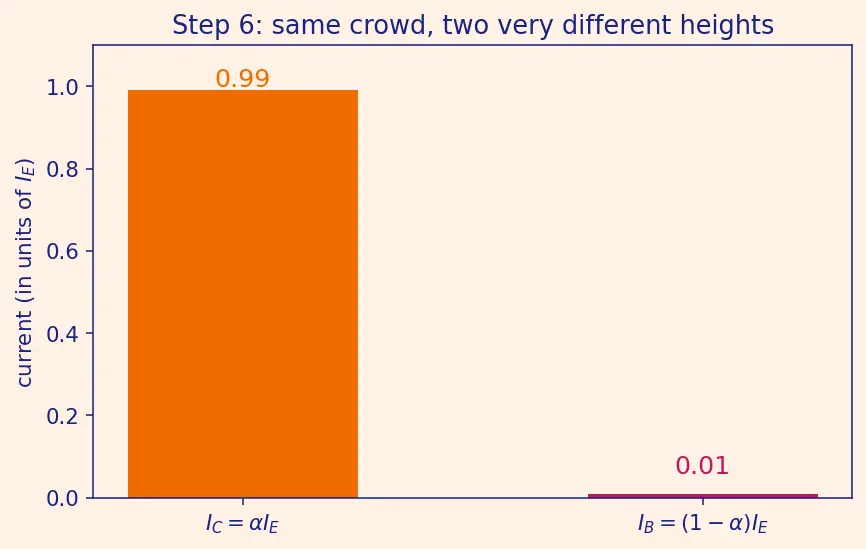

Step 6 — Rewrite the base current using

WHAT. From Step 4, . Substitute (that's Step 5 rearranged):

WHY. We want everything written in terms of the one crowd and the one quality number , so the final ratio comes out clean. The quantity is exactly "the fraction of the crowd that recombined" — the leftover after the survivors.

PICTURE. Two stacked bars from the same : the collector bar is (orange, tall) and the base bar is (magenta, tiny). Same total, wildly different heights.

Figure — BJT structure (NPN and PNP)

Step 7 — Divide to get , the base-referenced gain

WHAT. Now form the ratio of survivors to lost-few — the collector current per unit of base current:

The on top and bottom cancels — the gain does not depend on how big the crowd is, only on the base quality .

WHY. answers the practical question: "If I push one unit of current into the base, how many units appear at the collector?" That is the amplification factor an engineer actually uses.

PICTURE. Put a number to it. With : numerator (nearly the whole bar), denominator (the sliver). Dividing a big-ish thing by a sliver gives . The figure shows the bar sitting on top of the sliver, with the ratio "" called out.

Figure — BJT structure (NPN and PNP)

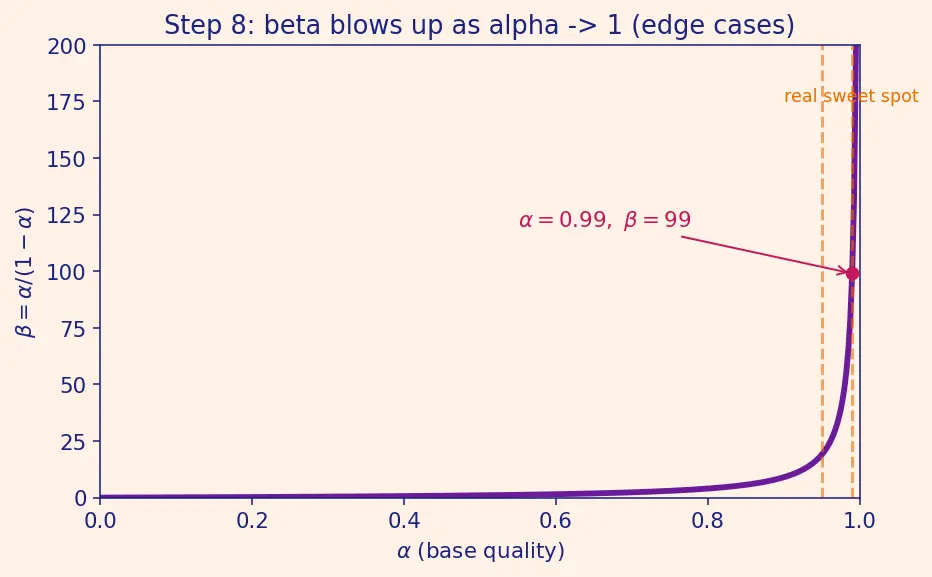

Step 8 — The edge cases (what happens at the extremes)

WHAT & WHY. A formula is only understood once you push it to its limits. Three cases:

  • Perfect base, (nobody recombines): , so . Infinite gain is the ideal — physically impossible because a few electrons always get lost.
  • Terrible base, (everyone recombines, e.g. a thick base): . No amplification at all. This is why a bad (thick) base ruins the transistor.
  • Cutoff, (no crowd injected, EBJ not forward biased): then and . The device is OFF; is defined by the slope, still , but no current actually flows.

PICTURE. A curve of versus : flat and low near , then rocketing upward as approaches . The blow-up near 1 shows why real transistors live in the sweet spot.

Figure — BJT structure (NPN and PNP)
Recall Check the limits yourself

If (half the crowd lost — a bad transistor), what is ? ::: — no amplification, output just equals base input. As the base is made thinner, rises toward 1 and does what? ::: It shoots up toward infinity — thinner base = more gain.


The one-picture summary

Everything on one canvas: the fat emitter crowd enters, splits at the thin base into a magenta trickle and an orange flood ; the ratios and are read straight off the arrow thicknesses.

Figure — BJT structure (NPN and PNP)
Recall Feynman retelling — the whole walkthrough in plain words

A big tank (emitter) shoves a huge crowd of electrons at a very thin wall (the base). The wall is so thin that nearly everybody runs straight through to the far side (the collector); only a tiny handful get stuck in the wall and have to leave through the little side door (the base wire). We name the "fraction that made it" — and because the wall is thin, that's almost everybody, like . Then we ask the money question: for every one person who left by the side door, how many made it to the far side? If made it and got stuck, the answer is — that's . And the reason is so big is simply that the "got stuck" pile () is tiny, and dividing by a tiny pile gives a giant number. Push the wall to perfectly thin and blows up to infinity; make the wall thick and everyone gets stuck, so falls to zero. The whole magic of a transistor is that geometry — a thin wall — turns a trickle into a flood.

Recall

State the fundamental current equation. ::: Why is large when is near 1? ::: Because and becomes tiny, so dividing by it gives a huge number. If , what is ? ::: .
