BJT operating regions (cutoff, active, saturation)

80/20 core: A BJT is just two PN junctions (Base–Emitter and Base–Collector). Which region you're in is decided entirely by whether each junction is forward- or reverse-biased. Memorize that table and everything else follows.

[!intuition] The one idea that unlocks everything

A bipolar transistor (say NPN) has two junctions:

• B–E junction (base–emitter)
• B–C junction (base–collector)

Each junction can be forward-biased (turned ON, conducts easily) or reverse-biased (blocked). Two junctions × two states = four combinations, but three matter for circuits:

WHY this works: The emitter injects carriers into the base. Whether those carriers get swept across to the collector depends on the B–C junction. In active mode the reverse-biased B–C junction eagerly sucks carriers across → clean amplification. When you push so much base current that the collector can't keep up, the B–C junction goes forward too → saturation.

[!definition] The three regions (NPN)

• Cutoff: both junctions reverse-biased. $V_{BE} < V_{BE(on)}$ (≈0.7 V). Essentially no current flows: $I_B \approx I_C \approx 0$. Transistor = OFF switch.
• Active (forward-active): B–E forward, B–C reverse. $V_{BE}\approx 0.7$ V and $V_{CE} > V_{CE(sat)}$. Here $I_C = \beta I_B$ — the amplifying region.
• Saturation: both junctions forward. $V_{CE} \approx V_{CE(sat)} \approx 0.2$ V. $I_C < \beta I_B$ (the collector is "maxed out"). Transistor = ON switch.

[!formula] Deriving the current relations from first principles

WHAT we want: relationships between $I_E$, $I_B$, $I_C$.

Step 1 — Kirchhoff's Current Law. The transistor is one node with three terminals. Charge in = charge out: $I_E = I_C + I_B$ Why this step? Nothing exotic — it's just conservation of current. Emitter current splits into collector + base.

Step 2 — Define emitter efficiency $\alpha$. Of all the current the emitter injects, a fraction $\alpha$ reaches the collector (the rest recombines in the base and leaves as base current): $I_C = \alpha\, I_E, \qquad 0<\alpha<1$ Why this step? $\alpha$ is close to 1 (like 0.99) because the base is made thin and lightly doped so few carriers recombine. This is a physical design choice, not magic.

Step 3 — Get $\beta$ from $\alpha$. Substitute $I_E = I_C + I_B$: $I_C = \alpha(I_C + I_B) \implies I_C(1-\alpha) = \alpha I_B$ $\boxed{I_C = \frac{\alpha}{1-\alpha}\,I_B = \beta I_B}$ So: $\beta = \frac{\alpha}{1-\alpha}, \qquad \alpha = \frac{\beta}{\beta+1}$ Why this step? This shows why $\beta$ is huge: if $\alpha=0.99$, then $\beta = 0.99/0.01 = 99$. A tiny loss fraction $(1-\alpha)$ in the denominator makes $\beta$ large. THAT is the amplification.

⚠️ $I_C=\beta I_B$ only holds in the active region. In saturation the collector circuit can't supply $\beta I_B$, so $I_C$ is set by the external resistor instead.

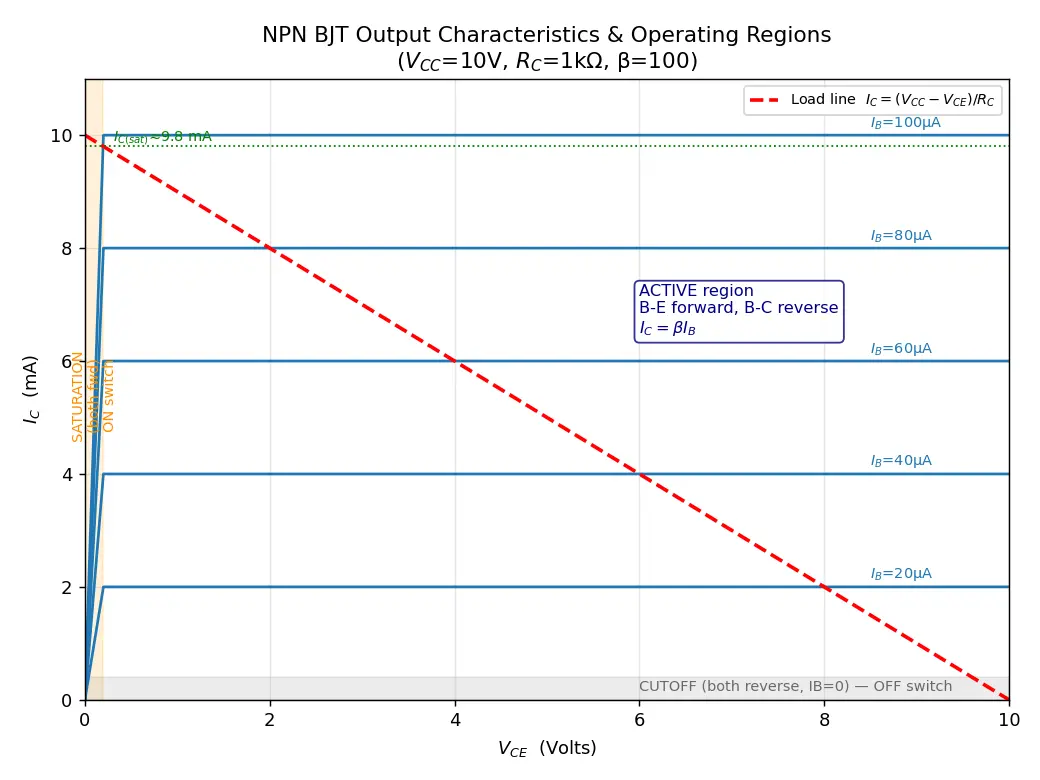

[!formula] When does it saturate? (the boundary)

Take a common-emitter switch: supply $V_{CC}$, collector resistor $R_C$.

The collector loop (KVL): $V_{CE} = V_{CC} - I_C R_C$ Why? Voltage dropped across $R_C$ plus across the transistor must equal supply.

• If you increase $I_B$, active mode predicts $I_C=\beta I_B$ rising, so $V_{CE}$ falls.
• $V_{CE}$ can't fall below $\approx V_{CE(sat)}\approx0.2$ V (the B–C junction turns forward). At that point $I_C$ hits its ceiling: $I_{C(sat)} = \frac{V_{CC}-V_{CE(sat)}}{R_C}$
• The base current needed to just reach saturation: $I_{B(sat)} = \frac{I_{C(sat)}}{\beta}$

Rule: if $I_B > I_{B(sat)}$ → saturated (ON switch). If $I_B$ (with a forward B–E) but $\beta I_B < I_{C(sat)}$ → active. If B–E not forward → cutoff.

[!example] Worked Example 1 — classify the region

Given NPN: $V_{CC}=10$ V, $R_C=1\text{ k}\Omega$, $\beta=100$, $I_B=20\ \mu\text{A}$, $V_{CE(sat)}=0.2$ V.

Step 1 — max collector current the circuit allows: $I_{C(sat)}=\frac{10-0.2}{1000}=9.8\text{ mA}$ Why? This is the ceiling set by supply and $R_C$.

Step 2 — what active mode would predict: $\beta I_B = 100\times20\ \mu\text{A} = 2\text{ mA}$ Why? Assume active first, then test.

Step 3 — compare: $2\text{ mA} < 9.8\text{ mA}$, so the collector can deliver it → ACTIVE. $V_{CE}=10-(2\text{ mA})(1\text{ k}\Omega)=8\text{ V} \ (> 0.2\text{ V}) ✓$

[!example] Worked Example 2 — push it into saturation

Same circuit but now $I_B=200\ \mu\text{A}$.

Step 1 — active prediction: $\beta I_B = 100\times200\ \mu\text{A}=20\text{ mA}$. Step 2 — compare to ceiling: $20\text{ mA} > 9.8\text{ mA}$ → collector cannot supply this. → SATURATION. Step 3 — real values: $I_C = I_{C(sat)}=9.8\text{ mA}$, $V_{CE}=0.2$ V. Why this step? Once saturated, $I_C$ is fixed by the resistor, NOT by $\beta I_B$. The "extra" base drive is wasted (overdrive).

[!example] Worked Example 3 — find $\alpha$ and the boundary $I_B$

$\beta = 99$. Step 1: $\alpha = \beta/(\beta+1)=99/100=0.99$. Why? Directly from derived formula. Step 2 — minimum $I_B$ to just saturate (using Ex.1 circuit): $I_{B(sat)}=\frac{I_{C(sat)}}{\beta}=\frac{9.8\text{ mA}}{99}\approx 99\ \mu\text{A}$ Any $I_B$ above ≈99 µA saturates the transistor.

[!mistake] Steel-manned common errors

Mistake 1: "$I_C = \beta I_B$ always." Why it feels right: it's the headline formula in every textbook; students apply it reflexively. The fix: it's only the active-region law. In saturation $I_C$ is limited by $(V_{CC}-V_{CE(sat)})/R_C$. Always compute $I_{C(sat)}$ and compare with $\beta I_B$; the smaller wins.

Mistake 2: "More base current = more collector current, forever." Why it feels right: linear thinking from the active region. The fix: the collector hits a hard ceiling. Beyond $I_{B(sat)}$ you're just overdriving — good for a solid switch, useless for gain.

Mistake 3: "Saturation means no current / device is off." Why it feels right: the word "saturated" sounds like something stopped. The fix: saturation = fully ON (max current, tiny $V_{CE}$). Cutoff is the OFF state. The names are counterintuitive — memorize them.

Mistake 4: Confusing $\alpha$ and $\beta$ or using $I_C=\alpha I_B$. The fix: $I_C=\alpha I_E$ but $I_C=\beta I_B$. $\alpha<1$ (fraction of emitter current), $\beta\gg1$ (gain over base current).

[!recall]- Feynman: explain to a 12-year-old

Imagine a water gate. The big pipe (collector–emitter) has a heavy door held shut. There's a tiny lever (the base).

• Don't touch the lever → door stays shut, no water → cutoff (OFF).
• Push the lever a little → the door opens proportionally, and a little lever push moves a LOT of water → active (amplifier).
• Push the lever super hard → the door is already fully open; pushing harder does nothing more → saturation (fully ON). The water flow is now limited by the pipe/faucet outside, not your lever.

[!mnemonic] Remember the regions

"Cutoff = Closed for business (both reverse). Saturation = Slammed open (both forward). Active = A-lift (one each)." And: "REverse+REverse = REst (cutoff); Forward+Forward = Full ON (sat)."

Flashcards

Connections

• BJT Structure and Doping — thin base is why $\alpha\to1$
• Common-Emitter Amplifier — uses the active region
• BJT as a Switch — uses cutoff & saturation
• Load Line Analysis — graphical view of these regions
• MOSFET Operating Regions — the FET analogue (cutoff/triode/saturation)
• PN Junction Biasing — foundation for junction states
