Current gain β (hFE) and α

HOW they relate — derive from scratch

Formula Deriving β from α (no memorising!)

Start from only two facts we already proved: $I_E = I_C + I_B \qquad \alpha = \frac{I_C}{I_E}$

Step 1 — express $I_B$ in terms of $I_C$ and $I_E$ : $I_B = I_E - I_C$ Why this step? KCL is the one unbreakable rule; everything must be consistent with it.

Step 2 — write $\beta$ and substitute: $\beta = \frac{I_C}{I_B} = \frac{I_C}{I_E - I_C}$ Why? We want $\beta$ using quantities $\alpha$ is built from.

Step 3 — divide top and bottom by $I_E$ : $\beta = \frac{I_C/I_E}{(I_E - I_C)/I_E} = \frac{I_C/I_E}{1 - I_C/I_E}$ Why? This turns raw currents into the ratio $\alpha = I_C/I_E$ .

Step 4 — replace with α: $\boxed{\;\beta = \frac{\alpha}{1-\alpha}\;}$

Reverse it (solve for $\alpha$ ): cross-multiply $\beta(1-\alpha)=\alpha \Rightarrow \beta = \alpha(1+\beta)$ : $\boxed{\;\alpha = \frac{\beta}{1+\beta}\;}$

Other handy identities (derived)

Common mistakes (steel-manned)

Active recall

Define α (common-base current gain).

\alpha = I_C/I_E

, the fraction of emitter current reaching the collector; slightly less than 1.

Define β / h_FE.

\beta = I_C/I_B

, the common-emitter DC current gain; typically 20–1000.

Convert α → β.

\beta = \alpha/(1-\alpha)

Convert β → α.

\alpha = \beta/(1+\beta)

Express

I_E

in terms of

I_B

and β.

I_E = (\beta+1)I_B

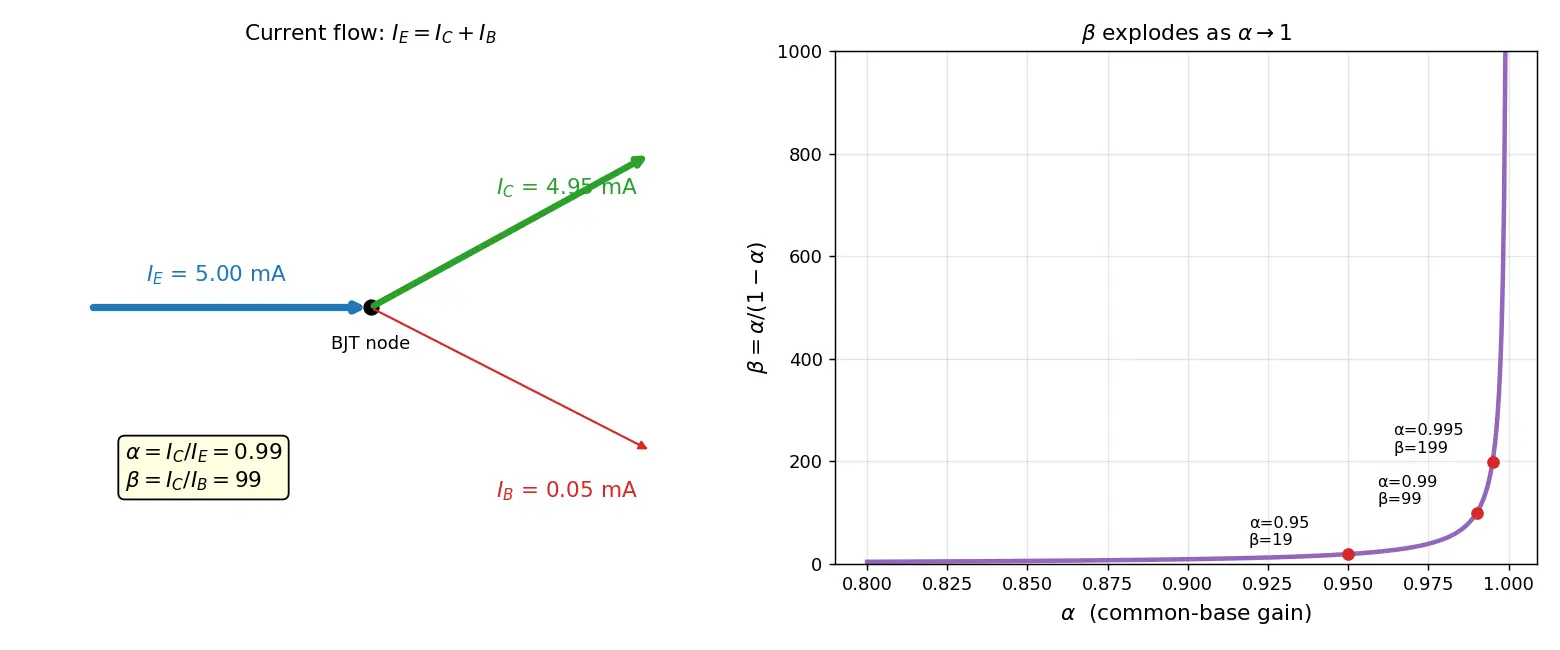

Why does β blow up as α→1?

β = α/(1−α); the denominator (loss fraction) shrinks to 0, so β diverges — small α changes cause large β changes.

KCL relation among the three currents?

I_E = I_C + I_B

Difference between

h_{FE}

and

h_{fe}

h_{FE}

is DC ratio

I_C/I_B

;

h_{fe}

is AC slope

\partial I_C/\partial I_B

\alpha=0.98

, what is β?

0.98/0.02 = 49

Why must α always be < 1?

You can't collect more carriers than the emitter injects; some recombine in the base.

Recall Feynman: explain it to a 12-year-old

Imagine a water slide. At the top you dump a big bucket of kids ( $I_E$ ). Almost all whoosh down to the bottom pool ( $I_C$ ), but a few grab the railing and stop halfway ( $I_B$ ). α = "what fraction reached the pool" (nearly all, so just under 1). β = "for every kid who grabbed the rail, how many made it down." If only 1 in 100 grabs the rail, then 99 made it — so β = 99! A tiny number of rail-grabbers controls a huge slide traffic. Turn a tiny knob (base), get a big flow (collector). That's amplification.

Connections

BJT Structure and Operation — where the base recombination that sets α happens
Common-Emitter Amplifier — the config where β is the voltage/current gain driver
Common-Base Amplifier — where α is the direct gain
BJT Biasing and Q-point — why we design around β variation
Small-signal Model (h-parameters) — home of $h_{fe}$ vs $h_{FE}$
Kirchhoff's Current Law — the root of $I_E = I_C + I_B$

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, BJT ek current amplifier hai. Aap base me thoda sa current $I_B$ dete ho, aur collector me uska bahut bada version $I_C$ nikalta hai. Multiplier ka naam hai β (datasheet pe $h_{FE}$ likha hota hai). Basic rule to bas KCL hai: $I_E = I_C + I_B$ — jitna emitter se nikla, wahi collector aur base me bant gaya.

Ab α matlab $I_C/I_E$ — emitter se jitne carriers chale, unme se kitne collector tak pahunche. Kuch to base me recombine ho jaate hain, isliye α hamesha 1 se thoda kam (jaise 0.99). Aur β matlab $I_C/I_B$ — har "khoye" carrier ke badle kitne bache. Formula khud nikal lo: $I_B = I_E - I_C$ , phir $\beta = I_C/(I_E-I_C)$ , upar-neeche $I_E$ se divide karo, mil jaata hai $\beta = \alpha/(1-\alpha)$ . Ulta: $\alpha = \beta/(1+\beta)$ .

Sabse important intuition: jab α 1 ke kareeb jaata hai, denominator $(1-\alpha)$ chhota hota jaata hai, isliye β phat jaata hai. Tabhi 0.99 se 0.995 karne pe β 99 se 199 ho jaata hai. Yahi reason hai ki β har transistor me alag-alag hota hai (100 se 300 tak), isliye achhe circuit β pe zyada bharosa nahi karte — feedback lagate hain.

Yaad rakhne ka trick: α = Almost 1, common-bAse; β = Big, Base current use karta hai; aur $I_E = (\beta+1)I_B$ — emitter sab kuch carry karta hai isliye add karo, minus mat karna.
