Foundations — BJT operating regions (cutoff, active, saturation)

Before you can read the parent note BJT Operating Regions, every symbol it fires at you must first be earned. Below, each idea is built from the one before it. We never use a letter until it has a picture.

---

1. What is a "terminal"? (the three legs)

A transistor is a small block of silicon with three wires coming out, called terminals. We give each a name and a letter:

• Emitter — letter E. It emits (throws out) charge carriers.
• Base — letter B. The thin middle control layer.
• Collector — letter C. It collects the carriers thrown by the emitter.

Why the topic needs this: every symbol later ($I_E$, $I_C$, $I_B$, $V_{BE}$, $V_{CE}$) is attached to these three legs. If you don't know which leg is which, no formula makes sense. Notice in the figure the base layer is drawn thin — remember that, it is the whole reason $\beta$ is large (Section 8).

---

2. What is "current" and what is $I$? (arrows of flow)

Current is how much charge flows past a point per second. Think of a river: current is the litres-per-second going by.

Picture: an arrow along a wire; a fatter arrow means more amperes. In our figure the emitter arrow is the fattest, the base arrow is a thread.

Units you must know:

Why the topic needs this: the parent mixes mA and µA freely (e.g. $I_B=20\mu \text{A}$, $I_C=2\text{mA}$). Every worked example lives or dies on converting these correctly.

---

3. What is "voltage" and what is $V$? (the push)

If current is flow, voltage is the push that causes it — the pressure difference between two points.

That is why voltage symbols carry two subscripts:

• $V_{BE}$ = voltage of Base relative to Emitter (B minus E).
• $V_{CE}$ = voltage of Collector relative to Emitter.
• $V_{CC}$ = the supply voltage feeding the whole circuit (the "battery").

Picture: two water tanks at different heights; the height difference is the voltage; the pipe between them carries the current.

Why the topic needs this: the entire region table is decided by voltages. "$V_{BE}<0.7$ V" is what makes a junction OFF. If you read $V_{BE}$ as "voltage at B" instead of "B minus E", every conclusion flips. (For NPN these voltages are positive when biased normally; for PNP the same voltages are negative — same magnitudes, flipped sign.)

---

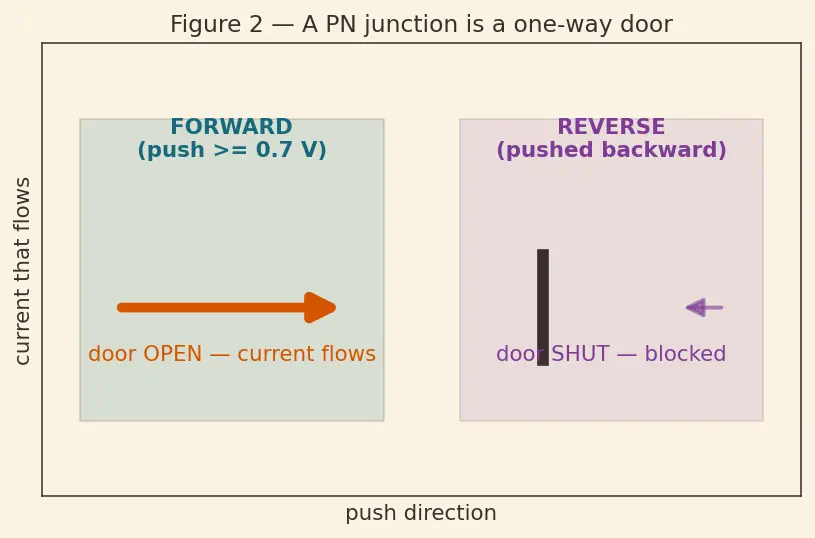

4. What is a PN junction? (the one-way door)

A PN junction is where two differently-treated silicon regions meet. Its magic: it lets current flow easily one way and blocks it the other way — a one-way door.

Picture: a swinging café door with a stopper. Push from the front (forward) and it swings open; push from the back (reverse) and the stopper holds it shut.

Why this tool and not another? We use a diode-like junction rather than a plain resistor because we need a switchable element — one that can be commanded ON or OFF. A resistor always conducts; a junction can be told to block. For a deeper look at how the push turns a junction on, see PN Junction Biasing.

Why the topic needs this: the BJT has two such junctions. The parent's whole table is "junction 1 state × junction 2 state". You must picture each junction as an independent one-way door first.

---

5. Two junctions in one crystal (why "bipolar")

Stack three layers — N, P, N — and you get two PN junctions sharing the middle P layer:

• The B–E junction (Base–Emitter door).
• The B–C junction (Base–Collector door).

Each door can be forward or reverse. Two doors × two states = four combinations.

Why the topic needs this: the three useful cells are the parent's central table, but now every cell means a physical door position you can see, not a word to memorise — and you can see there is no "fifth" mystery region hiding. The structure of these layers is covered in BJT Structure and Doping.

---

6. Kirchhoff's Current Law and $I_E=I_C+I_B$ (nothing is lost)

Charge cannot pile up or vanish inside the transistor. So whatever flows in must flow out.

Using the NPN direction convention from Section 2 (current in at C and B, out at E), the two inflows sum to the one outflow: $I_E=I_C+I_B$

Picture: a river ($I_E$) leaving the emitter, fed by two streams entering at the collector ($I_C$) and base ($I_B$).

Why the topic needs this: this equation is Step 1 of the parent's derivation. Without it you cannot connect $\alpha$ and $\beta$.

---

7. What is $\alpha$? (the fraction that makes it across)

Not all emitter carriers reach the collector — a few get stuck in the base. The surviving fraction is called alpha.

Picture: 100 balls thrown from the emitter; 99 caught by the collector, 1 lost in the base. Then $\alpha =99/100=0.99$.

Why $\alpha <1$ always: you can never catch more balls than you threw, so $\alpha$ can approach 1 but never reach it. The thin, lightly-doped base (Section 1's picture) is designed to lose as few balls as possible.

---

8. What is $\beta$? (turning a small trickle into a flood)

Rearranging the two facts above gives the star of the whole topic:

Why the topic needs this: $I_C=\beta I_B$ is the active-region headline. But remember — it is only true when the B–C door is shut (active). This foundation feeds directly into Common-Emitter Amplifier and BJT as a Switch.

---

9. Reading a loop: $V_{CE}=V_{CC}-I_C{R}_C$ (the see-saw)

Put a resistor $R_C$ between the supply $V_{CC}$ and the collector. Walking around the loop (Kirchhoff's Voltage Law — voltages around a loop sum to zero):

$V_{CE}=V_{CC}-I_C{R}_C$

Why the topic needs this: this is the equation that ends active mode. As $I_C$ climbs, $V_{CE}$ slides down until it hits its floor $\approx 0.2$ V ($V_{CE(sat)}$) — at which point the B–C door is forced open and the transistor saturates. The graphical version of this trade-off is Load Line Analysis.

---
