Visual walkthrough — BJT operating regions (cutoff, active, saturation)

We build in this order: name the wires → conserve current → measure the "leak" → turn the leak into gain → find where gain breaks → walk the two extreme cases.

---

Step 1 — Name the three wires and one rule

WHAT. A bipolar transistor (NPN) is a three-legged component. The legs have names:

• Emitter (E) — where charge carriers are fired in.
• Base (B) — a thin middle layer that steers.
• Collector (C) — where most carriers are caught.

Each leg carries a current. We call them $I_E$, $I_B$, $I_C$. The letter $I$ just means "current" (how much charge flows per second, measured in amps). The little letter tells you which wire.

WHY. Before any formula, we need names. And we need the one law that never fails for a junction of wires: charge that flows in must flow out — nothing piles up. That is Kirchhoff's Current Law.

PICTURE. In the figure below, current enters through the emitter (blue arrow) and leaves by two paths — a big one to the collector (orange) and a tiny one out the base (green).

---

Step 2 — Measure the split with one number, $\alpha$

WHAT. Of the whole emitter stream $I_E$, some fraction reaches the collector. Call that fraction $\alpha$ (Greek letter "alpha"). By definition: $I_C=\alpha I_E,0<\alpha <1.$

WHY. Rather than track messy physics, we bottle the whole "how good is this transistor at delivering carriers" story into one dimensionless number. $\alpha$ is a ratio of two currents, so it has no units — it's just "what share got through," a number between 0 and 1. It can never be exactly 1 (some carriers always leak into the base) and never 0 (a working transistor catches most).

PICTURE. Think of a fire hose (the emitter). A splash escapes sideways (into the base); the rest hits the target (collector). $\alpha$ is the fraction that hits the target. A good transistor has a thin, lightly-doped base (see BJT Structure and Doping) so almost nothing splashes out — that pushes $\alpha$ toward 1.

---

Step 3 — Turn the leak fraction into gain: derive $\beta$

WHAT. We now combine Step 1 and Step 2 to get the collector current in terms of the base current alone. Substitute $I_E=I_C+I_B$ into $I_C=\alpha I_E$:

$I_C=\alpha (I_C+I_B).$

Expand and gather the $I_C$ terms: $I_C-\alpha I_C=\alpha I_B⟹I_C(1-\alpha )=\alpha I_B.$

Divide both sides by $(1-\alpha )$: $\boxed{I_C=\frac{\alpha }{1-\alpha }{I}_B=\beta I_B},\beta \equiv \frac{\alpha }{1-\alpha }.$

WHY. In a real circuit you control the tiny base current and want to know the big collector current it produces. So we eliminate $I_E$ and express everything through $I_B$. The algebra is pure substitution — no new physics — but it reveals something dramatic.

WHY $\beta$ is enormous. Look at the denominator $1-\alpha$. If $\alpha =0.99$, then $1-\alpha =0.01$, a tiny number. Dividing by a tiny number makes the result huge: $\beta =\frac{0.99}{0.01}=99.$ So a 1% leak fraction becomes a gain of about 100. That division-by-a-small-number is the amplification.

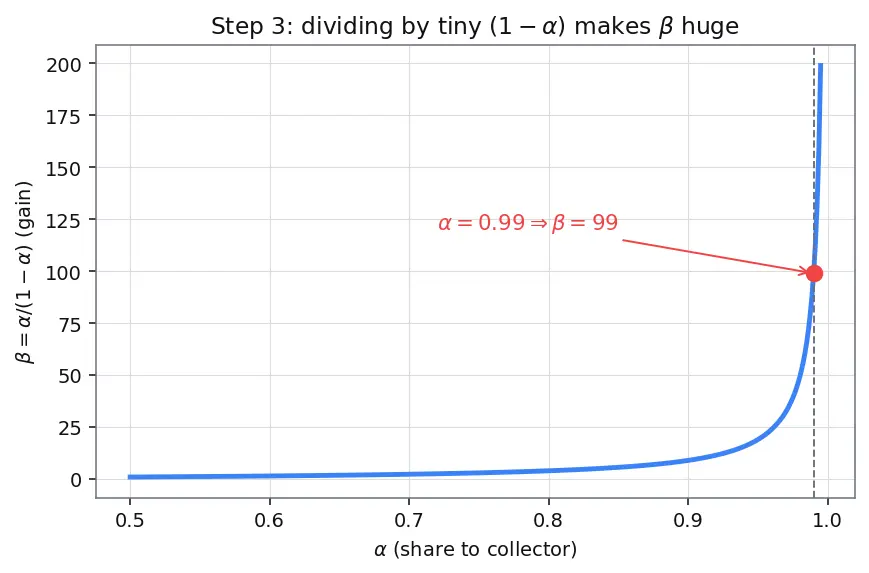

PICTURE. The figure plots $\beta =\alpha /(1-\alpha )$ as $\alpha$ climbs toward 1. Notice how the curve rockets upward — a small nudge in $\alpha$ near the right edge sends $\beta$ sky-high.

---

Step 4 — Wire it into a circuit: the collector loop

WHAT. $I_C=\beta I_B$ tells us the device's wish, but a real switch has a supply voltage $V_{CC}$ and a collector resistor $R_C$. Follow the voltage around the collector loop (Kirchhoff's Voltage Law — voltages around a loop sum to zero): $V_{CE}=V_{CC}-I_C{R}_C.$

WHY. We need to know the voltage across the transistor ($V_{CE}$, collector-to-emitter), because that voltage tells us which region we're in. The supply $V_{CC}$ is split between the resistor (which drops $I_C{R}_C$) and the transistor (which keeps $V_{CE}$).

PICTURE. Below, the fixed supply $V_{CC}$ is a full bucket of voltage. The resistor drinks $I_C{R}_C$; whatever is left, $V_{CE}$, sits across the transistor. Push more current → the resistor drinks more → less is left for $V_{CE}$.

---

Step 5 — The wall: where saturation begins

WHAT. Increase $I_B$ → active mode says $I_C=\beta I_B$ climbs → $V_{CE}$ falls (Step 4). But $V_{CE}$ cannot fall below about $V_{CE(sat)}\approx 0.2$ V. When it hits that floor, the collector current is capped: $I_{C(\text{sat})}=\frac{V_{CC}-V_{CE(sat)}}{R_C}.$ The base current that just reaches this ceiling is $I_{B(\text{sat})}=\frac{I_{C(\text{sat})}}{\beta }.$

WHY. As $V_{CE}$ collapses, the collector becomes more positive than allowed relative to the base, so the B–C junction turns forward-biased — both junctions are now ON. Once forward, the collector can't demand more; the resistor sets the current. So $\beta I_B$ is only a prediction; the true $I_C$ is $\min (\beta I_B,I_{C(\text{sat})})$.

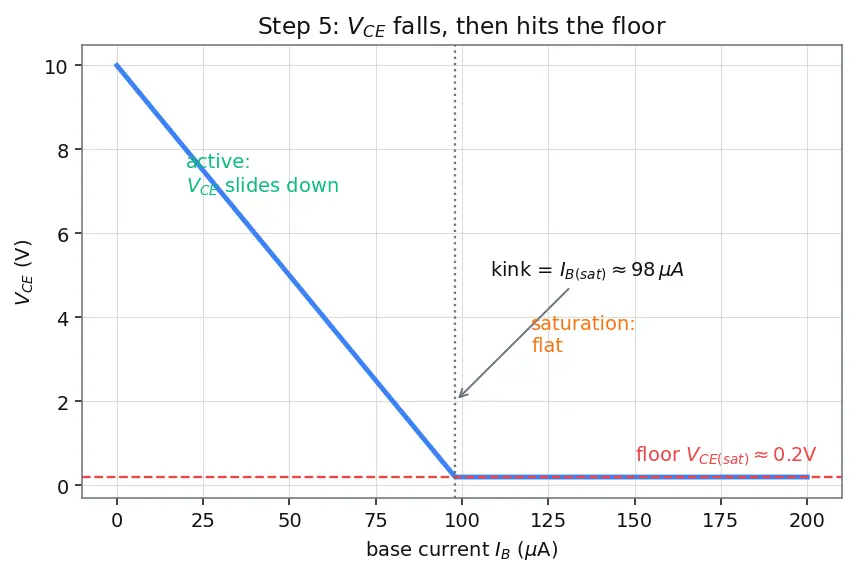

PICTURE. The graph plots $V_{CE}$ against $I_B$. It slides down a straight active-region line, then flattens onto the floor $V_{CE(sat)}$. The kink is $I_{B(\text{sat})}$ — the boundary. (This is exactly the Load Line Analysis picture from the current side.)

---

Step 6 — The two edge cases you must never trip on

WHAT. Beyond active and saturation there are the two extremes:

• Cutoff: $V_{BE}<V_{BE(on)}\approx 0.7$ V. The B–E junction is not even forward-biased, so no carriers are fired in: $I_B\approx 0$, $I_C\approx 0$. From Step 4, $V_{CE}=V_{CC}-0=V_{CC}$ (full supply across the transistor). This is the OFF switch.
• Deep saturation: huge $I_B$, but $I_C$ stuck at $I_{C(\text{sat})}$, $V_{CE}\approx 0.2$ V. This is the ON switch.

WHY. A complete map must cover every input. What if the base is barely driven? → cutoff. What if it's slammed hard? → saturation. The middle is active. No scenario is left undrawn.

PICTURE. One number line of $I_B$ from 0 upward, split into three coloured zones: cutoff (red, $I_B\approx 0$), active (green, rising $I_C$), saturation (orange, flat $I_C$). The two boundaries are $V_{BE(on)}$ (enter active) and $I_{B(\text{sat})}$ (enter saturation).

---

Worked check — the parent's Example 1, region by region

$V_{CC}=10$ V, $R_C=1\text{ k}\Omega$, $\beta =100$, $I_B=20\mu \text{A}$, $V_{CE(sat)}=0.2$ V.

1. Ceiling (Step 5): $I_{C(\text{sat})}=\frac{10-0.2}{1000}=9.8\text{ mA}$.
2. Active prediction (Step 3): $\beta I_B=100\times 20\mu \text{A}=2\text{ mA}$.
3. Compare: $2\text{ mA}<9.8\text{ mA}$ → collector can deliver → ACTIVE.
4. Voltage (Step 4): $V_{CE}=10-(2\text{ mA})(1\text{ k}\Omega )=8\text{ V}>0.2$ V ✓.

Push $I_B$ to $200\mu \text{A}$: $\beta I_B=20\text{ mA}>9.8\text{ mA}$ → capped → SATURATED, $I_C=9.8\text{ mA}$, $V_{CE}=0.2$ V. Boundary base current: $I_{B(\text{sat})}=9.8\text{ mA}/100=98\mu \text{A}$.

---

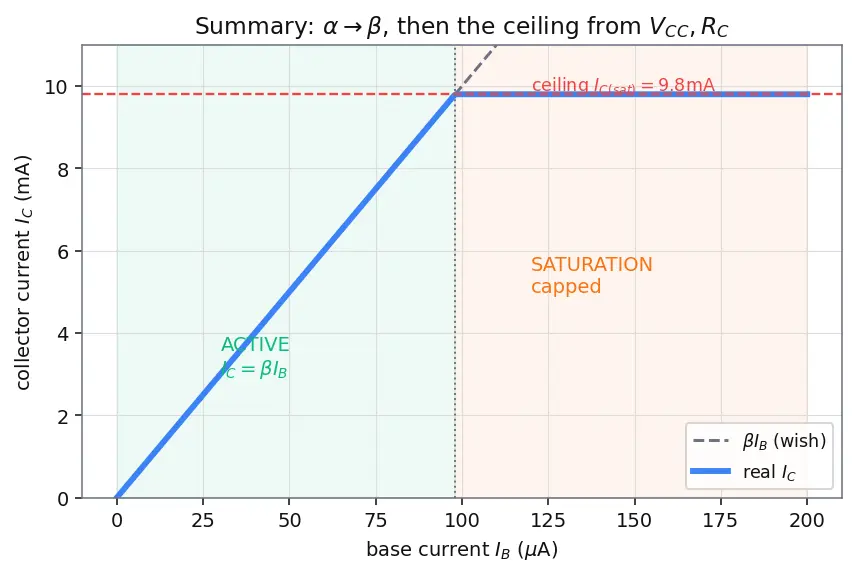

The one-picture summary

Everything on one canvas: the current splits ($I_E=I_C+I_B$), the fraction $\alpha$ becomes the gain $\beta$, and $\beta I_B$ races upward until it slams into the ceiling $I_{C(\text{sat})}$ set by $V_{CC}$ and $R_C$.

Recall Feynman retelling — the whole walkthrough in plain words

A transistor is three wires meeting at a spot. Whatever current pours into the emitter must leave by the collector and the base — that's just "what goes in comes out" ($I_E=I_C+I_B$).

The base is deliberately thin, so almost all the emitter stream reaches the collector — call that share $\alpha$, about 0.99. Now here's the trick: only a tiny sliver ($1-\alpha =0.01$) leaks out the base. So the collector current is about a hundred times the base current. Divide by a small number, get a big number — that big number is $\beta$, the gain. Control a whisper of base current, command a shout of collector current.

But you can't shout forever. The collector shares a supply voltage with a resistor. The more current flows, the more the resistor eats, the less voltage is left for the transistor. When only ~0.2 V is left, the transistor can't cooperate anymore — the current is pinned by the resistor, not by $\beta$. That's saturation, the fully-ON switch.

At the other end, if you never even push the base past 0.7 V, nothing flows at all — cutoff, the OFF switch. So: no push → off, gentle push → amplify, hard push → locked full-on. Three zones, one number line.

Recall

Why is $\beta$ large even though $\alpha <1$? ::: Because $\beta =\alpha /(1-\alpha )$ divides by the tiny leak fraction $1-\alpha$; e.g. $0.99/0.01=99$. Which single law gives $I_E=I_C+I_B$? ::: Kirchhoff's Current Law — current in equals current out. Why does $V_{CE}$ fall as $I_B$ rises (active)? ::: KVL: $V_{CE}=V_{CC}-I_C{R}_C$; more $I_C$ means the resistor eats more, leaving less for $V_{CE}$. What caps $I_C$ in saturation? ::: $I_{C(\text{sat})}=(V_{CC}-V_{CE(sat)})/R_C$ — the resistor and supply, not $\beta$. Is cutoff the ON or OFF state? ::: OFF (no current, $V_{CE}=V_{CC}$).
