Datasheet parameters (Vf, Ir, max ratings): Question bank

Try each line before revealing. If your justification differs from the answer's, that gap is exactly the misconception this item was built to catch.

The equation everything leans on

Every trap below traces back to one master equation, the Shockley Diode Equation. Written in full (with the $- 1$ term that most items quietly drop):

Symbols used on this page

Before the traps, here are the exact symbols and the picture behind each — every one is earned below so no reveal surprises you.

Definition

== $I_{S}$ (saturation current)== — the tiny "always-there" current baked into the junction; it sets both the reverse leakage and the scale of forward current. In the Shockley Diode Equation it multiplies the whole exponential.
== $V_{T}$ (thermal voltage)== — a temperature-set voltage, $V_{T} = k T / q \approx 25.9 mV$ at room temperature (300 K). It sets how "steep" the diode's exponential is.
== $n$ (ideality factor)== — a fudge number between $1$ and $2$ describing how closely a real junction follows the ideal exponential ( $n = 1$ = perfect).
== $V_{f}$ (forward voltage)== — the voltage across the diode while it conducts a stated forward current $I_{F}$ .
== $I_{F}$ (forward current)== — the current flowing the "easy" (conducting) way through the diode.
== $I_{r}$ (reverse leakage current)== — the small current that flows when the diode is reverse-biased below breakdown; $I_{r} \approx I_{S}$ . Specified at a stated reverse voltage $V_{R}$ and temperature.
== $I_{F (A V)}$ (max average forward current)== — the largest continuous average forward current the diode may carry (rectifier duty).
== $I_{F S M}$ (max surge forward current)== — the largest single, non-repetitive current spike (e.g. capacitor inrush) the diode tolerates briefly.
== $V_{R R M}$ (peak repetitive reverse voltage)== — the highest reverse voltage the diode may withstand every cycle without entering destructive breakdown.
== $r_{s}$ (series/bulk resistance)== — the ohmic resistance of the silicon body and leads; adds a linear $I_{F} r_{s}$ drop at high current.
== $P_{D}$ (power dissipation)== — heat generated inside the diode, $P = V_{f} I_{F}$ , measured in watts.
== $T_{A}$ (ambient temperature)== — the temperature of the air/surroundings the diode sits in, in °C.
== $T_{J}$ (junction temperature)== — the temperature of the silicon junction itself, in °C; the real physical thing every rating protects.
== $T_{J (ma x)}$ (maximum junction temperature)== — the absolute ceiling on $T_{J}$ ; cross it and the silicon degrades or fails.
== $R_{θ J A}$ (thermal resistance, junction-to-ambient)== — how many °C the junction heats up per watt of dissipated power, in °C/W. It's "Ohm's law for heat": $T_{J} = T_{A} + P R_{θ J A}$ . See Thermal Resistance & Heatsinking.

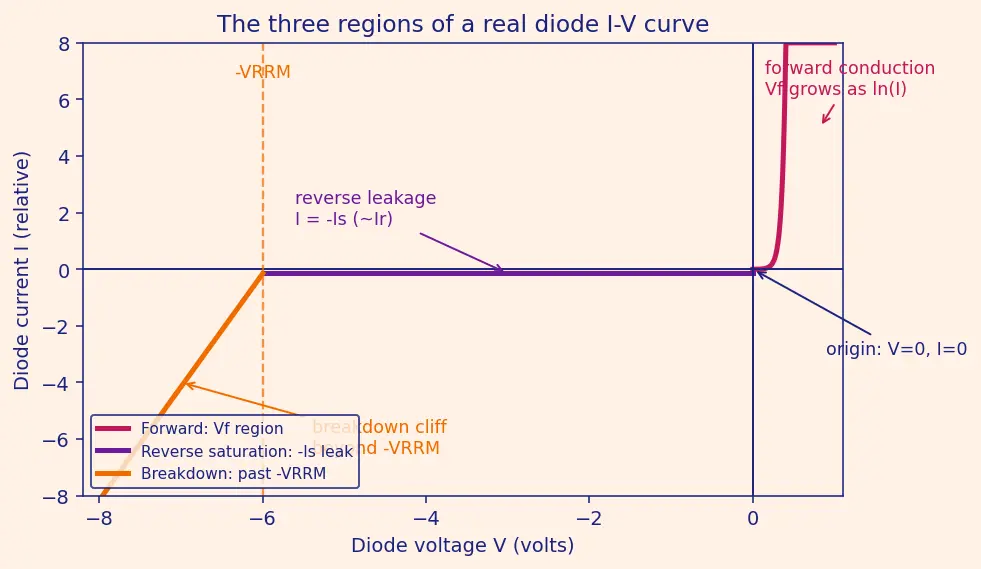

The single figure below is the map for everything on this page — the three regions of the diode's current–voltage (I–V) curve. Refer back to it as you answer.

Figure — Datasheet parameters (Vf, Ir, max ratings)

Look at the three coloured zones the figure labels: the violet reverse-saturation flat (labelled "reverse leakage, I = −Is") where only $- I_{S}$ leaks, the orange breakdown cliff (labelled "breakdown cliff, beyond −VRRM") past $- V_{R R M}$ , and the magenta forward curve (labelled "forward conduction") where $V_{f}$ lives. Every trap below lands in one of these labelled zones.

True or false — justify

A diode with

V_{f} = 0.7

V always drops exactly 0.7 V no matter the current.

False —

V_{f} = n V_{T} ln (I / I_{S})

rises with current (and at high current the extra

I_{F} r_{s}

drop adds even more); 0.7 V is just a convenient value near typical operating currents, and it also falls with temperature.

V_{R R M}

(peak repetitive reverse voltage) is a target you should design your circuit's reverse voltage to reach.

False — it is an absolute maximum wall, never a target; you keep your actual peak reverse voltage well below it (typically ≤ 50–80%).

If a diode is reverse-biased, no current flows through it at all.

False — a small reverse leakage

I_{r} \approx I_{S}

always flows (the violet "reverse leakage" zone in the figure), and it grows (roughly doubling per 10 °C) as the part heats up.

I_{F (A V)}

(max average forward current) and

I_{F S M}

(max surge current) describe the same current limit under different names.

False —

I_{F (A V)}

is the max continuous average forward current, while

I_{F S M}

is a much larger single non-repetitive surge the part tolerates only briefly (e.g. capacitor inrush).

A Schottky diode is strictly better than a silicon diode because its

V_{f}

is lower.

False — the low

V_{f}

is bought with higher reverse leakage

I_{r}

(and lower

V_{R R M}

); it's a tradeoff, not a free win. See Schottky Diodes.

Staying under the

P_{D}

(power dissipation) rating alone guarantees the diode is safe.

False —

P_{D}

is a proxy; the true killer is junction temperature

T_{J} = T_{A} + P R_{θ J A}

, so the same power can be safe cold and lethal in a hot ambient.

At fixed current, raising temperature raises

V_{f}

because hotter things resist more.

False —

V_{f}

actually falls about 2 mV/°C, because

I_{S}

inside the logarithm grows rapidly with temperature and pulls

V_{f}

down.

Absolute maximum ratings are values the part reaches during normal operation.

False — they are limits you must never touch even momentarily; normal operating points sit inside them with margin.

Spot the error

"The datasheet says

V_{f} = 0.7

V, so I'll use that even though my current is 100× the test current."

The error ignores the log dependence: with

n \approx 1

and

V_{T} \approx 25.9 mV

Δ V_{f} = n V_{T} ln (100) = 25.9 mV \times 4.605 \approx 119 mV

, so the real drop is nearer 0.82 V — and at very high current the

I_{F} r_{s}

term pushes it higher still.

"My mains peak reverse voltage is 325 V, so a 350 V

V_{R R M}

diode is fine."

No margin for transients, spikes and derating — real practice picks

V_{R R M}

roughly 2× the peak (e.g. a 1000 V 1N4007), not a sliver above it. See Rectifier Circuits.

I_{r}

is only nanoamps, so it never matters."

It matters in battery/low-power nodes, high-impedance sensing, and hot environments where it balloons — nanoamps over a year drains real mAh from a coin cell.

"I computed

P_{ma x}

using ambient 25 °C, so my design holds inside a hot enclosure."

P_{ma x} = (T_{J (ma x)} - T_{A}) / R_{θ J A}

shrinks as

T_{A}

(ambient temperature) rises; using 25 °C overstates the allowed power, so the enclosed part can overheat.

"To make a diode run cooler, I just need a lower

R_{θ J A}

— the current doesn't matter."

Heat generated is

P = V_{f} I_{F}

; lowering

R_{θ J A}

(heatsinking) helps, but

T_{J}

still climbs with current, so both terms govern the outcome. See Thermal Resistance & Heatsinking.

I_{r} \approx I_{S}

, and

I_{S}

is a fixed constant, so

I_{r}

is constant."

I_{S}

is strongly temperature-dependent (it roughly doubles per 10 °C), so

I_{r}

is not constant — it explodes when the junction gets hot.

"At high forward current

V_{f}

still follows the pure log formula, so I can extrapolate it forever."

False — the series resistance

r_{s}

adds a linear

I_{F} r_{s}

drop that overtakes the log at high current, so real

V_{f}

rises faster than the log predicts.

"Since

V_{f} = n V_{T} ln (I / I_{S})

, at zero current

V_{f}

is negative infinity, which is impossible, so the formula is wrong."

That is only the large-forward-bias approximation of the full

I = I_{S} (e^{V / (n V_{T})} - 1)

; near zero current the restored

- 1

term takes over and keeps

V

finite.

Why questions

Why does

V_{f}

grow only logarithmically with current instead of linearly (at moderate current)?

Because current depends exponentially on voltage in the Shockley Diode Equation; inverting an exponential gives a logarithm, so voltage barely moves while current multiplies — until

r_{s}

kicks in at high current.

Why does the reverse leakage

I_{r}

end up equal to

I_{S}

(the saturation current)?

For large reverse bias the

e^{V / (n V_{T})}

term collapses to ~0 in

I = I_{S} (e^{V / (n V_{T})} - 1)

, leaving

I \approx - I_{S}

, so the once-negligible saturation current becomes the whole reverse current.

Why is

T_{J}

(junction temperature) called the "real killer" among the ratings?

Every other limit (

I_{F}

P_{D}

, derating) exists to keep the junction below

T_{J (ma x)}

; exceed that ceiling and the silicon itself degrades or fails regardless of the other numbers.

Why does raising ambient temperature force you to lower the allowed forward current?

A hotter ambient

T_{A}

leaves less thermal headroom

(T_{J (ma x)} - T_{A})

, shrinking

P_{ma x}

, and since

P = V_{f} I_{F}

, the permitted current must drop too.

Why does the datasheet always state a test condition for

V_{f}

and

I_{r}

Both depend on current, voltage and temperature, so a single value is meaningless without knowing at what

I_{F}

V_{R}

and

T

it was measured.

Why is a Schottky's low

V_{f}

physically linked to higher leakage?

Its metal-semiconductor junction has a lower barrier, which lets forward current flow at lower voltage but also lets more reverse carriers cross — the same low barrier causes both effects. See PN Junction Physics.

Why do we design to only 50–80% of an absolute maximum rating?

Real parts vary, temperatures spike, and transients overshoot; the margin absorbs these so a momentary excursion never crosses the true wall.

Edge cases

At exactly zero forward voltage, what current flows?

Setting

V = 0

in the full Shockley form

I = I_{S} (e^{V / (n V_{T})} - 1)

gives

I = I_{S} (e^{0} - 1) = 0

— no net current, the crossing point of the curve (the origin the figure labels).

What happens to

V_{f}

as forward current approaches zero?

V_{f}

falls toward zero (not to

- \infty

) because near zero the log approximation breaks and the full equation with its

- 1

term keeps the voltage small and finite.

What limits the diode when it is reverse-biased beyond

V_{R R M}

into breakdown?

Reverse current rises sharply (the orange "breakdown cliff" the figure labels); a normal rectifier can be destroyed, whereas a Zener is designed to operate there safely within its power limit.

For a single brief inrush spike far above

I_{F (A V)}

, is the part destroyed?

Not necessarily — that is what

I_{F S M}

covers, a non-repetitive surge rating allowing a short spike provided it doesn't repeat or exceed

I_{F S M}

If ambient

T_{A}

already equals

T_{J (ma x)}

, what is the allowed power?

P_{ma x} = (T_{J (ma x)} - T_{A}) / R_{θ J A} = 0

— with no temperature headroom the diode may dissipate no power at all and cannot conduct meaningfully.

In an ideal (theoretical) diode, what are

V_{f}

and

I_{r}

Exactly

0

V and

0

A — the ideal switch has no turn-on cost and no leakage; datasheet parameters exist precisely because real diodes deviate from this.

At very high temperature with tiny forward current, could reverse-region leakage dominate the behaviour?

Yes — since

I_{r} \approx I_{S}

doubles every ~10 °C, at high

T

and low signal levels the leakage can rival or swamp the intended forward current in high-impedance nodes.

At the high-current end, which term of

V_{f} \approx n V_{T} ln (I_{F} / I_{S}) + I_{F} r_{s}

dominates?

The linear

I_{F} r_{s}

term — the log grows only ~18 mV per doubling, so once

r_{s}

is in play the ohmic drop outpaces it, which is why datasheet

V_{f}

at rated current is well above the ~0.7 V "textbook" value.

Recall One-line self-test

The five numbers to check before trusting any diode ::: $V_{f}$ (forward drop), $I_{r}$ (reverse leakage), $V_{R R M}$ (peak reverse voltage), $P_{D}$ (power dissipation), and $T_{J}$ (junction temperature). Which of those five do all the others ultimately protect? ::: $T_{J}$ , the junction temperature — every other limit is a proxy for keeping it safe.
