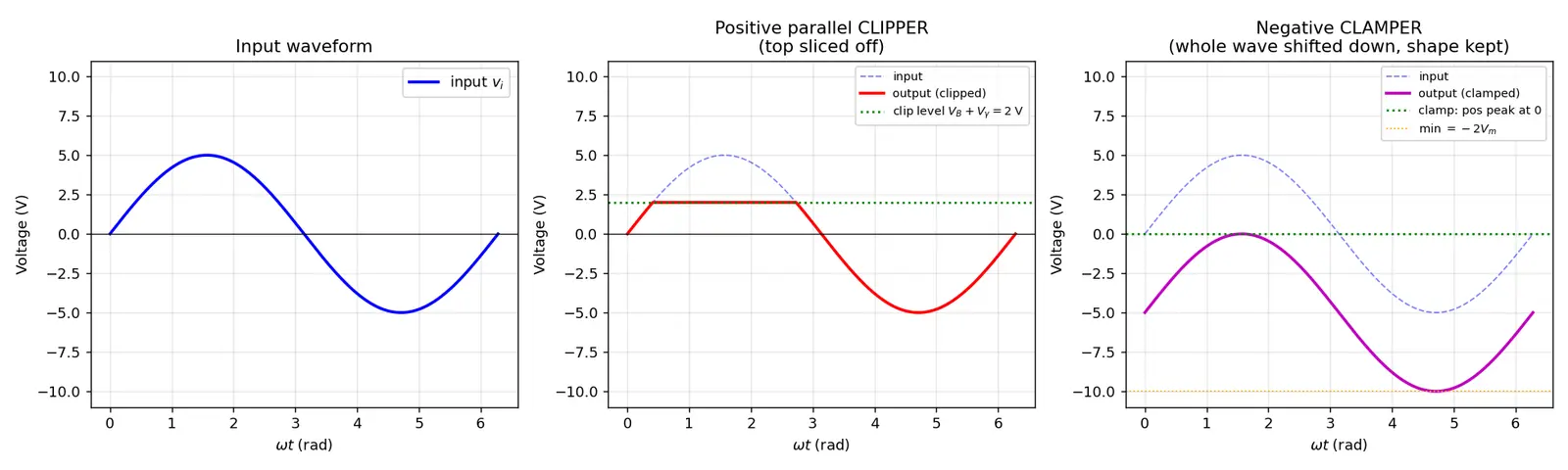

Intuition The one-line ideaA clipper removes (cuts off) part of a waveform's amplitude — it reshapes the vertical extent. A clamper shifts the entire waveform up or down (adds a DC level) without changing its shape. Clip = chop the top/bottom ; Clamp = move the whole thing .
Real signals often need "shaping" before the next stage:
Clippers protect circuits (limit voltage into an ADC), square up sine waves, or generate reference levels.Clampers restore a DC reference lost by AC coupling (e.g. the "DC restorer" in old TV video signals), so a capacitor-coupled signal sits at a known baseline again.
Both exploit the diode's single trick: it conducts one way (drops ~0.7 V 0.7\text{ V} 0.7 V
Definition Ideal vs practical diode model
Ideal diode : conducts (short, 0 V 0\text{ V} 0 V V D > 0 V_D > 0 V D > 0 Practical (constant-drop) model : conducts only when V D ≥ V γ V_D \geq V_\gamma V D ≥ V γ V γ ≈ 0.7 V V_\gamma \approx 0.7\text{ V} V γ ≈ 0.7 V
We derive circuits with the ideal model first, then add 0.7 V 0.7\text{ V} 0.7 V
Diode in series with the load. Current (hence output) only exists when the diode conducts, so one polarity of the input is passed and the other is clipped to ≈ 0 \approx 0 ≈ 0
HOW it works (derivation, ideal diode, series diode + load R R R
Input v i v_i v i R R R
When v i > 0 v_i > 0 v i > 0 v o = v i v_o = v_i v o = v i
When v i < 0 v_i < 0 v i < 0 v o = 0 v_o = 0 v o = 0
v o = { v i v i > 0 0 v i ≤ 0 v_o = \begin{cases} v_i & v_i > 0 \\ 0 & v_i \le 0 \end{cases} v o = { v i 0 v i > 0 v i ≤ 0 The negative half is clipped .
Diode is in parallel with the output, fed through a series resistor R R R cannot exceed that voltage. The rest of the input drops across R R R
HOW — derive the positive parallel clipper with bias V B V_B V B
Circuit: v i → R → v_i \to R \to v i → R → V B V_B V B V B + V γ V_B + V_\gamma V B + V γ
Apply KVL. Diode ON condition: v o ≥ V B + V γ v_o \ge V_B + V_\gamma v o ≥ V B + V γ
Diode OFF (node below threshold): no current through diode. If load is open, no current through R R R v o = v i v_o = v_i v o = v i Diode ON : node is held. KVL around diode branch:
v o = V B + V γ v_o = V_B + V_\gamma v o = V B + V γ The output is clipped at V B + V γ V_B + V_\gamma V B + V γ
v o = { v i v i < V B + V γ V B + V γ v i ≥ V B + V γ \boxed{v_o = \begin{cases} v_i & v_i < V_B + V_\gamma \\ V_B + V_\gamma & v_i \ge V_B + V_\gamma \end{cases}} v o = { v i V B + V γ v i < V B + V γ v i ≥ V B + V γ
Worked example Worked: positive parallel clipperInput v i = 10 sin ω t v_i = 10\sin\omega t v i = 10 sin ω t V B = 3 V V_B = 3\text{ V} V B = 3 V Step 1 — Threshold. Why? Diode conducts only when node rises above V B + V γ = 3 + 0.7 = 3.7 V V_B + V_\gamma = 3 + 0.7 = 3.7\text{ V} V B + V γ = 3 + 0.7 = 3.7 V Step 2 — Below threshold (v i < 3.7 v_i < 3.7 v i < 3.7 v o = v i v_o = v_i v o = v i Why? No path for current except open diode.
Step 3 — Above (v i ≥ 3.7 v_i \ge 3.7 v i ≥ 3.7 v o = 3.7 V v_o = 3.7\text{ V} v o = 3.7 V Why? Diode clamps node; extra voltage drops across R R R Result: a sine wave whose top is sliced flat at 3.7 V 3.7\text{ V} 3.7 V − 10 V -10\text{ V} − 10 V
Worked example Worked: symmetric clipper (square-wave maker)Two Zener-less diodes: one to + 2.3 V +2.3\text{ V} + 2.3 V − 2.3 V -2.3\text{ V} − 2.3 V V γ = 0.7 V_\gamma = 0.7 V γ = 0.7 Step 1 — Positive limit = 2.3 + 0.7 = 3.0 V = 2.3 + 0.7 = 3.0\text{ V} = 2.3 + 0.7 = 3.0 V Step 2 — Negative limit = − 3.0 V = -3.0\text{ V} = − 3.0 V Why it matters: a large sine (say 10 V 10\text{ V} 10 V ± 3 V \pm 3\text{ V} ± 3 V
Intuition WHAT happens — the "capacitor memory" trickA clamper uses a series capacitor + a diode. On the first cycle the capacitor charges to a peak value and holds it (the diode only lets it charge, never discharge quickly). Thereafter the capacitor acts like a battery in series that shifts the whole waveform vertically. Shape unchanged, DC level added.
HOW — derive the negative clamper (ideal diode):
Series capacitor C C C v i = V m sin ω t v_i = V_m\sin\omega t v i = V m sin ω t
Step 1 (first negative peak): When v i v_i v i − V m -V_m − V m 0 0 0
v C = v i − v o = v i − 0 = v i ⇒ v C charges to − V m v_C = v_i - v_o = v_i - 0 = v_i \Rightarrow v_C \text{ charges to } -V_m v C = v i − v o = v i − 0 = v i ⇒ v C charges to − V m Take v C = V m v_C = V_m v C = V m
Step 2 (diode off afterward): Capacitor holds V m V_m V m R C RC R C
v o = v i − v C = V m sin ω t − V m v_o = v_i - v_C = V_m\sin\omega t - V_m v o = v i − v C = V m sin ω t − V m
Intuition WHY the peak-to-peak is unchangedThe capacitor adds the same constant every instant, so vertical spacing between all points is preserved. Only the offset changes. Contrast the clipper, which changes spacing (chops it).
Worked example Worked: positive clamper withV γ V_\gamma V γ v i = 5 sin ω t v_i = 5\sin\omega t v i = 5 sin ω t Step 1 — Cap charges on the negative peak until diode stops conducting. Diode conducts down to − V γ -V_\gamma − V γ V m − V γ = 5 − 0.7 = 4.3 V V_m - V_\gamma = 5 - 0.7 = 4.3\text{ V} V m − V γ = 5 − 0.7 = 4.3 V Why not full 5 5 5 The diode drops 0.7 V 0.7\text{ V} 0.7 V 0.7 V 0.7\text{ V} 0.7 V Step 2 — Output v o = v i + 4.3 V v_o = v_i + 4.3\text{ V} v o = v i + 4.3 V Why? Held capacitor adds 4.3 4.3 4.3 Result: negative peak sits at 5 − 4.3 ⋅ ? 5 - 4.3\cdot? 5 − 4.3 ⋅ ? v o = − 5 + 4.3 = − 0.7 V v_o = -5 + 4.3 = -0.7\text{ V} v o = − 5 + 4.3 = − 0.7 V = 5 + 4.3 = 9.3 V = 5 + 4.3 = 9.3\text{ V} = 5 + 4.3 = 9.3 V 10 V 10\text{ V} 10 V
Common mistake "Clippers and clampers are basically the same."Why it feels right: both use a diode + a reference/battery and both reshape the wave. The fix: a clipper has the diode in shunt/series with a resistor and removes amplitude ; a clamper has a series capacitor and shifts the DC level while keeping shape. Look for the capacitor — that's the clamper's fingerprint.
Common mistake "The clamp level is at exactly0 V 0\text{ V} 0 V Why it feels right: ideal-diode analysis gives 0 0 0 The fix: a real silicon diode conducts only past V γ V_\gamma V γ ± V γ ≈ 0.7 V \pm V_\gamma \approx 0.7\text{ V} ± V γ ≈ 0.7 V 0 0 0 V B V_B V B V B + V γ V_B + V_\gamma V B + V γ
Common mistake "Parallel clipper output equals input minus0.7 V 0.7\text{ V} 0.7 V Why it feels right: confusing the always-conducting case. The fix: the diode only conducts past threshold. Below threshold the diode is OFF and v o = v i v_o = v_i v o = v i 0.7 0.7 0.7 clipped region as part of the flat level.
Common mistake "Clipping reduces peak-to-peak, so clamping must too."Why it feels right: both "change the waveform." The fix: clamping preserves peak-to-peak exactly (adds constant offset). Only clipping reduces it.
Recall Test yourself (hide answers)
What single component distinguishes a clamper from a clipper? → the series capacitor .
Positive parallel clipper with V B V_B V B V B + V γ V_B + V_\gamma V B + V γ
Ideal negative clamper output? → v o = v i − V m v_o = v_i - V_m v o = v i − V m 0 0 0
Design condition for a clamper capacitor? → R C ≫ T RC \gg T R C ≫ T
Does clamping change peak-to-peak? → No.
Recall Feynman: explain to a 12-year-oldImagine a wavy line drawn on paper. A clipper is like laying a ruler across the top and cutting off anything that pokes above it — the bumps get flattened. A clamper is different: it's like sliding the whole drawing up or down on the page without changing the shape at all — every wiggle stays the same size, it just sits at a new height. The diode is a one-way gate that decides which way things get cut or shifted, and in the clamper a capacitor "remembers" the peak and works like a hidden battery that pushes the whole picture up or down.
Mnemonic Remember the difference"CLIP the tips, CLAMP the base."
And: Clamper = Cap (both start with hard C + a stored charge = memory battery). No cap → it's a clipper.
Difference between clipping and clamping Clipping removes part of the waveform's amplitude (reshapes); clamping shifts the whole waveform's DC level without changing shape.
Component unique to a clamper A series capacitor (acts as a stored "battery").
Output of ideal series clipper for negative input (anode→out) v o = 0 v_o = 0 v o = 0 (diode reverse-biased, open).
Clip level of a positive biased parallel clipper v o = V B + V γ v_o = V_B + V_\gamma v o = V B + V γ .
Clip level of unbiased silicon parallel clipper ± 0.7 V \pm 0.7\text{ V} ± 0.7 V .
Ideal negative clamper output v o = v i − V m v_o = v_i - V_m v o = v i − V m (positive peak clamped to 0).
Ideal positive clamper output v o = v i + V m v_o = v_i + V_m v o = v i + V m (negative peak clamped to 0).
Real-diode clamp level with bias ± ( V B + V γ ) \pm (V_B + V_\gamma) ± ( V B + V γ ) instead of 0.
Clamper capacitor design condition R C ≫ T = 1 / f RC \gg T = 1/f R C ≫ T = 1/ f (rule:
R C ≥ 10 T RC \ge 10T R C ≥ 10 T ).
Does clamping change peak-to-peak voltage? No, it only adds a DC offset.
Why does a real clamper not clamp exactly at 0? Diode conducts only past
V γ ≈ 0.7 V_\gamma\approx0.7 V γ ≈ 0.7 V, so cap charges
V γ V_\gamma V γ short.
Peak-to-peak of any clamper output for V m V_m V m 2 V m 2V_m 2 V m (unchanged), spanning 0 to
± 2 V m \pm 2V_m ± 2 V m .
PN Junction Diode — the one-way switch behind every clipper/clamper.Diode I-V characteristics and V-gamma — source of the 0.7 V 0.7\text{ V} 0.7 V Half-wave and Full-wave Rectifiers — rectifiers are clippers with a smoothing goal.Zener diode voltage regulation — Zeners make sharper two-sided clippers/limiters.RC time constant — sets the clamper's R C ≫ T RC \gg T R C ≫ T AC coupling and DC restoration — the practical use of clampers in video/comm circuits.
Diode conducts one way drops 0.7V
Practical constant-drop model
Intuition Hinglish mein samjhoDekho, diode ka ek hi kaam hai — ek taraf current jaane deta hai (~0.7 V drop ke saath), doosri taraf block. Isi ek trick se do circuit bante hain: clipper aur clamper . Clipper matlab waveform ke upar ya neeche ka hissa "kaat" dena — jaise ruler se top kaat diya. Clamper matlab poori waveform ko upar ya neeche "shift" kar dena, bina shape badle. Yaad rakho: clip = chop, clamp = shift .
Clipper mein diode shunt (parallel) ya series mein hota hai, resistor ke saath. Jab input voltage threshold cross karta hai (V B + V γ V_B + V_\gamma V B + V γ 0.7 0.7 0.7
Clamper ki pehchaan hai series capacitor . Pehle cycle mein capacitor peak tak charge ho jaata hai aur phir ek chhupi hui battery ki tarah kaam karta hai — poori waveform ko V m V_m V m R C ≫ T RC \gg T R C ≫ T
Sabse common galti: clipper aur clamper ko same samajhna. Simple rule — agar capacitor dikhe to clamper, sirf resistor+diode dikhe to clipper. Aur real diode mein clamp exactly 0 pe nahi, 0.7 0.7 0.7
