MIL-STD-1553 — military avionics bus

What IS MIL-STD-1553?

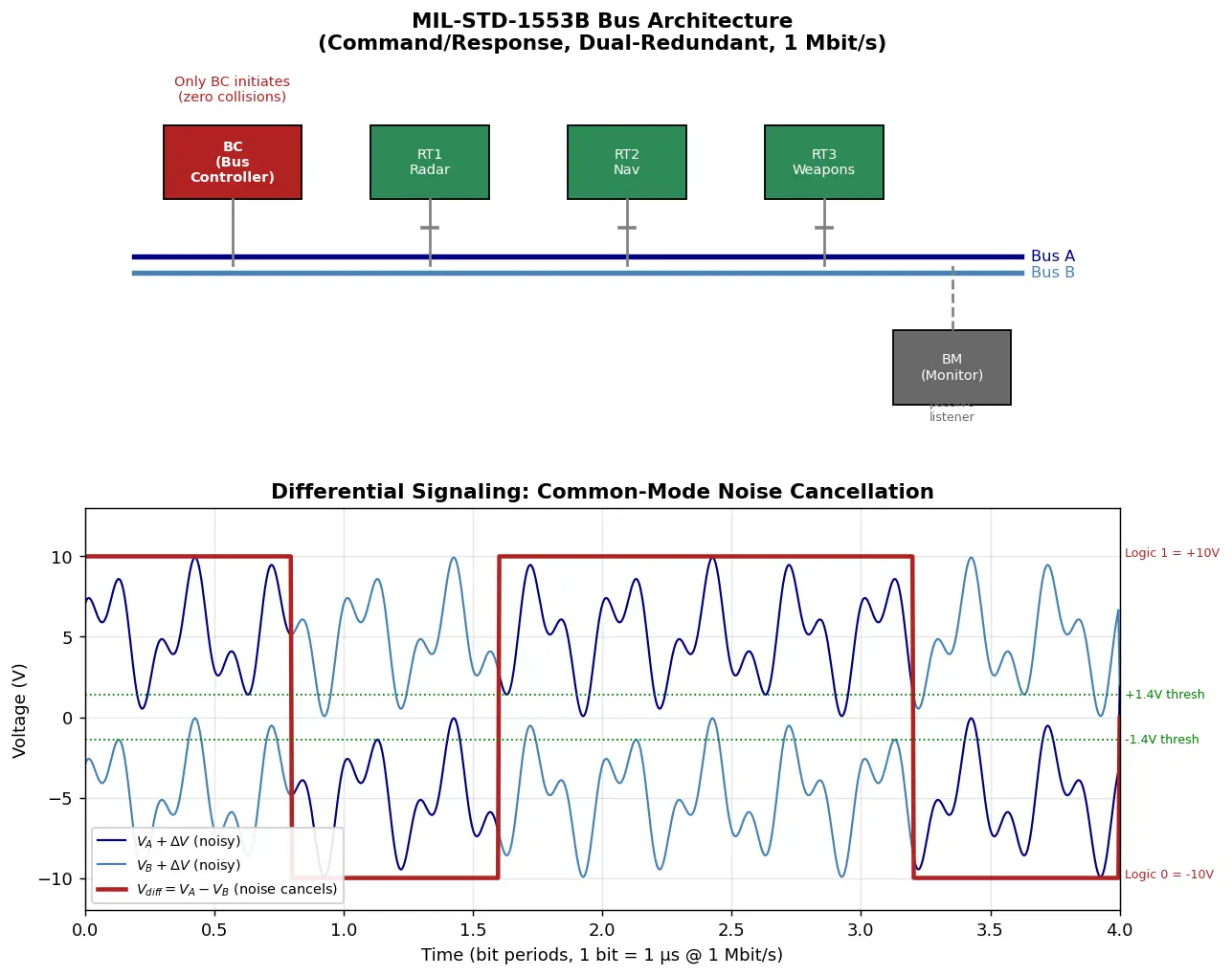

Architecture Components

Three node types:

1. Bus Controller (BC) — The dictator. Only the BC initiates transactions. It polls each RT on a fixed schedule.
2. Remote Terminal (RT) — Slave devices (radar, weapons, nav). They ONLY speak when spoken to.
3. Bus Monitor (BM) — Passiveavesdropper for logging/diagnostics. Doesn't transmit.

Why command/response? In a master/slave system, there are ZERO collisions. The BC controls every microsecond of bus time. Compare to Ethernet (CSMA/CD) where collisions cause random delays — unacceptable when releasing a missile.

How the Physical Layer Works

Differential Signaling — Deriving Noise Immunity

Why transformer coupling? The bus uses transformer-coupled stubs (not direct connection). This provides:

• Galvanic isolation — ground loops can't inject noise
• Passive failure mode — a dead RT's stub just looks like an open circuit, doesn't short the bus

Why 1 Mbit/s? Trade-off Analysis

Higher speeds would be better, right? Not in 1973:

• Cable length: Military aircraft need 100+ feet of cable. At higher frequencies, reflections and attenuation kill the signal.
• EMI tolerance: 1 MHz signaling has wavelengths ~300m. Jet engine ignition noise is mostly >10 MHz. The slow speed stays below most interference.
• Reliable transformers: Pulse transformers in 1973 couldn't maintain sharp edges at higher speeds.

Modern perspective: 1 Mbit/s seems glacial, but 1553 messages are tiny (32 words max). A full sensor reading fits in 300 microseconds. For a 50 Hz sensor update, that's only 1.5% bus utilization.

Protocol Layer — Message Timing

Manchester II Encoding

Message Structure

A 1553 message consists of:

| Sync (3 bits) | Data (16 Parity (1 bit) |

Why 20 bits total? The sync pattern (either 3 $\mu s$ LOW or 3 $\mu s$ HIGH) is INVALID in Manchester — it can't be data. This gives unambiguous word boundaries.

Command Word Format (from BC to RT):

| Sync | RT Addr (5b) | T/R (1b) | Subaddr (5b) | Word Count (5b) | Parity |

• RT Address: 0-31, selects which device
• T/R bit: 1=Transmit (RT sends data), 0=Receive (RT accepts data)
• Subaddress: 32 sub-channels per RT (e.g., "radar azimuth", "radar elevation")
• Word Count: 1-32 data words in this message (0 encodes 32)

Fault Tolerance — Dual Redundancy

Why Two Buses?

Implementation: Each RT has two transceivers. The BC sends the SAME message on both Bus A and Bus B (with a 10-20 $\mu s$ offset). The RT uses whichever bus delivers a valid message first. If Bus A is severed by shrapnel, Bus B keeps the aircraft operational.

Why NOT triple redundancy? Weight and cost. Two buses give 99.9999% availability, which meets DO-178C Level A requirements. Adding a third bus gives diminishing returns.

Common Mistakes

Practical Coding Considerations

RT Firmware State Machine

typedef enum {
    IDLE,
    RX_COMMAND,
    TX_STATUS,
    TX_DATA,
    RX_DATA
} rt_state_t;

void rt_interrupt_handler(void) {
    uint32_t word = read_bus_word();  // From 1553 transceiver

    switch (state) {
        case IDLE:
            if (is_command_word(word) &&
                get_rt_address(word) == MY_ADDRESS) {
                if (get_tr_bit(word) == TRANSMIT) {
                    // BC wants us to send data
                    state = TX_STATUS;
                    load_tx_buffer(status_word);
                } else {
                    // BC is sending us data
                    state = RX_DATA;
                }
            }
            break;

        case TX_STATUS:
            // Status word already sent by hardware
            if (get_word_count(cmd) > 0) {
                state = TX_DATA;
                load_tx_buffer_dma(data_buffer, word_count);
            } else {
                state = IDLE;
            }
            break;
        // ... other states
    }
}

Why DMA? Copying 32 words in a loop takes ~50 $\mu s$ on a 20 MHz ARM. DMA does it in <2 $\mu s$ without CPU.

Message Scheduling (BC Firmware)

The BC maintains a major frame (typically 20 ms or 50 Hz) divided into minor frames:

typedef struct {
    uint8_t rt_address;
    uint8_t subaddress;
    uint8_t word_count;
    bool transmit;  // true = read from RT, false = write to RT
    uint32_t offsetus;  // Time offset in major frame
} message_slot_t;

message_slot_t schedule[100] = {
    {5, 3, 8, true, 0},       // Read radar at T=0
    {12, 16, true, 300},   // Read INS at T=300us
    {5, 4, 2, false, 600},    // Send radar mode at T=600us
    // ... 97 more messages
};

void bc_major_frame_loop(void) {
    uint32_t frame_start = get_time_us();

    for (int i = 0; i < 100; i++) {
        // Wait for scheduled time
        while (get_time_us() - frame_start < schedule[i].offset_us);

        send_1553_message(&schedule[i]);

        if (message_failed) {
            // Retry logic (up to 3 attempts)
            retry_message(&schedule[i]);
        }
    }
    // Sleep until next major frame (20 ms)
    wait_until(frame_start + 20000);
}

Why fixed schedule? Guarantees WCET (Worst-Case Execution Time). The radar KNOWS it will be poled every 20 ms, ±10 $\mu s$. Real-time systems MUST have bounded latency.

Modern Variations

MIL-STD-1553 is dead, right? Wrong. It's in:

• F-35 Lightning II (primary flight control bus)
• Apache AH-64E (weapons management)
• International Space Station (payload commanding)
• Eurofighter Typhoon (sensor fusion)

Why still used? Certification cost. Re-certifying existing 1553-based systems for DO-178C Level A costs ~$10-50k. Replacing with AFDX costs$5-10 million (new hardware, software, test, certification).

Modern alternatives:

• ARINC 664 (AFDX): Switched Ethernet for commercial aviation (Airbus A380, Boeing 787)
• TP (Time-Triggered Protocol): Automotive (drive-by-wire)
• SpaceWire: Spacecraft (ESA missions)

But for military retrofit and legacy platforms, 1553 will fly until2050+.

Connections

• RS-485 Protocol — Similar differential signaling, but multi-master
• CAN Bus — Automotive real-time bus, uses CSMA/CD (different approach)
• ARINC 429 — Commercial aviation predecessor (slower, point-to-point)
• Time-Triggered Architectures — TP shares 1553's determinism philosophy
• DO-178C Certification — Why 1553 persists (certification inertia)
• Manchester Encoding — Physical layer clock recovery technique
• Real-Time Scheduling Theory — BC's major/minor frame scheduling

#flashcards/coding

What is the key advantage of MIL-STD-1553's command/response architecture? :: Zero collisions and deterministic timing—only the Bus Controller initiates transactions, so every message has a guaranteed maximum latency.

Why is 1553 limited to 1 Mbit/s? :: Trade-off for cable length (100+ ft), EMI immunity (1 MHz < engine noise spectrum), and reliable 1970s transformer technology. Higher speeds would cause reflections and attenuation.
