Software-in-the-Loop (SIL) simulation — all software, simulated hardware

What is Software-in-the-Loop (SIL)?

Why "in-the-loop"? The software is closed-loop with the simulated environment: it reads simulated sensor data, computes control outputs, and those outputs affect the next simulation state. It's a feedback cycle entirely in software.

Why SIL Exists: The V-Model Context

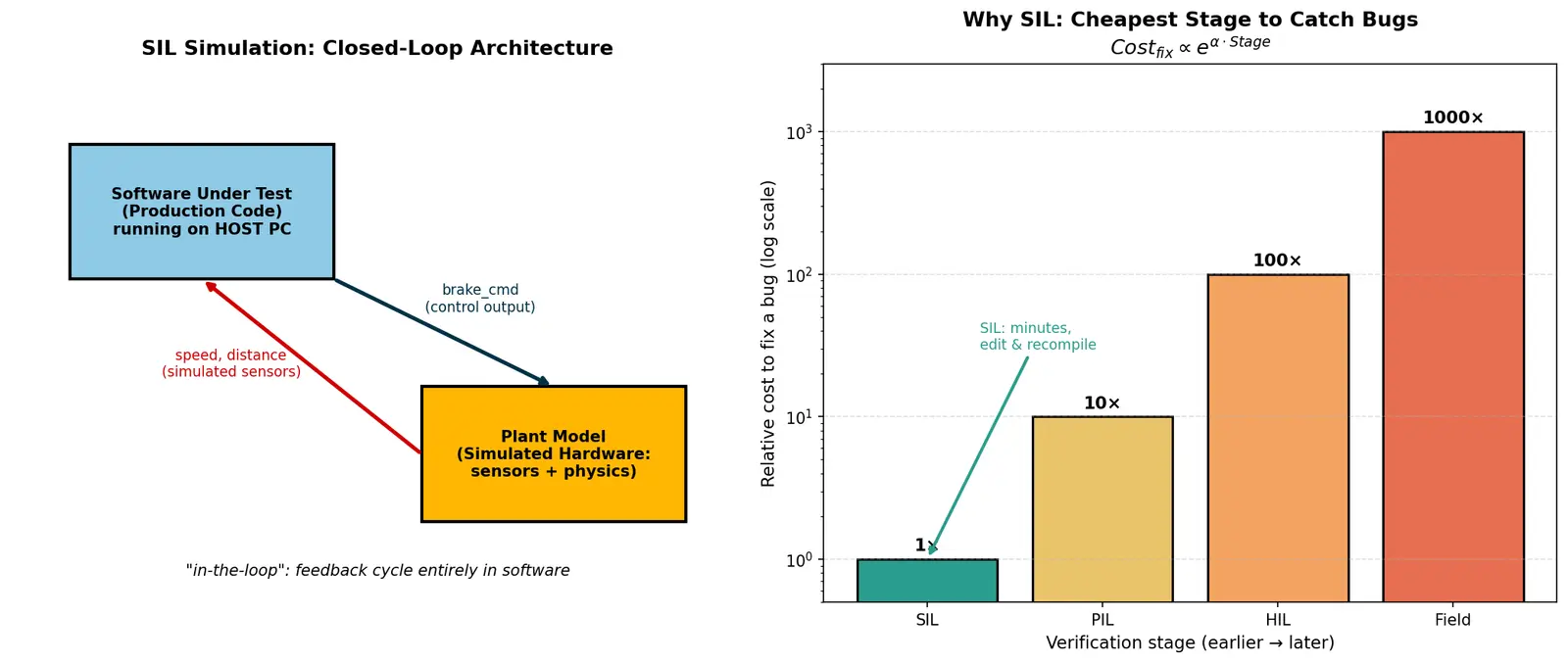

Figure — Software-in-the-Loop (SIL) simulation — all software, simulated hardware

Formula The Testing Pyramid for Embedded Systems

\text{Cost}_{\text{fix}} \propto e^{\alpha \cdot \text{Stage}} \quad \text{where Stage} = \{\text{SIL}, \text{PIL}, \text{HIL}, \text{Field}\}

Derivation from first principles:

Stage 0 (SIL): Pure software. Bug fix = edit code, recompile, re-run. Time: minutes. Cost: $$$
Stage 1 (PIL - Processor-in-Loop): Code on real chip, simulated peripherals. Bug might need toolchain/compiler fixes. Cost: $10\times$
Stage 2 (HIL - Hardware-in-Loop): Real hardware in the loop. Bug might need PCB rework. Cost: $100\times$
Stage 3 (Field): Deployed system. Bug = recall, safety incidents, reputation damage. Cost: $1000\times$

Why exponential? Each stage adds irreversibility (physical artifacts, customer exposure) and coordination overhead (manufacturing, logistics, stakeholder alignment).

SIL's role: It's the earliest, cheapest stage where you verify that your algorithms are correct before physical constraints corrupt your debugging signal.

How SIL Works: The Architecture

Worked example Concrete Example: Autonomous Braking System

Production code: A C function calc_brake_force(speed, distance_to_obstacle) -> brake_pressure SIL setup:

Plant model (Python/MATLAB):

# Simulates vehicle physics
velocity_next = velocity - (brake_pressure / vehicle_mass) * dt
distance_next = distance - velocity * dt

Wrapper: Compiles your C code as a shared library, calls it from Python
Test scenario: Car at 100 km/h, obstacle at 50m. Does it stop in time?

Step-by-step execution (1 simulation tick):

t=0.00s: Plant→Software: speed=100km/h, dist=50m
         Software computes: brake=80% pressure
         Software→Plant: brake_cmd=0.8
         Plant updates: v=98km/h, d=49.72m
t=0.01s: [repeat with new state...]

Why this step? Each arrow mimics a real signal: CAN bus messages, ADC readings, PWM outputs. The timing is simulated, but the data flow matches production.

Key Components of a SIL System

1. Software Under Test (SUT)

2. Plant Model (Simulated Environment)

The plant model is a mathematical representation of the physical system your software controls.

Worked example Three Fidelity Levels

Low fidelity (sanity check):

# Linear approximation for motor speed
speed = K_motor * pwm_duty_cycle

Why this step? Catches unit errors (PWM in % vs.0-1), polarity bugs (positive PWM → negative speed).

Medium fidelity (nominal design):

# First-order dynamics
speed_dot = (K * pwm - speed) / tau  # tau = time constant
speed += speed_dot * dt

Why this step? Captures lag, overshoot—tests if your PID controller is tuned correctly.

High fidelity (edge cases):

# Nonlinear model with saturation, friction
torque = K * pwm - friction(speed) - load_torque
speed += (torque / inertia) * dt
if speed > max_rpm: speed = max_rpm  # motor limits

Why this step? Exposes bugs that only appear under saturation (e.g., integrator windup in your controller).

Key insight: You don't need perfect accuracy. You need enough realism to invalidate bad software. A bug that causes 10% overshoot in a linear model will cause 50% overshoot on real hardware—SIL catches it either way.

3. Cosimulation Framework

This is the orchestrator that runs both the SUT and plant model in sync.

Formula Timing Synchronization

\begin{aligned} t_{\text{software}} &= n \cdot T_{\text{sample}} \quad \text{(discrete controller steps)} \\ t_{\text{plant}} &= \int_0^{t} dt \quad \text{(continuous physics)} \end{aligned}

Derivation from first principles:

Real system: Controller runs at fixed rate (e.g., 100Hz), plant evolves continuously
SIL: Need to discretize the plant to match controller's time steps
Solver choice:
- Euler: $x_{n+1} = x_n + f(x_n) \cdot \Delta t$ (fast, inaccurate)
- RK4: $x_{n+1} = x_n + \frac{1}{6}(k_1 + 2k_2 + 2k_3 + k_4)$ (accurate, slower)

Why this matters: If $\Delta t$ is too large, the simulation diverges (numerical instability). If too small, SIL runs slower than real-time (defeats rapid iteration purpose).

Derivation: When is SIL Valid?

A fundamental question: When does SIL predict real-world behavior?

Formula Simulation Fidelity Criterion

\text{Error}_{\text{prediction}} \leq \underbrace{\text{Error}_{\text{model}}}_{\text{plant inaccuracy}} + \underbrace{\text{Error}_{\text{discretization}}}_{\text{solver}} + \underbrace{\text{Error}_{\text{abstraction}}}_{\text{ignored effects}}

Step 1 — Model error: Your plant model is wrong. Example: you model a DC motor as $\tau = K_t \cdot I$ , but ignore cogging torque. SIL won't catch vibration issues.

Step 2 — Discretization error: Using Euler with large $\Delta t$ introduces $O(\Delta t^2)$ error. For a 100 Hz controller, if plant dynamics have time constants $< 10$ ms, you'll miss fast transients.

Step 3 — Abstraction error: You simulate sensor noise as Gaussian, but real noise has outliers (EMI spikes). SIL won't catch a bug where your code crashes on a single bad reading.

Result: SIL is necessary but not sufficient. It proves your algorithm is logically correct but doesn't guarantee it survives the real world's chaos.

Common Mistakes (and Why They Feel Right)

Worked Example: Temperature Controller SIL

Scenario: You're writing a PID controller for a heating element. Target: maintain 25°C in a room.

Step 1: Write the Controller (C code)

// thermostat.c
float pid_control(float setpoint, float measured, float *integral) {
    float error = setpoint - measured;
    *integral += error * DT;  // DT = 0.1s
    float derivative = error / DT;  // Simplified (should use history)
    return KP * error + KI * *integral + KD * derivative;
}

Why these lines?

error = setpoint - measured: Negative feedback—if room is cold, error is positive → heat more
*integral += error * DT: Accumulates sustained error (eliminate steady-state offset)
derivative = error / DT: Reacts to rate of change (dampen oscillations)

Step 2: Create the Plant Model (Python)

# room_model.py
class Room:
    def __init__(self):
        self.temp = 15.0  # Initial temp (°C)

    def step(self, heater_power, dt=0.1):
        # Energy balance: heating - loss to environment
        P_in = heater_power  # Watts
        P_loss = 0.5 * (self.temp - 10)  # Proportional to ΔT with outside

        # dT/dt = (P_in - P_loss) / (mass * specific_heat)
        Croom = 1000  # Thermal mass (J/K)
        self.temp += (P_in - P_loss) / C_room * dt
        return self.temp

Why this physics?

P_loss ∝ (T_room - T_outside): Newton's law of cooling
C_room: Larger rooms heat/cool slower (thermal inertia)
Units check: Watts × seconds / (J/K) = Kelvin ✓

Step 3: Connect Them in SIL

# sil_test.py
import ctypes
room = Room()
pid_lib = ctypes.CDLL('./thermostat.so')  # Compiled code
integral = ctypes.c_float(0.0)

for t in range(300):  # 30 seconds at 0.1s steps
    measured = room.temp
    heater_power = pid_lib.pid_control(25.0, measured, ctypes.byref(integral))
    room.step(heater_power)
    print(f"t={t*0.1:.1f}s: T={measured:.2f}°C, heater={heater_power:.1f}W")

Why this architecture?

ctypes lets Python call your C code exactly as compiled (no rewrites)
Loop mimics real-time: every 0.1s, read sensor → compute → actuate → update physics
If this crashes or oscillates, you know before building hardware

Step 4: Verify Results

Good output:

t=0.0s: T=15.00°C, heater=180.0W  (big error → max heating)
t=5.0s: T=22.00°C, heater=50.0W   (approaching target)
t=10.0s: T=24.80°C, heater=12.0W  (fine-tuning)
t=20.0s: T=25.05°C, heater=2.0W   (steady state)

Bad output (bug in code):

t=0.0s: T=15.00°C, heater=180.0W
t=5.0s: T=28.00°C, heater=-60.0W  (overshot—derivative term too weak)
t=10.0s: T=22.00°C, heater=200.0W (oscillating—integrator windup)

Why SIL caught it: The bug (missing anti-windup) is in your algorithm, not hardware. Fixing it in SIL takes 5 minutes. Discovering it after deploying 1000 thermostats = recall.

SIL vs. Other Simulation Levels

| Aspect | SIL | PIL | HIL | |--------|-----|-----| | Software | Production code on host PC | Production code on target MCU | Production code on target MCU | | Hardware | Simulated (math model) | Simulated peripherals | Real sensors/actuators | | Speed | Faster than real-time | Near real-time | Real-time only | | Cost/Bug | $(edit code) |$ (may need debuger/JTAG) | $$$ (may need HW rework) | | Catches | Algorithm bugs, logic errors | Compiler issues, MCU-specific bugs | Timing, EMI, sensor quirks |

When to use each:

SIL first: Validate your control algorithm is mathematically sound
PIL next: Confirm it compiles and runs on your actual chip (no RAM overflow, no rounding issues)
HIL last: Verify it survives real-world electrical/mechanical chaos

Connections

Model-Based Design (MBD): SIL is the first verification step in MBD workflows
Hardware-in-the-Loop (HIL): SIL → PIL → HIL is the standard progression
Unit Testing for Embedded Systems: SIL tests integration; unit tests check functions
Real-Time Operating Systems (RTOS): SIL often omits RTOS timing—PIL/HIL validate task scheduling
Continuous Integration for Embedded: Automated SIL runs on every commit catch regressions early
Sensor Fusion Algorithms: SIL is critical for testing Kalman filters with simulated noisy sensors
Digital Twin: SIL is a design-time digital twin (vs. operational twins that mirror deployed systems)

Recall Explain to a 12-Year-Old

You know how when you're learning to ride a bike, you might practice on a video game first? You can crash a hundred times in the game, learn how to balance and steer, and it doesn't hurt. That's what SIL is for robots and computers.

Imagine you're programming a robot to make pancakes. The real robot has a stove (hot! dangerous!), a spatula, and batter. But you don't have the robot yet—it's being built. So you write your code and test it on your computer using a pretend stove (a program that acts like a stove). Your code says "flip the pancake now," and the pretend stove checks: "Is the pancake brown enough? Okay, flipping."

If your code flips too early, the pretend stove shows a raw pancake. You fix the code and try again. Once it works perfectly in the computer, then you try it on the real robot. You saved yourself from burning lots of pancakes (and maybe starting a fire). SIL is the "practice on the computer before using the real thing" step.

Flashcards

What does SIL stand for and what is its core purpose? :: Software-in-the-Loop. It runs production-intent embedded software against a simulated hardware model (no physical devices) to verify algorithm correctness early and cheaply.

Why is SIL the first testing stage in the V-model?

Because fixing bugs in pure software (SIL) costs ~1×, while fixing them in PIL costs ~10×, HIL ~100×, and field deployment ~1000× due to increasing irreversibility and coordination overhead.

Name the three key components of a SIL system.

1) Software Under Test (SUT) with HAL abstraction, 2) Plant Model (mathematical simulation of hardware), 3) Cosimulation Framework (orchestrates timing between software and plant).

What is the role of a Hardware Abstraction Layer (HAL) in SIL?

HAL separates core algorithm logic from hardware-specific I/O. In SIL, HAL calls are intercepted and routed to simulation; on real MCU, they map to registers. This lets the same core code compile for both host PC and target chip.

If a plant model uses Euler integration with time step Δt, what is the discretization error order?

O(Δt²). Larger time steps cause bigger errors, potentially making the simulation numerically unstable or missing fast transients.

What are the three types of errors that limit SIL prediction accuracy?

1) Model error (plant model differs from reality), 2) Discretization error (solver approximation), 3) Abstraction error (unmodeled effects like EMI, timing jitter).

Why shouldn't you rely solely on SIL to declare code bug-free?

SIL only tests what you modeled. Unmodeled effects (hardware glitches, ADC latency, voltage sag, EMI) are invisible. SIL proves algorithm correctness but doesn't guarantee survival in real-world chaos.

When should you increase plant model fidelity in SIL?

Start with simple models for fast iteration. Add complexity only when simple models pass all tests and you need to validate edge cases (saturation, nonlinearities). High-fidelity models are slow—use them for final verification, not initial development.

In the temperature controller SIL example, why does P_loss = 0.5 * (temp - 10)?

Newton's law of cooling: heat loss is proportional to temperature difference between room and outside environment. Coefficient 0.5 represents thermal resistance of walls/insulation.

What is the testing pyramid guideline for embedded systems?

Many unit tests (fast, isolated functions) → fewer integration tests → fewer SIL scenarios (system-level validation). SIL catches system bugs but is too slow/coarse for debugging individual algorithms.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

SIL simulation matlab kya hai? Sochiye ap ek smart thermostat bana rahe ho jo kamre ka temperature control kare. Lekin abhi tak hardware ready nahi hai—na sensor, na actuator, na PCB. To kya karein? Apna production code (jo final product mein jayega) ko computer pe chalate hain, aur hardware koek mathematical model se replace kar dete hain. Yeh model bata hai kiagar ap heater ko 50% power pe chalayenge to temperature kitna badhega. Aapka code sochta hai ki real sensor data aa raha hai, lekin actually yeh simulation se aa raha hai. Isse aap jaldi-jaldi test kar sakte ho—100 scenariosek hour mein—bina koi physical setup ke.

SIL ka sabse bada fayda yeh hai ki bugs jaldi aur saste mein mil jate hain. Agar aapka control algorithm galat hai (PID tuning bekar hai, ya logic mein mistake hai), to SIL mein 5 minute mein fix kar sakte ho. Agar same bug ap hardware peata lagao to kya hoga? PCB rework, re-testing, shayad customer ko defective product bhi chala gaya—tab cost 100-1000 guna badh jati hai. Isliye testing pyramid kehta hai: pehle SIL (software only), phir PIL (real processor pe code), phir HIL (real hardware last mein field deployment. Har stage mein confidence badhta hai, lekin cost bhi.

Core intuition samajhne ke liye yeh socho: SIL ek rehearsal hai. Jaise actors script practice karte hain bina actual stage pe jaye, waise hi embedded engineers apna code practice karte hain bina actual chip ya sensor ke. Agar rehearsal mein dance steps galat hain to seedha stage pe jaoge to disaster hoga. SIL wahi disaster bachata hai. Matlab algorithm ka mathematical correctness verify ho jata hai, lekin real-world chaos (voltage spikes, EMI, sensor noise outliers) ka testing bad mein PIL/HIL se hota hai.

Ek zaroori baat: SIL mein ap jo plant model banate ho (simulated hardware), uska accuracy important hai lekin perfectness nahi. Agar aapka model 80% accurate hai to bhi kafi bugs catch ho jayenge. Bas yeh yad rakhna ki SIL pass hone ka matlab yeh nahi ki code bulletproof hai—yeh sirf ek necessary step hai, sufficient nahi. Testing pyramid follow karo: unit tests → SIL → PIL → HIL. Tab jake production-ready system milega.
