Sensor fusion — complementary filter (simple), Kalman filter (optimal)

The Complementary Filter (the "simple" fuse)

HOW we derive it from scratch

We want an estimate $\hat\theta$ that:

equals the accelerometer angle $\theta_a$ at low frequency (removes gyro drift),
equals the integrated gyro at high frequency (removes accel noise).

Take the simplest first-order low-pass $H_{\text{lp}}(s)=\dfrac{1}{1+\tau s}$ . Then the complement is forced: $H_{\text{hp}}(s)=1-\frac{1}{1+\tau s}=\frac{\tau s}{1+\tau s}.$

Notice $H_{\text{hp}}$ contains a factor $s$ (a derivative). The gyro already gives us $\dot\theta=s\,\theta$ , so applying $H_{\text{hp}}$ to the angle is like applying $\dfrac{\tau}{1+\tau s}$ to the rate — no explicit differentiation needed. Combine:

$\hat\theta(s)=\underbrace{\frac{1}{1+\tau s}}_{\text{accel}}\theta_a(s)+\underbrace{\frac{\tau s}{1+\tau s}}_{\text{gyro}}\theta_g(s)$

Discretize. Replace $s\theta \to \dot\theta = \omega_{\text{gyro}}$ (the measured rate), sample at $\Delta t$ . Doing the bilinear/Euler discretization gives the famous update:

Why this step? The term $\hat\theta_{k-1}+\omega_k\Delta t$ is the gyro prediction (integrate rate). Multiplying by $\alpha<1$ bleeds away the drift a little each step; $(1-\alpha)\theta_{a,k}$ gently pulls the estimate back toward the absolute accel reading. That gentle pull is exactly the low-pass filtering of accel noise.

Worked example Numeric complementary-filter step

Given $\Delta t = 0.01\,\text{s}$ , choose cutoff time constant $\tau=0.99\,\text{s}$ . $\alpha=\dfrac{0.99}{0.99+0.01}=0.99$ . Previous estimate $\hat\theta_{k-1}=10^\circ$ , gyro rate $\omega_k=50^\circ/\text{s}$ , accel angle $\theta_a=9^\circ$ .

Gyro prediction: $10 + 50(0.01)=10.5^\circ$ — Why? integrate rate over one tick.
Fuse: $\hat\theta_k = 0.99(10.5)+0.01(9)=10.395+0.09=10.485^\circ$ .
Why this result? We mostly believed the smooth gyro this instant, but the accel dragged us $0.015^\circ$ downward — over many steps that small drag cancels the gyro's long-term drift.

The Kalman Filter (the "optimal" fuse)

HOW we derive the scalar Kalman filter from scratch

Model a 1-D state $x$ (e.g. angle) with process and measurement: $x_k = x_{k-1} + w,\quad w\sim\mathcal N(0,Q)\qquad\text{(process noise, variance }Q)$ $z_k = x_k + v,\quad v\sim\mathcal N(0,R)\qquad\text{(measurement noise, variance }R)$

Step 1 — Predict. With no new measurement, our best guess stays, but uncertainty grows: $\hat x_k^- = \hat x_{k-1},\qquad P_k^- = P_{k-1} + Q.$ Why? Adding independent process noise adds variances.

Step 2 — Fuse two Gaussians. We have a prior $\mathcal N(\hat x_k^-, P_k^-)$ and a measurement $\mathcal N(z_k, R)$ . The product of two Gaussians is a Gaussian; minimizing the combined variance gives the fused mean. Derive by writing the posterior mean as a weighted average and choosing the weight to minimize the posterior variance.

Let the estimate be $\hat x = \hat x^- + K(z-\hat x^-)$ . Its error variance: $P = (1-K)^2 P^- + K^2 R.$ Minimize over $K$ : $\dfrac{dP}{dK}= -2(1-K)P^- + 2KR = 0$ $\Rightarrow K = \frac{P^-}{P^- + R}.$

Worked example One full Kalman cycle

Start: $\hat x_0=0$ , $P_0=1$ . Take $Q=0.01$ , $R=0.5$ , measurement $z_1=2$ .

Predict: $\hat x^-=0$ , $P^-=1+0.01=1.01$ . Why? uncertainty grew by $Q$ .
Gain: $K=\dfrac{1.01}{1.01+0.5}=0.669$ . Why? prior is more uncertain than the sensor, so lean toward the measurement.
Update: $\hat x=0+0.669(2-0)=1.338$ . Why? pulled two-thirds of the way to $z$ .
Variance: $P=(1-0.669)(1.01)=0.334$ . Why? fusing reduced uncertainty below both inputs. Next step $z_2$ arrives with $P^-=0.334+0.01=0.344$ ⇒ $K=0.408$ — the filter now trusts the measurement less, because it's already confident.

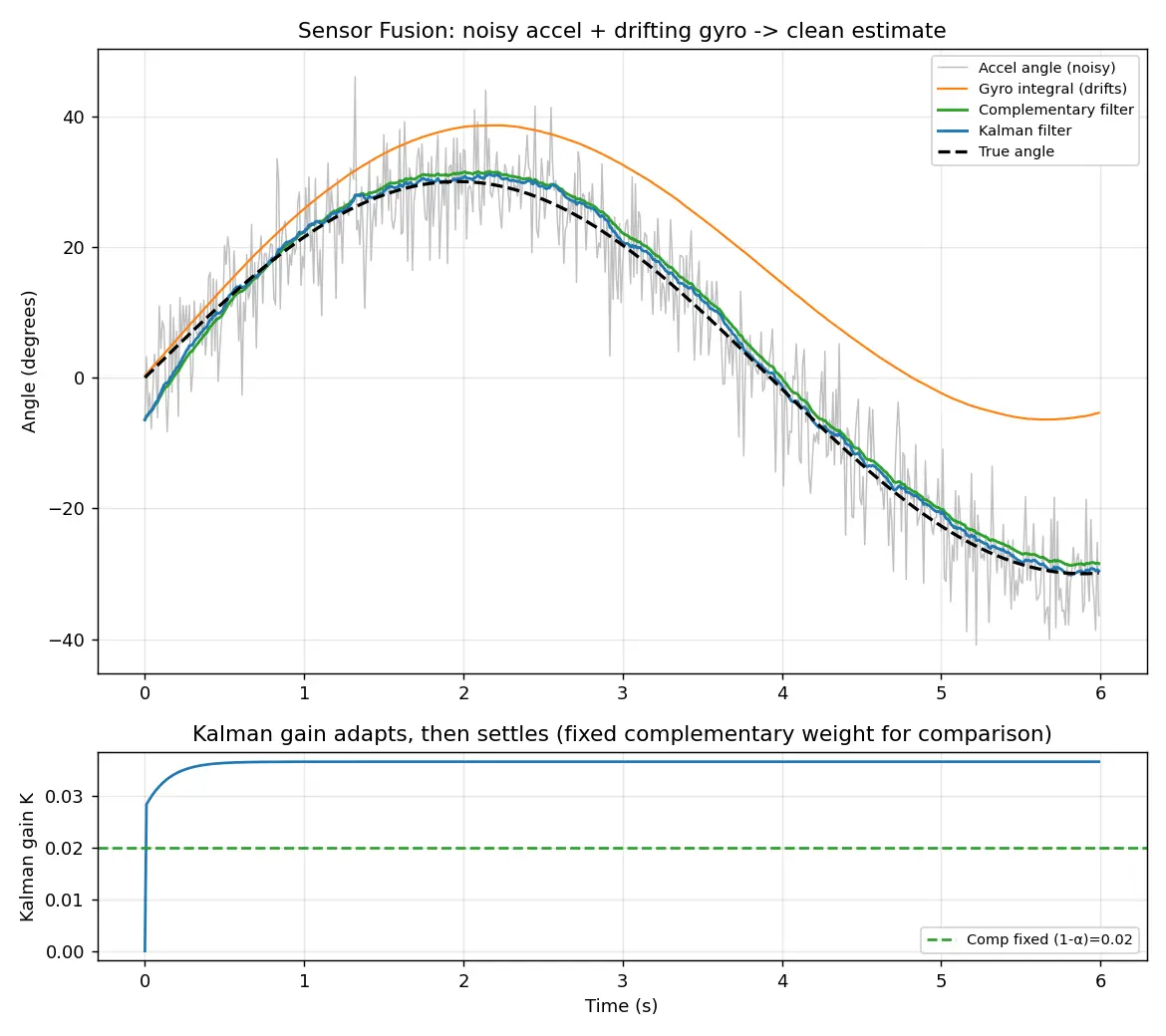

Figure — Sensor fusion — complementary filter (simple), Kalman filter (optimal)

Common mistake Steel-manned common errors

1. "Kalman gain should be constant like $\alpha$ ." Feels right because complementary filters work with a fixed weight. Fix: $K$ must adapt because uncertainty changes over time (transients vs steady state). Fixed $K$ is only optimal at steady state, where $P$ converges — then Kalman literally becomes a complementary filter.

2. "Bigger $R$ means trust the measurement more." Feels right if you think "R = reading." Fix: $R$ is measurement-noise variance. Larger $R$ = noisier sensor ⇒ smaller $K$ ⇒ trust it less.

3. "Complementary weights don't need to sum to 1." Feels right — "just tune two knobs." Fix: if $H_{\text{lp}}+H_{\text{hp}}\neq1$ , a constant (DC) input gets scaled wrongly ⇒ steady-state bias. Summing to 1 guarantees unity DC gain.

4. Forgetting to grow $P$ in predict. Feels right to "just carry $P$ forward." Fix: without $+Q$ , the filter thinks it's infinitely certain and stops listening to sensors (gain → 0). That's filter divergence.

Recall Feynman: explain to a 12-year-old

You have two friends guessing a temperature. One friend, "Gyro-Guy," reacts super fast to changes but slowly starts lying more and more. The other, "Accel-Anne," is honest on average but jumpy and shouts random wrong numbers. If you average them the smart way — believe Gyro-Guy for quick changes but always nudge back toward honest Anne — you get a guess better than either. The complementary filter uses a fixed trust ratio. The Kalman filter is cleverer: it keeps a "how-sure-am-I" number, and each moment picks the perfect trust ratio, listening more to whichever friend is more reliable right now.

Flashcards

What condition must the two transfer functions in a complementary filter satisfy?

They must sum to unity,

H_{\text{lp}}(s)+H_{\text{hp}}(s)=1

, giving unity DC gain (no steady-state bias).

In the discrete complementary filter

\hat\theta_k=\alpha(\hat\theta_{k-1}+\omega_k\Delta t)+(1-\alpha)\theta_a

, what does

\alpha

control?

The trust split:

\alpha\to1

trusts the gyro (smooth, drift-prone),

\alpha\to0

trusts the accelerometer (drift-free, noisy).

\alpha=\tau/(\tau+\Delta t)

Why does a gyroscope need help from an accelerometer?

Integrating gyro rate accumulates bias → unbounded slow drift; the accelerometer gives an absolute (drift-free) angle at low frequency to correct it.

Write the scalar Kalman gain formula and its meaning.

K=\dfrac{P^-}{P^-+R}

; ratio of prior uncertainty to total uncertainty — more prior doubt or less measurement noise ⇒ larger gain (trust measurement more).

Derive the optimal Kalman gain.

Minimize

P=(1-K)^2P^-+K^2R

over

K

dP/dK=-2(1-K)P^-+2KR=0\Rightarrow K=P^-/(P^-+R)

What is the "precisions add" identity in the Kalman update?

1/P_k = 1/P_k^- + 1/R

— fusing two Gaussian sources adds their inverse variances (information).

How does the Kalman filter relate to the complementary filter?

The complementary filter is a Kalman filter with a fixed gain; at steady state

P

converges and

K

becomes constant, so Kalman reduces to a complementary filter.

What happens if you drop

+Q

in the predict step?

P

shrinks to 0, gain

K\to0

, filter stops trusting new measurements → divergence.

Does larger

R

make the filter trust the sensor more or less?

Less —

R

is measurement-noise variance; larger

R

⇒ smaller

K

Why do gyro (high-frequency) and accel (low-frequency) fuse well?

Their dominant errors sit in different frequency bands; complementary filtering keeps each sensor only where it is accurate.

Connections

Gyroscope — rate sensor, source of high-frequency term & drift
Accelerometer — gravity vector, low-frequency absolute reference
Low-pass and High-pass filters — building blocks of the complementary filter
Gaussian distribution — product of Gaussians underlies the Kalman update
Bayesian estimation — Kalman filter is recursive Bayesian inference for linear-Gaussian systems
State-space models — predict/update on $x_k=Ax_{k-1}+w$
Extended Kalman Filter — nonlinear generalization for real attitude/navigation
Attitude estimation (AHRS) — the drone/aircraft application
Inertial Navigation Systems — where drift correction is mission-critical

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho tumhare paas do sensor hain jo dono thode "galat" hain. Gyroscope rate deta hai — usko integrate karke angle nikalta hai; ye short-term me bahut smooth hota hai par dheere-dheere drift kar jaata hai (chhoti si bias jud-jud ke bigaad deti hai). Accelerometer gravity se absolute angle deta hai — drift nahi hoti, par har vibration se noise aa jaata hai. Trick ye hai: dono ke error alag frequency me baithte hain, isliye gyro ko fast changes ke liye believe karo aur accel se dheere-dheere wapas kheech lo. Yehi complementary filter hai: $\hat\theta_k=\alpha(\hat\theta_{k-1}+\omega_k\Delta t)+(1-\alpha)\theta_a$ , jahan $\alpha$ aur $(1-\alpha)$ ka sum hamesha 1 hota hai.

Complementary filter ka $\alpha$ fixed hota hai — simple, par optimal nahi. Kalman filter ismein upgrade hai: wo ek "main kitna sure hoon" number rakhta hai jise variance $P$ kehte hain, aur har step pe best trust ratio (Kalman gain $K=P^-/(P^-+R)$ ) khud calculate karta hai. Jab tum kam confident ho, $K$ bada hota hai (measurement pe zyada bharosa); jaise-jaise confident hote ho, $K$ chhota ho jaata hai. Iski jaan ek line me: precisions add — $1/P=1/P^-+1/R$ , matlab do source ki information jud jaati hai aur uncertainty dono se kam ho jaati hai.

Do galtiyan jo sab karte hain: (1) socho $R$ bada matlab sensor pe zyada bharosa — galat! $R$ noise variance hai, bada $R$ matlab sensor gandaa, isliye $K$ chhota, bharosa kam. (2) predict step me $+Q$ bhool jaana — tab $P$ zero ho jaayega, filter sochega main perfect hoon aur naye readings sunna band kar dega (divergence). Yaad rakho loop PUG: Predict, Update-gain, Get estimate.

Real GNC me — drone AHRS, aircraft INS — yehi fusion critical hai, kyunki akela gyro udd ke drift kar jaayega aur akela accel har jhatke pe naach uthega. Steady state pe Kalman ka gain constant ho jaata hai — aur tab wo bilkul complementary filter ban jaata hai. Toh dono ek hi family ke hain, bas ek simple aur ek optimal.
