Priority inversion — problem and solutions (priority inheritance, priority ceiling)

2,593 words12 min readdifficulty · medium4 backlinks
🇮🇳 Yeh note Hinglish mein padho →

WHAT is priority inversion?

There are two flavours:

WHY does it happen? (first principles)

Three ingredients must all be present:

  1. Preemptive priority scheduling — highest ready task always runs.
  2. A shared resource guarded by mutual exclusion (a mutex) — only one task inside at a time.
  3. At least three priority levels — High (H), Medium (M), Low (L).

The trap: priority decides who gets the CPU, but a mutex decides who may enter the critical section. These two rules disagree. Mutual exclusion temporarily overrides priority — and a third task can exploit that gap.

The classic failure timeline

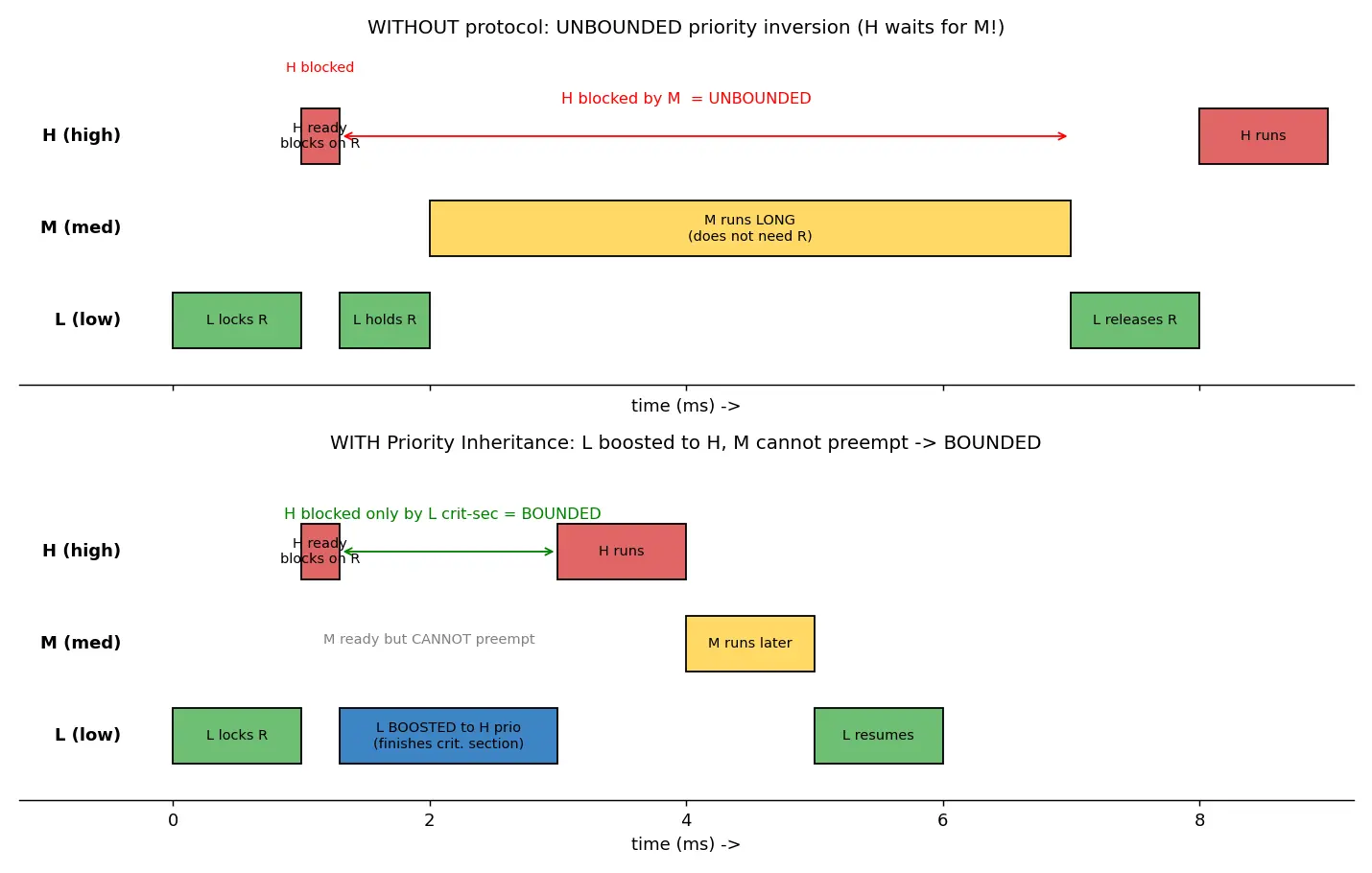

Figure — Priority inversion — problem and solutions (priority inheritance, priority ceiling)

Walk through the timeline (T = Low, M = Medium, H = High; H and L share mutex R):

  1. t0: L runs, locks R.
  2. t1: H becomes ready, preempts L. H tries to lock R → blocks (L holds it).
  3. t2: L resumes (it's the only one able to release R)... but
  4. t3: M becomes ready. M does not need R. M has higher priority than L → M preempts L.
  5. M runs for a long, unbounded time. L can't release R. H stays blocked.

H — the most critical task — waits for M, which is unrelated to it. That's unbounded priority inversion.

Solution 1 — Priority Inheritance Protocol (PIP)

WHY this works

Boosting L to H's priority means M (medium) can no longer preempt L while L is in the critical section. So L finishes its critical section quickly, releases R, and H runs. The unbounded part — waiting for M — is eliminated. The remaining wait is only Low's critical section length = bounded inversion (acceptable).

Solution 2 — Priority Ceiling Protocol (PCP)

WHY the ceiling rule is powerful

The ceiling acts as a gate-keeper before you even enter. Because you cannot enter a critical section if it could lead to a chain of blocking, PCP guarantees:

  • No deadlock (proven — the ordering imposed by ceilings is acyclic).
  • No chained blocking: a task can be blocked at most once, for the duration of a single critical section, per activation.

Comparing the three

Property No protocol Priority Inheritance (PIP) Priority Ceiling (PCP/ICPP)
Unbounded inversion? Yes (bug) No No
Deadlock possible? Yes Yes No
Chained blocking? — Yes No
Blocked at most... unbounded once per lower task once total
Needs static analysis? No No Yes (ceilings)
Runtime cost low medium low (ICPP)

Worked example A — PIP saves the day

Worked example B — why PCP blocks "at most once"

Active recall

Recall Click to test yourself
  1. Name the three conditions required for priority inversion.
  2. What makes inversion unbounded rather than bounded?
  3. How does PIP stop the medium task from interfering?
  4. One thing PIP does NOT solve that PCP does?
  5. What is a resource's ceiling?
  6. Why is ICPP called "immediate"?

Answers: (1) preemptive priority scheduling, a shared mutex, ≥3 priority levels. (2) a medium task that doesn't need the lock preempts the lock-holder. (3) it boosts the holder to the blocked task's priority so medium can't preempt it. (4) deadlock + chained blocking. (5) the priority of the highest task that ever locks it. (6) the lock-holder is raised to the ceiling the instant it takes the lock, not only when it blocks someone.

Recall Feynman: explain to a 12-year-old

Imagine a single bathroom (the lock). A slow kid (Low) goes in. The principal (High) urgently needs it and waits at the door — fine, that's fair, just wait for the slow kid. But then a chatty teacher (Medium) who doesn't even need the bathroom keeps pulling the slow kid aside to talk! Now the slow kid can't come out, and the principal is stuck waiting forever. The fix: while the slow kid is in the bathroom and the principal is waiting, we give the slow kid a "principal badge" so the chatty teacher can't interrupt him — he rushes out, and the principal goes in. The fancier fix (ceiling) puts a guard at the bathroom door who only lets you in if no one more important might also need it — so jams never happen at all.

Connections

#flashcards/coding

What is priority inversion?
A high-priority task is blocked waiting for a lower-priority task to release a shared mutex; the low task effectively acts as if higher priority.
The three conditions needed for priority inversion
Preemptive priority scheduling, a shared resource under mutual exclusion (mutex), and at least three priority levels.
Bounded vs unbounded priority inversion
Bounded = high waits only for low's critical section. Unbounded = a medium task preempts the lock-holding low task, delaying high by an unlimited amount.
Core idea of Priority Inheritance Protocol (PIP)
While a low task holds a mutex that a high task is blocked on, the low task's priority is temporarily raised to the high task's priority, then restored on release.
Why does PIP stop unbounded inversion?
Boosting the lock-holder above medium priority prevents medium from preempting it, so the critical section completes quickly — wait becomes bounded.
Two problems PIP does NOT solve
Deadlock and chained (transitive) blocking through nested mutexes.
Definition of a resource's priority ceiling
The priority of the highest-priority task that will ever lock that resource.
PCP locking rule (system ceiling)
A task may lock a resource only if its priority is strictly higher than the ceilings of all resources currently locked by other tasks.
Guarantees of the Priority Ceiling Protocol
No deadlock, no chained blocking, and a task is blocked at most once (by one critical section) per activation.
What is ICPP (immediate ceiling / highest-locker)
A task is raised to a resource's ceiling immediately upon locking it; same worst-case bound as PCP but simpler, used in POSIX PTHREAD_PRIO_PROTECT.
Famous real-world priority inversion case
Mars Pathfinder 1997; fixed by enabling priority inheritance on the shared mutex.
Worst-case blocking under PCP vs PIP
PCP: at most one (the single longest relevant) critical section. PIP: sum over lower tasks of their longest relevant critical sections.

Concept Map

ingredient

ingredient

ingredient

safe form

dangerous form

causes

real case

fixes

fixed by

Low borrows High priority

prevents

refines

Preemptive priority scheduling

Shared mutex resource

Three priority levels H M L

Priority inversion

Unbounded inversion

Bounded inversion

Medium task preempts Low

Priority Inheritance PIP

Priority Ceiling

Mars Pathfinder 1997

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, priority inversion ka scene simple hai. Ek high-priority task ko ek lock (mutex) chahiye jo abhi ek low-priority task ke paas hai. Toh high ko thoda wait karna padega jab tak low apna critical section khatam na kare — yeh tak theek hai, ise bounded inversion bolte hain. Problem tab aati hai jab beech mein ek medium-priority task aa jata hai jise wo lock chahiye hi nahi. Kyunki medium ki priority low se zyada hai, wo low ko preempt kar deta hai. Ab low lock release hi nahi kar pa raha, aur high task — sabse zaroori wala — anth-anth tak fasa rehta hai. Yahi unbounded priority inversion hai, aur isi ne Mars Pathfinder ko 1997 mein baar-baar reset karwaya tha.

Pehla solution: Priority Inheritance. Idea yeh hai ki jab low task kisi high task ko block kar raha ho, toh low ko temporarily high ki priority "udhaar" de do. Ab medium task low ko preempt nahi kar sakta (kyunki low ab high ban gaya), low jaldi se critical section khatam karta hai, lock chhodta hai, aur high chal padta hai. Wait ab sirf low ke critical section jitna = bounded. Lekin yaad rakho — inheritance deadlock aur chained blocking ko nahi rokta.

Doosra solution: Priority Ceiling. Har resource ko ek "ceiling" milti hai = jo sabse high task usse kabhi lock karega uski priority. Rule: lock tabhi milega jab tumhari priority currently locked resources ke ceilings se strictly upar ho. Yeh ek darwaze ke bouncer ki tarah hai — pehle se hi rokna, taaki jam bane hi na. Iska fayda: koi deadlock nahi, koi chained blocking nahi, aur task at most ek hi baar block hota hai. Practical RTOS mein ICPP (immediate ceiling) use hota hai — lock lete hi task ceiling tak upar utha diya jaata hai. Bas yaad rakho: "Inheritance = baad mein rank udhaar lo; Ceiling = pehle hi darwaze pe check karo."
