FreeRTOS — task creation, priorities, xTaskCreate

WHAT is a task?

A task is always in exactly one state:

State	Meaning
Running	Currently using the CPU (only one at a time on single core)
Ready	Able to run, waiting for the CPU
Blocked	Waiting for an event (delay, queue, semaphore) — uses no CPU
Suspended	Removed from scheduling until resumed

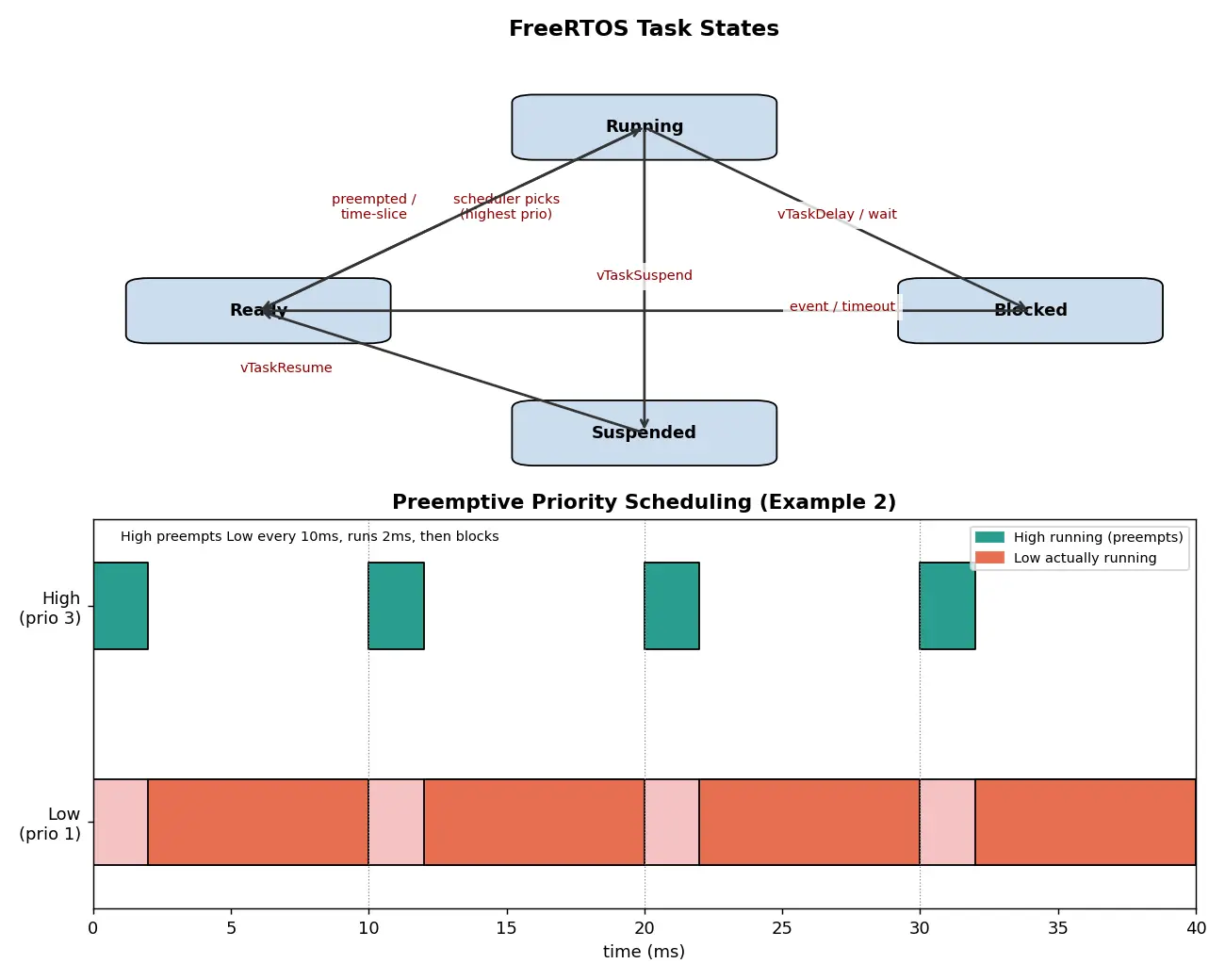

Figure — FreeRTOS — task creation, priorities, xTaskCreate

HOW you create a task: `xTaskCreate`

Formula The signature (each argument = WHY it exists)

BaseType_t xTaskCreate(
    TaskFunction_t   pvTaskCode,    // the function = the task body
    const char *     pcName,        // human-readable name (debug only)
    configSTACK_DEPTH_TYPE usStackDepth, // stack size in WORDS, not bytes
    void *           pvParameters,  // arg passed into the task function
    UBaseType_t      uxPriority,    // 0..(configMAX_PRIORITIES-1)
    TaskHandle_t *   pxCreatedTask  // out: handle to control the task later
);

Return: pdPASS on success, or errCOULD_NOT_ALLOCATE_REQUIRED_MEMORY if the heap can't fit the stack + TCB.

$\text{StackBytes} = \text{usStackDepth} \times \text{sizeof(StackType\_t)}$

Priorities — the heart of scheduling

Worked Example 1 — two blinking LEDs

void vBlink(void *pvParameters) {
    int pin = (int)pvParameters;          // Why? pass which LED via param
    for (;;) {                            // Why? a task NEVER returns
        gpio_toggle(pin);
        vTaskDelay(pdMS_TO_TICKS(500));   // Why? Blocked → frees CPU for others
    }
}

void main(void) {
    xTaskCreate(vBlink, "L1", 128, (void*)13, 1, NULL);  // Why prio 1: above idle
    xTaskCreate(vBlink, "L2", 128, (void*)14, 1, NULL);  // Why same prio: fair share
    vTaskStartScheduler();   // Why? hands control to FreeRTOS; never returns
    for(;;);                 // Why? only reached if heap was too small
}

Why pdMS_TO_TICKS? FreeRTOS counts time in ticks, not ms. This macro converts using configTICK_RATE_HZ, keeping code readable and portable.

Worked Example 2 — priority preemption

void vHigh(void *p){ for(;;){ readSensor(); vTaskDelay(pdMS_TO_TICKS(10)); } }
void vLow (void *p){ for(;;){ heavyMath(); } }   // never blocks!

xTaskCreate(vLow,  "low",  256, NULL, 1, NULL);
xTaskCreate(vHigh, "high", 256, NULL, 3, NULL);   // Why prio 3 > 1: must preempt

Why does this work? Every 10 ms vHigh becomes Ready. Because 3 > 1 the scheduler preempts vLow instantly, runs the sensor read, then vHigh blocks again and vLow resumes its math. The sensor gets deterministic timing even though vLow hogs the CPU.

Worked Example 3 — checking the return value

TaskHandle_t h;
if (xTaskCreate(vBlink, "L", 4096, NULL, 1, &h) != pdPASS) {
    // Why check? huge stack (4096 words = 16 KB) may exhaust the heap
    error_blink();   // fail loudly instead of silently not running
}
vTaskDelete(h);      // Why store handle? to delete/suspend this task later

Common mistake Steel-manned common errors

1. "Lower number = higher priority" (it feels right from UNIX nice values). Why it feels right: many OSes (Linux nice, classic RTOSes) invert it. Fix: In FreeRTOS bigger number wins. configMAX_PRIORITIES-1 is the top.

2. "Stack depth is in bytes." Why it feels right: C malloc takes bytes. Fix: It's in words. Multiply by sizeof(StackType_t) (4 on Cortex-M) to get bytes. Passing 1024 thinking "1 KB" actually reserves 4 KB.

3. Highest-priority task with no blocking call. Why it feels right: "It's important, let it run all the time!" Fix: It starves everyone, including idle (so power saving + watchdog feed break). Always vTaskDelay/block.

4. Letting a task function return. Why it feels right: normal functions return. Fix: A returning task corrupts the scheduler — wrap body in for(;;), or call vTaskDelete(NULL) to self-destruct cleanly.

5. Calling xTaskCreate from an ISR. Why it feels right: "I need a task on this interrupt." Fix: Most xTaskCreate paths aren't ISR-safe. Pre-create tasks; from ISRs use ...FromISR APIs to signal them.

Recall Feynman: explain to a 12-year-old

Imagine one cook (the CPU) in a kitchen with many recipes (tasks). The cook can only do one thing at a time, but a smart manager (the scheduler) makes him switch so fast it looks like all dishes are cooking at once. Each recipe has an urgency number — bigger number = drop everything and do this first. xTaskCreate is you handing the manager a new recipe card, telling him how much counter space (stack) it needs and how urgent it is. A good recipe says "now wait 5 minutes" (vTaskDelay) so the cook can go help others instead of standing idle.

Flashcards

In FreeRTOS, does a higher priority number mean more or less urgent?

More urgent — the numerically largest READY priority always runs.

What unit is usStackDepth in xTaskCreate?

Words, not bytes (multiply by sizeof(StackType_t), e.g. ×4 on Cortex-M).

What are the 6 parameters of xTaskCreate in order?

Function, Name, StackDepth(words), Parameters(void*), Priority, &TaskHandle.

What does xTaskCreate return on success vs failure?

pdPASS on success; errCOULD_NOT_ALLOCATE_REQUIRED_MEMORY if heap can't fit stack+TCB.

Why must a high-priority task block (e.g. vTaskDelay)?

Otherwise it never yields the CPU and all lower-priority tasks starve.

What happens to two READY tasks of equal priority?

Round-robin time-slicing (if configUSE_TIME_SLICING=1) — they share the CPU fairly.

What are the four task states?

Running, Ready, Blocked, Suspended.

What is the TCB?

Task Control Block — kernel struct holding a task's priority, state, stack pointer; allocated per task alongside its stack.

What runs at tskIDLE_PRIORITY (0)?

The idle task — lowest priority, runs when nothing else is ready.

Why must a task function never return?

Returning corrupts the scheduler; wrap in for(;;) or call vTaskDelete(NULL) to exit safely.

What does pdMS_TO_TICKS do and why is it needed?

Converts milliseconds to kernel ticks using configTICK_RATE_HZ; FreeRTOS counts time in ticks, not ms.

What is preemption in the default FreeRTOS scheduler?

A higher-priority task becoming READY immediately interrupts a running lower-priority task.

Connections

FreeRTOS — vTaskDelay vs vTaskDelayUntil
FreeRTOS — Queues and inter-task communication
FreeRTOS — Semaphores and Mutexes
Priority Inversion and Priority Inheritance
Context Switching and the TCB
ISR-safe APIs (FromISR) and deferred interrupt handling
Heap memory management (heap_1..heap_5) in FreeRTOS
Round-robin vs Preemptive Scheduling

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, microcontroller mein sirf ek CPU hota hai par kaam bahut saare — LED blink karo, sensor padho, UART pe data bhejo. Agar sab ek hi bade while(1) loop mein karoge to timing bigad jaati hai. FreeRTOS isko solve karta hai tasks se: har task apna alag chhota while(1) loop hai jo sochta hai ki poora CPU uske paas hai. Ek chhota sa scheduler itni tezi se task switch karta hai ki lagta hai sab parallel chal rahe hain. xTaskCreate se aap scheduler ko naya task de dete ho.

xTaskCreate ke 6 arguments yaad rakho: function (task ka body), name (sirf debug ke liye), stack depth (words mein, bytes mein nahi — Cortex-M pe ×4 karo bytes ke liye), parameter, priority, aur handle. Sabse bada trap: FreeRTOS mein bada number = zyada urgent. Yani priority 3 wala task priority 1 wale ko beech mein rok dega (preemption). "Big is Boss" yaad rakho.

Ek aur zaroori baat: high-priority task ko hamesha block karna chahiye — vTaskDelay ya queue/semaphore wait se. Agar high task bina ruke kaam karta rahega to neeche wale saare tasks bhookhe (starve) reh jayenge, LED kabhi nahi blink karega. Isliye real-time task apna zyaadatar time Blocked state mein rehta hai, sirf kaam aane par jaagta hai. Aur task function kabhi return mat karna — for(;;) mein wrap karo, warna scheduler crash ho jata hai.

Bas itna samajh lo: tasks = alag-alag recipes, scheduler = manager jo urgency dekh ke cook (CPU) ko switch karwata hai, aur xTaskCreate = nayi recipe card dena with stack size aur urgency. Yeh embedded real-time software ka foundation hai.
