2.1.8Quantum Atomic Structure

Pauli exclusion principle

1,709 words8 min readdifficulty · medium3 backlinks

WHAT is it?


WHY is it true? (first-principles reasoning)

The principle is not an arbitrary rule — it drops out of a deeper fact about identical particles in quantum mechanics.

Let ψ(1,2)\psi(1,2) describe two electrons, electron 1 in state aa and electron 2 in state bb. Because we can't tell them apart, the honest combined state is built to be antisymmetric:

ψ(1,2)=12[ψa(1)ψb(2)ψa(2)ψb(1)]\psi(1,2) = \frac{1}{\sqrt2}\Big[\,\psi_a(1)\psi_b(2) - \psi_a(2)\psi_b(1)\,\Big]

Why this form? Swap labels 121 \leftrightarrow 2:

ψ(2,1)=12[ψa(2)ψb(1)ψa(1)ψb(2)]=ψ(1,2)\psi(2,1) = \frac{1}{\sqrt2}\Big[\,\psi_a(2)\psi_b(1) - \psi_a(1)\psi_b(2)\,\Big] = -\psi(1,2)\quad\checkmark

The sign flips — exactly what fermions require.

Now set the two states equal, a=ba = b (same four quantum numbers):

ψ(1,2)=12[ψa(1)ψa(2)ψa(2)ψa(1)]=0\psi(1,2) = \frac{1}{\sqrt2}\Big[\,\psi_a(1)\psi_a(2) - \psi_a(2)\psi_a(1)\,\Big] = 0

Why this step matters: we never assumed electrons repel via a rule; the exclusion is baked into the antisymmetry demanded by their fermion nature.


HOW to use it (counting occupancy)

Each orbital = one (n,l,ml)(n,l,m_l) triple. The 4th number msm_s has only 2 values, so:

electrons per orbital=2\text{electrons per orbital} = 2

Count orbitals per subshell, then multiply by 2:

Subshell ll # of mlm_l values (2l+12l+1) # orbitals max electrons
s 0 1 1 2
p 1 3 3 6
d 2 5 5 10
f 3 7 7 14

Max electrons in a shell nn:

N=l=0n12(2l+1)=2n2N = \sum_{l=0}^{n-1} 2(2l+1) = 2n^2

Why 2n22n^2? The sum l=0n1(2l+1)=n2\sum_{l=0}^{n-1}(2l+1) = n^2 (sum of first nn odd numbers), and each orbital doubles it.

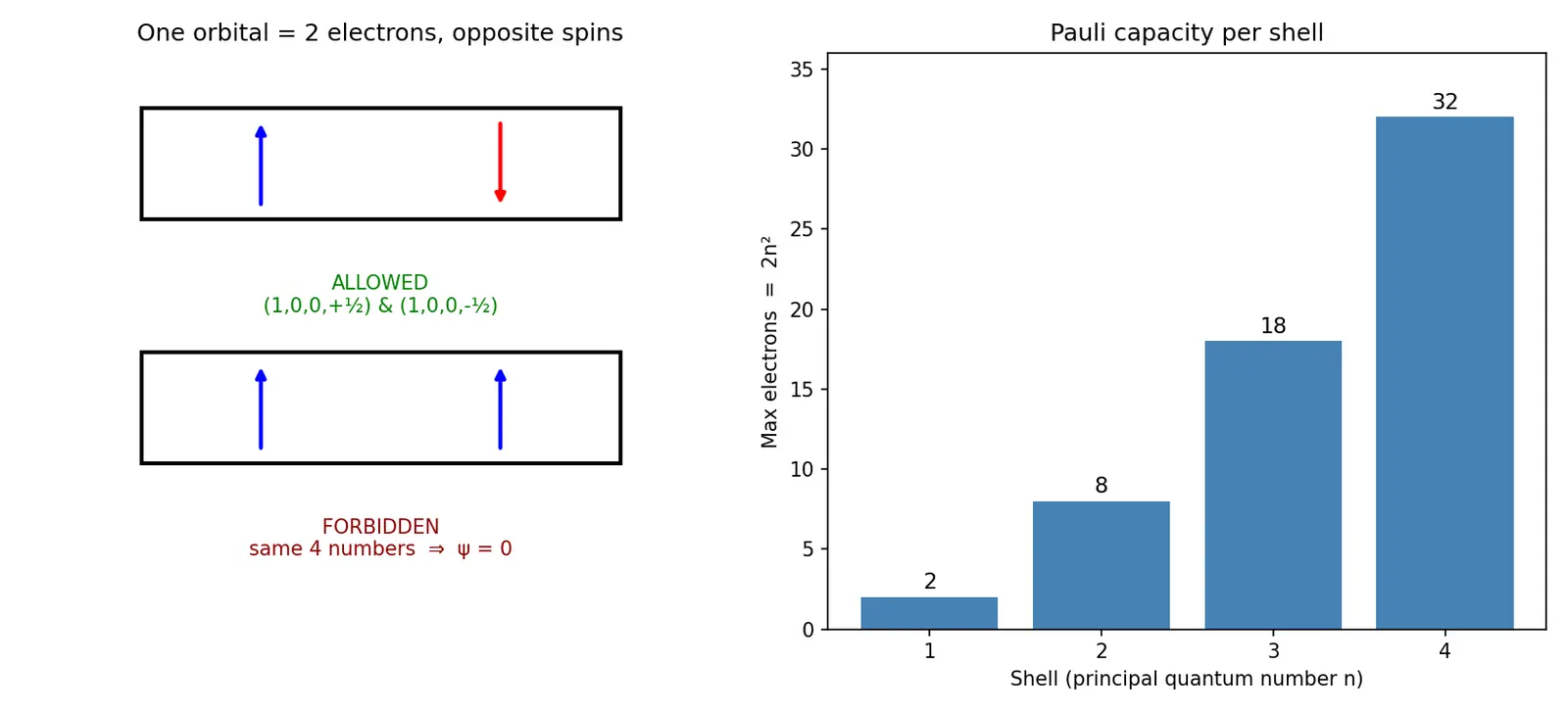

Figure — Pauli exclusion principle

Worked examples


Common mistakes (steel-manned)


Active recall

Recall Quick self-test (answer before revealing)
  • How many quantum numbers must differ, at minimum, for two electrons? → at least one of the four.
  • Why can only 2 electrons share an orbital? → only 2 spin states.
  • What deeper property gives rise to Pauli? → antisymmetry of the fermion wavefunction.
Recall Feynman: explain to a 12-year-old

Imagine a car park where every parking spot has an exact address: floor number, aisle, slot, and which way the car faces (nose-in or nose-out). No two cars can share the exact same full address. A slot fits at most 2 cars — one nose-in, one nose-out. Electrons are like those cars: every one needs its own complete address, so they're forced to fill spots neatly instead of all crowding into one spot. That's why atoms have neat "shells" and why the whole periodic table looks the way it does!


Connections

  • Quantum numbers — the four labels Pauli acts on
  • Aufbau principle — fills lowest energy first; Pauli caps each level
  • Hund's rule — decides how electrons fill within the Pauli ceiling
  • Fermions and bosons — bosons ignore Pauli, that's why lasers/BEC exist
  • Electron spin — origin of ms=±12m_s = \pm\tfrac12
  • Periodic table periodicity2n22n^2 explains shell/period lengths

State the Pauli exclusion principle
No two electrons in an atom can have the same set of all four quantum numbers (n,l,ml,ms)(n,l,m_l,m_s).
Maximum electrons per orbital and why
2, because only two spin values ms=±12m_s = \pm\tfrac12 exist for a fixed (n,l,ml)(n,l,m_l).
Deeper reason behind Pauli
The wavefunction of identical fermions must be antisymmetric under exchange; equal states give ψ=0\psi=0.
What happens to ψ\psi if two electrons have identical quantum numbers
It becomes zero — zero probability — so the state cannot exist.
Max electrons in shell nn and derivation
2n22n^2; from l=0n12(2l+1)=2n2\sum_{l=0}^{n-1}2(2l+1)=2n^2 (sum of first nn odd numbers =n2=n^2).
Number of orbitals in a subshell of azimuthal number ll
2l+12l+1.
Is Pauli caused by electric repulsion?
No; it arises from fermion antisymmetry and holds even without charge.
Which quantum number is forced to differ for two electrons in one orbital
The spin quantum number msm_s.

Concept Map

swap changes nothing

require

same state gives zero

state cannot exist

forbids

define

fixed n l ml gives

ms has 2 values

count per subshell

sum over shell

explains

Electrons indistinguishable

Antisymmetric wavefunction

Electrons are fermions spin one-half

Psi equals zero

Pauli Exclusion Principle

Same four quantum numbers

Four quantum numbers n l ml ms

One orbital

Max 2 electrons opposite spins

s2 p6 d10 f14

Max electrons equals 2n squared

Helium ground state 1s2

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Pauli exclusion principle ka funda simple hai: kisi bhi atom me do electrons ka poora "address" — yaani chaaron quantum numbers (n,l,ml,ms)(n, l, m_l, m_s) — bilkul same nahi ho sakta. Agar teen numbers match kar gaye (matlab same orbital me baithe hain), toh chautha number, spin, ko majboori me alag hona padega — ek up, ek down. Isliye ek orbital me maximum sirf 2 electrons aa sakte hain.

Ab yeh rule aaya kahan se? Yeh koi random law nahi hai. Electrons "identical" particles hain (fermions), aur inki wavefunction ka ek rule hota hai — agar do electrons ko aapas me swap karo toh wavefunction ka sign flip ho jaata hai (antisymmetric). Jab dono electrons ka state bilkul same maan lo, toh maths se ψ=0\psi = 0 nikalta hai. Zero wavefunction ka matlab zero probability — matlab woh situation exist hi nahi kar sakti! Yahi Pauli principle ka real proof hai.

Practical fayda kya hai? Isi ki wajah se electrons neatly shells me bharte hain, sab ek hi jagah crowd nahi karte. Ek shell me maximum 2n22n^2 electrons aate hain (2, 8, 18, 32...). Yahi reason hai ki periodic table ka shape aisa hai, aur chemistry ke saare bonding patterns banate hain. Ek common galti: log sochte hain "same orbital me 2 electrons Pauli todte hain" — nahi bhai, spin alag hai toh full set alag hai, bilkul allowed hai. Yaad rakho: "Same Three, Spin Must Flee."
