2.1.7Quantum Atomic Structure

Aufbau principle — order of filling (Madelung rule, n + l)

1,745 words8 min readdifficulty · medium6 backlinks

WHY does filling need a rule at all?

WHY not just fill by nn (1s, 2s, 2p, 3s, 3p, 3d, 4s...)? Because in multi-electron atoms, orbital energies are not set by nn alone. Electrons shield each other, and how well an electron penetrates toward the nucleus depends on its shape (ll). A 4s electron dips close to the nucleus, feeling more positive charge, so it can sit lower in energy than 3d. Pure-nn ordering fails here — we need something that captures both nn and ll.


The Madelung (n+ln+l) rule — derived as a ranking

HOW to build the order from scratch (no memorizing the snake diagram):

Orbital nn ll K=n+lK=n+l
1s 1 0 1
2s 2 0 2
2p 2 1 3
3s 3 0 3
3p 3 1 4
4s 4 0 4
3d 3 2 5
4p 4 1 5
5s 5 0 5
4d 4 2 6
5p 5 1 6
6s 6 0 6

Read down by increasing KK; within equal KK, by increasing nn:

1s<2s<2p<3s<3p<4s<3d<4p<5s<4d<5p<6s<4f<5d<6p<7s<5f<6d\boxed{1s < 2s < 2p < 3s < 3p < 4s < 3d < 4p < 5s < 4d < 5p < 6s < 4f < 5d < 6p < 7s < 5f < 6d}

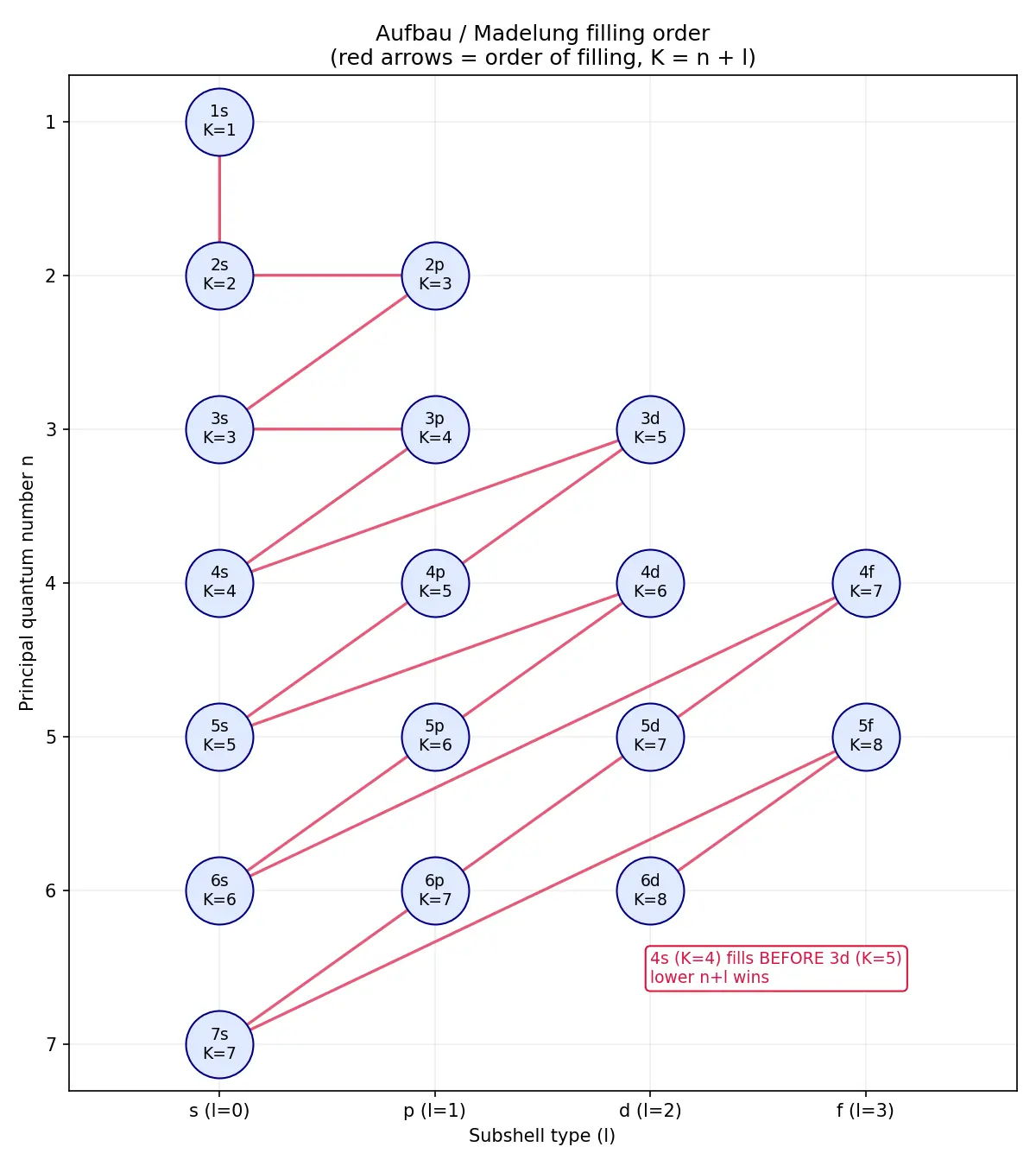

Figure — Aufbau principle — order of filling (Madelung rule, n + l)

Worked examples


Common mistakes (Steel-man + fix)


Flashcards

What quantity ranks orbital filling in the Madelung rule?
The sum n+ln+l; smaller fills first.
State the tie-breaker when two orbitals have equal n+ln+l.
The orbital with the smaller nn fills first.
Compute n+ln+l for 4s and 3d and say which fills first.
4s: 4+0=4; 3d: 3+2=5; 4s fills first.
Why does 4s fill before 3d despite higher nn?
Because n+ln+l (energy) matters, not nn alone; 4s penetrates more and sits lower in energy.
Give the filling order string up to 4p.
1s 2s 2p 3s 3p 4s 3d 4p.
Ground-state configuration of Fe (Z=26)?
1s22s22p63s23p63d64s21s^2 2s^2 2p^6 3s^2 3p^6 3d^6 4s^2.
Which orbital loses electrons first on ionization, 4s or 3d?
4s (highest nn leaves first).
Why is Cr [Ar]3d54s1[Ar]3d^5 4s^1?
A half-filled 3d subshell is extra stable, overriding plain Aufbau.
What are ll values for s, p, d, f?
0, 1, 2, 3.
Max electrons in a subshell with quantum number ll?
2(2l+1)2(2l+1).

Recall Feynman: explain to a 12-year-old

Imagine a stadium where the cheapest seats fill first. Each seat has a price tag equal to n+ln+l. Kids (electrons) always grab the cheapest empty seat. If two seats cost the same, they pick the one closer to the field (smaller nn). That's why the "4s seat" (price 4) gets taken before the "3d seat" (price 5), even though 3d has a smaller row number. Simple: cheapest first, ties go to the seat nearer the action.


Connections

  • Quantum Numbers (n, l, m, s)ll here is the azimuthal quantum number.
  • Penetration and Shielding — the physical reason Madelung works.
  • Pauli Exclusion Principle — sets subshell capacity 2(2l+1)2(2l+1).
  • Hund's Rule — how electrons arrange within a chosen subshell.
  • Electron Configuration Exceptions (Cr, Cu) — where Aufbau bends.
  • Ionization and Electron Removal Order — why 4s leaves first.
  • Periodic Table Blocks (s, p, d, f) — Aufbau order literally builds the table.

Concept Map

fills by

not set by

because of

higher n

higher l

packaged by

Rule 1

Rule 2

gives

refines

example

applied to

Aufbau principle

Lowest energy first

Pure n ordering fails

Penetration and shielding

Farther out, higher energy

Less penetration, higher energy

Madelung n plus l rule

Smaller K equals n plus l fills first

Tie broken by smaller n

Filling order sequence

4s before 3d

Electron configurations

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Aufbau principle ka matlab hai "building up" — electron hamesha sabse kam energy wala orbital pehle bharta hai, kyunki electron thode lazy hote hain. Lekin problem yeh hai ki multi-electron atom mein orbital ki energy sirf nn se decide nahi hoti. Shielding aur penetration ki wajah se kabhi-kabhi bada nn wala orbital chhote nn wale se neeche baith jata hai. Isi ko handle karne ke liye Madelung rule aata hai: har orbital ka ek "energy address" nikalo =n+l= n+l, aur jiska n+ln+l chhota, wo pehle bharega.

Agar do orbital ka n+ln+l same ho jaye — jaise 3d, 4p, 5s sab ke liye K=5K=5 — to tie-breaker: chhota nn wala pehle. Isliye order banta hai 3d, phir 4p, phir 5s. Sabse famous crossover hai 4s vs 3d: 4s ka K=4K=4, 3d ka K=5K=5, isliye 4s pehle fill hota hai, chahe uska nn zyada ho. Yahi reason hai ki Potassium aur Calcium 4s mein jaate hain, transition metals baad mein 3d bharte hain.

Ek important trap: filling order aur removal (ionization) order alag hain. Fill karte waqt n+ln+l dekho, lekin electron nikaalte waqt sabse bada nn wala pehle jaata hai — isliye Fe se electron nikalega to 4s pehle khaali hoga, 3d nahi. Fe2+Fe^{2+} ka config [Ar]3d6[Ar]3d^6 banta hai, 3d44s23d^4 4s^2 nahi. Aur Cr, Cu jaise exceptions yaad rakho — half-filled (3d53d^5) aur fully-filled (3d103d^{10}) subshell extra stable hote hain, isliye ek 4s electron udhaar chala jaata hai.

Yaad rakhne ka mantra: "n aur l jodo, chhota sum jeet-ta hai; tie ho to chhota n aage badhta hai." Bas isi ek line se pura periodic table ka structure samajh aa jaata hai — s-block, p-block, d-block sab isi filling order ki wajah se bante hain.
