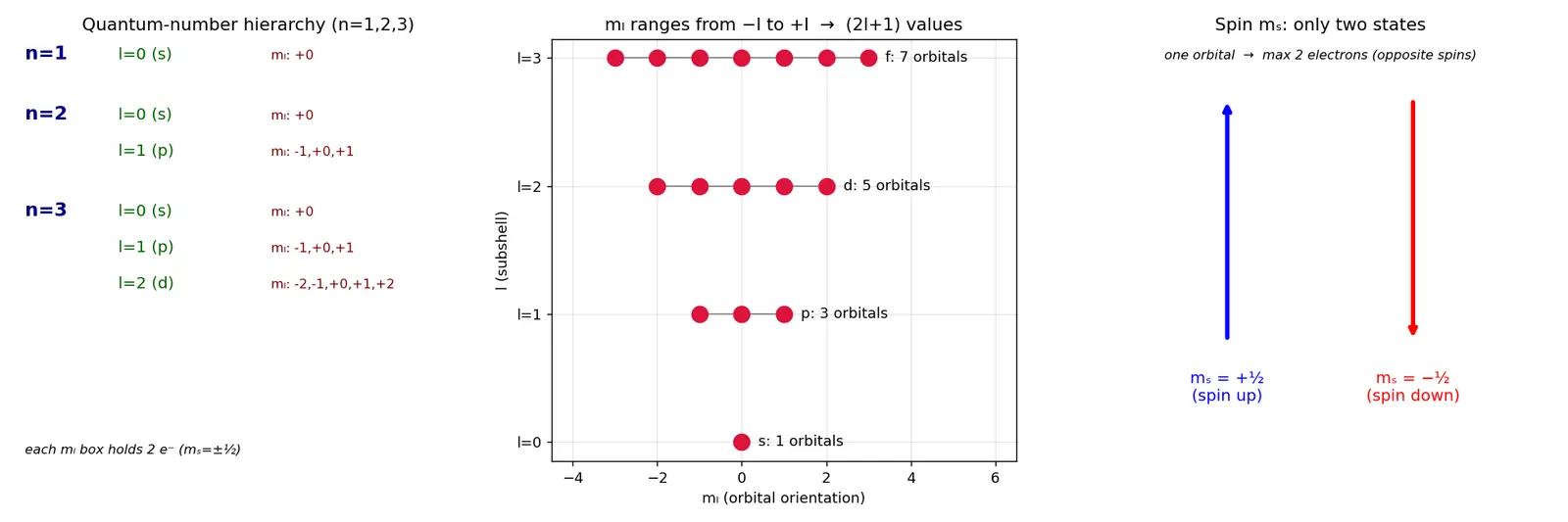

Quantum numbers — n (principal), l (azimuthal), mₗ (magnetic), mₛ (spin)

The four quantum numbers

WHY these ranges? (Derivation from first principles)

HOW the angular part quantizes $m_l$ : The $\phi$ -part must satisfy $\Phi(\phi) \propto e^{i m_l \phi}$ . For the wavefunction to be single-valued, going once around ( $\phi \to \phi + 2\pi$ ) must return the same value: $e^{i m_l (\phi + 2\pi)} = e^{i m_l \phi} \implies e^{i 2\pi m_l} = 1$ Why this step? $e^{i2\pi m_l}=1$ is only true when $m_l$ is an integer. That is the origin of integer $m_l$ .

HOW $l$ bounds $m_l$ : Angular momentum's projection can't exceed its magnitude. Since $L_z = m_l\hbar$ and $|\vec L|=\sqrt{l(l+1)}\,\hbar$ , we need $|m_l| \le l$ , giving $m_l = -l,\dots,+l$ .

HOW $n$ bounds $l$ : The radial equation only produces well-behaved (finite, normalizable) solutions when $l \le n-1$ . Physically: a large amount of angular motion "uses up" energy budget, so a given shell $n$ can only host limited orbital shapes.

Counting electrons in a shell: $\text{states} = \underbrace{2}_{m_s}\times\sum_{l=0}^{n-1}(2l+1) = 2n^2$ Why? The sum $\sum_{l=0}^{n-1}(2l+1)=n^2$ (sum of first $n$ odd numbers), times 2 for spin.

Worked examples

Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine a giant apartment building for electrons. n is which floor (higher floor = more energy to climb there). l is the shape of the rooms on that floor (round rooms, dumbbell rooms, cloverleaf rooms). mₗ is which direction the room points. mₛ is whether the electron sleeps facing up or facing down. The magic rule: no two electrons can have the exact same four-part address — that's why they spread out and why every atom is different!

Active-recall flashcards

What does the principal quantum number

n

determine?

Shell — main energy level and average size/distance from nucleus;

n=1,2,3,\dots

What are the allowed values of

l

Integers from

0

n-1

How many

m_l

values exist for a given

l

2l+1

, ranging

-l

+l

What are the only allowed values of

m_s

+\tfrac12

and

-\tfrac12

Why must

m_l

be an integer?

Single-valuedness of

\Phi(\phi)=e^{im_l\phi}

requires

e^{i2\pi m_l}=1

Magnitude of orbital angular momentum in terms of

l

\sqrt{l(l+1)}\,\hbar

Maximum electrons in shell

n

2n^2

Which quantum number affects energy only in a magnetic field?

m_l

(magnetic quantum number)

(3,2,-2,+\tfrac12)

a valid set?

Yes — it's a 3d electron (

l=2\le n-1=2

)

How many electrons fit in an f subshell?

2(2\cdot3+1)=14

Letter codes for

l=0,1,2,3

s, p, d, f

Connections

Schrödinger equation for hydrogen atom — origin of the three spatial quantum numbers
Pauli exclusion principle — no two electrons share all four numbers
Aufbau principle and electron configuration — filling order by $n+l$
Zeeman effect — where $m_l$ finally splits energy levels
Shapes of atomic orbitals (s, p, d) — visual meaning of $l$
Hund's rule — using $m_s$ to maximize unpaired spins

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, electron atom ke andar koi chhoti si ball nahi hai jo track pe ghoom rahi ho — wo ek "fuzzy cloud" ki tarah rehta hai. Us electron ka exact address batane ke liye humein char numbers chahiye. Socho jaise ghar ka address: n matlab kaun sa floor (energy shell, kitna door), l matlab room ka shape (s, p, d, f — round, dumbbell, cloverleaf), mₗ matlab room kis direction mein point kar raha hai, aur mₛ matlab electron up face kar raha hai ya down.

Sabse important baat — inke ranges ek dusre pe depend karte hain. n hamesha 1 se start hota hai (kabhi 0 nahi). l sirf 0 se lekar $n-1$ tak ja sakta hai. mₗ hamesha $-l$ se $+l$ tak (yaani $2l+1$ values). Aur mₛ sirf do — plus half ya minus half. Yeh chain left-to-right padho: pehle n decide karo, phir l, phir mₗ, phir mₛ.

Kyun important hai? Kyunki Pauli principle kehta hai ki kisi bhi do electrons ke ye char numbers bilkul same nahi ho sakte. Isi wajah se electrons spread out hote hain, isi wajah se periodic table ka pura structure banta hai (s-block, p-block, d-block, f-block), aur isi wajah se har element alag behave karta hai. Ek shell mein maximum electrons $2n^2$ hote hain — yeh formula bhi inhi rules se aata hai.

Ek common galti: log sochte hain "d subshell mein 5 electron aate hain" kyunki 5 d-orbitals hote hain. Par har orbital mein 2 electron (opposite spin) aate hain, toh d mein $5\times2=10$ electron aate hain. Aur yaad rakhna — "spin" ka matlab electron sach mein ghoom nahi raha, yeh ek pure quantum property hai jiska classical picture nahi banta.
