1.4.3Periodic Table — First Look

Groups (1–18), periods (1–7), s - p - d - f blocks

2,030 words9 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHAT are the three organizing ideas?

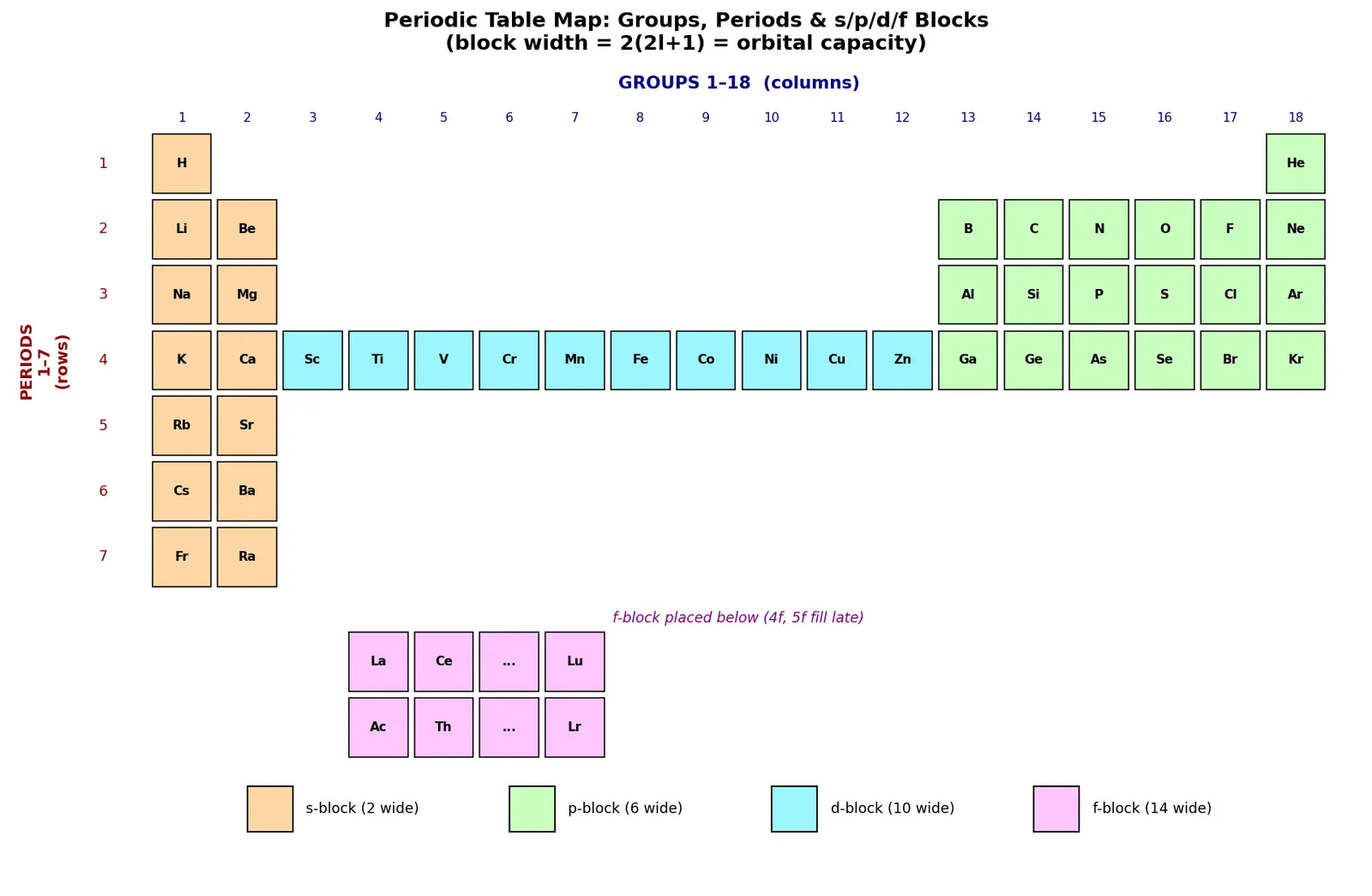

Figure — Groups (1–18), periods (1–7), s - p - d - f blocks

HOW blocks arise — derive from orbital filling

Number of orbitals of a given type (from the magnetic quantum number ml=−l⋯+lm_l = -l \dots +l):

orbitals=2l+1,max electrons=2(2l+1)\text{orbitals} = 2l + 1, \qquad \text{max electrons} = 2(2l+1)

Why the factor 2? Each orbital holds 2 electrons (spin up + spin down, ms=±12m_s = \pm\tfrac12).

The order of filling (why d-block "lags" a period)

Reading a group's chemistry off its config

Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine a stadium with rings of seats. The innermost small ring (row 1) only has 2 seats. Fill it, then the next ring opens with more seats (8), and bigger rings later have even more (18, 32). A period = one ring of the stadium. A group = a column of seats you can trace straight down from ring to ring — people sitting in the "same seat position" behave the same way (like all the aisle people cheering alike). The blocks (s/p/d/f) are just different sections of seating: the small VIP section (s, 2 seats), a medium section (p, 6), a big one (d, 10), a huge one (f, 14). New sections only open up in the bigger outer rings — that's why the lower rows are so much longer!

Flashcards

How many groups and periods are in the modern periodic table?
18 groups (columns), 7 periods (rows).
What does the period number tell you about an atom?
The highest principal quantum number nn occupied in its ground state (its outermost shell).
Why is the s-block 2 columns wide?
One s orbital (l=0l=0, 2l+1=12l+1=1) holds 2 electrons (2×12\times1).
Why is the d-block 10 columns wide?
Five d orbitals (l=2l=2, 2l+1=52l+1=5), each holding 2 → 2×5=102\times5=10.
Formula for max electrons in a subshell of quantum number ll?
2(2l+1)2(2l+1).
Why does the first d-block row appear in period 4, not 3?
Because 4s (n+l=4n+l=4) fills before 3d (n+l=5n+l=5); 3d only fills after period 4 begins, and the outer shell (4s) sets the period.
Outer configuration of group 17 (halogens)?
ns2 np5ns^2\,np^5 (7 valence electrons).
Why does helium sit in group 18, not group 2?
It has a complete outer shell (inert, noble-gas behaviour); grouping follows chemistry, not just the s2s^2 ending.
General valence configuration of d-block elements?
(n−1)d1−10 ns0−2(n-1)d^{1-10}\,ns^{0-2}.
The periods have lengths 2, 8, 8, 18, 18, 32, 32 — what causes the increase?
New subshell types (p, then d, then f) become available as nn grows, adding more slots.

Connections

Concept Map

arranged by

ordered by

4s before 3d

combined with

gives

defines

last-added electron names

highest n sets

same valence gives

similar chemistry

explains shape of

Electron configurations

Aufbau filling order

n+l rule

Orbitals = 2l+1

2 electrons per orbital

Block width = 2*2l+1

s p d f blocks

Period = row, n=7

Group = column, n=18

d-block starts in period 4

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, periodic table koi random grid nahi hai — ye actually electron configuration ka map hai. Jab tum ek row (period) me left se right jaate ho, to tum ek-ek karke electron same outer shell me daal rahe ho. Jab tum ek column (group) me neeche jaate ho, to naya bada shell shuru hota hai lekin outer arrangement wahi rehta hai — isi wajah se ek hi group ke elements ka chemistry similar hota hai. 18 groups (columns) aur 7 periods (rows) hote hain.

Blocks ka funda simple hai: jis type ke orbital me last electron ja raha hai, usi ke naam pe block ka naam padta hai — s, p, d, f. Har block ki width us orbital ki capacity se decide hoti hai. Formula: max electrons =2(2l+1)= 2(2l+1). Isliye s block 2 wide (l=0), p block 6 wide (l=1), d block 10 wide (l=2), aur f block 14 wide (l=3). Add karo to 2+6+10+14=322+6+10+14 = 32 — sabse lambi period ki width. Sab kuch derive ho jaata hai, ratne ki zaroorat nahi.

Ek important baat jahan students confuse hote hain: period number = atom ke outermost shell ka nn, na ki jis subshell me electron ja raha hai uska label. Jaise Scandium (Sc) ka electron 3d me jaata hai, par uska outer shell 4s hai, isliye Sc period 4 me aata hai, period 3 me nahi. Iska reason n+ln+l rule hai: 4s (n+l=4n+l=4) pehle bhar jaata hai, 3d (n+l=5n+l=5) baad me — isi liye pehli d-block row period 4 me dikhti hai, aur f-block period 6 me. Group ke valence electrons se hi reactivity decide hoti hai — group 1 walon ke paas 1 valence electron, easily lose karke +1 banate hain; group 18 walon ka shell full, isliye inert. Yahi table ka asli power hai.
