Orbital shapes — s (spherical), p (dumbbell), d (cloverleaf), f

WHAT is an orbital shape, really?

Formula Why

$\ell$ controls the number of angular nodes The angular part obeys the angular momentum equation whose solutions are spherical harmonics $Y_\ell^m$ . A key result: $\text{number of angular nodes}=\ell,\qquad \text{total nodes}=n-1,\qquad \text{radial nodes}=n-\ell-1.$ Derivation of the counting (from first principles):

The total number of nodes in any orbital $=n-1$ (a property of the 3D Coulomb problem — one lost per increase in energy quantum number).
Nodes split into radial (spherical shells where $R=0$ ) and angular (planes/cones where $Y=0$ ).
The spherical harmonic $Y_\ell^m$ is a polynomial of degree $\ell$ in the direction cosines, so it can vanish on at most $\ell$ angular surfaces → angular nodes $=\ell$ .
Therefore radial nodes $=(n-1)-\ell = n-\ell-1$ . ∎

HOW each shape arises

s orbital ( $\ell=0$ )

Angular part $Y_0^0=\dfrac{1}{\sqrt{4\pi}}$ = constant → no dependence on $\theta,\phi$ → equal in all directions → spherical.
$1s$ : $0$ radial nodes. $2s$ : $1$ radial node (a hollow shell inside). $3s$ : $2$ radial nodes. Shape stays spherical; only inner shells appear.

p orbitals ( $\ell=1$ , three of them: $p_x,p_y,p_z$ )

Angular parts $\propto x/r,\;y/r,\;z/r$ . E.g. $p_z\propto\cos\theta$ .
$\cos\theta=0$ at $\theta=90^\circ$ → the $xy$ -plane is a nodal plane → two lobes above/below with opposite sign (+ and −).
Shape: dumbbell oriented along an axis.

d orbitals ( $\ell=2$ , five of them)

$d_{xy},d_{yz},d_{xz},d_{x^2-y^2}$ have four lobes (cloverleaf, two nodal planes).
$d_{z^2}$ is the odd one: a big lobe along $z$ plus a doughnut (torus) in the $xy$ -plane — its nodes are two cones, not planes.

f orbitals ( $\ell=3$ , seven of them)

Three angular nodes → typically eight lobes or more complex multi-lobed shapes. Important for lanthanides/actinides.

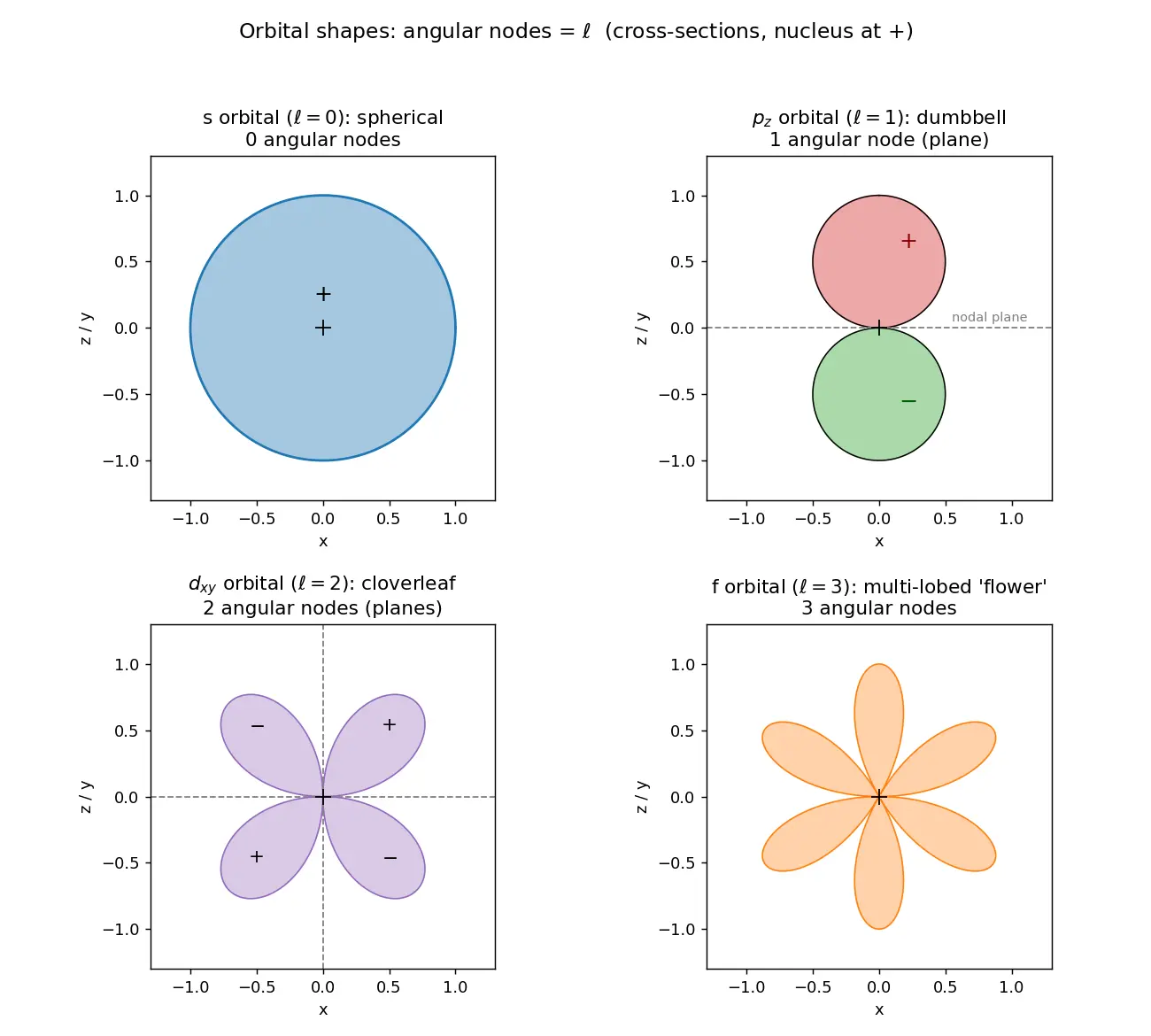

Figure — Orbital shapes — s (spherical), p (dumbbell), d (cloverleaf), f

Worked examples

Common mistakes (Steel-man → Fix)

Active recall

Recall Quick self-test (hide answers)

What part of $\psi$ decides shape? → the angular part $Y_\ell^m$ .
Angular nodes formula? → $\ell$ .
Radial nodes formula? → $n-\ell-1$ .
Why is $s$ spherical? → $Y_0^0$ is constant.
What does the sign of a lobe mean? → sign of $\psi$ (for overlap), not charge.

Recall Feynman: explain to a 12-year-old

Imagine an electron is like a swarm of bees around a flower (the nucleus). We can't watch one bee's path, but we can draw the shape of the cloud where the swarm hangs out most. For a lazy swarm ( $s$ ) the cloud is a perfect ball. Give it a bit of spin-energy ( $p$ ) and it splits into two puffs like a peanut. More energy ( $d$ ) makes a four-leaf clover, and even more ( $f$ ) makes a fancy flower with eight puffs. The empty "quiet zones" between puffs (nodes) are places the swarm never visits.

Flashcards

What quantum number controls orbital shape?

The azimuthal quantum number

\ell

(via the angular part

Y_\ell^m

Number of angular nodes in an orbital?

\ell

Number of radial nodes in an orbital?

n-\ell-1

Total number of nodes?

n-1

Why is every s orbital spherical?

Its angular part

Y_0^0=1/\sqrt{4\pi}

is constant → no directional dependence.

Shape of a p orbital and its node?

Dumbbell; one nodal plane through the nucleus perpendicular to nothing—actually the plane containing the other two axes.

How many orbitals in s, p, d, f?

1, 3, 5, 7 (from

2\ell+1

What does the +/- sign on a lobe mean?

The sign of the wavefunction

\psi

(matters for bonding overlap), NOT electric charge.

Which d orbital is not a cloverleaf, and its shape?

d_{z^2}

: a dumbbell along z plus a torus (doughnut) in the xy-plane.

Radial nodes in a 4d orbital?

n-\ell-1=4-2-1=1

Is orbital shape set by n or by

\ell

\ell

;

n

only changes size and number of radial nodes.

Angular part of

2p_z

\propto \cos\theta

; node at

\theta=90^\circ

(the xy-plane).

Connections

Quantum Numbers n, l, m, s — $\ell$ names the shape.
Radial Distribution Function — where radial nodes live.
Spherical Harmonics — origin of angular shapes.
Schrodinger Equation for Hydrogen — the $R\cdot Y$ separation.
Aufbau, Hund and Pauli — how these orbitals fill.
Bonding — Sigma and Pi Overlap — where lobe signs matter.
Heisenberg Uncertainty Principle — why "cloud" not "orbit."

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, orbital ka matlab electron ka koi rasta (path) nahi hai — yeh ek probability cloud hai, yaani woh region jahan electron milne ke chances sabse zyada hain. Yeh cloud ki jo shape hai, woh poori tarah $\ell$ (azimuthal quantum number) decide karta hai, na ki $n$ . Wavefunction $\psi$ do parts mein tootta hai: radial part (size batata hai) aur angular part (shape batata hai). Shape sirf angular part se aata hai.

Simple rule: angular nodes = $\ell$ . $s$ mein $\ell=0$ , koi node nahi, isliye perfect gol (sphere). $p$ mein $\ell=1$ , ek nodal plane, isliye dumbbell (do lobe). $d$ mein $\ell=2$ , do node, isliye cloverleaf (chaar lobe, sirf $d_{z^2}$ alag hai — dumbbell + doughnut). $f$ mein $\ell=3$ , teen node, complex flower jaisa. Aur ek subshell mein orbitals ki ginti $2\ell+1$ hoti hai — isliye $s=1, p=3, d=5, f=7$ .

Ek important galti se bacho: lobe ke upar jo $+$ ya $-$ likha hota hai woh charge nahi, woh wavefunction $\psi$ ka sign hai. Probability toh $|\psi|^2$ hai jo hamesha positive hota hai. Yeh sign sirf bonding mein kaam aata hai (in-phase vs out-of-phase overlap). Aur yaad rakho — $3s$ bhi gol hi hoga, bas bada aur andar radial nodes ke saath; shape kabhi $n$ se nahi badalti.

Exam ke liye 80/20: bas do formula pakke karo — angular nodes $=\ell$ aur radial nodes $=n-\ell-1$ , aur "Some People Dance Fine" (Sphere-Peanut-Doubleclover-Flower). Inhi se node counting aur shape ke saare questions ban jaate hain.
