Foundations — Orbital shapes — s (spherical), p (dumbbell), d (cloverleaf), f

Before you can read the parent note on s, p, d, f shapes, you need to own every symbol it throws at you. This page builds each one from nothing — plain words, then a picture, then why the topic can't live without it. Read top to bottom; each block uses only what came before.

1. The electron cloud (the picture behind everything)

Why do we need a fog and not a dot on a path? Because of the Heisenberg Uncertainty Principle: pinning down position and motion at once is impossible, so a sharp orbit is meaningless. The honest picture is a smear.

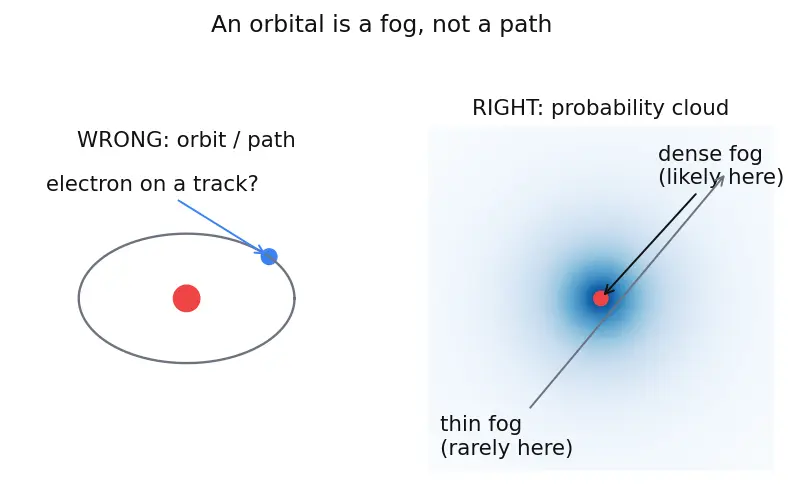

Look at the figure: the left panel is the wrong mental model (a planet on a track); the right panel is the correct one (a graded fog, densest at the middle).

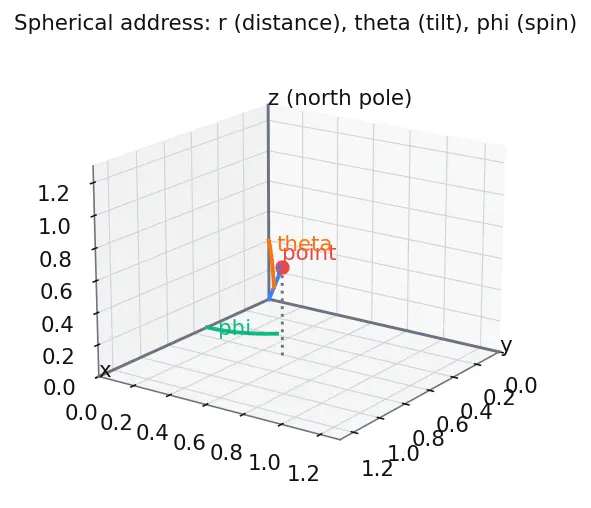

2. Coordinates: $r$, $\theta$, $\varphi$ (how we address a point in the fog)

To describe where in the fog we are, we need an address system. Cartesian $(x,y,z)$ works, but atoms are round, so we use spherical coordinates — perfect for anything centred on a point.

Why these three and not $x,y,z$? Because the atom's pull (the nucleus) only cares about distance $r$ — the force is the same in every direction. Splitting "distance" ($r$) from "direction" ($\theta ,\varphi$) is exactly what lets us later split the orbital into a size piece and a shape piece. That split is the whole game.

3. The wavefunction $\psi$ and why we square it

Why is $\psi$ allowed to be negative? Because it is a wave, and waves have crests (+) and troughs (−), just like a ripple on water dips below the flat line. This sign will matter enormously for Bonding — Sigma and Pi Overlap but says nothing about charge.

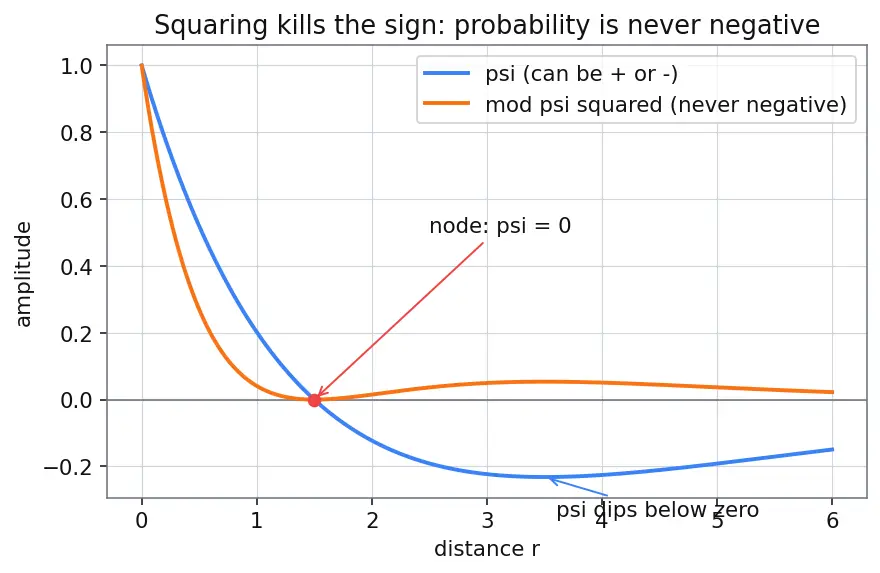

The figure shows $\psi$ crossing zero (going from + to −) while $|\psi {|}^2$ just dips to zero and bounces back up — never negative. That zero-crossing point is a node, our next idea.

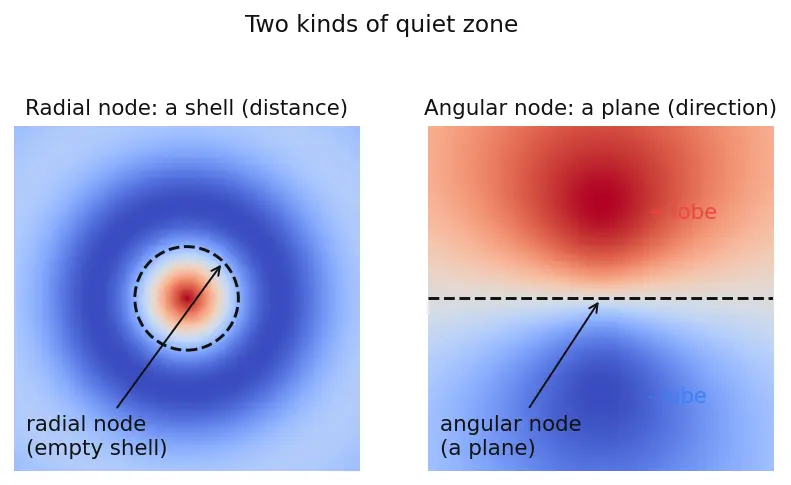

4. Nodes (the quiet zones)

Two flavours, because our coordinates split into distance and direction:

• Radial node — a distance where $\psi =0$: a hollow spherical shell. Picture: an onion layer of emptiness. Governed by $r$.
• Angular node — a direction where $\psi =0$: a flat plane or a cone passing through the nucleus. Picture: a knife-cut through the middle. Governed by $\theta ,\varphi$.

The parent note's entire "shape story" is just counting angular nodes: each angular cut splits a lobe in two. That is why we needed nodes defined before shapes. Where the radial nodes sit is the job of the Radial Distribution Function.

5. The quantum numbers $n$, $\ell$, $m$

Every orbital carries a name tag of integers. They come out of solving the Schrodinger Equation for Hydrogen, but you can hold them as three dials. (Full detail: Quantum Numbers n, l, m, s.)

6. $R_{n,\ell }(r)$ and $Y_{\ell }^m(\theta ,\varphi )$ — the two recipes

• $R_{n,\ell }(r)$ = the radial function: how amplitude changes with distance $r$. Owns the radial nodes.
• $Y_{\ell }^m(\theta ,\varphi )$ = the angular function (a spherical harmonic): how amplitude changes with direction. Owns the angular nodes → owns the shape.

Why does the topic care only about $Y$? Because shape = direction, and direction lives entirely in $Y$. For $s$ ($\ell =0$), $Y_0^0=\frac{1}{\sqrt{4\pi }}$ is a plain constant — same value in every direction — so the fog is a perfect ball. Change direction, nothing changes: sphere.

7. The trig you'll actually meet: $\cos \theta$

The parent writes $p_z\propto \cos \theta$. Here is that symbol, earned.

So $p_z\propto \cos \theta$ means: big and positive up top, zero on the equator (that $\cos 90^{\circ }=0$ is the nodal plane), big and negative underneath. That's the dumbbell with its + and − lobes and the $xy$-plane sliced out. The angle machinery ($\cos$, and why it's the right tool) — you feel it here without any calculus.

Prerequisite map

Equipment checklist

Self-test: can you answer each before revealing?

Connections

• 2.1.06 Orbital shapes — s (spherical), p (dumbbell), d (cloverleaf), f (Hinglish) — the parent topic these foundations feed.
• Heisenberg Uncertainty Principle — why "cloud," not "orbit."
• Schrodinger Equation for Hydrogen — where $n,\ell ,m$ and the $R\cdot Y$ split come from.
• Quantum Numbers n, l, m, s — the full story of the name-tag integers.
• Spherical Harmonics — the angular functions $Y_{\ell }^m$.
• Radial Distribution Function — where radial nodes live.
• Bonding — Sigma and Pi Overlap — where the sign of $\psi$ matters.
