Visual walkthrough — Orbital shapes — s (spherical), p (dumbbell), d (cloverleaf), f

We will need one number to guide us the whole way: $\ell$ (a symbol we define in Step 2). Keep your eye on it — every picture on this page is really the story of what one value of $\ell$ does to a cloud.

---

Step 1 — WHAT is a wavefunction, in one picture?

WHAT. Forget formulas for a second. An electron near a nucleus is not a dot moving on a track. It is a smear — a cloud. At every point in space we assign a single number, and we call the whole assignment $\psi$ (the Greek letter "psi", pronounced "sigh"). Think of $\psi$ as a greyscale photograph of the cloud: bright where the electron is likely, dark where it is not.

WHY. We do this because the Heisenberg Uncertainty Principle forbids a definite path. The most honest thing we can draw is a probability map, not a line. And the map has a subtlety: $\psi$ can be positive or negative (like the height of a water wave above or below the flat surface). What we can see — the actual chance of finding the electron — is $|\psi {|}^2$, which is always $\ge 0$ (squaring kills the minus sign).

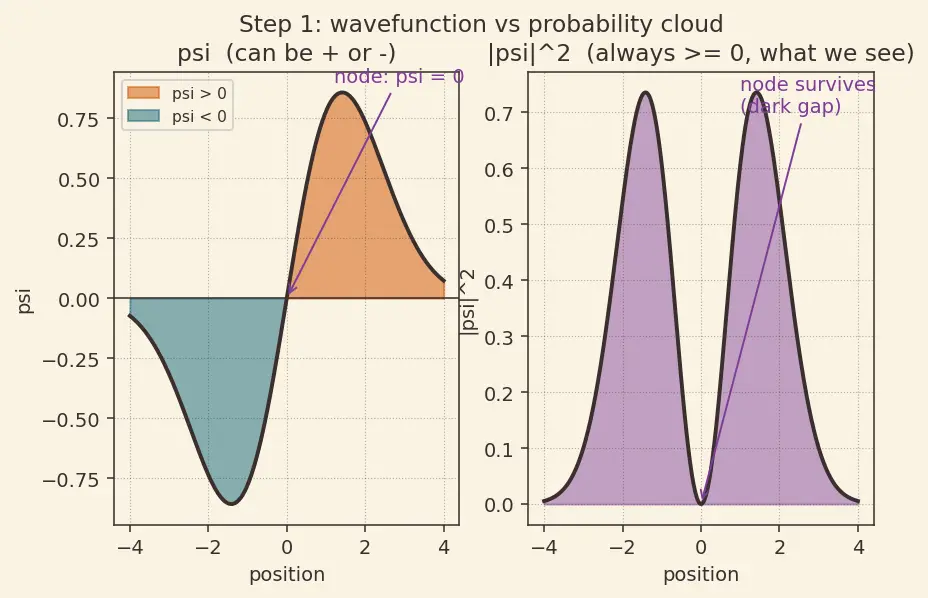

PICTURE. Below: the same cloud drawn two ways. On the left $\psi$ (orange = positive, teal = negative). On the right $|\psi {|}^2$ (what a detector would see). Notice the black seam where $\psi$ crosses zero survives in both — that is a node.

---

Step 2 — Splitting the cloud into "size" and "shape"

WHAT. Any orbital's $\psi$ can be written as a product of two independent pieces. In spherical coordinates — where a point is named by its distance $r$ from the nucleus and two angles $\theta ,\varphi$ (the "up/down" and "around" angles, exactly like latitude and longitude) — we have

${\psi }_{n,\ell ,m}(r,\theta ,\varphi )=\underset{\text{radial: how bright vs. distance}}{\underbrace{R_{n,\ell }(r)}}\times \underset{\text{angular: how bright vs. direction}}{\underbrace{Y_{\ell }^m(\theta ,\varphi )}}$

Reading it term by term:

• $r$ = distance from the nucleus (how far out).
• $\theta$ (theta) = tilt away from the north pole (the $+z$ axis), $0^{\circ }$ at the top, $180^{\circ }$ at the bottom.
• $\varphi$ (phi) = spin-around angle in the equator plane.
• $R_{n,\ell }(r)$ = the radial part. It depends only on $r$, so it controls size and rings-vs-distance — never direction.
• $Y_{\ell }^m(\theta ,\varphi )$ = the angular part ("spherical harmonic"). It depends only on direction, so it alone controls shape.
• $n,\ell ,m$ = three labels called quantum numbers (see Quantum Numbers n, l, m, s).

WHY split it? Because the two pieces answer different questions and don't interfere. If you want the shape of the cloud — the whole point of this page — you can throw away $R$ entirely and study $Y_{\ell }^m$. This separation is a gift from the Schrodinger Equation for Hydrogen, which literally factorises this way.

PICTURE. The factorisation shown as two dials feeding one cloud: the $R$ dial sets radius/rings, the $Y$ dial sets the silhouette.

---

Step 3 — The master rule: angular nodes $=\ell$

WHAT. Here is the single fact from which every shape falls out. The angular part $Y_{\ell }^m$ is a polynomial of degree $\ell$ in the direction coordinates $x/r,y/r,z/r$ (each of these is just a "which way am I pointing" number between $-1$ and $+1$). A polynomial of degree $\ell$ can cross zero on at most $\ell$ surfaces. Each such surface is an angular node — a flat plane or a cone where $\psi =0$.

$\boxed{\text{angular nodes}=\ell }\boxed{\text{total nodes}=n-1}\boxed{\text{radial nodes}=n-\ell -1}$

Term by term:

• angular node = a plane/cone through the nucleus where direction makes $\psi$ vanish.
• radial node = a spherical shell at some fixed $r$ where $R=0$.
• The total, $n-1$, is a property of the 3D Coulomb problem (one node lost per rung up in energy). Subtracting the $\ell$ angular ones leaves $n-\ell -1$ radial ones.

WHY does "one cut splits a lobe in two" work? Think of a balloon. Each nodal surface is a place the electron can't be — it pinches the cloud into separate blobs (lobes). Zero cuts → one blob. One cut → two blobs. Two cuts → up to four blobs. That mental image is the derivation of the shapes; the rest of this page just draws it.

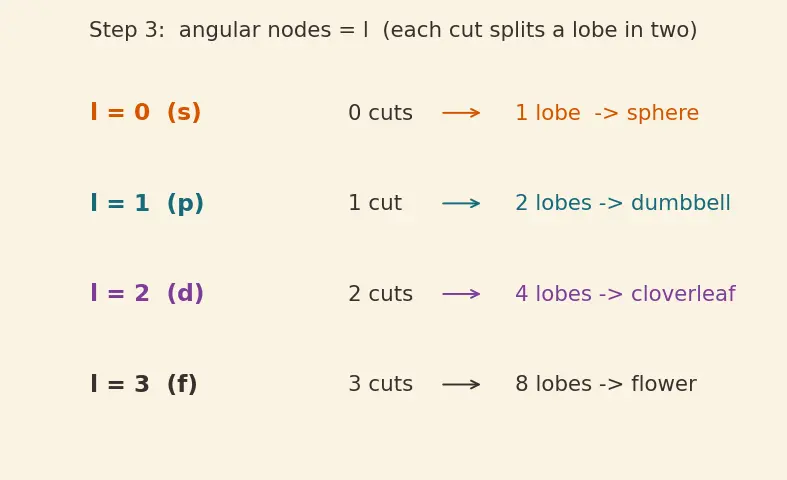

PICTURE. A ladder: $\ell =0,1,2,3$ on the left, and beside each the number of "cuts" and the resulting lobe count.

---

Step 4 — $\ell =0$: the sphere (from zero cuts)

WHAT. For $\ell =0$ the angular part is the flattest possible polynomial: a constant, $Y_0^0=\frac{1}{\sqrt{4\pi }}.$ Reading it: there is no $\theta$ and no $\varphi$ in there at all. Same value in every direction.

WHY spherical. If the angular brightness is identical whichever way you look, the 90%-cloud must be a perfect ball. There is nothing to break the symmetry — zero cuts, one solid lobe. Crucially this is true for $1s,2s,3s,\dots$ alike, because $\ell =0$ for every $s$ regardless of $n$. Changing $n$ only adds radial nodes ($n-\ell -1$ concentric dark shells) and grows the size; it can never dent the roundness.

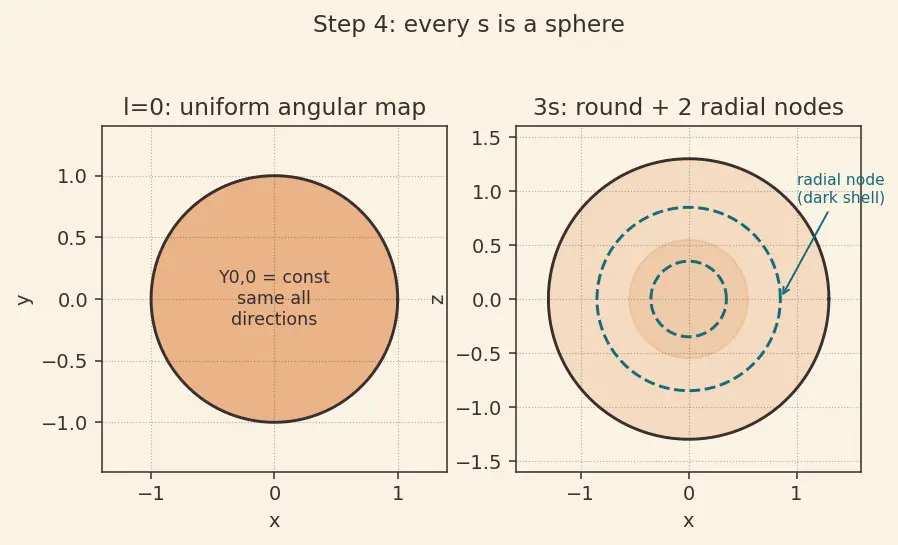

PICTURE. Left: the constant angular map (uniform colour). Right: a $3s$ cross-section — still round, but with $3-0-1=2$ dark spherical shells nested inside. The radial nodes live where the Radial Distribution Function dips to zero.

---

Step 5 — $\ell =1$: the dumbbell (one flat cut)

WHAT. For $\ell =1$ the simplest angular part is degree-1 in direction. Take the one pointing up/down: $p_z\propto \frac{z}{r}=\cos \theta .$ Why is $z/r=\cos \theta$? Because $\cos \theta$ is defined as the height fraction — how much of a unit-length arrow points along $+z$. Straight up: $\cos 0^{\circ }=+1$. Straight down: $\cos 180^{\circ }=-1$. On the equator: $\cos 90^{\circ }=0$.

WHY a dumbbell with signs. Track $\cos \theta$:

• Near $+z$ ($\theta$ small): $\cos \theta >0$ → positive lobe (orange).
• Near $-z$ ($\theta$ near $180^{\circ }$): $\cos \theta <0$ → negative lobe (teal).
• At $\theta =90^{\circ }$: $\cos \theta =0$ → the entire $xy$-plane is a node (one flat cut).

One cut, two lobes, opposite signs = a dumbbell on the $z$-axis. The other two, $p_x\propto x/r$ and $p_y\propto y/r$, are the identical shape rotated to lie on the $x$- and $y$-axes.

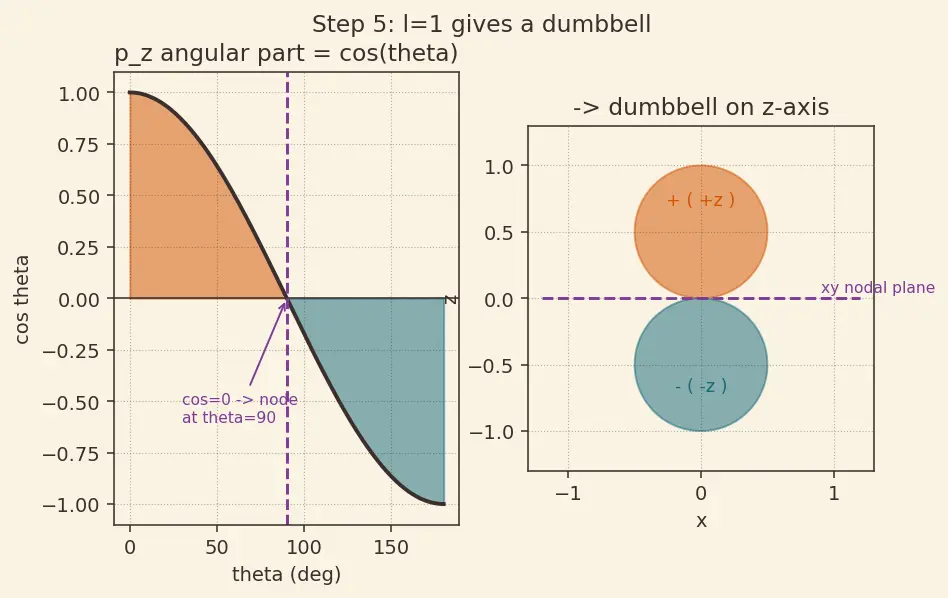

PICTURE. A polar plot of $\cos \theta$ becoming the dumbbell: arrow at $+z$ orange, at $-z$ teal, the $xy$ nodal plane drawn as a flat disc.

---

Step 6 — $\ell =2$: the cloverleaf (two flat cuts)

WHAT. For $\ell =2$ the angular parts are degree-2. Take $d_{xy}\propto \frac{xy}{r^2}.$ This product is positive where $x,y$ share a sign (both $+$, or both $-$) and negative where they differ.

WHY four lobes. The product $xy$ is zero whenever $x=0$ or $y=0$ — that is two flat cuts: the $yz$-plane and the $xz$-plane. Two cuts through the middle carve the cloud into four lobes, sitting between the axes, in the diagonals. Their signs alternate $+,-,+,-$ as you go around, exactly following the sign of $xy$. That checkerboard of four lobes is the cloverleaf. The same pattern rotated gives $d_{xz},d_{yz}$; and $d_{x^2-y^2}\propto (x^2-y^2)/r^2$ points its four lobes along the axes instead of between them (its nodes are the two planes at $45^{\circ }$).

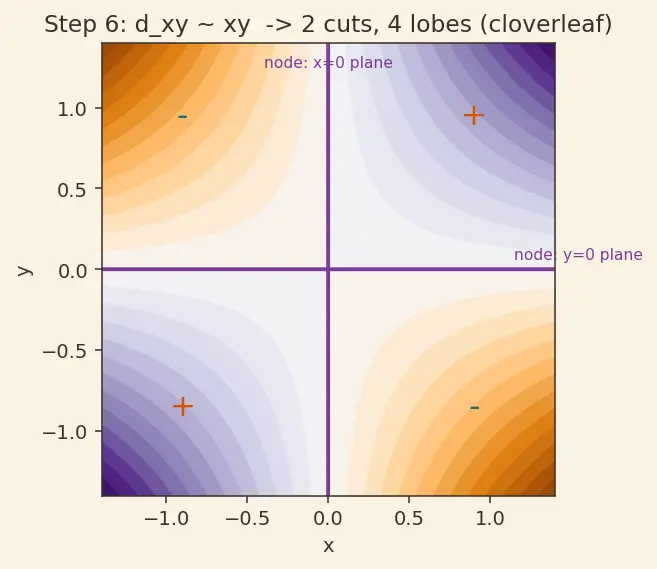

PICTURE. The $xy$-plane split into four quadrants coloured by the sign of $xy$; the two nodal planes marked; the four lobes labelled with their signs.

---

Step 7 — The degenerate case: $d_{z^2}$ and its cones

WHAT. One $d$ orbital refuses to be a cloverleaf. Its angular part is $d_{z^2}\propto \frac{3z^2-r^2}{r^2}=3{\cos }^2\theta -1.$ Reading it: it depends only on $\theta$ (the tilt), not on $\varphi$ (the spin-around) — so it is symmetric about the $z$-axis, like a spinning top.

WHY cones, not planes. Set it to zero to find the nodes: $3{\cos }^2\theta -1=0\Rightarrow \cos \theta =\pm \frac{1}{\sqrt{3}}\Rightarrow \theta \approx 54.7^{\circ }\text{and}125.3^{\circ }.$ A fixed tilt angle $\theta =54.7^{\circ }$ is not a plane — it is a cone (all directions leaning $54.7^{\circ }$ off the $z$-axis). Two such angles = two nodal cones. Still exactly $\ell =2$ nodes, obeying the master rule — but their geometry is cones, so the picture is different: a big lobe poking out along $\pm z$ (where $3{\cos }^2\theta -1$ is most positive) plus a torus (doughnut ring) hugging the equator (where the expression is negative).

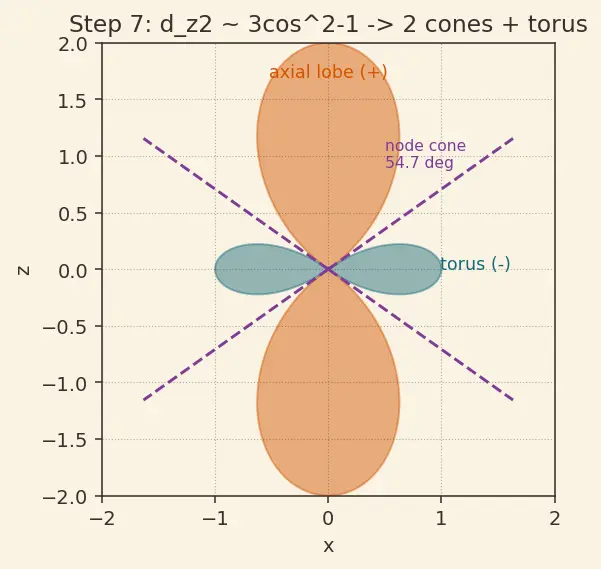

PICTURE. Cross-section in the $xz$-plane: the two node cones as dashed lines at $54.7^{\circ }$ and $125.3^{\circ }$, the axial lobes orange, the equatorial torus ring teal.

---

Step 8 — $\ell =3$ and the general pattern

WHAT. For $\ell =3$ ($f$), degree-3 angular polynomials give three cuts → up to eight lobes: a fancy flower. We won't draw all seven $f$ shapes, but the counting is now automatic.

WHY it never surprises you again. Two clean rules close the whole story:

• How many shapes per subshell? $m$ runs over $-\ell ,\dots ,0,\dots ,+\ell$ — that is $2\ell +1$ values (orientations). So $s:1,p:3,d:5,f:7$. These odd numbers are why there are three $p$'s and five $d$'s (used when filling shells, Aufbau, Hund and Pauli).
• How complex is each? angular nodes $=\ell$; radial dark shells $=n-\ell -1$.

PICTURE. A summary strip: $\ell =0,1,2,3$ with lobe counts $1,2,4,8$ and orbital counts $1,3,5,7$.

---

The one-picture summary

Everything on this page is one sentence: count the cuts ($=\ell$) and the shape draws itself. Zero cuts → ball ($s$). One flat cut → dumbbell ($p$). Two flat cuts → cloverleaf ($d$) — or two cones for the odd $d_{z^2}$. Three cuts → eight-lobed flower ($f$). The radial part only adds size and concentric dark shells; it never touches the silhouette.

Recall Feynman retelling (say it to a 12-year-old)

An electron is a fuzzy cloud around the nucleus, and $\psi$ is just a photo of that cloud — bright where the electron likes to be, and it can be "positive" or "negative" like a wave going above or below still water. If you want the cloud's shape, you only care about which direction is bright, and that is set by one number, $\ell$, which counts the invisible walls the electron can't cross. No walls: a perfect ball. One wall (flat): two puffs, a peanut. Two walls: a four-leaf clover — except one special one uses two ice-cream-cone walls and looks like a peanut wearing a doughnut. Three walls: eight puffs, a fancy flower. The signs on the puffs aren't charges — they're just the up-or-down of the wave, and they only matter when two clouds shake hands to make a bond.

---
