Limitations of Bohr — fails for multi-electron atoms, fine structure

What Bohr assumed (so we know what can fail)

From these he derived, for a one-electron species of nuclear charge $Z$ :

Formula Bohr energy (derived, not dumped)

Balance Coulomb attraction with centripetal force: $\frac{kZe^2}{r^2} = \frac{mv^2}{r} \implies mv^2 = \frac{kZe^2}{r}$ Quantize: $mvr = n\hbar \implies v = \dfrac{n\hbar}{mr}$ . Substitute: $m\left(\frac{n\hbar}{mr}\right)^2 = \frac{kZe^2}{r} \implies r_n = \frac{n^2\hbar^2}{kZe^2 m}$ Total energy $E = \tfrac12 mv^2 - \dfrac{kZe^2}{r} = -\dfrac{kZe^2}{2r}$ . Plug $r_n$ : $\boxed{E_n = -\frac{mk^2Z^2e^4}{2\hbar^2 n^2} = -13.6\,\frac{Z^2}{n^2}\ \text{eV}}$

Reduced-mass refinement (WHY it matters even for one electron): the derivation above uses the electron mass $m_e$ , but the nucleus is not infinitely heavy — both the electron and nucleus orbit their common centre of mass. The exact treatment replaces $m_e$ by the reduced mass $\mu = \dfrac{m_e M}{m_e + M}$ ( $M$ = nuclear mass). This shifts the Rydberg constant by a small factor $\mu/m_e \approx 1 - m_e/M$ (about 1 part in 1836 for hydrogen), and is exactly why the H and D (deuterium) spectral lines differ slightly. So the " $-13.6\,\text{eV}$ " number uses $\mu$ , not the bare $m_e$ .

Notice: energy depends ONLY on $n$ and $Z$ . This single fact is the seed of every failure below.

Failure 1 — Multi-electron atoms

Formula The term Bohr can't handle

The full helium Hamiltonian has kinetic-energy operators plus potential-energy terms: $\hat{H} = \underbrace{-\frac{\hbar^2}{2m}\nabla_1^2 - \frac{\hbar^2}{2m}\nabla_2^2}_{\text{kinetic energy of both electrons}} \underbrace{-\frac{k\,2e^2}{r_1} - \frac{k\,2e^2}{r_2}}_{\text{e–nucleus attraction}} + \underbrace{\frac{ke^2}{r_{12}}}_{\text{e–e repulsion}}$ The kinetic terms are the quantum analogue of $\tfrac12 mv^2$ ; the new, fatal piece is the last potential term $+ke^2/r_{12}$ . It couples the two electrons — the equation is not separable into simple single-electron orbits. This is the quantum three-body problem: no exact analytic solution exists.

Consequences (what we actually observe):

Bohr predicts He⁺ (one electron, $Z=2$ ) perfectly: $E_n = -13.6(4)/n^2$ . ✔
Bohr predicts neutral He wrong — its ground-state ionization energy (24.6 eV) is nowhere near Bohr's naive guess. ✘
Bohr gives no way to explain the periodic table, why energies depend on $l$ (subshells s, p, d), or shielding/penetration.

Failure 2 — Fine structure

Formula Size of the effect (order-of-magnitude)

The splitting scales with the fine-structure constant $\alpha = \frac{ke^2}{\hbar c} \approx \frac{1}{137}.$ Fine-structure energy shifts $\sim \alpha^2 E_n \approx (1/137)^2 \approx 5\times10^{-5}$ of the main energy — that's why you need a high-resolution instrument to see it. The full formula (Sommerfeld/Dirac): $E_{n,j} \approx -13.6\,\frac{Z^2}{n^2}\left[1 + \frac{Z^2\alpha^2}{n}\left(\frac{1}{j+\tfrac12} - \frac{3}{4n}\right)\right]$ Energy now depends on $j$ (total angular momentum), not just $n$ — this is exactly the piece Bohr lacked.

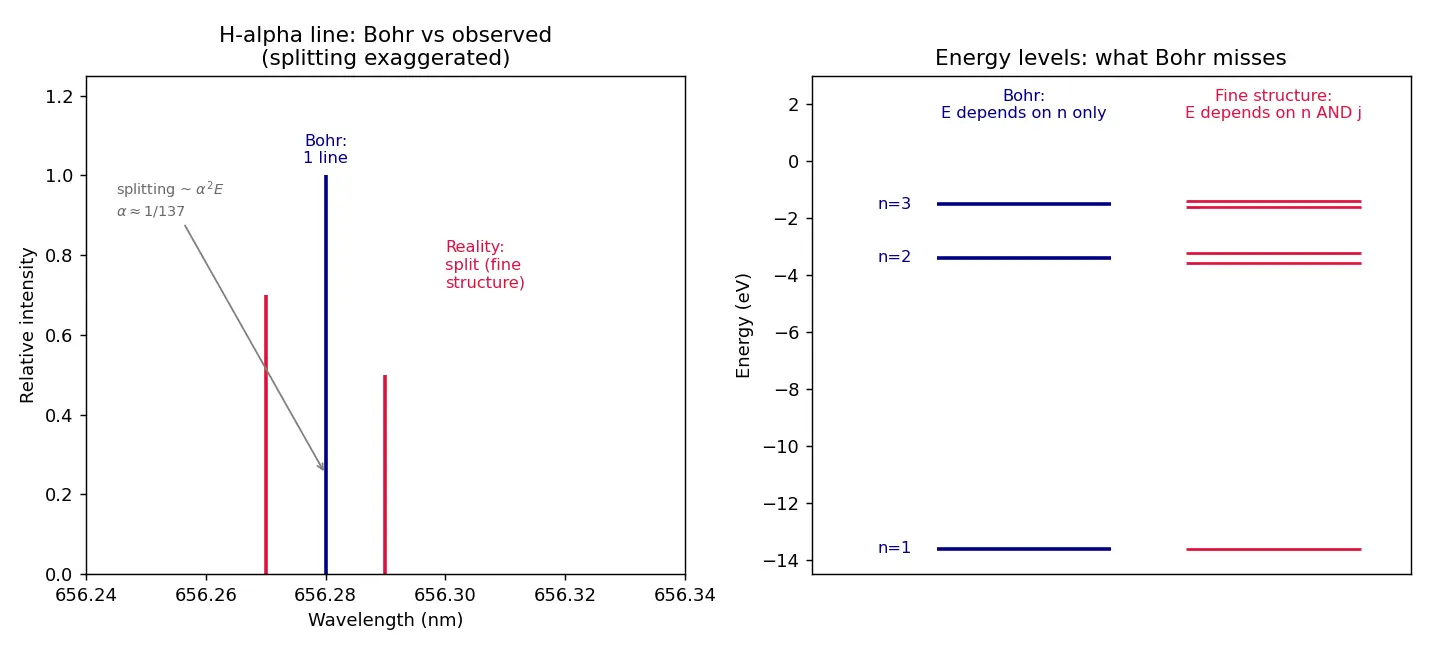

Figure — Limitations of Bohr — fails for multi-electron atoms, fine structure

Other cracks (quick survey)

Common mistake Steel-manning the common wrong ideas

Wrong idea A: "Bohr fails for all atoms, even hydrogen." Why it feels right: We're told "Bohr is outdated." The fix: Bohr is exact for one-electron species (H, He⁺, Li²⁺). It only fails once there's more than one electron OR you demand fine detail. Don't over-reject it.

Wrong idea B: "Fine structure comes from electron–electron repulsion." Why it feels right: Both are "small corrections." The fix: Repulsion is the multi-electron problem. Fine structure appears even in hydrogen (one electron!) — its cause is spin–orbit coupling + relativity, not repulsion.

Wrong idea C: "Bohr fails because his energy formula is numerically wrong." Why it feels right: Failure sounds like "wrong numbers." The fix: The formula is fine where it applies (with the reduced-mass correction it matches H beautifully). It fails elsewhere because it's missing physics ( $r_{12}$ , spin, fields), i.e. it lacks the variables ( $l$ , $s$ , $j$ ) needed to describe reality.

Recall Feynman: explain to a 12-year-old

Bohr said electrons run around the nucleus on fixed race-tracks, and each track has one energy. For a super-simple atom with just one electron (hydrogen), his tracks are perfect — the colors of light match exactly! But real atoms usually have many electrons, and they push on each other like kids bumping in a crowd. Bohr's simple race-track idea doesn't include that pushing, so it gets confused. Also, if you look really, really closely at hydrogen's light, one line is actually two tiny lines super close together. That's because the electron spins like a top, and spinning tops feel extra little forces Bohr forgot. So Bohr is a great starter map, but the real world needs a fancier one (quantum mechanics).

Active Recall

Bohr's energy formula depends on which quantum number only?

Only

n

(and

Z

) — no dependence on

l

s

, or

j

, which is the root of every failure.

For which atoms/ions is the Bohr model exact?

One-electron (hydrogen-like) species only: H, He⁺, Li²⁺, Be³⁺, ...

What extra term appears in a multi-electron atom that Bohr cannot handle?

Electron–electron repulsion

+\,ke^2/r_{12}

, giving an unsolvable three-body problem.

Why does Bohr work for He⁺ but not neutral He?

He⁺ has one electron (no

r_{12}

term); neutral He has two electrons → repulsion term appears → model fails.

What small refinement makes the Bohr formula match hydrogen precisely?

Replacing electron mass

m_e

with reduced mass

\mu = m_e M/(m_e+M)

; it explains the H vs D line shift.

What is "fine structure"?

The splitting of a single spectral line into closely spaced components, unexplained by Bohr.

What three effects cause fine structure?

Electron spin, spin–orbit coupling, and relativistic corrections (all absent in Bohr).

Does fine structure occur in hydrogen (one electron)?

Yes — so it is NOT caused by electron–electron repulsion.

What constant sets the scale of fine structure?

The fine-structure constant

\alpha = ke^2/\hbar c \approx 1/137

; shifts scale as

\alpha^2

What is the Zeeman effect and why does it defeat Bohr?

Splitting of spectral lines in a magnetic field; Bohr has no orbital-orientation quantum number to allow it.

Which uncertainty principle does a fixed Bohr orbit violate?

Heisenberg's: a definite radius and definite momentum simultaneously violate

\Delta x\,\Delta p \ge \hbar/2

Bohr explains which lines appear but fails to explain what about them?

Their relative intensities (brightness).

Connections

Bohr Model Derivation — what we are critiquing here.
Hydrogen Spectrum & Rydberg Formula — the success story Bohr explains.
Reduced Mass Correction — why H and D lines differ.
Electron Spin and Spin-Orbit Coupling — cause of fine structure.
Fine-Structure Constant — scale $\alpha \approx 1/137$ .
Zeeman and Stark Effects — field-induced splittings Bohr misses.
Heisenberg Uncertainty Principle — why fixed orbits are impossible.
Quantum Numbers n, l, m, s — the variables that repair Bohr's model.
Schrödinger Equation for Hydrogen — the successor theory.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Bohr ka model ek zabardast starter hai — hydrogen jaise one-electron atom ke liye ye bilkul sahi kaam karta hai. Uski energy formula $E_n = -13.6\,Z^2/n^2$ eV sirf $n$ aur $Z$ par depend karti hai. Ek chhoti si baat: exact match ke liye electron mass $m_e$ ki jagah reduced mass $\mu = m_e M/(m_e+M)$ use karni padti hai, kyunki nucleus infinite heavy nahi hota — isi se H aur D (deuterium) ki lines thodi alag aati hain. He⁺, Li²⁺ — jinme ek hi electron hai — inke liye bhi ye formula perfect hai.

Problem tab shuru hoti hai jab atom me do ya zyada electron ho jaate hain. Multi-electron atom me har electron doosre electron ko push karta hai (repulsion), yeh term hota hai $+ke^2/r_{12}$ . Full Hamiltonian me kinetic energy ke terms bhi hote hain, par Bohr ke paas is repulsion wale potential term ka koi hisaab hi nahi — isliye Helium jaise atom ki prediction galat aa jaati hai. Yaad rakho: repulsion wali problem multi-electron ki hai, fine structure ki nahi.

Ab fine structure. Agar hydrogen ki line ko bahut high-resolution spectrometer se dekho, to ek line actually do bahut paas-paas wali lines me split ho jaati hai. Bohr ye explain nahi kar sakta kyunki uski energy sirf $n$ par depend karti hai. Iska real reason hai teen cheezein: electron ka spin, spin-orbit coupling, aur thoda relativity. Iska size fine-structure constant $\alpha \approx 1/137$ se aata hai, aur shift $\alpha^2$ ke order ka hota hai — itna chhota ki normal aankh se nahi dikhta.

Aur bhi kami hain: Zeeman (magnetic field me splitting), Stark (electric field me), lines ki intensity, aur sabse important — fixed orbit maanna Heisenberg uncertainty ko todta hai. Bottom line: Bohr ek pyaara map hai, par real atom ke liye humein quantum mechanics chahiye jisme $l, s, j$ jaise naye quantum numbers hote hain.
