Foundations — Pauli exclusion principle

Before you can understand why two electrons cannot match, you must first understand what they would be matching. The Pauli principle is a statement about labels. So we build every label, one at a time, from the ground up.

0. The picture we are labelling

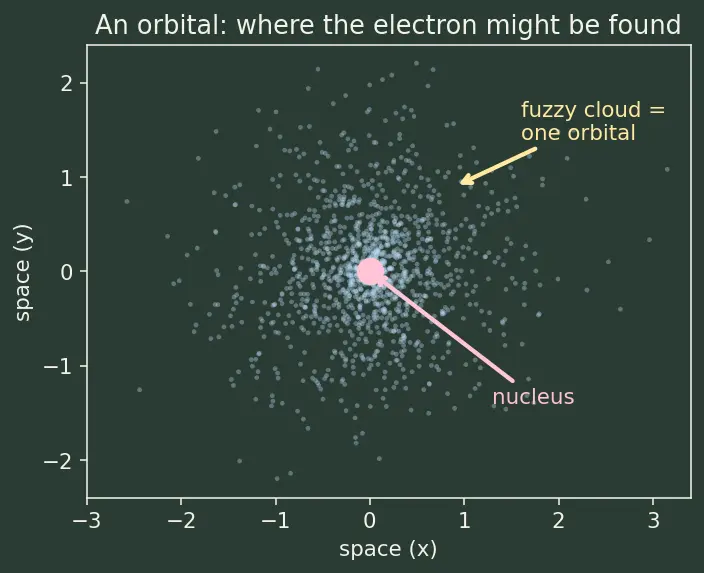

An electron in an atom is not a tiny ball on a fixed track. It is a fuzzy cloud of "where it might be found". That cloud is called an orbital. To describe which cloud an electron sits in, we need labels — and those labels are the four quantum numbers.

1. The symbol $n$ — the shell (how big / how far)

The picture: imagine onion-like layers around the nucleus. $n=1$ is the innermost, tightest layer; $n=2$ is the next layer out; and so on.

Why the topic needs it: the Pauli principle asks "are two electrons in the same shell?" — you cannot ask that without a label naming the shell. $n$ is that label.

2. The symbol $l$ — the subshell (what shape)

Within one shell, the cloud can take different shapes. The label for shape is $l$ (azimuthal quantum number).

Why the range stops at $n-1$: the shape can never be more "wrinkled" than the shell allows. A small shell ($n=1$) only has room for the simplest shape ($l=0$, a sphere). A bigger shell ($n=3$) fits spheres, dumbbells, and cloverleaves ($l=0,1,2$).

Why the topic needs it: two electrons "in the same subshell" means same $n$ and same $l$. Pauli must compare shapes, so it needs the shape label.

3. The symbol $m_l$ — the orientation (which way it points)

A dumbbell (p-shape) can point along three different directions in space. The label for which direction is $m_l$ (magnetic quantum number).

The picture: the three p-dumbbells point along the $x$, $y$, and $z$ axes — three orientations, matching $m_l=-1,0,+1$ (three values, because $2(1)+1=3$).

Why the topic needs it: the parent note says "an orbital can hold at most 2 electrons." An orbital is a fixed $(n,l,m_l)$ triple. Without $m_l$ you cannot pin down a single spot.

4. The symbol $m_s$ — the spin (nose-in or nose-out)

Three labels fix the spot. But two electrons can share one spot — if they differ in one last way: their spin.

The picture (car-park analogy from the parent): the parking spot is fixed, but a car can face nose-in (↑) or nose-out (↓). Two cars fit in one spot only if they face opposite ways.

Why only two values? Electron spin is quantised — it does not vary smoothly. There are exactly two settings, which is precisely why an orbital caps at 2 electrons. See Electron spin for the origin.

Why the topic needs it: $m_s$ is the escape valve. When $n,l,m_l$ are all forced equal (two electrons in one orbital), $m_s$ is the only label left to differ — and the Pauli principle forces it to differ.

5. Putting it together — the full address

6. The ± sign and the $\frac{1}{2}$ — small notation, cleared up

7. The counting symbols you will meet next

The parent note uses a sum symbol. Meet it now so it is not new later.

Why the topic needs it: $\sum$ is the machinery behind "max electrons $=2n^2$." Knowing it now means the parent's derivation reads like plain English.

Prerequisite map

Each foundation feeds the next: size decides shape, shape decides orientation, the three fix a spot, spin fills it, and the whole address is what Pauli guards.

Equipment checklist

Cover the right side and answer each before revealing.
