3.4.13Rocket Flight Mechanics

Gravity turn trajectory — pitch rate from aerodynamic angle of attack = 0

2,152 words10 min readdifficulty · medium6 backlinks
🇮🇳 Yeh note Hinglish mein padho →

WHAT is a gravity turn?

  • Pitch angle θ\theta: angle of the vehicle's nose (thrust axis) above the horizon.
  • Flight-path angle γ\gamma: angle of the velocity vector above the horizon.
  • α=0⇒θ=γ\alpha = 0 \Rightarrow \theta = \gamma. The nose and the velocity are the same direction.

WHY do we want α=0\alpha = 0?

HOW: derive the pitch-rate equation from first principles

We work in the vertical plane, ignoring Earth's curvature (flat-Earth approximation, valid for early ascent). Let:

  • vv = speed (magnitude of velocity),
  • γ\gamma = flight-path angle above horizon,
  • mm = mass, TT = thrust, gg = gravity, DD = drag.

Because α=0\alpha = 0, thrust is along velocity and drag is against velocity — both are purely tangential. Gravity mgmg points straight down; we split it into a tangential part and a normal part relative to the velocity vector.

Geometry of gravity vs. velocity. The velocity makes angle γ\gamma with the horizon. Gravity is vertical (downward). Resolve:

  • Component along velocity (opposing forward motion when climbing): −mgsin⁡γ-mg\sin\gamma
  • Component perpendicular to velocity (pulling the path down): −mgcos⁡γ-mg\cos\gamma

Now the turning. A particle moving at speed vv whose direction γ\gamma changes has a normal acceleration v dγdtv\,\dfrac{d\gamma}{dt} (this is just a⊥=vγ˙a_\perp = v\dot\gamma, the curved-motion analogue of v2/rv^2/r with r=v/γ˙r = v/\dot\gamma).

The only normal force is the perpendicular component of gravity, −mgcos⁡γ-mg\cos\gamma (thrust and drag have no normal component because α=0\alpha=0). Newton perpendicular to the path:

m vdγdt=−mgcos⁡γm\,v\frac{d\gamma}{dt} = -mg\cos\gamma

Cancel mm:

What this equation tells us (Feynman-style reading)

  • γ˙∝1v\dot\gamma \propto \dfrac{1}{v}: the faster you go, the slower you turn. Early on, when vv is small, the turn is fastest — one small kick near liftoff sets up the whole trajectory ("pitch-over manoeuvre").
  • γ˙∝cos⁡γ\dot\gamma \propto \cos\gamma: turning is fastest when flying horizontally (γ=0\gamma=0, cos⁡γ=1\cos\gamma=1) and zero when vertical (γ=90∘\gamma=90^\circ, cos⁡90∘=0\cos 90^\circ = 0).

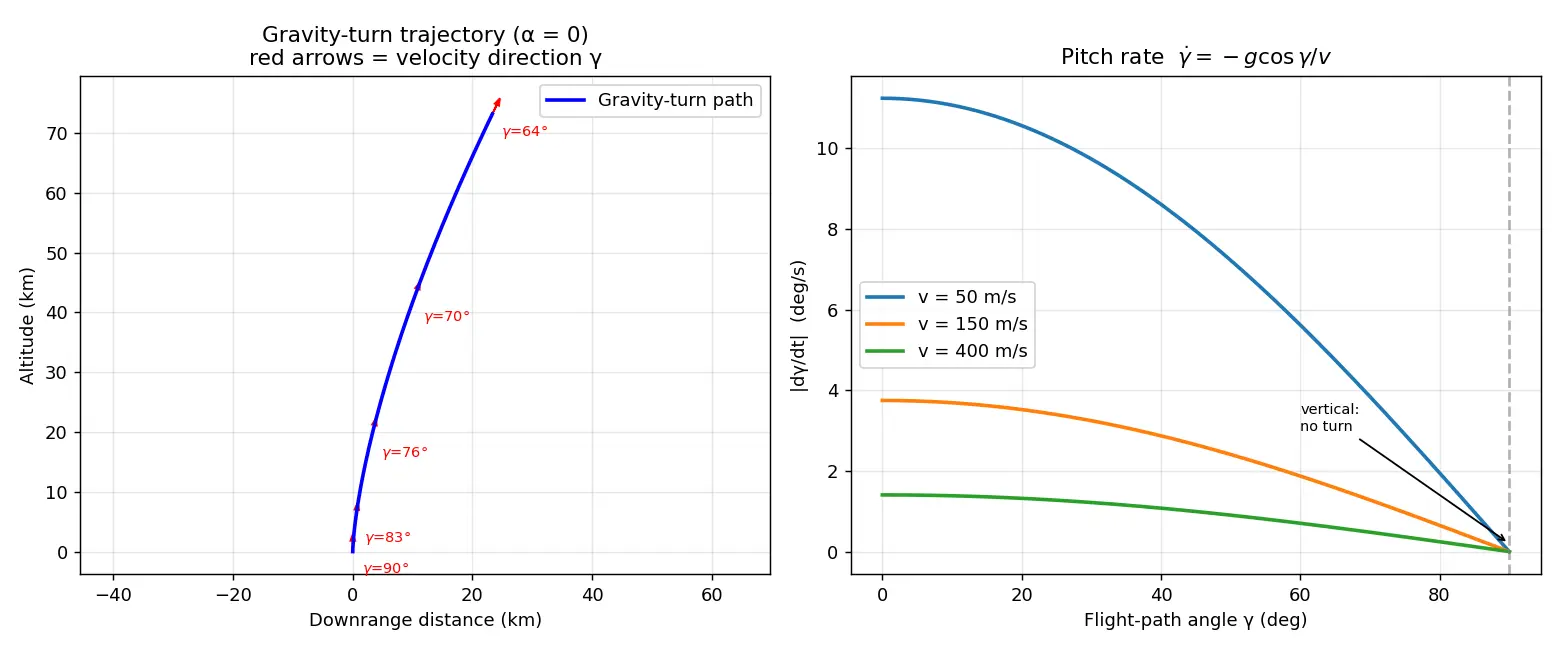

Figure — Gravity turn trajectory — pitch rate from aerodynamic angle of attack = 0

Worked examples

Common mistakes (steel-manned)

Active recall

Recall Test yourself (hide the answers)
  • What does α=0\alpha = 0 mean physically? (nose points exactly along velocity ⇒ zero lift)
  • Why is there no thrust component that turns the rocket? (thrust is tangential when α=0\alpha=0)
  • Which force actually bends the path? (the normal component of gravity, mgcos⁡γmg\cos\gamma)
  • Why can't a perfectly vertical rocket start a gravity turn? (cos⁡90∘=0\cos 90^\circ=0)
  • Why is the pitch-over done early and slow? (γ˙∝1/v\dot\gamma\propto 1/v; small vv ⇒ big turn per second)

Flashcards

Gravity turn condition on angle of attack
α=0\alpha = 0 (thrust along velocity, zero lift)
Relation between pitch angle and flight-path angle in a gravity turn
θ=γ\theta = \gamma (since α=0\alpha=0)
Gravity-turn pitch-rate equation
dγdt=−gcos⁡γv\dfrac{d\gamma}{dt} = -\dfrac{g\cos\gamma}{v}
Force that curves a gravity-turn trajectory
the normal component of gravity, mgcos⁡γmg\cos\gamma
Why does turn rate fall as speed rises?
γ˙∝1/v\dot\gamma \propto 1/v; gravity has less time per metre to bend the path
Turn rate when flying vertically (γ=90∘\gamma=90^\circ)
zero, because cos⁡90∘=0\cos 90^\circ = 0
Turn rate when flying horizontally (γ=0∘\gamma=0^\circ)
maximum, since cos⁡0∘=1\cos 0^\circ = 1
Tangential (speed) equation for zero-lift ascent
mv˙=T−D−mgsin⁡γm\dot v = T - D - mg\sin\gamma
Why keep α=0\alpha=0 near max-Q?
to minimise aerodynamic side-loads (lift) and structural bending
Normal acceleration of a body turning at speed vv
a⊥=v γ˙a_\perp = v\,\dot\gamma
Recall Feynman: explain to a 12-year-old

Imagine throwing a ball straight up. Gravity slowly pulls it sideways-and-down so its path curves into an arc. A rocket does the same on purpose: it points its nose exactly the way it's already moving and just lets gravity tug the path over, like a slow, invisible hand bending its flight. When the rocket is going slow, gravity has lots of time to bend it, so it turns fast. When it's super fast, gravity barely nudges it. And if it's going straight up, gravity pulls straight back on it, not sideways — so it never turns. That's why rockets tip over just a little bit right after liftoff, while they're still slow.

Connections

  • Rocket Flight Mechanics
  • Tsiolkovsky Rocket Equation — supplies v(t)v(t) that feeds this γ˙\dot\gamma
  • Flight-path angle and pitch angle — the θ=γ+α\theta = \gamma + \alpha relationship
  • Aerodynamic Drag and Max-Q — why zero lift matters in dense air
  • Centripetal / Normal Acceleration — origin of a⊥=vγ˙a_\perp = v\dot\gamma
  • Ascent Guidance and Pitch Program — how the initial pitch-over is commanded

Concept Map

means

implies

produces

leads to

leads to

only turning force

equals

drives

gives

T minus D minus mg sin γ

curves

Gravity turn α=0

Nose along velocity

θ equals γ

Zero lift

Minimum bending loads

No steering effort

Transverse gravity

minus mg cos γ

Normal accel v dγ/dt

Pitch-rate equation

Tangential forces

Speed change dv/dt

Flight path bends over

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, gravity turn ka funda simple hai: rocket ko turn karne ke liye alag se koi steering ki zaroorat nahi. Rocket seedha upar launch hota hai, phir thoda sa nose tilt (pitch-over) karta hai, aur uske baad apni nose ko exactly velocity ke direction mein rakhta hai — matlab angle of attack α=0\alpha = 0. Jab α=0\alpha=0 hota hai to lift zero ho jati hai aur structure pe side-load minimum — isliye engineers isse pasand karte hain.

Ab turning kaun karta hai? Thrust aur drag dono velocity ke saath-saath (tangential) hain, to woh path ko mod nahi sakte. Sirf gravity ka perpendicular component (mgcos⁡γmg\cos\gamma) path ko neeche ki taraf bend karta hai. Isi se aata hai magic formula: γ˙=−gcos⁡γv\dot\gamma = -\dfrac{g\cos\gamma}{v}. Yani turn rate gravity aur cosine of path-angle pe depend karta hai, aur speed ke ulta (inverse) proportional hai.

Do important cheezein yaad rakho. Ek: jab rocket seedha vertical hai (γ=90°\gamma=90°), cos⁡90°=0\cos 90°=0, to turn rate zero — isliye ek chhota sa initial pitch-over dena zaroori hai warna rocket kabhi mudega hi nahi. Do: jitni zyada speed, utna slow turn (γ˙∝1/v\dot\gamma \propto 1/v). Isliye pitch-over jaldi, low speed pe kiya jata hai — tab gravity ko har metre bend karne ka zyada time milta hai.

Exam aur intuition dono ke liye best trick: "G-COS over V" yaad rakho, aur "slow turns fast, straight-up never turns." Bas isi ek line se poora gravity turn samajh mein aa jayega.
