3.4.12Rocket Flight Mechanics

Propulsive forces — thrust misalignment, gimbal angle

1,924 words9 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHAT is going on

WHY thrust direction matters — deriving the torque

Setup (derivation from scratch)

Put the CoM at the origin. Let the engine gimbal pivot sit at distance LL behind the CoM along the rocket axis (the xx-axis, nose = +x+x). The thrust magnitude is TT, tilted by angle δ\delta from the rocket axis.

The thrust force components (body frame): T⃗=(−Tcos⁡δ⏟along axis, −Tsin⁡δ⏟lateral)\vec{T} = \big(\underbrace{-T\cos\delta}_{\text{along axis}},\ \underbrace{-T\sin\delta}_{\text{lateral}}\big)

Why the minus signs? The nozzle points backward (toward −x-x), so thrust pushes the rocket toward +x+x — wait, careful: the force on the rocket points forward. If the nozzle exit faces −x-x, thrust on rocket is +x+x. Let me put the force on the rocket directly: T⃗rocket=(Tcos⁡δ, Tsin⁡δ).\vec{T}_{rocket} = \big(T\cos\delta,\ T\sin\delta\big).

The position vector from CoM to the pivot (where the force is applied): r⃗=(−L, 0).\vec{r} = (-L,\ 0).

Why? The engine is behind the CoM, so its xx-coordinate is −L-L.

The cross product (2D torque = scalar)

In 2D, τ=rxFy−ryFx\tau = r_x F_y - r_y F_x: τ=(−L)(Tsin⁡δ)−(0)(Tcos⁡δ)=−L Tsin⁡δ.\tau = (-L)(T\sin\delta) - (0)(T\cos\delta) = -L\,T\sin\delta.

Why the small-angle form? Gimbals move only a few degrees; sin⁡δ≈δ\sin\delta\approx\delta is accurate to <0.5% at 10°, making control math linear.

Useful axial force loss

Tilting the engine "wastes" some thrust that no longer pushes forward: Taxial=Tcos⁡δ,loss=T(1−cos⁡δ)≈12Tδ2.T_{axial} = T\cos\delta, \qquad \text{loss} = T(1-\cos\delta)\approx \tfrac{1}{2}T\delta^2.

Why 12Tδ2\tfrac12 T\delta^2? Taylor: cos⁡δ≈1−δ2/2\cos\delta \approx 1-\delta^2/2. The loss is second order — small — which is why gimballing is "cheap" in performance but "strong" in torque (torque is first order in δ\delta).

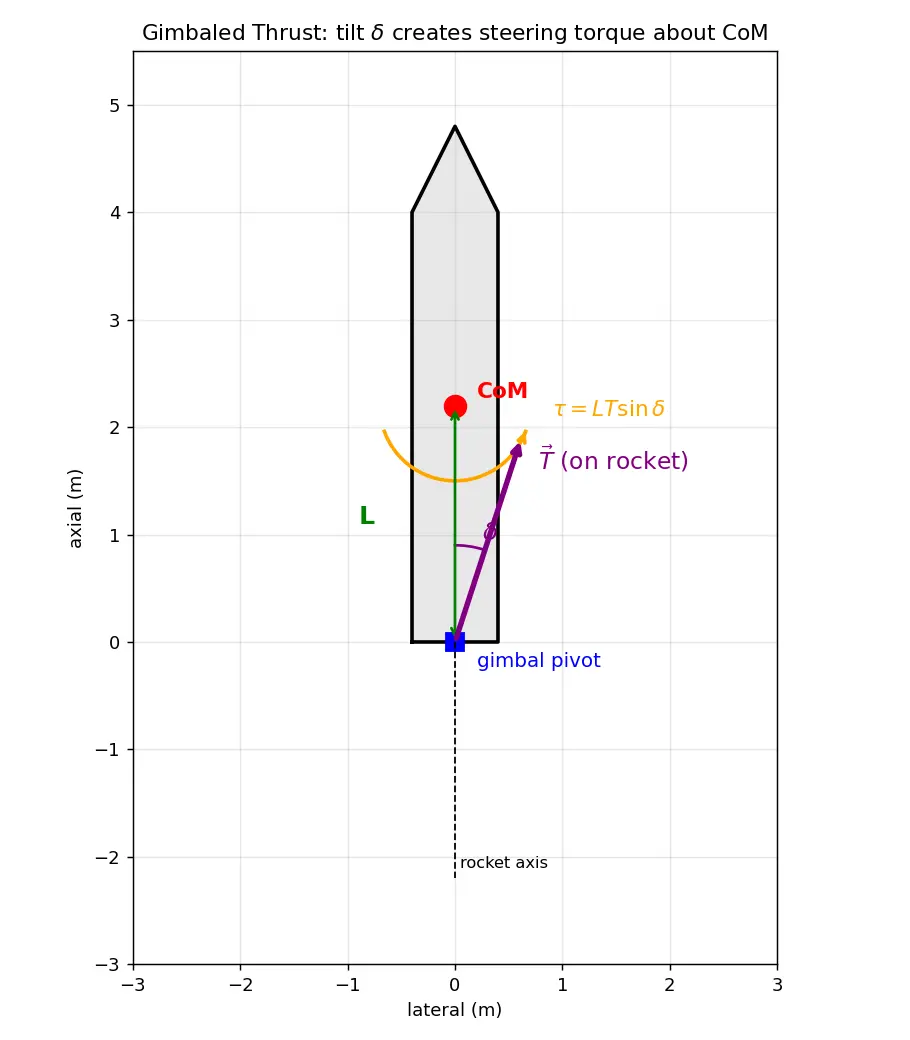

Figure — Propulsive forces — thrust misalignment, gimbal angle

HOW to use it — angular acceleration & steering

Newton's rotational law: τ=I θ¨\tau = I\,\ddot\theta, with II the pitch moment of inertia. θ¨=τI=−L T δI.\ddot\theta = \frac{\tau}{I} = -\frac{L\,T\,\delta}{I}.

So a constant gimbal angle gives constant angular acceleration → the rocket pitches over. Guidance computers command δ(t)\delta(t) continuously to keep the desired attitude (this is the basis of TVC — Thrust Vector Control).

Worked examples

Common mistakes

Flashcards

What produces a torque on a rocket from its engine?
Thrust applied off the CoM or at an angle to the roll axis (lever arm LL).
Gimbal control torque formula (small angle)?
τ≈L T δ\tau \approx L\,T\,\delta, with LL = CoM-to-pivot distance, TT = thrust, δ\delta = gimbal angle in radians.
Why is the axial thrust loss from gimballing small?
Loss =T(1−cos⁡δ)≈12Tδ2= T(1-\cos\delta)\approx \tfrac12 T\delta^2 is second order in δ\delta, while torque is first order.
Angular acceleration from a held gimbal?
θ¨=τ/I=−LTδ/I\ddot\theta = \tau/I = -LT\delta/I.
Torque from a lateral thrust offset dd (no tilt)?
τ=d T\tau = d\,T.
Why must radians be used in sin⁡δ\sin\delta and τ=Iθ¨\tau=I\ddot\theta?
The small-angle approximation and rotational dynamics are defined in radians; degrees give wrong numbers.
Difference between misalignment and gimbal angle?
Misalignment is an unintended error torque the controller must fight; gimbal angle is a commanded tilt used to steer.
How does the CoM shift affect LL during flight?
As propellant burns the CoM moves forward, increasing LL, changing control authority — the controller must adapt.
Recall Feynman: explain to a 12-year-old

Imagine pushing a shopping cart from the very back. If you push straight up the middle, it rolls forward. But if you push a little to one side, the cart spins as well as moves. A rocket is the same: the engine pushes from the back. If it pushes perfectly straight, the rocket flies straight. If the push is tilted a tiny bit, the rocket also turns. Engineers tilt the engine on purpose — just a few degrees — to steer, like using the handle of a big paddle to turn a boat. Tilting a little barely reduces the forward push but gives a strong turn, which is why it works so well.

Connections

Concept Map

Newton 3rd law

magnitude from

direction from

controlled tilt

not through CoM

angle err or offset d

deliberate torque

tau = r x F

small angle

depends on

enables

tilt reduces axial

Expelled exhaust mass

Thrust vector T

Mass flow and exhaust velocity

Nozzle pointing

Gimbal angle delta

Thrust misalignment

Unwanted torque

Control torque about CoM

Torque formula

tau approx -L T delta

Lever arm L

Steering and stabilizing

Axial force loss

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, rocket ka engine peeche se gas nikaal kar aage push deta hai — yahi thrust hai, aur Newton ke 3rd law se aata hai. Lekin thrust ek vector hai, sirf ek number nahi. Agar ye force rocket ke center of mass (CoM) ke through seedha jaaye, to rocket sirf aage badhega. Par agar force thoda tilt ho (angle δ\delta), ya CoM se side me lage, to ek torque ban jaata hai jo rocket ko ghuma deta hai. Isi torque ka formula hai τ=L T sin⁡δ≈LTδ\tau = L\,T\,\sin\delta \approx L T \delta, jahan LL = CoM se engine pivot tak ki doori (lever arm).

Ab mazedaar baat: engineers is "problem" ko steering tool bana lete hai. Engine ko thoda tilt karke (yahi gimbal angle hai) wo jaan-boojh kar torque generate karte hai taaki rocket sahi direction me point kare — isko Thrust Vector Control (TVC) kehte hai. Aur best part: tilt karne se thrust ka jo loss hota hai wo 12Tδ2\tfrac12 T\delta^2 (delta ka square) hai — bahut chhota — jabki torque TδT\delta ke proportional (linear) hai. Matlab thoda tilt, bahut turning, kam loss. Full paisa vasool!

Ek important trap: kabhi bhi sin⁡δ\sin\delta me degrees mat daalna, hamesha radians. Aur ye mat sochna ki "engine CoM pe hai to torque zero" — engine hamesha CoM ke peeche hota hai, isliye lever arm LL hamesha present hai. Chhoti si 0.5°0.5° manufacturing misalignment bhi ek constant disturbance torque de sakti hai jise control system ko continuously fight karna padta hai. Isliye rocket design me thrust alignment ekdum critical cheez hai.
