Moment of inertia I = Σmᵢrᵢ² — concept

WHAT is moment of inertia?

Key points to lock in:

$r_i$ is the perpendicular distance to the axis — NOT the distance to the origin.
$I$ is not a fixed property of an object; change the axis, and $I$ changes.
It is always positive (sum of $m r^2$ , both squared/positive).

WHY does distance get squared? (Derivation from first principles)

We don't accept $I=\sum m_i r_i^2$ as a given. Let's build it.

Step 1 — Start with what we already trust: kinetic energy. A single particle moving with speed $v$ has kinetic energy $KE = \tfrac12 m v^2.$ Why this step? This is rock-solid linear mechanics — we use it as our foundation.

Step 2 — Convert linear speed to rotational speed. When a body rotates rigidly about an axis with angular velocity $\omega$ , every particle goes in a circle of radius $r_i$ . The speed of that particle is $v_i = \omega r_i.$ Why this step? All particles share the same $\omega$ (rigid body), but the one farther out (bigger $r_i$ ) moves faster. This is the heart of where $r$ enters.

Step 3 — Add up the kinetic energy of all particles. $KE_{\text{rot}} = \sum_i \tfrac12 m_i v_i^2 = \sum_i \tfrac12 m_i (\omega r_i)^2 = \tfrac12 \left(\sum_i m_i r_i^2\right)\omega^2.$ Why this step? $\omega$ is common to everyone, so we pull $\tfrac12\omega^2$ out. The leftover bracket is a pure property of mass-and-geometry.

Step 4 — Demand the rotational formula look like the linear one. We want $KE_{\text{rot}} = \tfrac12 I \omega^2$ to mirror $KE = \tfrac12 m v^2$ . Matching the two expressions forces: $\boxed{I = \sum_i m_i r_i^2}$ Why this step? The square on $r$ is inherited from the square on $v$ in kinetic energy, combined with $v=\omega r$ . That is the deep reason distance is squared — not an arbitrary choice.

Formula Summary of the analogy

Linear	Rotational
mass $m$	moment of inertia $I=\sum m_i r_i^2$
velocity $v$	angular velocity $\omega$
$KE=\tfrac12 mv^2$	$KE=\tfrac12 I\omega^2$

HOW to compute it — worked examples

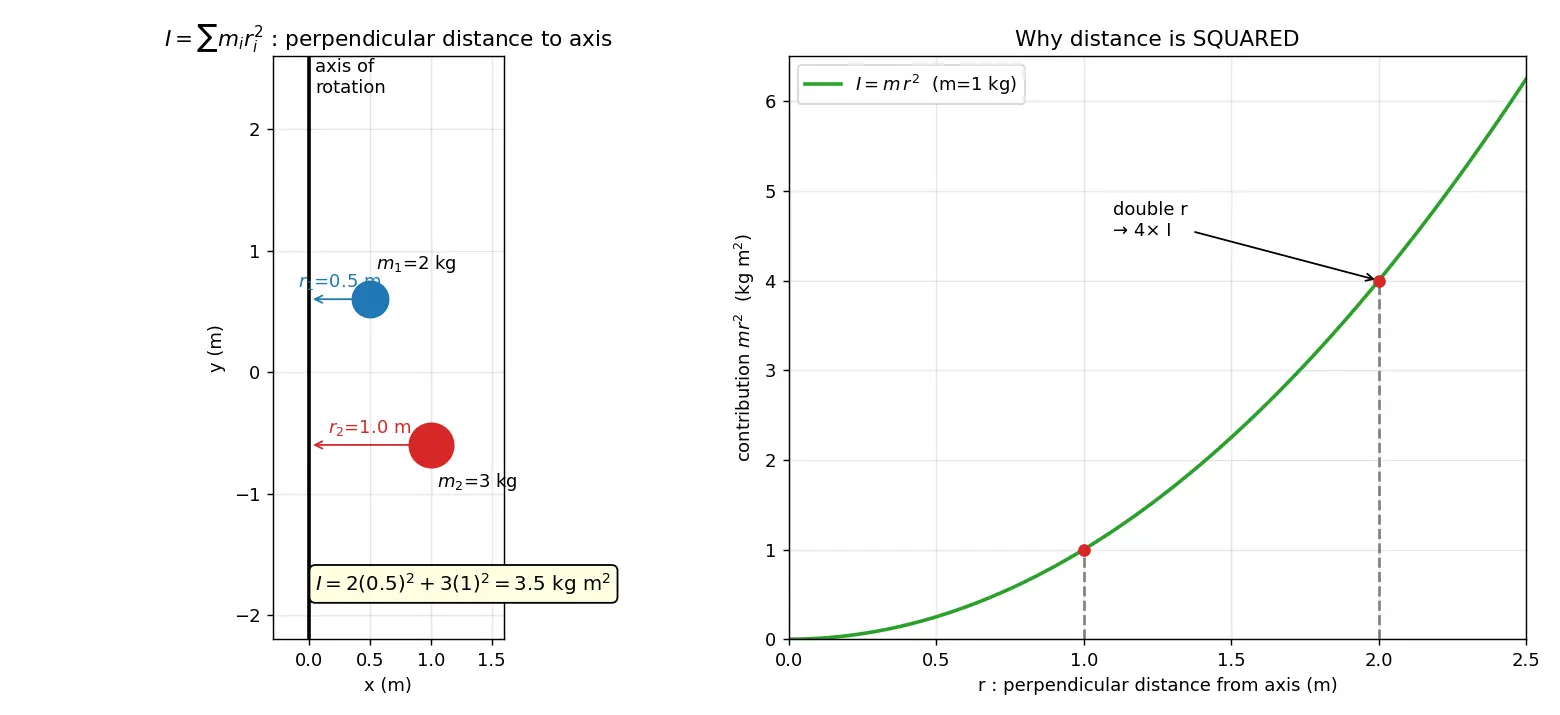

Figure — Moment of inertia I = Σmᵢrᵢ² — concept

Forecast-then-Verify

Common mistakes (Steel-man + fix)

Recall Feynman: explain it to a 12-year-old

Imagine spinning a ball tied to a string. If the string is short, it's easy to whirl. If you let out a long string, the ball is way harder to get spinning and harder to stop. Moment of inertia is just "how hard is this to spin." Heavy things are hard to spin — and things that are spread out far from the centre are extra hard, because the far-out parts have to swing through huge circles really fast. That's why the "far away" parts count double-extra (we square the distance).

Active-recall flashcards

#flashcards/physics

Define moment of inertia for point masses.

I=\sum_i m_i r_i^2

, where

r_i

is the perpendicular distance of mass

m_i

from the axis. Units

\text{kg m}^2

I=\sum m_i r_i^2

, what exactly is

r_i

The perpendicular distance from the particle to the axis of rotation (not distance to the origin).

Why is the distance squared in moment of inertia?

Because

KE=\tfrac12 mv^2

has

v^2

, and

v=\omega r

, so

v^2=\omega^2 r^2

— the square on

r

is inherited from kinetic energy.

What rotational quantity plays the role of mass in

KE=\tfrac12 I\omega^2

The moment of inertia

I

I

a fixed property of an object?

No — it depends on the chosen axis. Same object has different

I

for different axes.

A mass sitting exactly on the axis contributes how much to

I

Zero, because

r=0

m r^2=0

If you double a particle's distance from the axis,

I

changes by what factor?

4× (since

r^2

Hoop vs disk (same

M

R

): which has larger

I

about the central axis, and why?

The hoop (

MR^2

); all its mass is at max radius, vs disk (

\tfrac12 MR^2

) with mass nearer centre.

Why does a skater spin faster pulling arms in?

Pulling in lowers

r

, lowering

I

; angular momentum

L=I\omega

is conserved, so

\omega

increases.

Connections

Kinetic energy ½mv² — the foundation we derived $I$ from
Rotational kinetic energy ½Iω² — direct application
Angular velocity ω — supplies $v=\omega r$
Centre of mass (first moment Σmr) — contrast: linear in $r$ , not squared
Parallel axis theorem — how $I$ changes when the axis shifts
Angular momentum L = Iω — why skaters speed up
Torque τ = Iα — Newton's 2nd law for rotation

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, moment of inertia ka matlab simple hai: jaise straight line mein mass batata hai cheez ko move karana kitna mushkil hai, waise hi rotation mein moment of inertia $I$ batata hai cheez ko ghumana kitna mushkil hai. Formula hai $I=\sum m_i r_i^2$ — yaani har particle ka mass multiply karo uske axis se perpendicular distance ke square se, aur sab add kar do. Yahan $r$ origin se distance nahi, axis se perpendicular distance hai — ye point yaad rakhna, warna galti pakki.

Ab sabse interesting baat: distance square kyun hota hai? Hum ratte nahi maarte, derive karte hain. Kinetic energy $KE=\tfrac12 mv^2$ se start karo, aur rigid body mein har particle ka $v=\omega r$ . Square karne pe $v^2=\omega^2 r^2$ aata hai, isiliye $r$ ka square aata hai. Sab particles ka same $\omega$ hota hai, to use bahar nikaal do, aur jo bachta hai woh hai $I=\sum m_i r_i^2$ . Bas, ye hai asli reason.

Practical feel: agar ek mass ko axis se 1 m se 2 m door le jao, to $I$ 4 guna ho jaata hai, 2 guna nahi — kyunki square hai. Isiliye skater jab arms andar leta hai ( $r$ kam), to $I$ kam, aur angular momentum conserve hone ki wajah se $\omega$ tezi se badh jaata hai — woh fatafat ghoomne lagta hai. Aur yaad rakho: $I$ object ki fixed property nahi, axis badlo to $I$ badal jaayega. Exam mein hamesha axis pehle define karo, phir $\sum m r^2$ lagao.
