Intuition The Big Picture
A rocket in flight has almost no aerodynamic control at low speed (no air to push against with fins). So how do you steer it? You tilt the engine so the thrust no longer points straight through the center of mass. That off-axis thrust creates a torque that rotates the vehicle. Steering the push itself is called Thrust Vector Control (TVC) .
WHY it works: torque = = = force × \times × lever arm. Tilt the thrust → sideways force component → moment about the center of mass → rotation.
WHAT the "vector" is: the thrust is a vector ; TVC changes its direction , not (mostly) its magnitude.
HOW we quantify it: with TVC deflection angles (single-gimbal = 1 angle; dual-gimbal = 2 angles for full pitch+yaw authority).

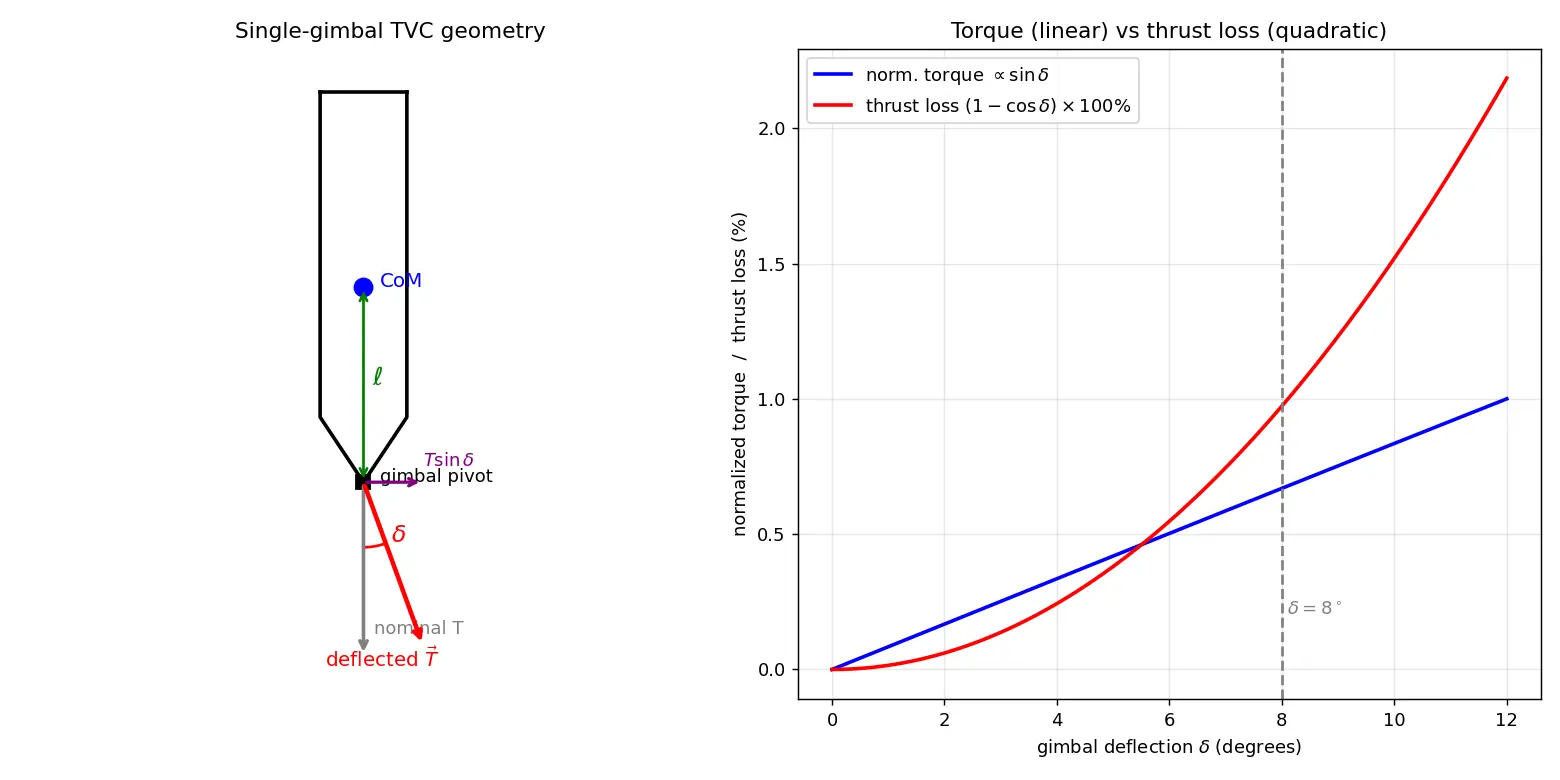

Attach axes to the rocket: x b x_b x b = roll axis (nose direction), y b y_b y b = pitch axis, z b z_b z b = yaw axis. The nominal thrust points along − x b -x_b − x b (out the back, pushing forward). The engine pivots about a gimbal point located a distance ℓ \ell ℓ behind the center of mass (CoM).
The gimbal point is the mechanical pivot. The moment arm ℓ \ell ℓ is the distance from the CoM to that pivot along x b x_b x b .
We derive the moment produced by tilting the thrust. Do it in 2D first (single-gimbal), then generalize.
Intuition Read the formula
M = ℓ T δ M=\ell T\delta M = ℓ T δ means control authority grows with engine thrust T T T , moment arm ℓ \ell ℓ , and deflection δ \delta δ . A small angle can produce a large torque because ℓ \ell ℓ and T T T are large. Only a tiny piece of thrust, T sin δ T\sin\delta T sin δ , is "wasted" sideways.
This is the key trade: torque is linear in δ \delta δ , thrust loss is quadratic in δ \delta δ — a fabulous deal at small angles.
The engine pivots about one axis → one deflection angle δ \delta δ . Produces torque in one plane (e.g. pitch or yaw). Cheaper, lighter, but needs a partner (a second engine, vernier, or roll control) for full 3-axis control.
Definition Dual-gimbal (gimbaled in two axes)
The engine pivots about two orthogonal axes → two angles: pitch deflection δ p \delta_p δ p and yaw deflection δ y \delta_y δ y . Gives torque in both planes from a single engine.
Note: a single centered engine cannot make roll torque (thrust line passes near the roll axis). Roll needs canted thrusters, differential gimbaling of multiple engines, fins, or RCS.
Worked example Example 1 — required gimbal angle for a commanded angular acceleration
A rocket has T = 800 kN T=800\text{ kN} T = 800 kN , moment arm ℓ = 6 m \ell=6\text{ m} ℓ = 6 m , pitch moment of inertia I = 1.2 × 10 5 kg⋅m 2 I=1.2\times10^{5}\ \text{kg·m}^2 I = 1.2 × 1 0 5 kg⋅m 2 . The autopilot wants angular acceleration ω ˙ = 0.5 rad/s 2 \dot\omega = 0.5\ \text{rad/s}^2 ω ˙ = 0.5 rad/s 2 . Find gimbal angle δ \delta δ .
Step 1: required torque M = I ω ˙ = 1.2 × 10 5 × 0.5 = 6.0 × 10 4 M = I\dot\omega = 1.2\times10^5 \times 0.5 = 6.0\times10^4 M = I ω ˙ = 1.2 × 1 0 5 × 0.5 = 6.0 × 1 0 4 N·m.
Why? Newton's rotational law M = I ω ˙ M=I\dot\omega M = I ω ˙ : torque produces angular acceleration.
Step 2: invert M = ℓ T δ M=\ell T\delta M = ℓ T δ : δ = M ℓ T = 6.0 × 10 4 6 × 8 × 10 5 = 0.0125 \delta = \dfrac{M}{\ell T}=\dfrac{6.0\times10^4}{6\times 8\times10^5}=0.0125 δ = ℓ T M = 6 × 8 × 1 0 5 6.0 × 1 0 4 = 0.0125 rad.
Why? Small-angle law lets us solve linearly.
Step 3: convert: δ = 0.0125 × 180 π ≈ 0.72 ∘ \delta = 0.0125\times \tfrac{180}{\pi}\approx 0.72^\circ δ = 0.0125 × π 180 ≈ 0.7 2 ∘ . Tiny! Why this matters: confirms only small gimbal angles are needed → light actuators, small thrust loss.
Worked example Example 2 — thrust loss at max deflection
Max gimbal δ max = 8 ∘ \delta_\text{max}=8^\circ δ max = 8 ∘ . What fraction of thrust is lost axially, and how much sideways force is generated for T = 800 T=800 T = 800 kN?
Step 1: loss = 1 − cos 8 ∘ = 1 − 0.990 = 0.0097 = 0.97 % =1-\cos 8^\circ = 1-0.990 = 0.0097 = 0.97\% = 1 − cos 8 ∘ = 1 − 0.990 = 0.0097 = 0.97% . Why? Axial thrust is T cos δ T\cos\delta T cos δ .
Step 2: side force = T sin 8 ∘ = 800 × 0.139 = 111 =T\sin 8^\circ = 800\times0.139=111 = T sin 8 ∘ = 800 × 0.139 = 111 kN. Why? Transverse component steers.
Insight: ~1% loss buys 111 kN of steering force — an excellent trade.
Worked example Example 3 — dual-gimbal combined command
Autopilot commands δ p = 3 ∘ \delta_p = 3^\circ δ p = 3 ∘ , δ y = 4 ∘ \delta_y=4^\circ δ y = 4 ∘ . Gimbal hard limit is 6 ∘ 6^\circ 6 ∘ . Is it feasible?
Step 1: δ tot = 3 2 + 4 2 = 5 ∘ \delta_\text{tot}=\sqrt{3^2+4^2}=5^\circ δ tot = 3 2 + 4 2 = 5 ∘ . Why? Vector sum of orthogonal deflections.
Step 2: 5 ∘ < 6 ∘ 5^\circ < 6^\circ 5 ∘ < 6 ∘ ✓ feasible.
If instead δ p = 5 ∘ , δ y = 5 ∘ \delta_p=5^\circ,\delta_y=5^\circ δ p = 5 ∘ , δ y = 5 ∘ : δ tot = 7.07 ∘ > 6 ∘ \delta_\text{tot}=7.07^\circ>6^\circ δ tot = 7.0 7 ∘ > 6 ∘ → must be clipped (scale both down by 6 / 7.07 6/7.07 6/7.07 ) to respect the physical limit.
δ \delta δ to get more forward thrust."
Why it feels right: more gimbal = more "engine action," so surely more push. Reality: gimbaling reduces axial thrust (T cos δ T\cos\delta T cos δ ) and only creates a sideways/turning force. Forward thrust is maximized at δ = 0 \delta=0 δ = 0 . Fix: remember thrust is a fixed-magnitude vector you're rotating , not amplifying.
Common mistake "Just add the two gimbal angles for the total limit:
δ p + δ y \delta_p+\delta_y δ p + δ y ."
Why it feels right: limits usually add. Reality: they're perpendicular components of one tilt → they combine as δ p 2 + δ y 2 \sqrt{\delta_p^2+\delta_y^2} δ p 2 + δ y 2 , not linearly. Fix: treat deflection as a 2D vector; the magnitude hits the mechanical stop.
Common mistake "A single centered gimbaled engine can control roll too."
Why it feels right: it controls pitch and yaw, why not roll? Reality: the thrust line passes through/near the roll axis, so the moment arm about roll is ~zero → no roll torque. Fix: roll needs canted engines, differential gimbaling, or RCS.
M = ℓ T δ M=\ell T\delta M = ℓ T δ for any angle."
Why it feels right: it's the boxed formula. Reality: it's the small-angle form; the exact law is M = ℓ T sin δ M=\ell T\sin\delta M = ℓ T sin δ . Fix: use sin δ \sin\delta sin δ beyond ~10°.
Recall Quick self-test (cover the answers)
What physical quantity does TVC change? → the direction of the thrust vector.
Exact torque formula? → M = ℓ T sin δ M=\ell T\sin\delta M = ℓ T sin δ .
Why is steering "cheap"? → torque is O ( δ ) \mathcal O(\delta) O ( δ ) but thrust loss is O ( δ 2 ) \mathcal O(\delta^2) O ( δ 2 ) .
Difference single vs dual gimbal? → 1 angle/1 plane vs 2 angles (pitch+yaw)/2 planes.
Why can't one centered engine control roll? → zero moment arm about roll axis.
Combined gimbal limit rule? → δ p 2 + δ y 2 ≤ δ max \sqrt{\delta_p^2+\delta_y^2}\le\delta_\text{max} δ p 2 + δ y 2 ≤ δ max .
Recall Feynman: explain to a 12-year-old
Imagine pushing a shopping cart from behind with a stick. If you push straight through the middle, it goes straight. If you push a little off to the side , the cart turns. A rocket does the same: the flame is its "push." By tilting the engine a tiny bit, the push points slightly sideways and spins the rocket to point where we want. Tilting only a few degrees is enough because the engine is very strong and sits far behind the rocket's balance point — so a small tilt makes a big turn while barely slowing the rocket down.
"TILT to TURN, straight to STAY."
And for the trade: "Torque is Tiny-angle-Linear, Loss is Little-and-squared." (M ∝ δ M\propto\delta M ∝ δ , loss ∝ δ 2 \propto\delta^2 ∝ δ 2 .)
What does Thrust Vector Control physically change about the thrust? Its direction (the thrust vector is tilted), not primarily its magnitude.
Exact single-gimbal control torque formula? M = ℓ T sin δ M=\ell T\sin\delta M = ℓ T sin δ , with
ℓ \ell ℓ = CoM-to-gimbal arm,
T T T = thrust,
δ \delta δ = deflection.
Small-angle form of the control torque? M ≈ ℓ T δ M\approx \ell T\delta M ≈ ℓ T δ (since
sin δ ≈ δ \sin\delta\approx\delta sin δ ≈ δ ).
Why is TVC steering cheap in thrust? Torque grows linearly (
∝ δ \propto\delta ∝ δ ) but thrust loss
1 − cos δ ≈ δ 2 / 2 1-\cos\delta\approx\delta^2/2 1 − cos δ ≈ δ 2 /2 grows quadratically, so small angles give lots of torque for tiny loss.
Axial (useful) thrust when gimbaled by δ \delta δ ? Single-gimbal vs dual-gimbal? Single = 1 pivot axis, 1 angle, torque in one plane; dual = 2 orthogonal axes, angles
δ p , δ y \delta_p,\delta_y δ p , δ y , torque in pitch and yaw.
How do dual-gimbal deflections combine against the hard limit? As a vector magnitude
δ p 2 + δ y 2 ≤ δ max \sqrt{\delta_p^2+\delta_y^2}\le\delta_\text{max} δ p 2 + δ y 2 ≤ δ max .
Gimbal angle for commanded angular acceleration ω ˙ \dot\omega ω ˙ ? δ = I ω ˙ ℓ T \delta=\dfrac{I\dot\omega}{\ell T} δ = ℓ T I ω ˙ (from
M = I ω ˙ = ℓ T δ M=I\dot\omega=\ell T\delta M = I ω ˙ = ℓ T δ ).
Why can a single centered gimbaled engine not control roll? Its thrust line lies along/near the roll axis → moment arm ≈ 0 → no roll torque; roll needs canted engines/differential gimbal/RCS.
At what deflection is forward thrust maximum? At
δ = 0 \delta=0 δ = 0 ; any gimbal reduces axial thrust to
T cos δ T\cos\delta T cos δ .
No aero control at low speed
Thrust Vector Control TVC
Engine about gimbal point
Vector, changes direction
Axial T cos delta + transverse T sin delta
Control torque M = ell T sin delta
Intuition Hinglish mein samjho
Dekho, jab rocket dheere chal raha hota hai (ya space mein hota hai) tab hawa hoti hi nahi ki fins se steer karo. Toh trick ye hai — engine ko hi thoda tilt kar do. Jab thrust seedha CoM se nahi jaata, toh ek torque ban jaata hai aur rocket ghoom jaata hai. Isi ko Thrust Vector Control (TVC) bolte hain: hum thrust ka direction change karte hain, uski power nahi. Formula simple hai: M = ℓ T sin δ M=\ell T\sin\delta M = ℓ T sin δ , jahan ℓ \ell ℓ = CoM se gimbal tak ki doori, T T T = thrust, δ \delta δ = tilt angle. Chhote angle par M ≈ ℓ T δ M\approx \ell T\delta M ≈ ℓ T δ .
Sabse mast baat: steering bahut sasta hai. Torque toh δ \delta δ ke seedhe proportional badhta hai, lekin forward thrust ka nuksaan sirf δ 2 / 2 \delta^2/2 δ 2 /2 (quadratic) hota hai. Matlab 8 ∘ 8^\circ 8 ∘ tilt par sirf ~1% thrust loss, lekin turning force kaafi mil jaata hai. Isliye actual gimbal angles bahut chhote hote hain — kabhi ek do degree hi.
Single-gimbal ka matlab engine ek hi axis par ghoomta hai — sirf pitch ya yaw. Dual-gimbal mein do axis, do angle δ p \delta_p δ p aur δ y \delta_y δ y , toh pitch aur yaw dono control ho jaate hain ek hi engine se. Par yaad rakho — gimbal ki hard limit dono ke vector sum par lagti hai: δ p 2 + δ y 2 ≤ δ max \sqrt{\delta_p^2+\delta_y^2}\le\delta_\text{max} δ p 2 + δ y 2 ≤ δ max , seedha add nahi karte. Aur ek centered engine se roll control nahi hota, kyunki roll axis par moment arm zero hota hai — uske liye canted engine ya RCS chahiye. Bas yahi core hai, exam mein δ = I ω ˙ ℓ T \delta=\frac{I\dot\omega}{\ell T} δ = ℓ T I ω ˙ nikaalna aana chahiye.
