Intuition The one core ideaA rocket steers by tilting its engine so the push no longer points straight through the rocket's balance point — that off-centre push twists the whole vehicle around. Everything on this page exists to let you read one sentence: a small tilt δ T ℓ M = ℓ T δ
This is the prerequisite page for Thrust Vector Control . We build every letter, arrow, and word that the parent note leans on, starting from things a 12-year-old already knows: pushes, arrows, and turning a spanner.
Before any physics, we need the idea of a vector .

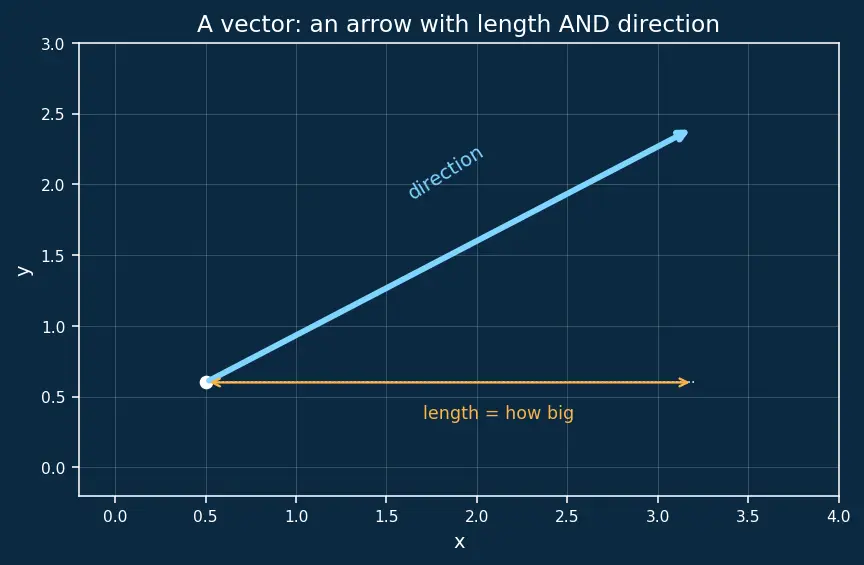

A vector is an arrow. It has two things: a length (how big) and a direction (which way it points). We draw it as an actual arrow on paper.
The rocket's engine push is a vector. Its length is how hard the engine pushes; its direction is which way the push points. TVC is the art of changing that direction while keeping the length nearly the same.
Intuition Why we care about "vector"The whole topic hinges on separating an arrow into two smaller arrows: a part that pushes you forward and a part that shoves you sideways. You cannot do that split until you accept that an arrow is a thing with both size and direction.
An arrow that points diagonally can always be described by how far right and how far up it reaches. Those two numbers are its components .
The components of a vector are its shadows on two perpendicular directions. If the arrow leans, one shadow points along the rocket's length (axial) and the other points sideways (transverse).

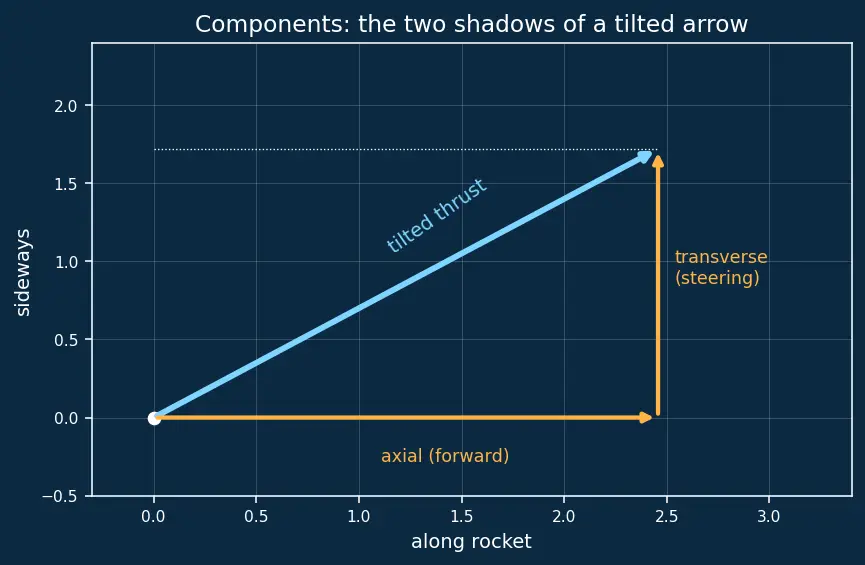

Look at the figure: the diagonal cyan arrow is the tilted thrust. Drop a straight line down and across — the amber pieces are the axial part (pushes forward) and the transverse part (steers). The whole steering story is: tilting turns a bit of the forward part into a sideways part.
To measure "how much" we tilt, we need an angle .
An angle measures the amount of turn between two directions, in degrees (a full circle is 36 0 ∘ radians (a full circle is 2 π δ
When we tilt the arrow by δ right triangle (a triangle with one square corner).
Intuition Why a right triangle appearsThe axial and transverse directions are perpendicular — that square corner is the right angle. The tilted thrust is the sloped side (the longest side, the hypotenuse ). This triangle is where trigonometry enters.
We need a rule that turns the angle δ trigonometry , and the two tools are sin cos
Intuition Why THESE tools and not others?We want to answer "if I tilt a fixed-length arrow by δ That is exactly the question cos sin

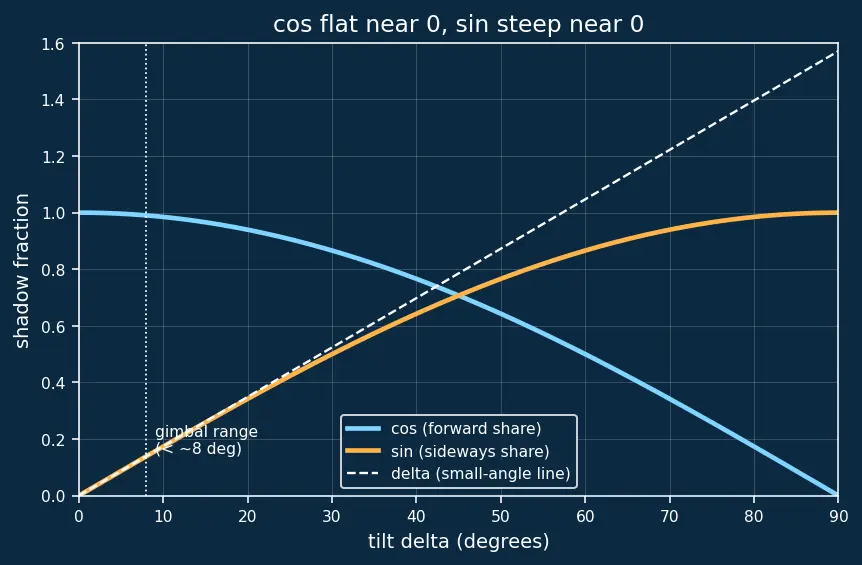

Two facts you will reuse constantly:
That last pair of sentences is the secret of "steering is cheap", and it comes purely from the shapes of these two curves near zero — see Small-Angle Approximation .
A radian is an angle measured so that a full turn is 2 π ≈ 6.283 π /180
Intuition The near-zero trickWhen δ measured in radians , the sloped side and the sideways shadow are almost equal, so sin δ ≈ δ cos δ ≈ 1 − 2 δ 2 Small-Angle Approximation .
We will not re-derive it here; we only need to trust that for δ ≤ 8 ∘ 1%
Thrust T newtons , N) the engine makes by throwing mass out the back. See Rocket Thrust Equation for where its size comes from. For steering, we treat T vector of fixed length that we may rotate.
Key mindset the parent note demands: TVC rotates this arrow, it does not lengthen it. The engine always pushes with the same strength T
Definition Center of massThe center of mass is the single point where the rocket balances — the point that moves as if all the mass were squeezed into it. A push through this point slides the rocket; a push off this point spins it.
The CoM drifts forward as fuel burns off — that is Center of Mass Migration , and it changes the lever length below.
Now the payoff. A force that misses the balance point creates a turning effort .
The moment arm ℓ
Torque M Torque and Moment Arm .
Intuition Why torque, and why the sideways part only?The forward part of the thrust points through the balance point — a spanner pushed straight down its own handle turns nothing. Only the sideways part (T sin δ sin
Definition Moment of inertiaMoment of inertia I I
Intuition Closing the loopTilt δ ⇒ T sin δ ⇒ M = ℓ T sin δ ⇒ ω ˙ = M / I Attitude Control Autopilot runs this chain backwards : it decides the ω ˙ δ
Vector = arrow with size and direction
Components = axial and sideways shadows
Angle delta = tilt amount
Sine and cosine = shadow lengths
Small-angle sin delta approx delta
Thrust T = engine push vector
Center of mass = balance point
Moment arm l = CoM to gimbal
Torque M = l times sideways force
Newton rotation M = I omega-dot
Moment of inertia I = spin stubbornness
Cover the right side and test yourself.
What is a vector? An arrow with a length and a direction.
What are the components of a tilted thrust? Its axial shadow (forward) and its transverse shadow (sideways).
Which trig function gives the forward part of a tilted push? Cosine, T cos δ
Which trig function gives the sideways (steering) part? Sine, T sin δ
Why is sin δ ≈ δ The tilt is only a few degrees (radians), where the sine curve is almost a straight line.
What is the center of mass? The balance point; a force through it slides, a force off it spins.
What is the moment arm ℓ Distance from the CoM to where the steering force acts (the spanner length).
What is torque M Turning effort = sideways force × M = ℓ T sin δ
Why does only the sideways thrust make torque? The forward part points through the CoM and has zero moment arm.
What is moment of inertia I Rotational stubbornness — resistance to changing spin rate.
Which law links torque to angular acceleration? M = I ω ˙ F = ma
