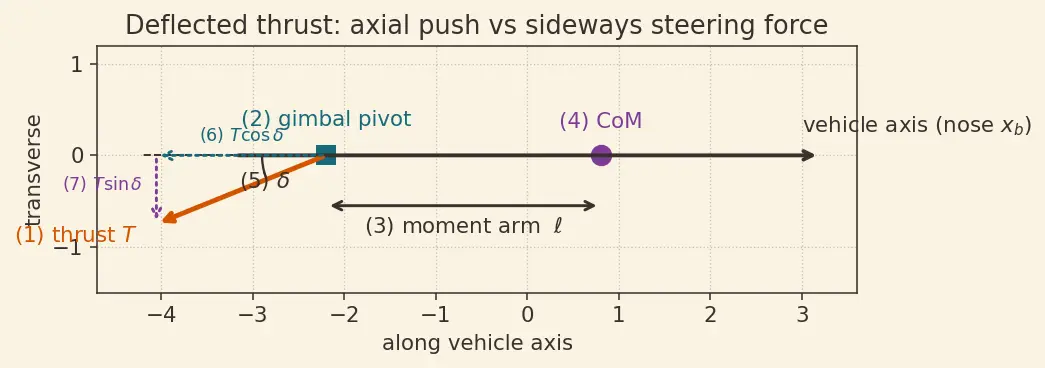

Read the figure (s01). Numbered callouts mark each defined quantity: (1) the orange arrow is the thrust T pivoting at (2) the teal gimbal square, a distance (3)ℓ (double-headed arrow) behind (4) the plum centre-of-mass dot. The dashed line is the undeflected thrust direction; the small arc (5) labelled δ is the deflection. The dotted teal arrow (6) is the axial piece Tcosδ (forward push) and the dotted plum arrow (7) is the transverse piece Tsinδ (steering force). Every solution below is just this picture with numbers.
What we decide: at 25∘ the small-angle shortcut is no longer trustworthy.
Why: the linear law M≈ℓTδ is only the first term of sinδ=δ−δ3/6+…. Converting first, δ=25∘×180π=0.4363 rad, so sinδ=0.4226, and the linear form overshoots by
0.42260.4363−0.4226=3.2%.Answer: use the exact law M=ℓTsinδ. The small-angle law is only valid to about ±8∘.
Recall Solution L1·Q2
Resolve the tilted thrust vector along and across the vehicle axis (this is just the trigonometry of a rotated arrow of length T, exactly the two dotted arrows in figure s01):
(a) Axial (useful) thrust:Taxial=Tcosδ.
(b) Transverse (steering) force:T⊥=Tsinδ.
The steering force Tsinδ times the arm ℓ is exactly the torque M=ℓTsinδ.
Step 1 — convert the angle.δ=4∘×180π=0.06981 rad. Why: the linear law needs radians (our units convention).
Step 2 — apply M≈ℓTδ.M=5×(500×103)×0.06981=1.745×105N⋅m.Why this step: torque is the steering force Tsinδ acting through the lever ℓ, i.e. M=ℓTsinδ; since 4∘ is well inside the small-angle window we replace sinδ by δ (error <0.1%), turning the law into the linear product ℓTδ that we can evaluate directly. We multiply the three given quantities because torque grows with each: more lever, more thrust, or more tilt all twist the vehicle harder.
Answer:M≈1.75×105 N·m. This torque feeds directly into Rigid Body Rotational Dynamics via M=Iω˙.
Recall Solution L2·Q2
Step 1 — needed torque (Newton's rotational law, Torque and Moment Arm):
M=Iω˙=8.0×104×0.6=4.8×104N⋅m.Why: to spin the rocket up at ω˙ you must supply exactly the torque M=Iω˙ — this is the rotational twin of F=ma.
Step 2 — invert the linear lawM=ℓTδ:
δ=ℓTM=5×5×1054.8×104=0.0192rad.Why: we know the torque we need and the fixed hardware (ℓ, T); the only free knob is δ, so we solve the linear law for it by dividing.
Step 3 — to degrees:δ=0.0192×π180=1.10∘.Answer: about 1.1∘ — small enough that the linear law was legitimate (self-consistent).
Convert first.δ=6∘×180π=0.10472 rad; every sin/cos below uses this radian value (the degree label is only for reading).
(a) Axial loss. Fractional loss =1−cosδ. With δ=0.10472 rad: cosδ=0.99452, so loss =0.00548=0.548%.(b) Side force.Tsinδ=5×105×sin(0.10472)=5×105×0.10453=5.226×104 N =52.3 kN.
Compare. We spend0.55% of thrust (about 2.7 kN of forward push, since 0.00548×500 kN) and gain52.3 kN of steering force — roughly a 19:1 return.
Why it works: the loss 1−cosδ≈δ2/2 is second order in δ, while the side force Tsinδ≈Tδ is first order. At small δ a first-order quantity dwarfs a second-order one — that is the whole reason gimbaling is efficient.
Recall Solution L3·Q2
Step 1 — combine into one physical tilt (state the assumption). The two deflections are perpendicular components of a single tilt. Assumption used: for small angles, a tilt of δp about one axis and δy about a perpendicular axis compose to first order into one tilt of magnitude δp2+δy2. Warning on second-order coupling: if δp or δy grew large (tens of degrees), the two rotations would not commute and the true combined tilt would pick up second-order cross-terms of order δpδy; the clean Pythagorean sum would then be only approximate. Here both angles are ≤5∘, so those cross-terms are ≲0.4% and we safely use the first-order rule.
Because this Pythagorean sum is a linear (degree-homogeneous) operation — no sin/cos enters — doing it in degrees or radians differs only by the common factor 180π, which cancels in the comparison δtot vs δmax. So we may stay in degrees:
δtot=δp2+δy2=52+52=7.071∘.Step 2 — compare to the stop.7.071∘>7∘ → not reachable, must clip.
Step 3 — clip along the same direction. Scale both components by the same factor k=δtotδmax=7.0717=0.9899 so the tilt direction is preserved while its length lands exactly on the stop:
δp′=δy′=5×0.9899=4.950∘,4.9502+4.9502=7.000∘.✓Answer: clip to (4.95∘,4.95∘).

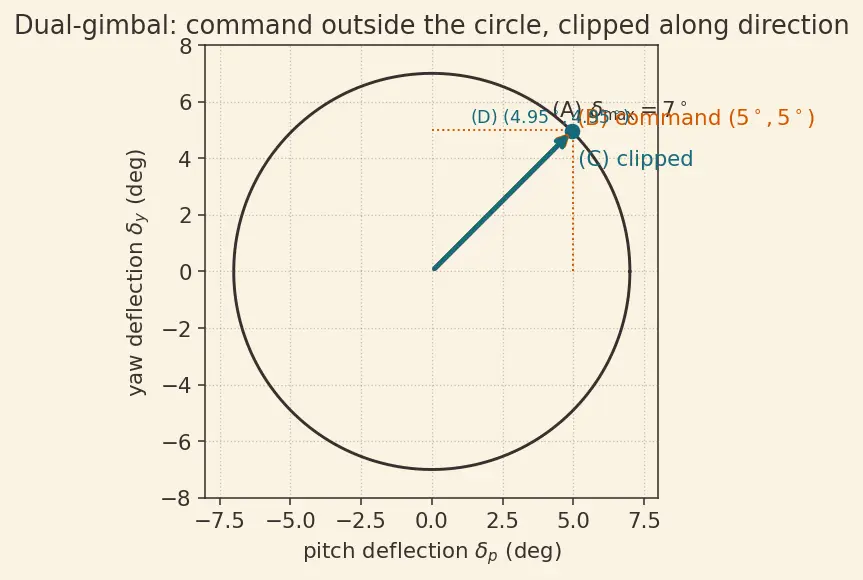

Read the figure (s02). The ink circle (A) is the mechanical gimbal limit of radius δmax=7∘ in the (δp,δy) plane. The orange arrow (B) is the raw command (5∘,5∘), whose tip pokes outside the circle — physically impossible. The teal arrow (C) is the clipped command: same direction (both point along the 45∘ diagonal), but shortened to land exactly on the circle at (D)(4.95∘,4.95∘).
(a) Early burn.
Required torque M=Iω˙=1.5×105×1.0=1.5×105 N·m.
Angle δ=ℓTM=7×9×1051.5×105=0.02381 rad =1.364∘. Comfortable.
(b) Late burn.M=6.0×104×1.6=9.6×104 N·m.
δ=4×7×1059.6×104=0.03429 rad =1.964∘.
(c) Margin. Both 1.364∘ and 1.964∘ sit well under the 8∘ stop, so yes — margin remains. But notice the trend: a shorter arm and lower thrust make each degree of gimbal less effective, so the required angle grows even as the vehicle gets lighter. The tightest gimbal demand often occurs late in the burn, exactly when ℓ and T have shrunk. This is the synthesis lesson: control authority =ℓTδ depends on all three factors, and two of them decay during flight.
Set up the relative error. The linear model gives ℓTδ; the truth is ℓTsinδ. Overprediction fraction:
ε(δ)=ℓTsinδℓTδ−ℓTsinδ=sinδδ−sinδ=sinδδ−1.First, a rough locator (with an honest error warning). The series sinδδ=1+6δ2+3607δ4+… suggests 6δ2≈0.05⇒δ≈0.3=0.5477 rad. But at this δ the next term 3607δ4=3607(0.5477)4=0.00175 is already ∼3.5% of the 0.05 we are matching — so the two-term series is only trustworthy to a couple of percent here and we must not report it as the final answer. It is a starting guess only.
Solve exactly (numerically). We solve sinδδ=1.05. Starting Newton iteration from the guess 0.5477 rad converges to
δ=0.5401rad=30.9∘
— about 1.4% below the crude series guess, consistent with the truncation warning above. (Check: sin(0.5401)=0.5144, and 0.5401/0.5144=1.050 ✓.)
Answer: the linear law reaches a 5% overprediction at about 31∘. Insight: it stays within 5% all the way to ∼31∘ — far beyond any real gimbal stop (≲8–10∘). That is why flight software can safely use the linear form: real deflections never come close to where it breaks.
Recall Solution L5·Q2
(a) Simplify. Use the half-angle identities sinδ=2sin2δcos2δ and 1−cosδ=2sin22δ:
η=2sin22δ2sin2δcos2δ=sin2δcos2δ=cot2δ.
Since cotdecreases on (0,π), η falls monotonically as δ rises — smaller deflections are always more efficient per unit of thrust sacrificed.
(b) Values (convert first: 2∘=0.03491 rad, 8∘=0.13963 rad, so the half-angles are 1∘ and 4∘).
η(2∘)=cot(1∘)=cot(0.017453 rad)=57.29. Each unit of thrust lost buys ≈57 units of steering force.
η(8∘)=cot(4∘)=cot(0.069813 rad)=14.30. Only ≈14 now.
Interpret: steering gets less thrifty as you deflect harder — the marginal return drops by a factor of four between 2∘ and 8∘. Autopilots therefore prefer many small corrections over a few large ones, and hand large-authority needs to the Reaction Control System (RCS).

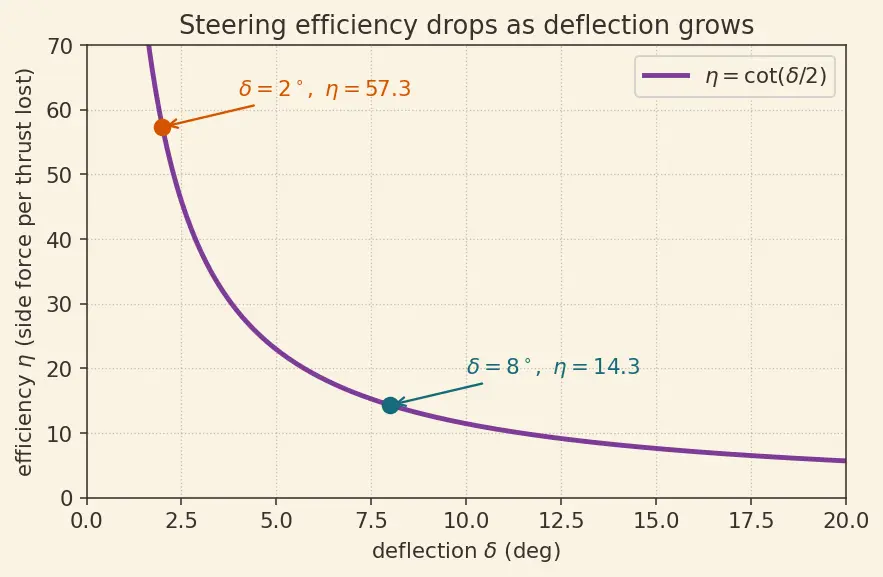

Read the figure (s03). The plum curve is η=cot(δ/2) against deflection δ in degrees. It slopes steadily downward — confirming part (a) that efficiency drops as you gimbal harder. The orange dot at 2∘ sits high (η≈57); the teal dot at 8∘ sits four times lower (η≈14), the numerical comparison of part (b).
Recall One-line takeaways (cover and recall)
Exact vs linear torque law ::: M=ℓTsinδ exact; M≈ℓTδ for δ≲8∘.
Why steering is cheap ::: side force is O(δ), thrust loss is O(δ2).
Sign of the torque ::: odd in δ — flip δ and M reverses sense, same magnitude; δ=0 gives zero torque.
Dual-gimbal limit constraint ::: δp2+δy2≤δmax (vector magnitude, not sum).
How to clip an over-command ::: scale both components by δmax/δtot to keep direction.
Where the linear law finally lies by 5% ::: near δ≈31∘, far past any real gimbal stop.
Steering efficiency form ::: η=cot(δ/2), decreasing — small deflections are thriftiest.
