Forces on a rocket in flight — thrust, aerodynamic (normal, axial), gravity

Intuition The big picture

A rocket in flight is just a body obeying $\vec F = m\vec a$ — but with a twist: it throws mass out the back and its mass changes with time. At any instant, exactly three families of external forces act on it:

Thrust $\vec T$ — the engine's push (from the momentum of ejected gas + pressure).
Aerodynamic force — split into axial (drag-like, along the body) and normal (lift-like, across the body).
Gravity $\vec W = m\vec g$ — always toward Earth's centre.

WHY split aerodynamics into axial + normal instead of lift + drag? Because a rocket is a slender arrow that flies at an angle of attack $\alpha$ . Its skin, fins and nose "feel" force naturally along-the-body and across-the-body. Resolving in body axes makes structural loads and moments obvious.

1. What are the forces? (WHAT)

The angle of attack $\alpha$ is the angle between the body axis and the velocity vector. It is the KEY that connects "wind axes" (lift $L$ , drag $D$ ) to "body axes" (normal $N$ , axial $A$ ).

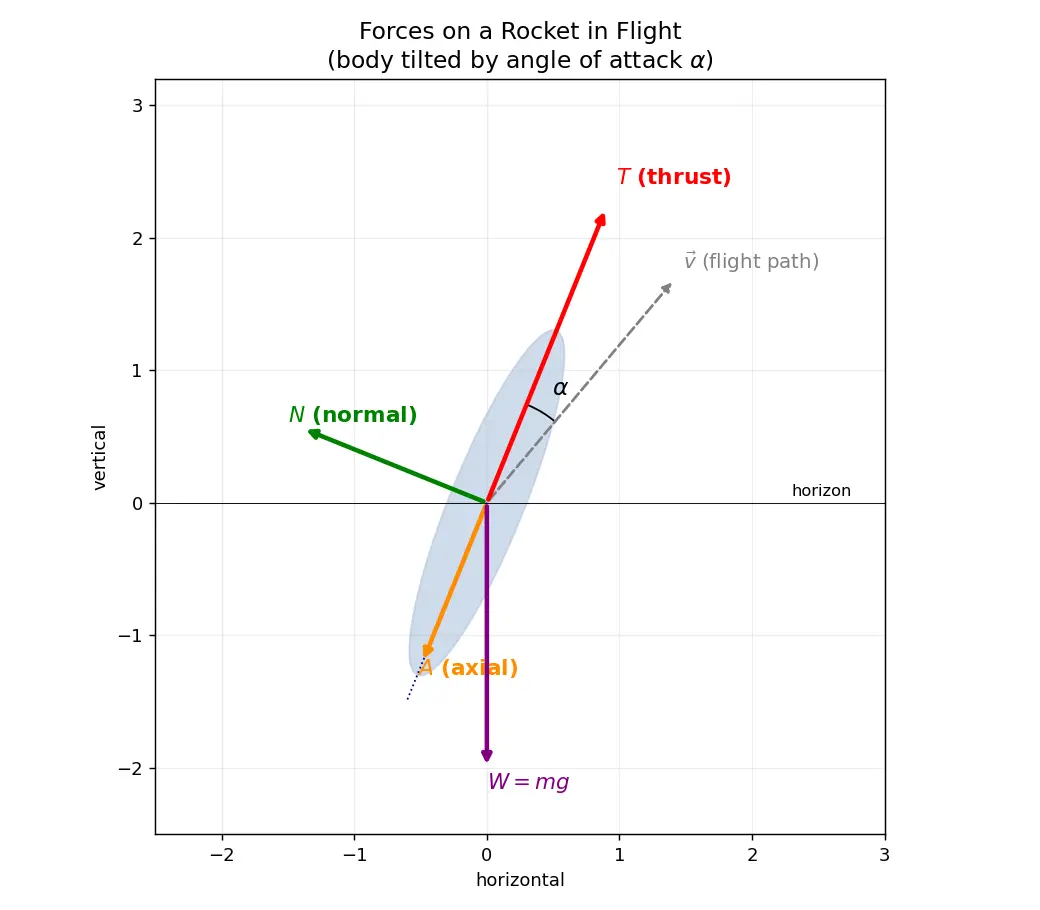

Figure — Forces on a rocket in flight — thrust, aerodynamic (normal, axial), gravity

2. Deriving thrust from first principles (HOW & WHY)

Start with momentum. In time $dt$ the rocket ejects mass $dm_p = \dot m\, dt$ at exhaust velocity $v_e$ (relative to rocket). Conservation of momentum for the (rocket + expelled gas) system with no external forces:

$m\,dv = v_e\,dm_p \quad\Rightarrow\quad m\frac{dv}{dt} = \underbrace{\dot m\, v_e}_{\text{momentum thrust}}$

Now add the pressure term. The gases leave through area $A_e$ at pressure $p_e$ ; ambient is $p_a$ . The net pressure force on the exit plane is $(p_e - p_a)A_e$ . Hence:

Define the effective exhaust velocity $c$ so that the whole thing is compact: $T = \dot m\, c,\qquad c = v_e + \frac{(p_e-p_a)A_e}{\dot m}$

3. Deriving the aerodynamic split (HOW)

The air produces one resultant aerodynamic force. In wind axes we call its components drag $D$ (opposite $\vec v$ ) and lift $L$ (perpendicular to $\vec v$ ). But the rocket body is tilted by $\alpha$ relative to $\vec v$ . Rotating from wind axes to body axes by angle $\alpha$ :

\begin{aligned} A &= D\cos\alpha + L\sin\alpha \quad(\text{axial, along body})\\ N &= L\cos\alpha - D\sin\alpha \quad(\text{normal, across body}) \end{aligned}

4. Full equation of motion (putting it together)

5. Worked examples

6. Common mistakes

7. Active recall

Recall Feynman: explain to a 12-year-old

Imagine you're on a skateboard holding a fire extinguisher. Spray it backward and you shoot forward — that's thrust. Now the extinguisher gets lighter as you spray, so you speed up faster and faster — that's changing mass. The wind pushing on you as you go has two parts: pushing straight back on your chest (axial, like drag) and pushing you sideways if you lean into it (normal, like lift). And the Earth always pulls you down (gravity). Add up all these pushes and you know exactly where you'll go.

Flashcards

What are the three families of external forces on a rocket in flight?

Thrust, aerodynamic (axial + normal), and gravity.

Write the full thrust equation and name each term.

T=\dot m v_e + (p_e-p_a)A_e

— momentum thrust plus pressure thrust.

Why does thrust increase with altitude?

Because

p_a

falls, so the pressure term

(p_e-p_a)A_e

grows.

Convert lift/drag to axial force.

A = D\cos\alpha + L\sin\alpha

Convert lift/drag to normal force.

N = L\cos\alpha - D\sin\alpha

When are axial force and drag equal?

Only at zero angle of attack,

\alpha=0

What is the tangential equation of motion?

m\,dv/dt = T\cos\alpha - D - mg\sin\gamma

What is the normal (turning) equation of motion?

m v\,d\gamma/dt = T\sin\alpha + L - mg\cos\gamma

What is dynamic pressure

q

q=\tfrac12\rho v^2

; aerodynamic forces scale as

q S C

Why must you use instantaneous mass in

F=ma

The rocket loses propellant, so

m(t)=m_0-\dot m t

decreases through the burn.

Connections

Tsiolkovsky Rocket Equation — integrates thrust to get $\Delta v$ .
Angle of Attack and Stability — where $N$ acts sets the pitching moment.
Gravity Turn Trajectory — the $mg\cos\gamma$ term steers the rocket.
Drag Coefficient and Mach Number — supplies $C_A, C_D$ .
Variable Mass Systems — the momentum derivation behind thrust.
Nozzle Expansion and Pressure Matching — explains the $(p_e-p_a)A_e$ term.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek rocket jab udta hai to uspe basically teen tarah ke forces lagte hain — yaad rakho TANG: Thrust, Axial, Normal, aur Gravity. Thrust engine ka dhakka hai jo gas ko peeche phenkne se milta hai (Newton ka third law). Iska formula hai $T=\dot m v_e + (p_e-p_a)A_e$ — pehla part gas ke momentum se, doosra part nozzle exit ke pressure difference se. Isliye same engine space mein zyada powerful hota hai, kyunki wahan $p_a$ zero ho jaata hai.

Aerodynamic force ko hum axial aur normal mein todte hain — kyunki rocket ek patla teer jaisa hota hai jo thoda tilt hokar (angle of attack $\alpha$ ) udta hai. Wind axes mein lift aur drag hote hain, par body ke along-across mein woh axial ( $A=D\cos\alpha+L\sin\alpha$ ) aur normal ( $N=L\cos\alpha-D\sin\alpha$ ) ban jaate hain. Yeh important hai kyunki fins aur structure ko yahi body-wise loads jhelne padte hain.

Gravity toh hamesha neeche kheenchti hai, magnitude $mg$ . Lekin trick yeh hai ki rocket ka $m$ ghatta rehta hai jaise fuel jalta hai — isliye $F=ma$ mein instantaneous mass $m(t)=m_0-\dot m t$ use karo, warna answer galat aayega. Burnout ke paas mass bahut kam ho jaata hai to acceleration ekdum tez badh jaati hai.

Final motion do equations se samjho: ek velocity ki magnitude change karti hai ( $m\,dv/dt = T\cos\alpha - D - mg\sin\gamma$ ), doosri direction badalti hai ( $mv\,d\gamma/dt = T\sin\alpha + L - mg\cos\gamma$ ). Yahi gravity turn ka raaz hai. Bas yeh chaar forces aur do equations pakke kar lo, poora rocket flight ismein aa jaata hai.
