This page assumes nothing. If you have never seen an arrow with a letter on it, a Greek letter, or a fraction with a dot on top, start here. We build each symbol from a picture, then show why the topic can't do without it. The three words "push" (force), "how much stuff" (mass), and "change of motion" (acceleration) are defined properly in §1, §5 and §6 before any equation uses them.
Why does a rocket need this? Because "the engine pushes with 500 kilonewtons" is useless until you also say which way. Push forward and you climb; push sideways and you tumble. Direction is half the story, so every force and motion here is a vector.

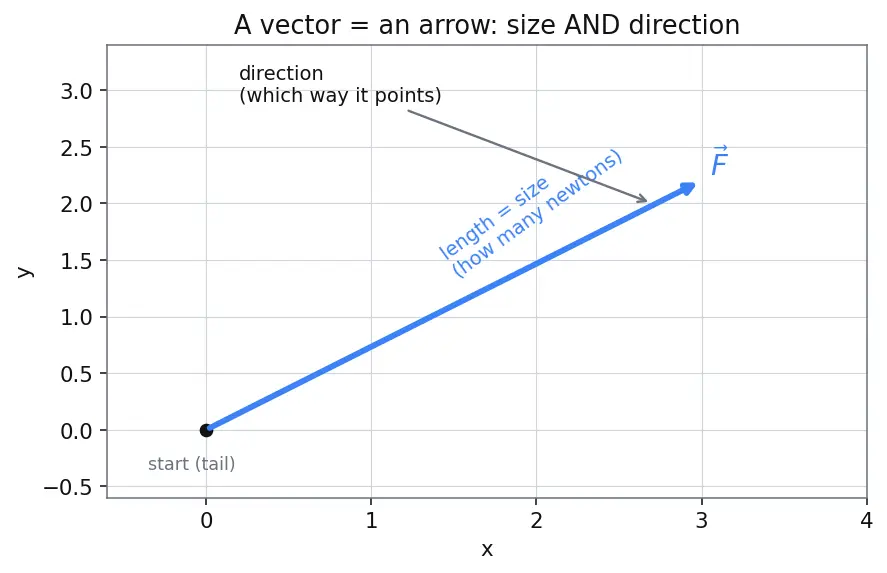

Figure s01 — a vector is an arrow: its length is the size, the way it points is the direction.
Look at the picture: the slanted force is exactly reproduced by its "along" part plus its "across" part. Nothing is lost — we just describe the same push using two easier numbers.

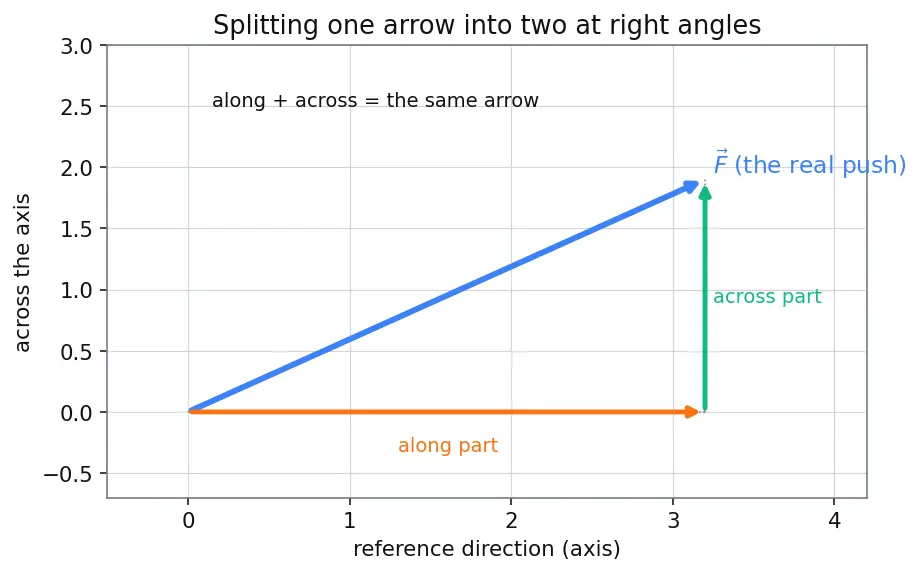

Figure s02 — the slanted blue push equals its orange "along-axis" part plus its green "across-axis" part; the two components add back to the original arrow.
Why the topic needs it: the air's single push is awkward. Split it into "along the rocket's body" and "across the rocket's body" and suddenly you know what the airframe must withstand. That is exactly what axial and normal force are — the two components of the air's push in body axes.
We measure how much an arrow is tilted using an angle. To turn an angle into the length of each component, we need two ratios from a right triangle.

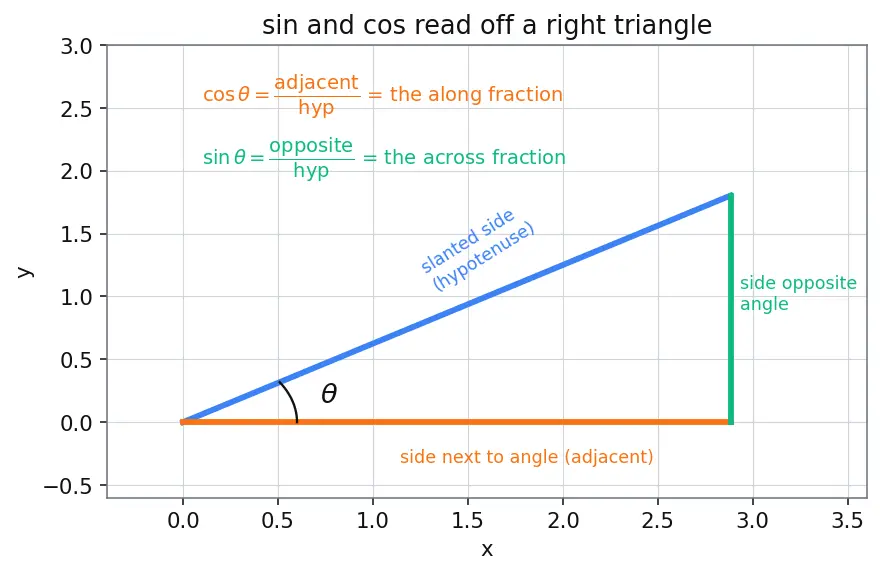

Figure s03 — sine and cosine read straight off a right triangle: cosine pairs with the orange side touching the angle (the "along" part), sine with the green side opposite it (the "across" part).
The parent page uses three separate directions. Confusing them is the number-one trap, so we picture all three at once.

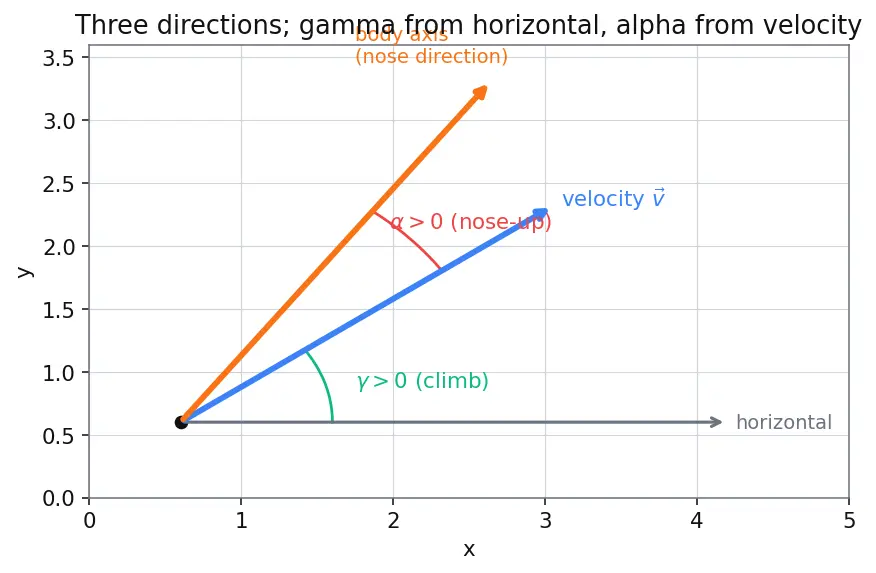

Figure s04 — the three directions and two angles: green γ is measured up from the horizontal to the velocity; red α is measured from the velocity up to the body axis (nose above the flight path). Both are positive as drawn.
Why the topic needs both: α decides how the air splits its push (no tilt into the wind, no sideways "lift"). γ decides how much of gravity fights your climb versus curves your path. They are different angles measuring different things — never mix them.
Picture a rocket climbing: if the arrow v gets longer over time, that is acceleration along the path (speeding up). If v merely rotates, that is acceleration across the path (turning). The parent page splits Newton's law into exactly these two — a magnitude equation and a turning equation — because acceleration has these two faces.
Now that force (§1), mass (below) and acceleration (§5) each have a plain-words meaning and a picture, we may finally write the law that ties them together.
Here ==m is the mass==: how much "stuff" the rocket contains, in kilograms — a measure of how hard it is to accelerate. This single equation is the engine of the whole topic; everything else is just working out what each force in F is.
The map below reads top to bottom: each box is a foundation from this page, and the arrows show which idea feeds which. Trace any path and you see the build order — vectors and angles feed the component split (giving axial/normal); mass and the rate-of-change dot feed the variable-mass idea (giving the thrust equation); and all of these, plus Newton's law and weight, pour into the full equation of motion, which is the parent topic.
